Product Details
| Special Message | With O-Ring Groove |
|---|---|
| Data Sheet | Download Datasheet |
| Usually Ships Within | 5 Days |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 61 |
| Flange Size | 0.75 (3/4") |
| Pressure Rating | 5000 |
| Sae Connector Flange Type | Blanking Flange |
| Fitting Angle | Straight |
| Face Style | O-Ring |
| Country of Manufacture | China |
| Height | 0.75 |
| Length | 2.06 |
| Width | 2.56 |
| Side 1 Type | Blanking Flange |
Description

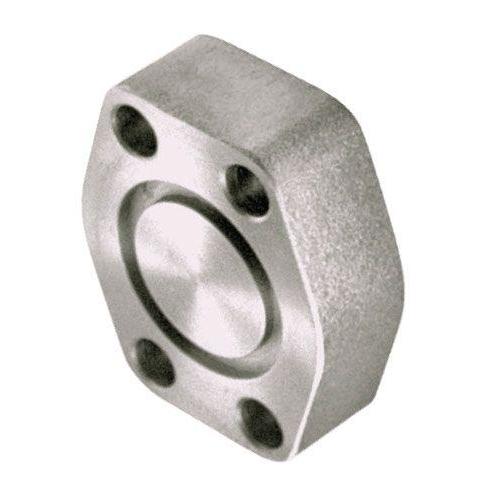

Anchor Fluid Power Series W36 (Code 61) and W38 (Code 62) Blanking Flanges are designed to seal the ends of pipelines or fittings, ensuring a leak-free connection in high-pressure systems. Code 61 flanges have a thinner design and are suitable for applications up to 3,000 psi, while Code 62 flanges feature a thicker construction, making them suitable for systems up to 6,000 psi. The thicker design of Code 62 provides additional strength and durability for higher pressure applications, making these flanges essential for reliable performance in demanding hydraulic systems.
