Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Peachtree City, GA |
| Installation & Maintenance Manual | |
| Solid Model | |
| Service Manual Download | |
| Material | Plastic |
| Port Size | 1" Male NPT |
| Diameter | 4.76 |
| Desiccant style | Refillable |
| For Use With | Filling Adapter 08.2112.27, Flange Adapter 08.2122.01, Sunction Lance 08.2100.27 |
| Adapter Plate Option | No Adapter Plate |
| Indicator Option | Color Changing |
| Drying Agent | GIEBEL Xdry and Carbon |
| Check Valve Option | No Check Valve |
| Micron | 3 Micron |
| O Ring Seals | FKM Viton |
| Series | VV-R |
| Nominal Capacity | 3.55oz Color Changing Capacity |
| Country of Manufacture | Germany |
| Height | 4.76 |
| Length | 6.77 |
| Width | 4.76 |
| Weight | 2.0 |
Description

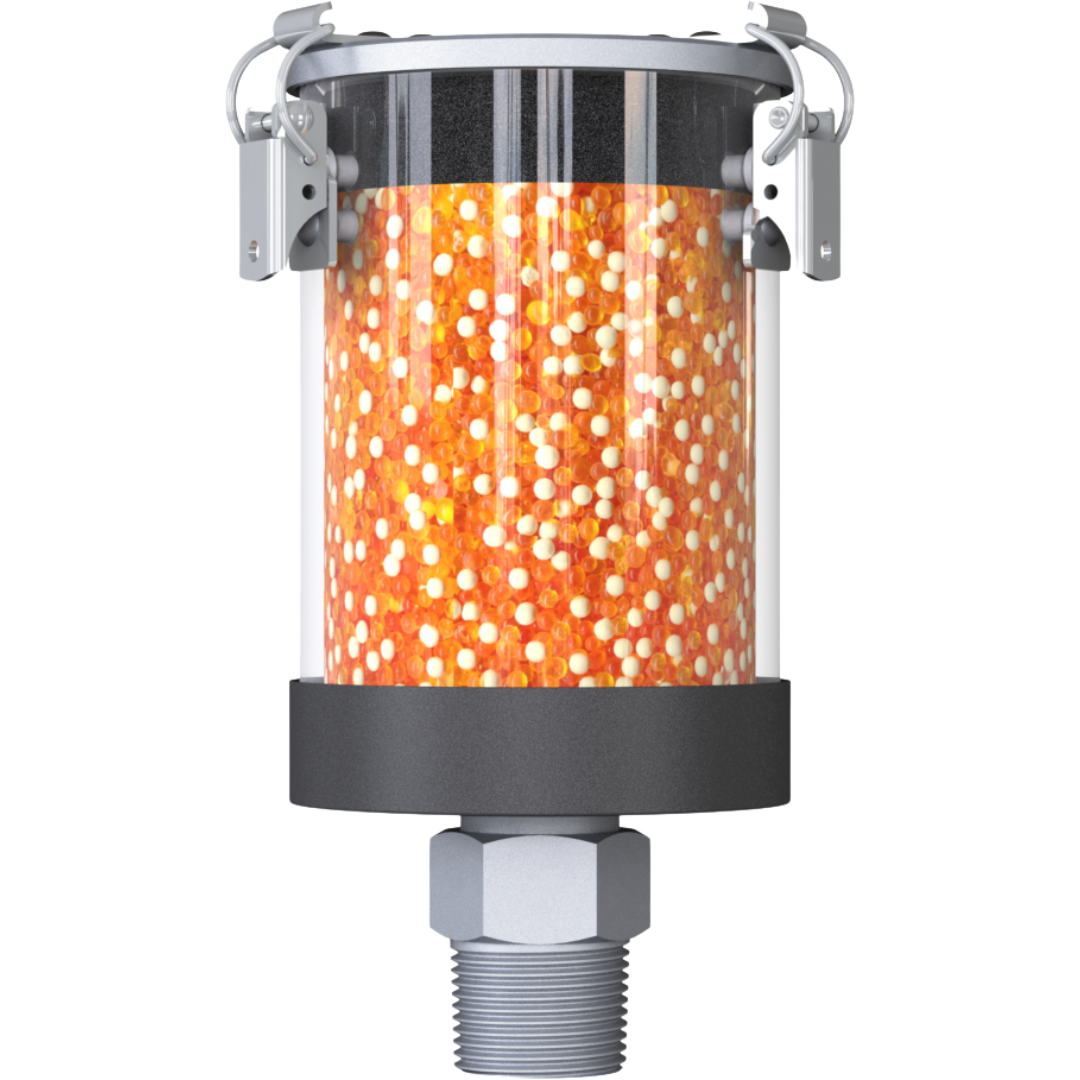

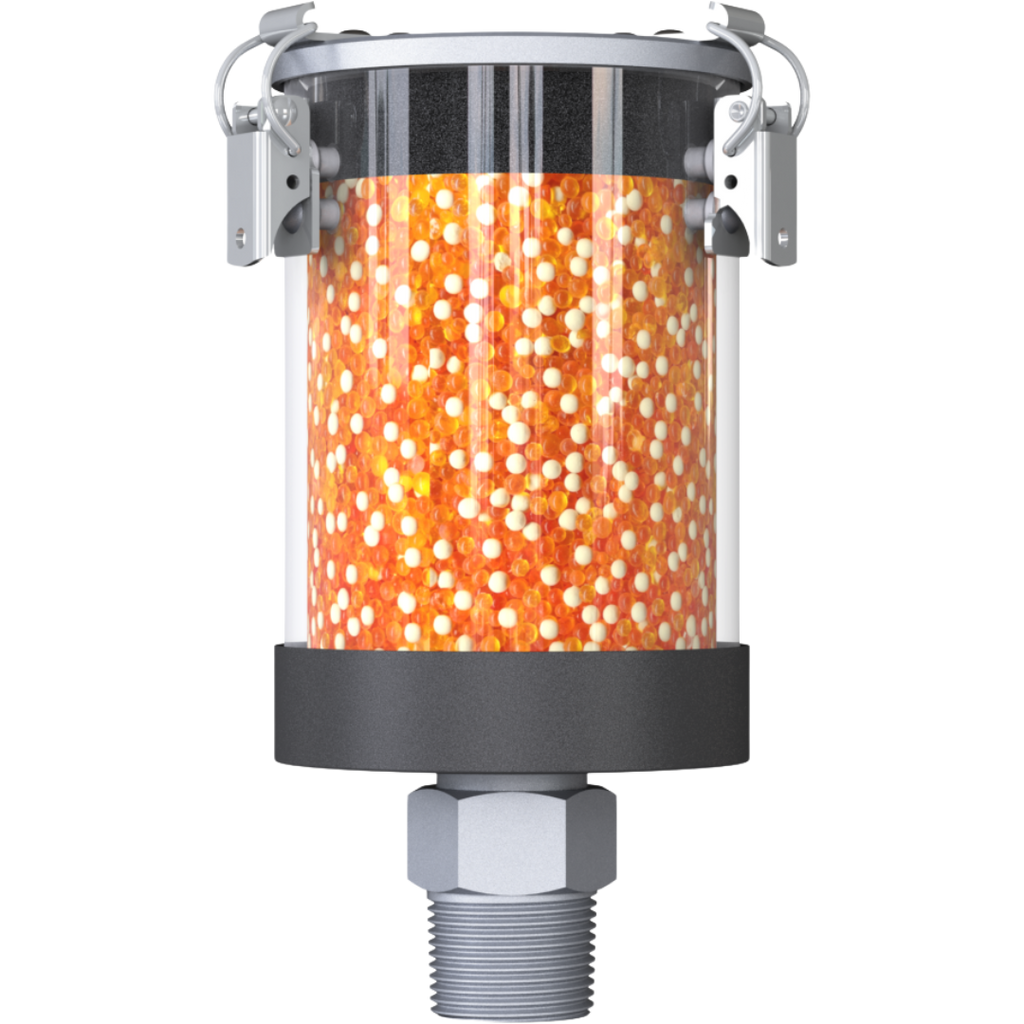

The Series VV-R Desiccant Breather Dryer is a refillable moisture protection solution designed for hydraulics, gears, barrels, IBCs, and mobile machinery in both indoor and outdoor environments. This dryer ensures constant air exchange with minimal downtime, safeguarding equipment against moisture damage. Its durable plastic housing is filled with GIEBEL Xdry desiccant and includes a 3μm filter for efficient air drying and cleaning. An activated carbon layer adsorbs oil mist to protect the desiccant and environment from contamination. When the desiccant reaches saturation, the inner components can be replaced at a low cost, making the system cost-effective and easy to maintain. The refillable design reduces waste while providing long-lasting, reliable protection.
