Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5-7 Days |
| Factory Stock | 10 |
| Factory Location | Louisville, Kentucky |
| Port Size | 1/4" ISO G |
| O Ring Seals | Nitrile rubber |
| Pressure Rating | 200 |
| Operating Temp Range | 32 to 122 F |
| Valve Series | VP50 |
| Body Material | Zinc |
| Pressure Range | 0 to 90psi |
| Service Parts | 0250081000000000 Connector with Cable M12 x 1.5 pin; 16 ft 5 x 0.34 mm2, 0250472000000000 Connector with Cable M12 x 1.5 pin; 30 ft 5 x 0.34 mm2, ZZ5M00 Manifold Mounting Kit |
| Flow Flow Litresperminute | 1400l/min |
| Control Signal | 4-20mA |
| Protection Class | NEMA 4 |
| Electrical Connector | M12x1 5-pin |
| Country of Manufacture | United Kingdom |
| Height | 2.13 |
| Length | 3.85 |
| Width | 1.97 |
| Weight | 1.76 |
Description

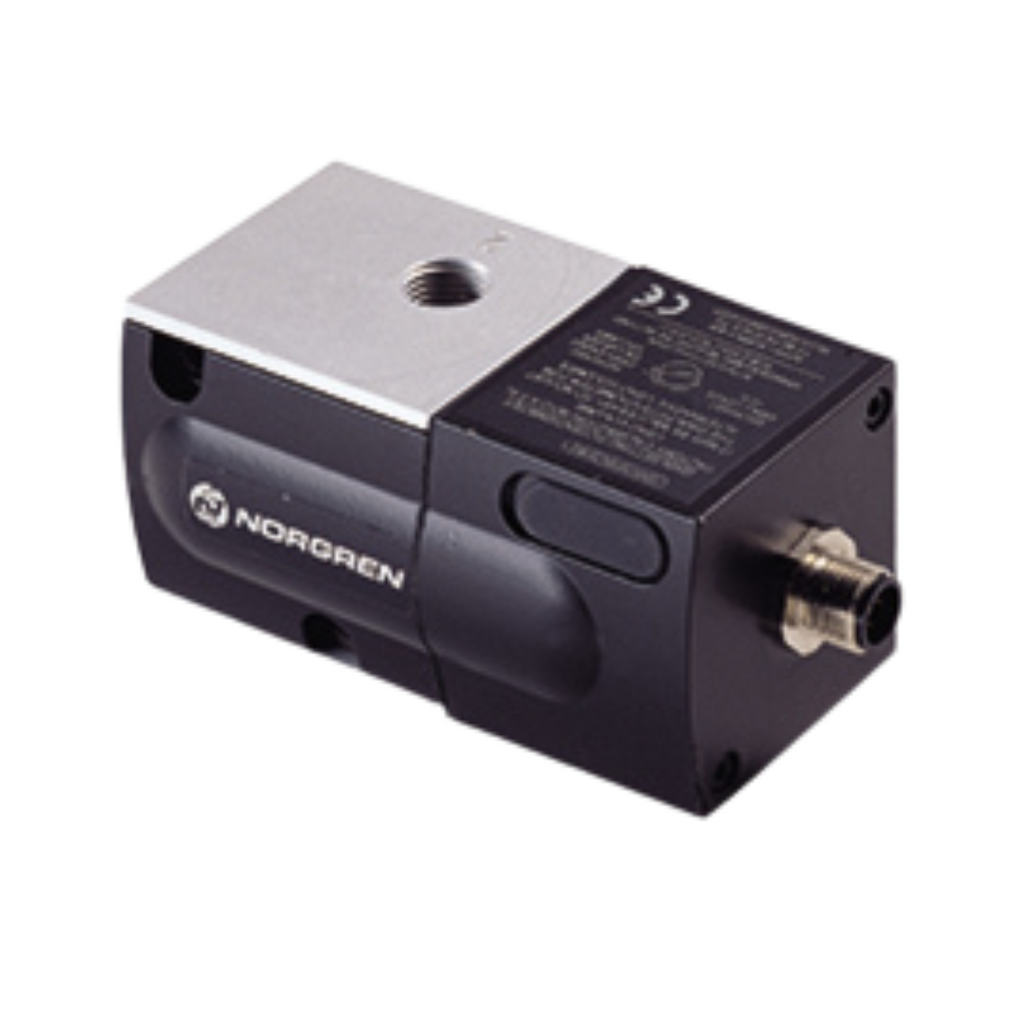

The Norgren VP50 is an air piloted proportional pressure control valve, fully user adjustable for a wide range of applications. With high speed, low power consumption, high flow capacity and an optional manifold mount design, this valve is ideal for all your proportional pressure control needs.
