Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Houston, TX |
| Flow Rating | 13.2 |
| Pressure Rating | 4640 |
| Temperature Range | -4F to +122F |
| Cartridge Cavity | C-10-2 |
| Weight | 1 |
Description

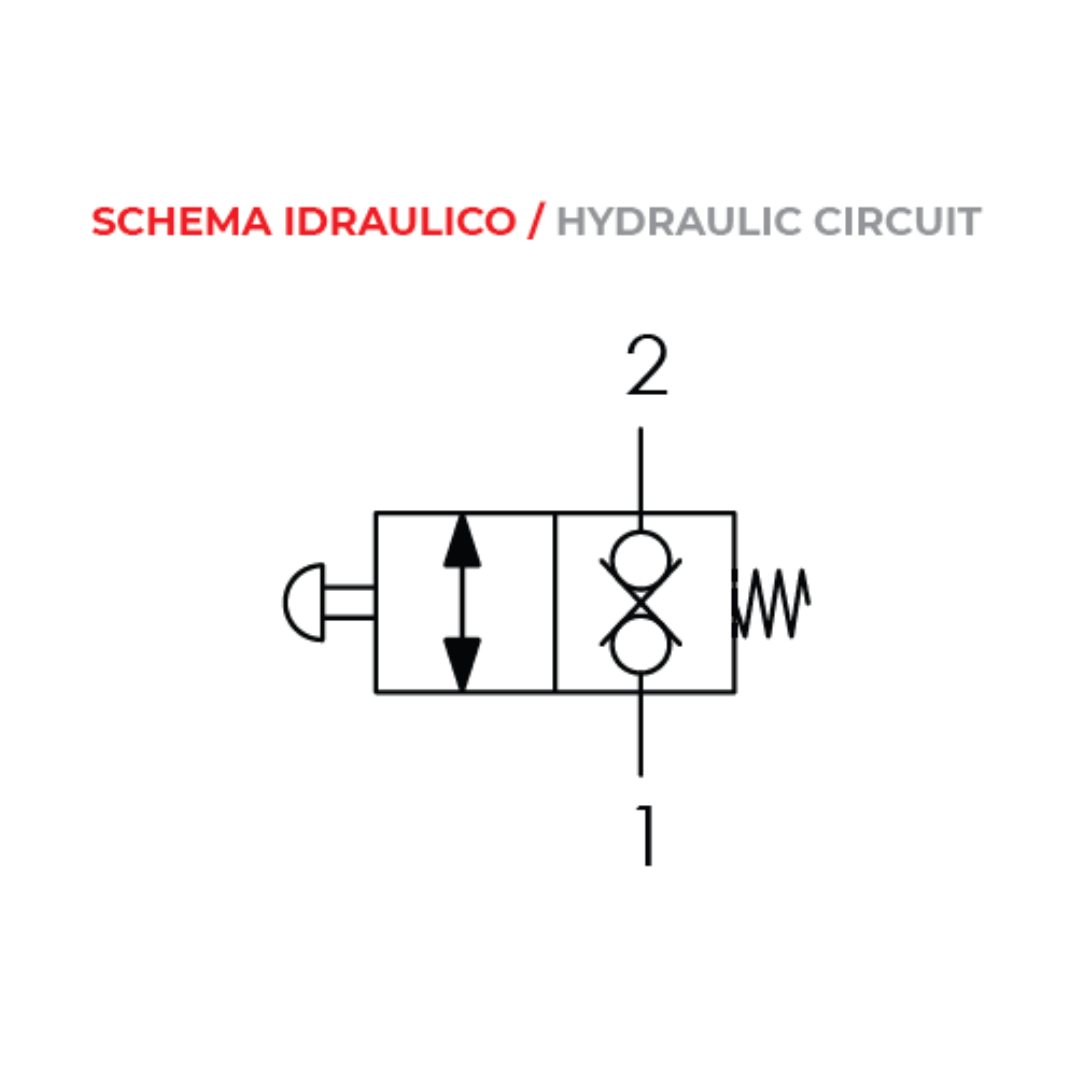

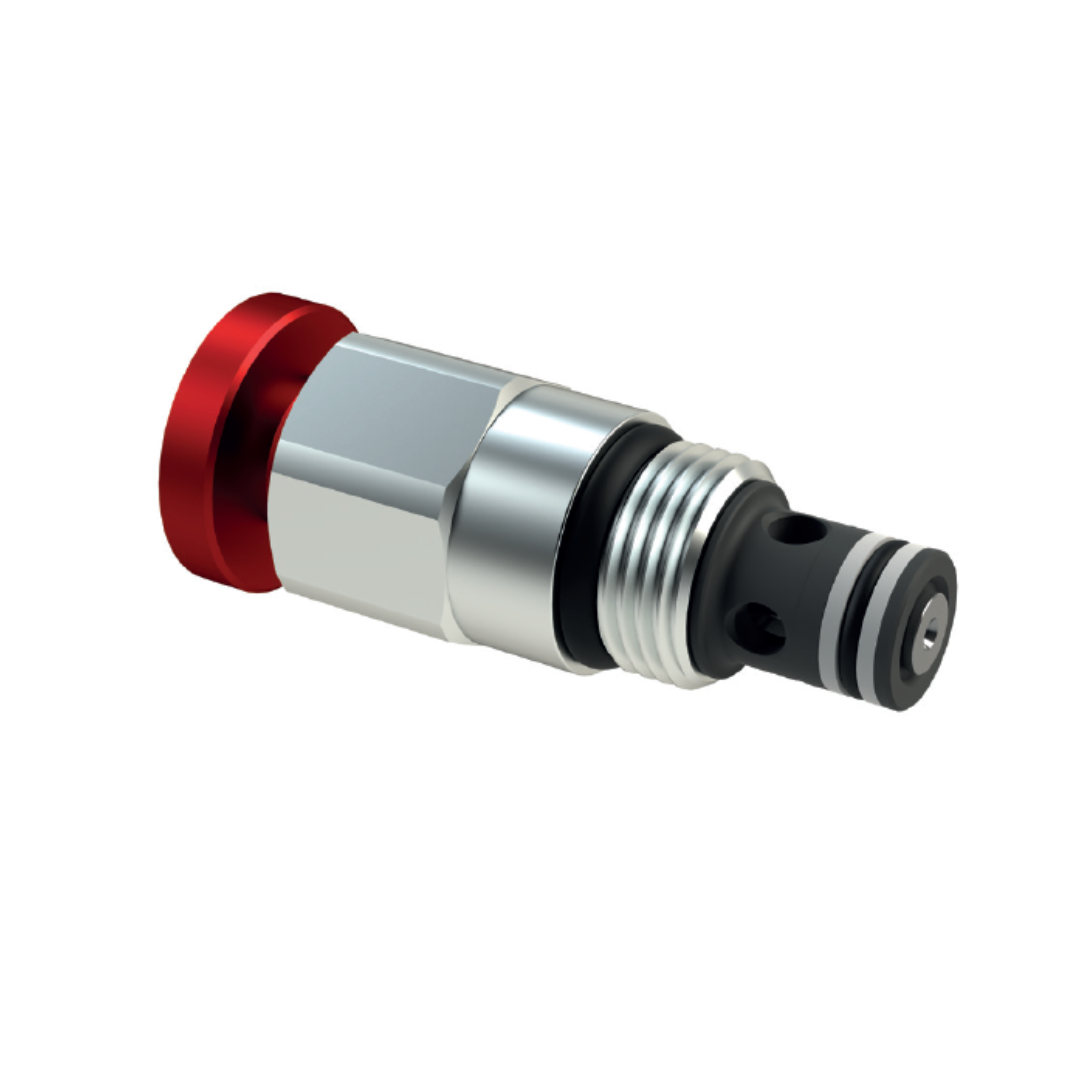

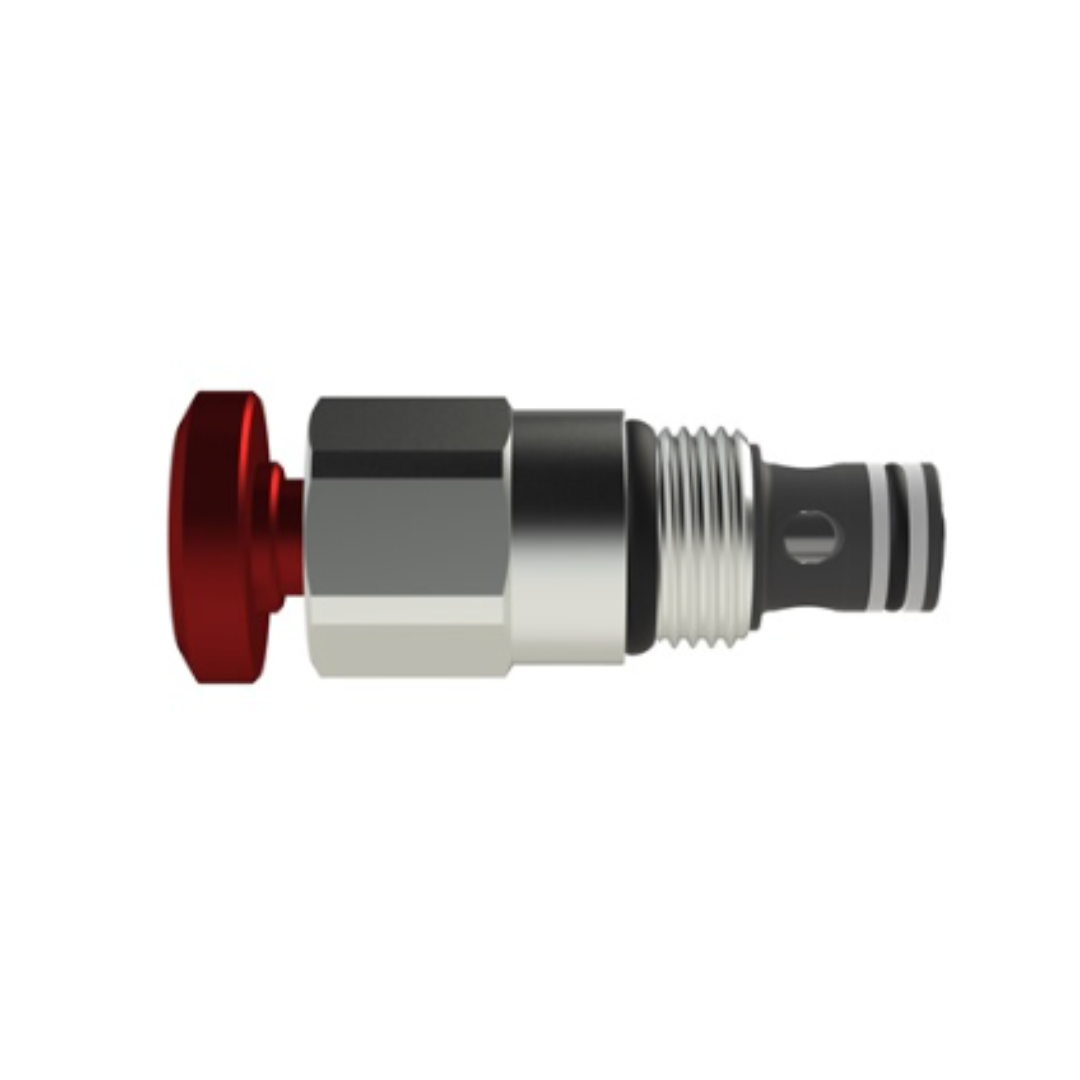

The manual acting opens the valve VEM, allowing the oil flow in both directions. The valve is normally closed and opens by pushing the button on the top of the cartridge. The return in closed position is assured thanks to a spring once released the pushbutton. Emergency valves VEM are available with sizes SAE8 (cavity 3/4-16 UNF) and SAE10 (cavity 7/8-14UNF) for recommended working flow up to 50 l/min (13,2 USgpm). Maximum working pressure is 320 bar. The valves series VEM are leakproof valves. A steel poppet, hardened and grinded avoid leakages in both directions. The external components are built with steel and protected against the corrosion with zinc plating treatment. For application with extremely aggressive corrosive agents (e.g. marine applications) the protection can be improved with Zinc-Nickel plating. Emergency pushbutton is built with aluminum and is protected with red anodization.
