Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 1 |
| Factory Location | Greenwood, Indiana |
| Shaft Size | 5/8" Bore x 5/32" Key |
| Shaft Type | Keyed |
| Pressure Rating | 2030 |
| Rotation | Clockwise |
| Displacement | 8 |
| Gpm At 1800 Rpm | 3.94 |
| Max Speed | 1800 |
| Inlet Port | #8 SAE (1/2") |
| Outlet Port | #6 SAE (3/8") |
| Mount | SAE A 2-Bolt |
| Drain Port | #4 SAE (1/4") |
| Port Orientation | Side Ported |
| Country of Manufacture | Japan |
| Height | 7.4 |
| Length | 4.65 |
| Width | 4.92 |
| Weight | 9.9 |
Description

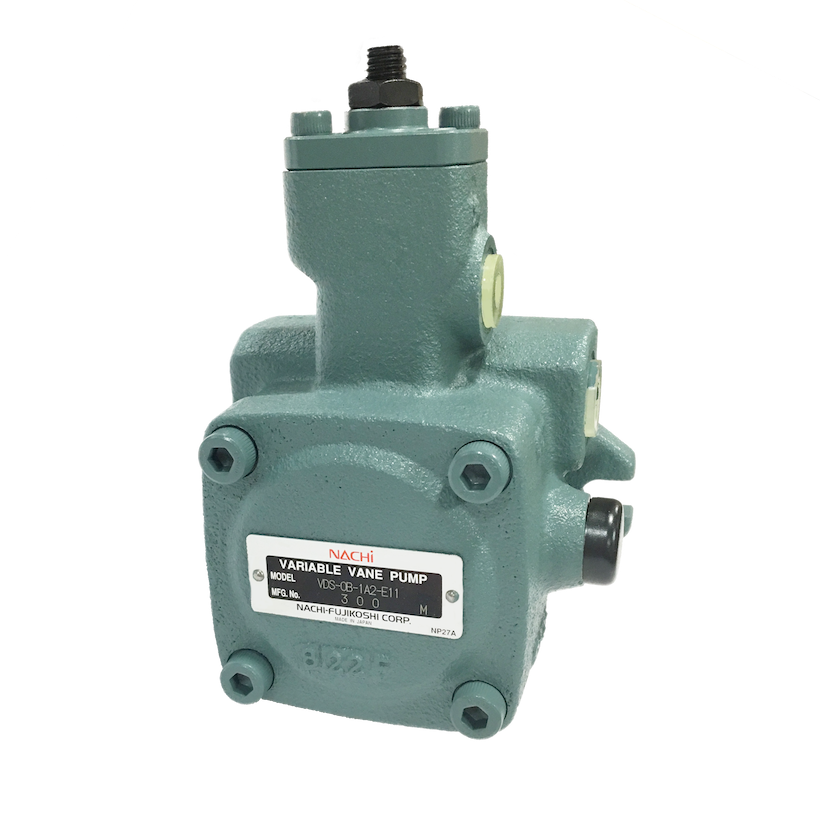

The Nachi VDS vane pump offers stable, highly efficient operation up to 2030psi. A biased piston that minimizes ring vibration and leak-free pressure balance construction enables highly efficient high pressure operation. This pump offers silent operation, even in the highest pressure range, as well as reduced power loss. The tough and rugged construction of this pump is made possible by Nachi's long history of quality pump designs.
