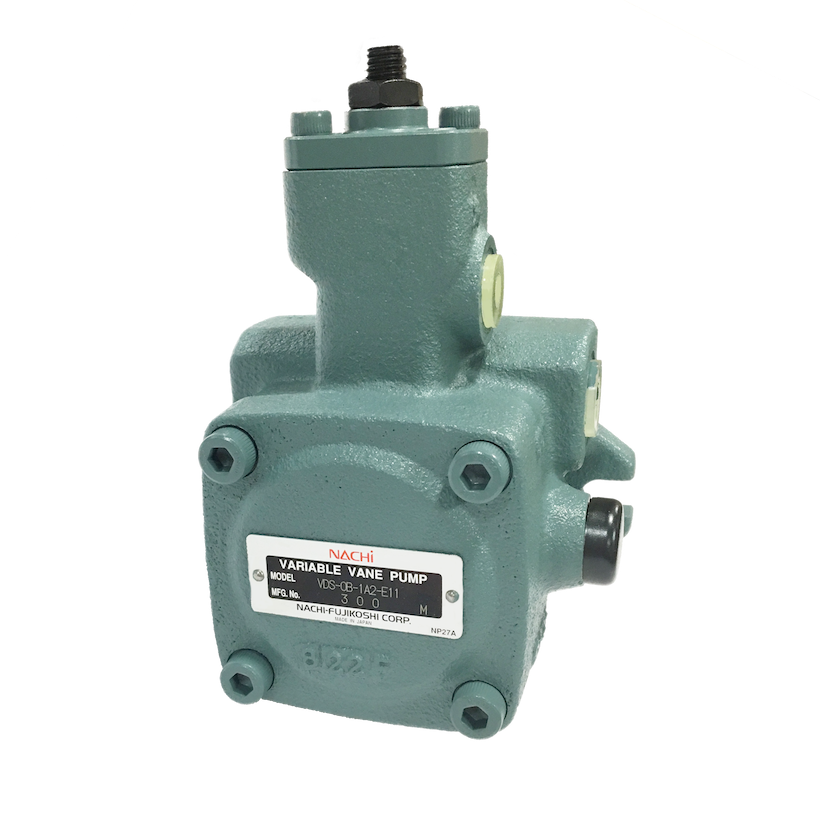

VDS-0B-1A3-E11 : Nachi VDS Variable Volume Vane Pump, SAE A 2-Bolt, 8cc, 3.94GPM, 435 to 1015psi Range

Save $138.01
NachiSKU: VDS-0B-1A3-E11
1-3 Days
59

Price:
Sale price$516.99 Regular price$655.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Stock 59
Factory Location Greenwood, Indiana
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Pressure Rating 2030
Rotation Clockwise
Displacement 8
Gpm At 1800 Rpm 3.94
Max Speed 1800
Inlet Port #8 SAE (1/2")
Outlet Port #6 SAE (3/8")
Mount SAE A 2-Bolt
Pressure Range 435 to 1015psi
Drain Port #4 SAE (1/4")
Port Orientation Side Ported
Country of Manufacture Japan
Height 7.4
Length 4.65
Width 4.92
Weight 9.9

Description

The Nachi VDS vane pump offers stable, highly efficient operation up to 2030psi. A biased piston that minimizes ring vibration and leak-free pressure balance construction enables highly efficient high pressure operation. This pump offers silent operation, even in the highest pressure range, as well as reduced power loss. The tough and rugged construction of this pump is made possible by Nachi's long history of quality pump designs.
