Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 4 |
| Factory Location | Greenwood, Indiana |
| Shaft Size | 1" Bore x 3/16" Key |
| Shaft Type | Keyed |
| Pressure Rating | 2000 |
| Rotation | Clockwise |
| Displacement | 38 |
| Gpm At 1800 Rpm | 18.4 |
| Max Speed | 1800 |
| Inlet Port | #16 SAE (1") |
| Outlet Port | #12 SAE (3/4") |
| Mount | SAE B 2-Bolt |
| Pressure Range | 290 to 1000psi |
| Drain Port | #4 SAE (1/4") |
| Port Orientation | Side Ported |
| Country of Manufacture | Japan |
| Height | 6.77 |
| Length | 10.61 |
| Width | 8.84 |
| Weight | 55 |
Description

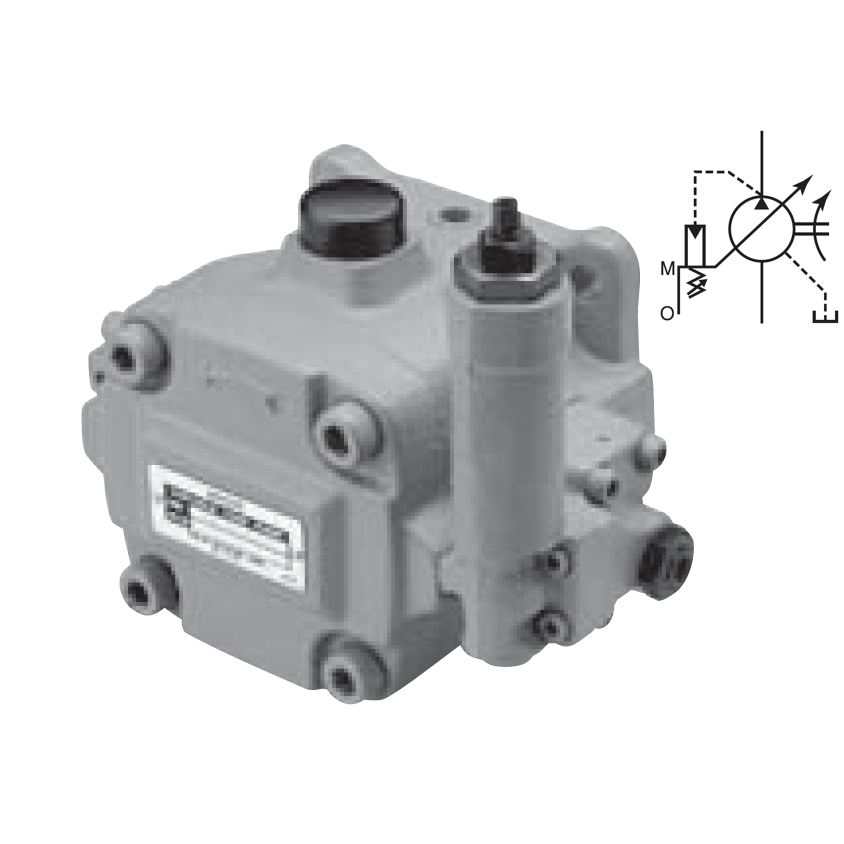

The Nachi VDC vane pump offers highly efficient and stable high-pressure operation up to a peak pressure of 3000psi. Innovative pressure control and pressure balance mechanisms combine with an original 3-point ring support system to dramatically improve high-pressure performance of these pumps.
