Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Greenwood, Indiana |
| Horsepower | 2.2 |
| Pressure Rating | 2000 |
| Displacement | 16.06 |
| Gpm At 1800 Rpm | 7.6 |
| Inlet Port | 3/4" BSPT |
| Outlet Port | 1/2" BSPT |
| Pressure Range | 797 to 1160psi |
| Drain Port | 1/4" BSPT |
| Country of Manufacture | Japan |
| Height | 9.37 |
| Length | 14.78 |
| Width | 7.87 |
| Weight | 57 |
Description

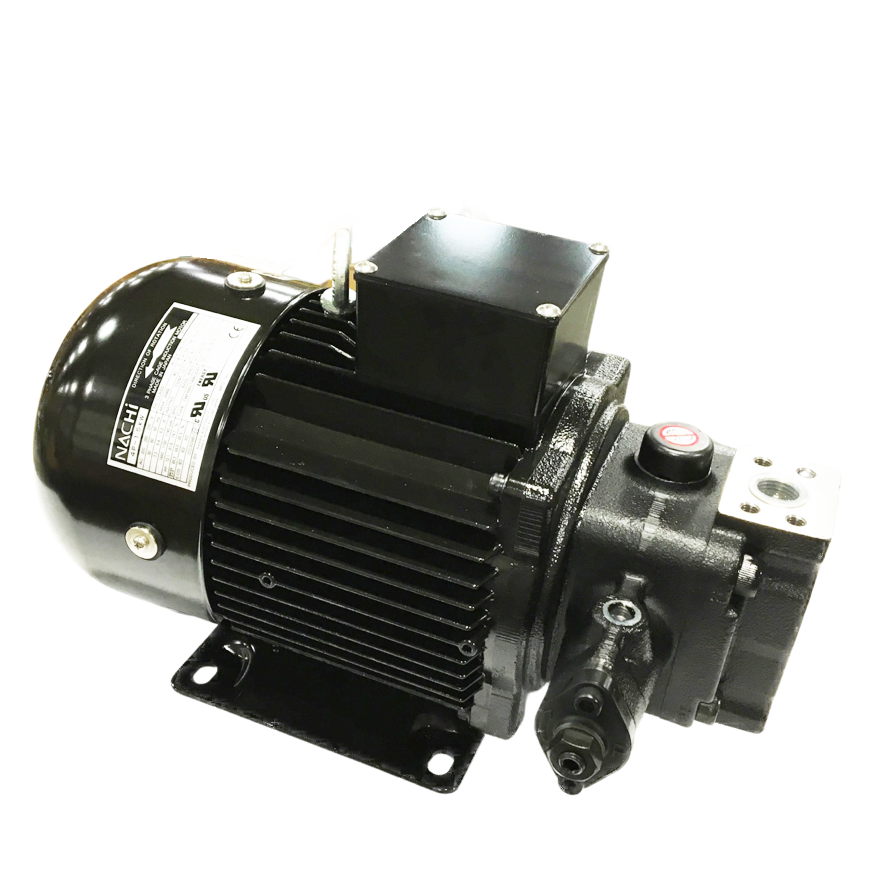

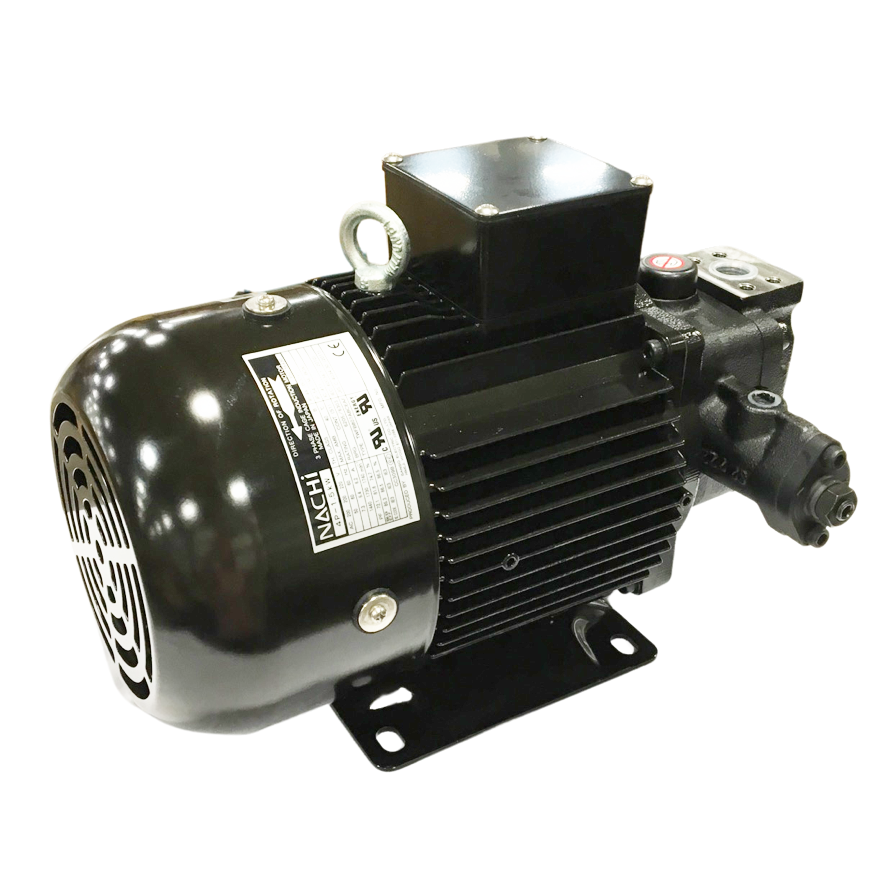

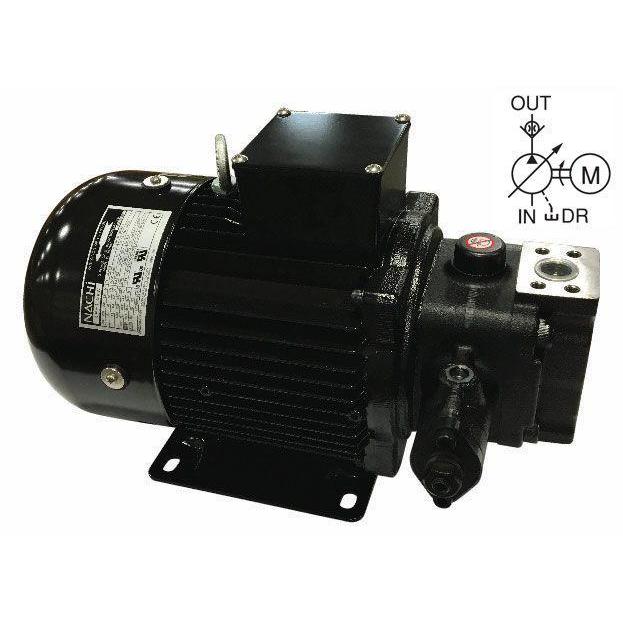

The popular Nachi UVN vane pumps are often found on Nachi hydraulic power units. These energy efficient, high performance pumps have all the performance qualities of a vane pump, but are enhanced by eliminating the external drain and optimizing the pressure balance, creating a design that generates little heat. The pump and motor are designed for exclusive uni-pump use, making them lightweight, compact, and easy to handle. The pump and motor shaft are linked by a joint, which minimizes noise by eliminating the effects of shaft vibration and an off-center shaft. The coupling is constructed to allow contant lubrication, for a friction-free long life.
