Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 4-6 Weeks |
Factory Location | Greenwood, Indiana |
Horsepower | 1.5 |
Pressure Rating | 2000 |
Displacement | 16.06 |
Gpm At 1800 Rpm | 7.6 |
Inlet Port | 3/4" BSPT |
Outlet Port | 1/2" BSPT |
Pressure Range | 797 to 1160psi |
Drain Port | 1/4" BSPT |
Country of Manufacture | Japan |
Height | 8.58 |
Length | 13.58 |
Width | 6.69 |
Weight | 46 |
Description

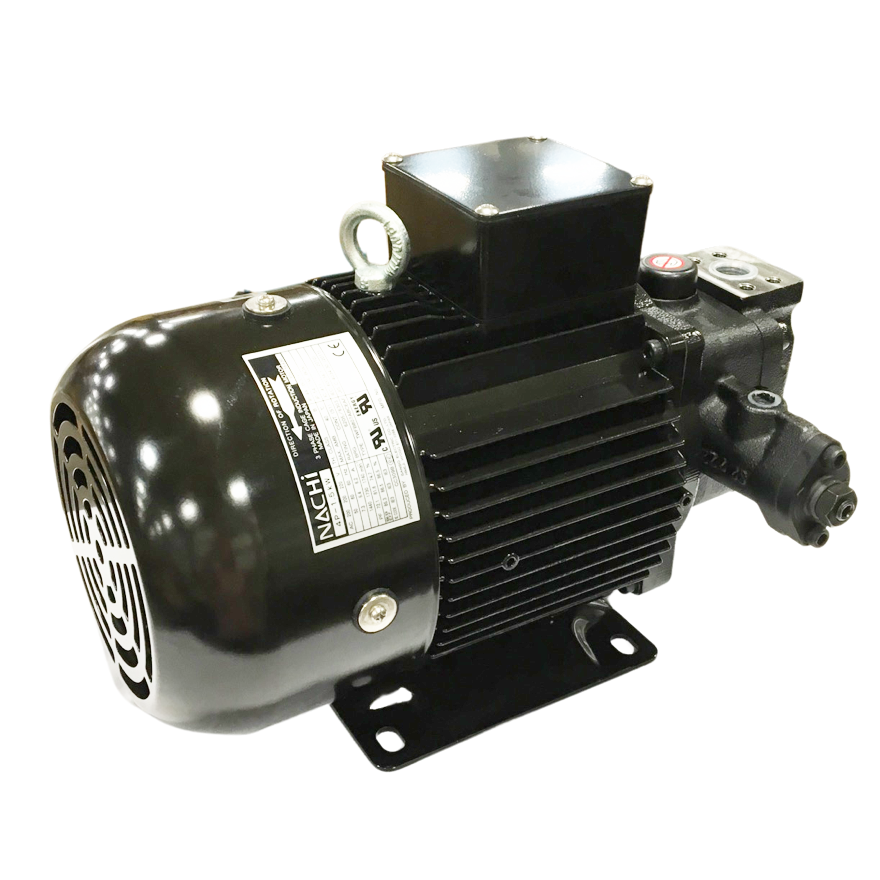

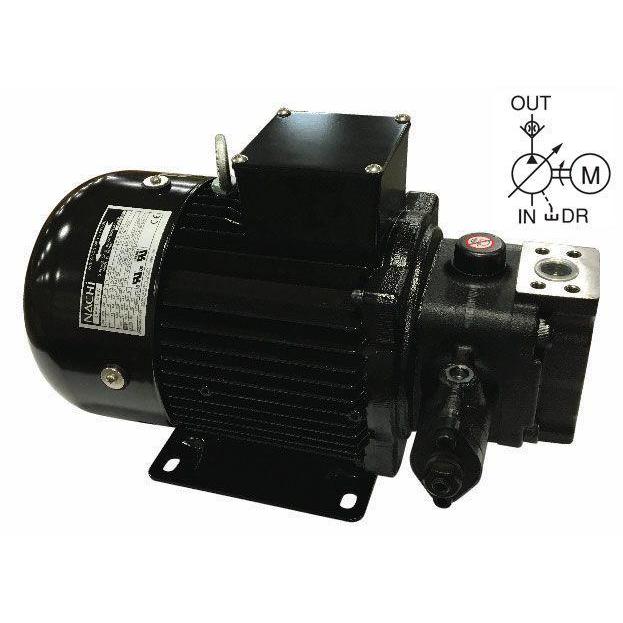

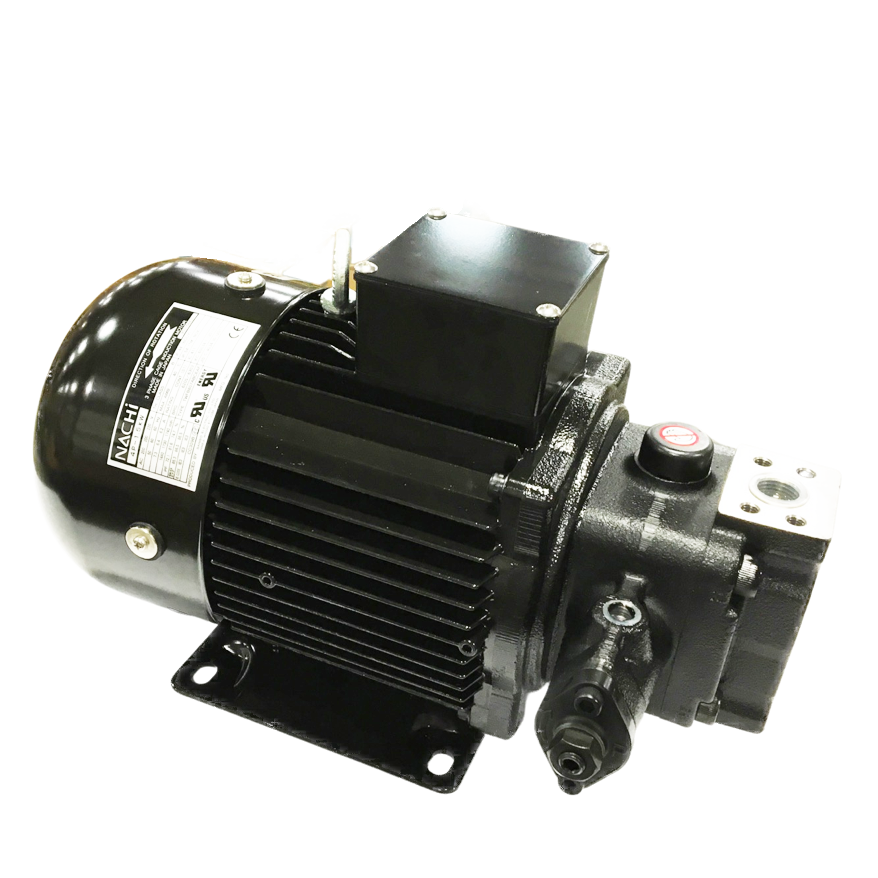

The popular Nachi UVN vane pumps are often found on Nachi hydraulic power units. These energy efficient, high performance pumps have all the performance qualities of a vane pump, but are enhanced by eliminating the external drain and optimizing the pressure balance, creating a design that generates little heat. The pump and motor are designed for exclusive uni-pump use, making them lightweight, compact, and easy to handle. The pump and motor shaft are linked by a joint, which minimizes noise by eliminating the effects of shaft vibration and an off-center shaft. The coupling is constructed to allow contant lubrication, for a friction-free long life.
