|Data Sheet||Download Datasheet|
|Usually Ships Within||4-6 Weeks|
|Factory Location||Greenwood, Indiana|
|Gpm At 1800 Rpm||3.8|
|Inlet Port||3/4" BSPT|
|Outlet Port||1/2" BSPT|
|Pressure Range||797 to 1160psi|
|Drain Port||1/4" BSPT|
|Country of Manufacture||Japan|

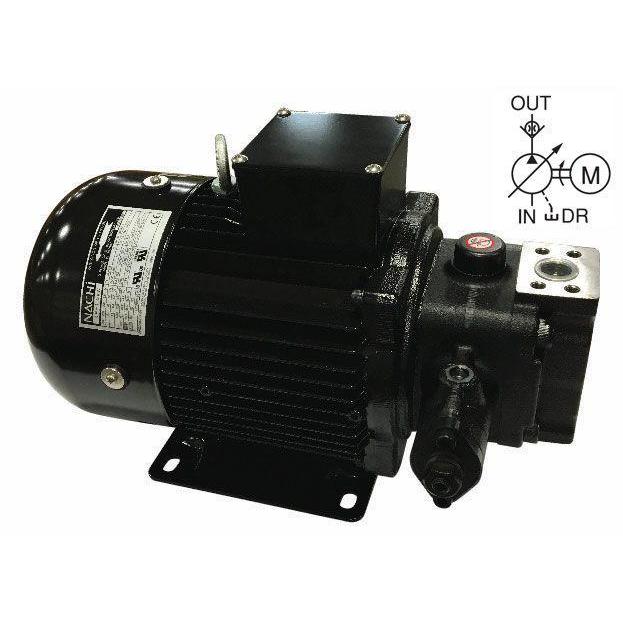

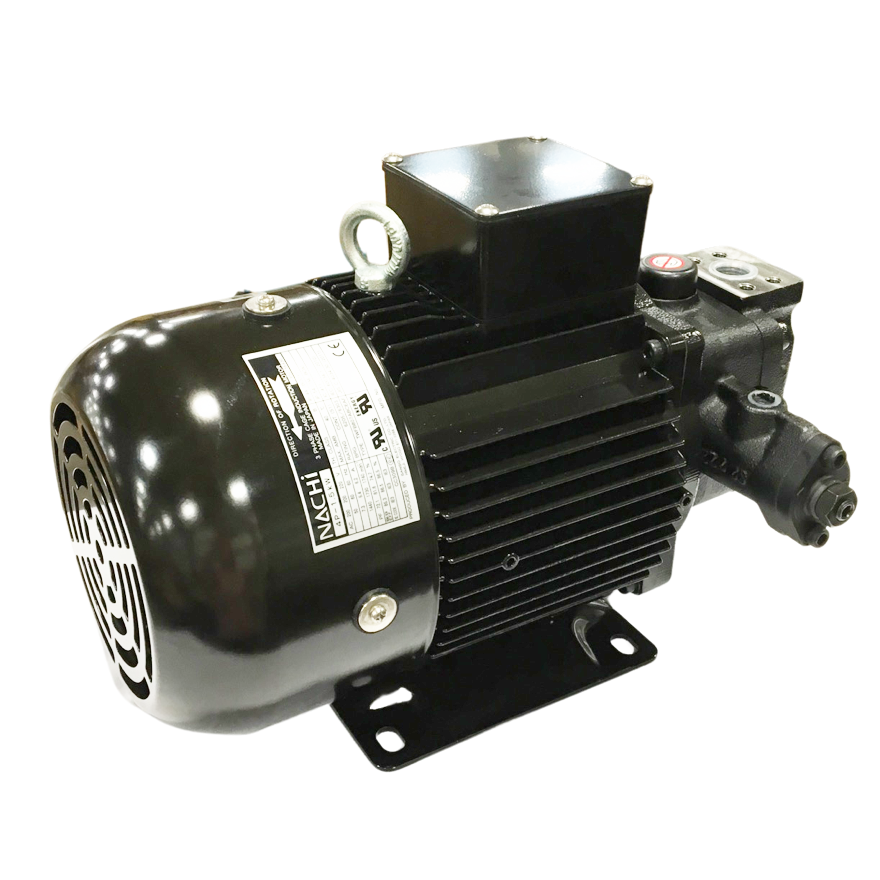

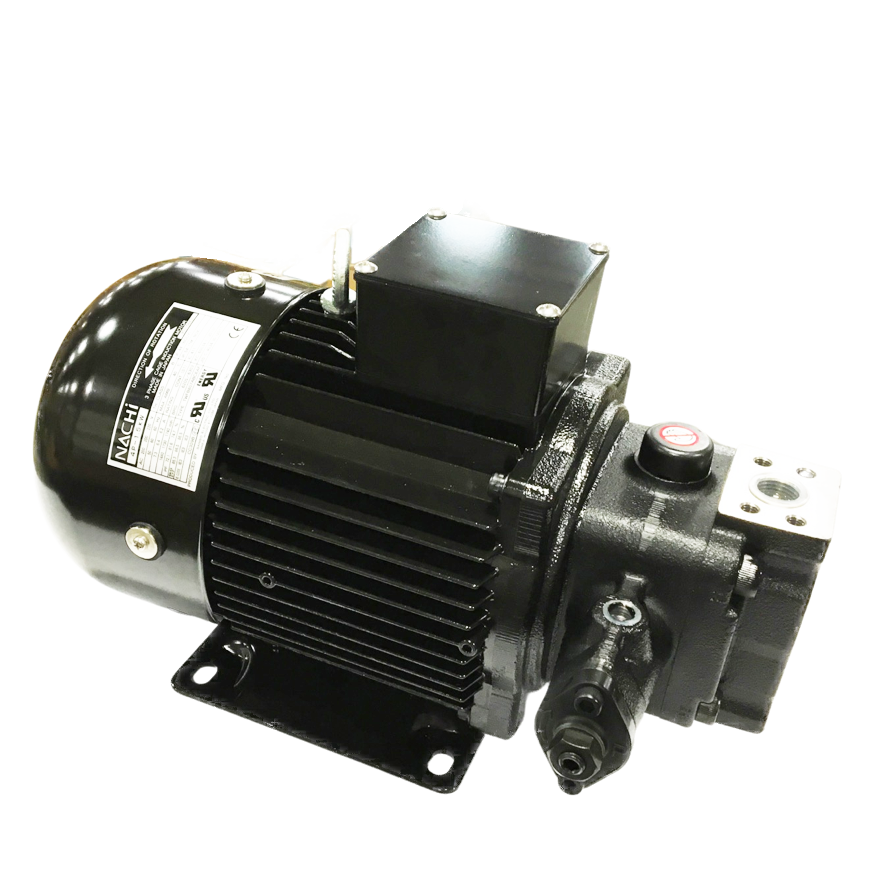

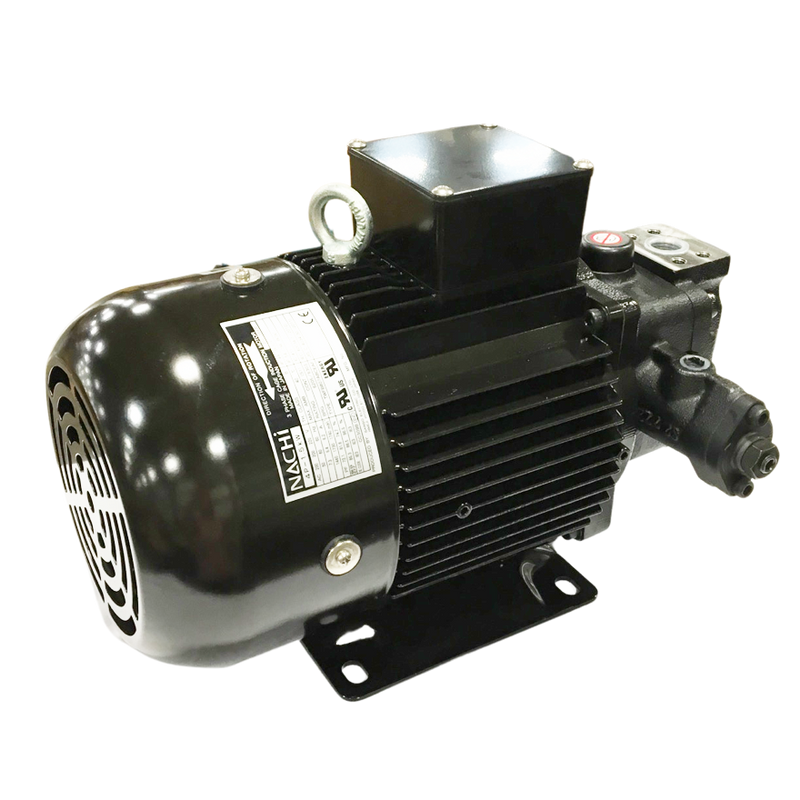

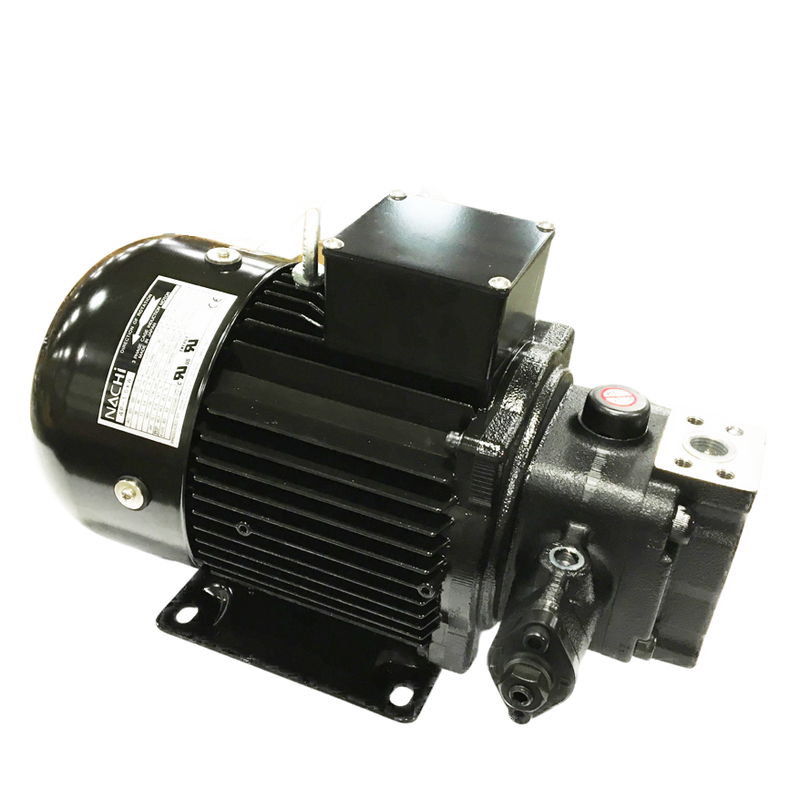

The popular Nachi UVN vane pumps are often found on Nachi hydraulic power units. These energy efficient, high performance pumps have all the performance qualities of a vane pump, but are enhanced by eliminating the external drain and optimizing the pressure balance, creating a design that generates little heat. The pump and motor are designed for exclusive uni-pump use, making them lightweight, compact, and easy to handle. The pump and motor shaft are linked by a joint, which minimizes noise by eliminating the effects of shaft vibration and an off-center shaft. The coupling is constructed to allow contant lubrication, for a friction-free long life.
