Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Oil-Resistant Synthetic Rubber |
| Pressure Rating | 625 |
| Inside Diameter | 1-1/4 (-20) |
| Hose Outside Diameter | 1.5 |
| Burst Rating | 2500 |
| Bend Radius | 9 |
| Tube Material | Oil-resistant synthetic rubber |
| Reinforcement Material | One high tensile steel braid |
| Cover Material | Polyester textile braid |
| Hose Type | One-Wire High Temp Braid Hose |
| Series | TR5HT-IN |
| Country of Manufacture | Italy |
| Height | 1.5 |
| Length | 1 |
| Width | 1.5 |
| Weight | 0.05 |
Description

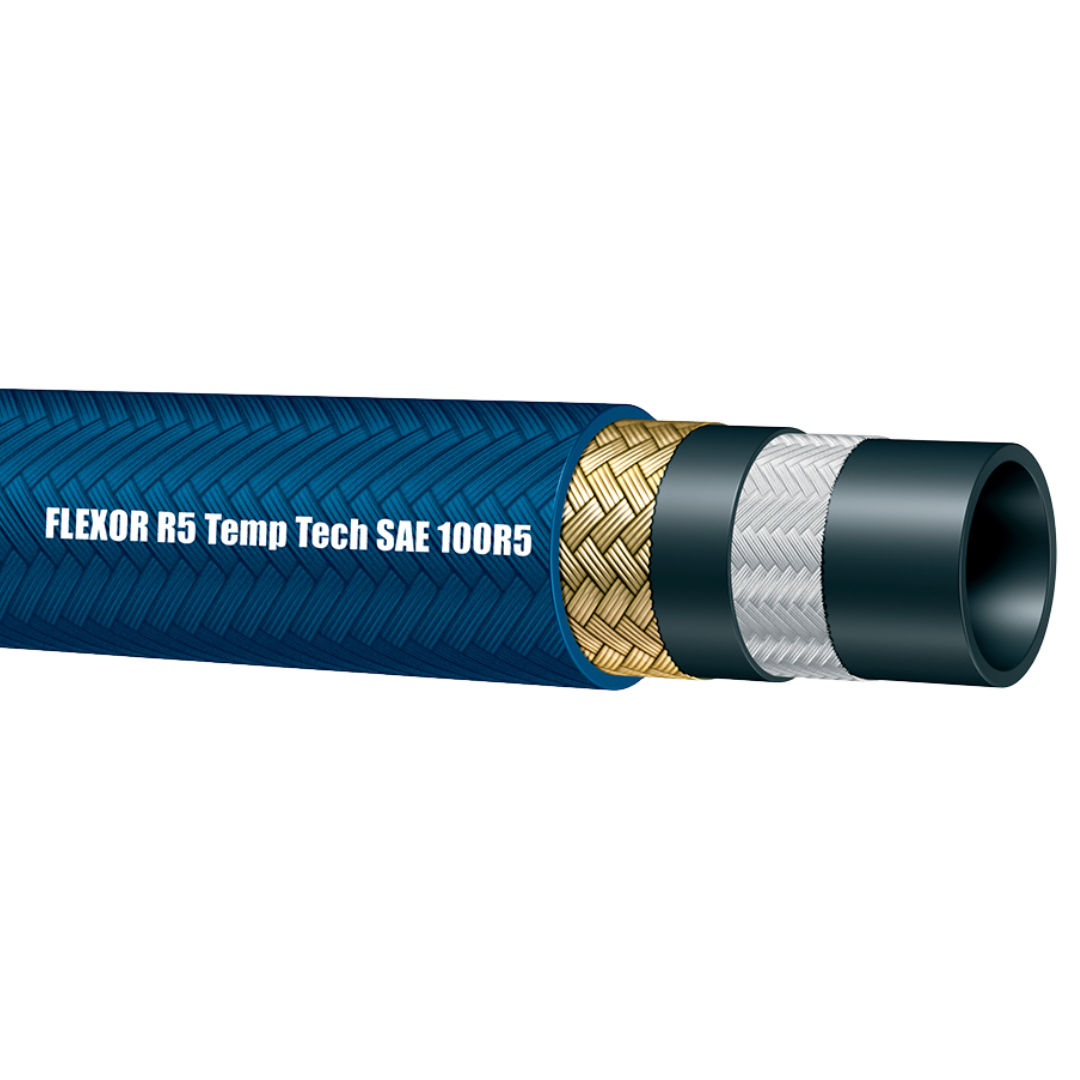

The Alfagomma TR5HT Series One-Wire Braid Hydraulic Hose is designed for medium-pressure hydraulic applications, specifically in petroleum-based oil lines, and is ideal for impulse applications such as lube oil, diesel fuel lines, and bio-diesel applications. It is commonly used in air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission and engine coolant systems, and filtration lines. The hose features an oil-resistant synthetic rubber tube, reinforced by a high-tensile steel braid, and is covered with a durable polyester textile braid, making it suitable for high-temperature environments. With a temperature range from -40°F (-40°C) to +300°F (+150°C) for constant operation, it also supports higher air maximum temperatures depending on the hose size. This hose meets or exceeds SAE 100 R5 standards, ensuring it is a reliable choice for various hydraulic systems. The TR5HT Series is engineered for performance, durability, and flexibility in a wide range of industrial applications.
