Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Black Seamless Synthetic Rubber, Oil-resistant |
| Pressure Rating | 730 |
| Inside Diameter | 1-1/2 (-24) |
| Hose Outside Diameter | 1.94 |
| Burst Rating | 2920 |
| Bend Radius | 19.7 |
| Tube Material | Black seamless synthetic rubber, oil-resistant |
| Reinforcement Material | High tensile steel wire braid |
| Cover Material | Black Synthetic rubber, weather, oil, fuel, ozone and abrasion-resistant |
| Hose Type | 1SN/R1AT MINETUFF |
| Series | TR1MT-FT |
| Country of Manufacture | Italy |
| Height | 1.94 |
| Length | 12 |
| Width | 1.94 |
| Weight | 0.9 |
Description

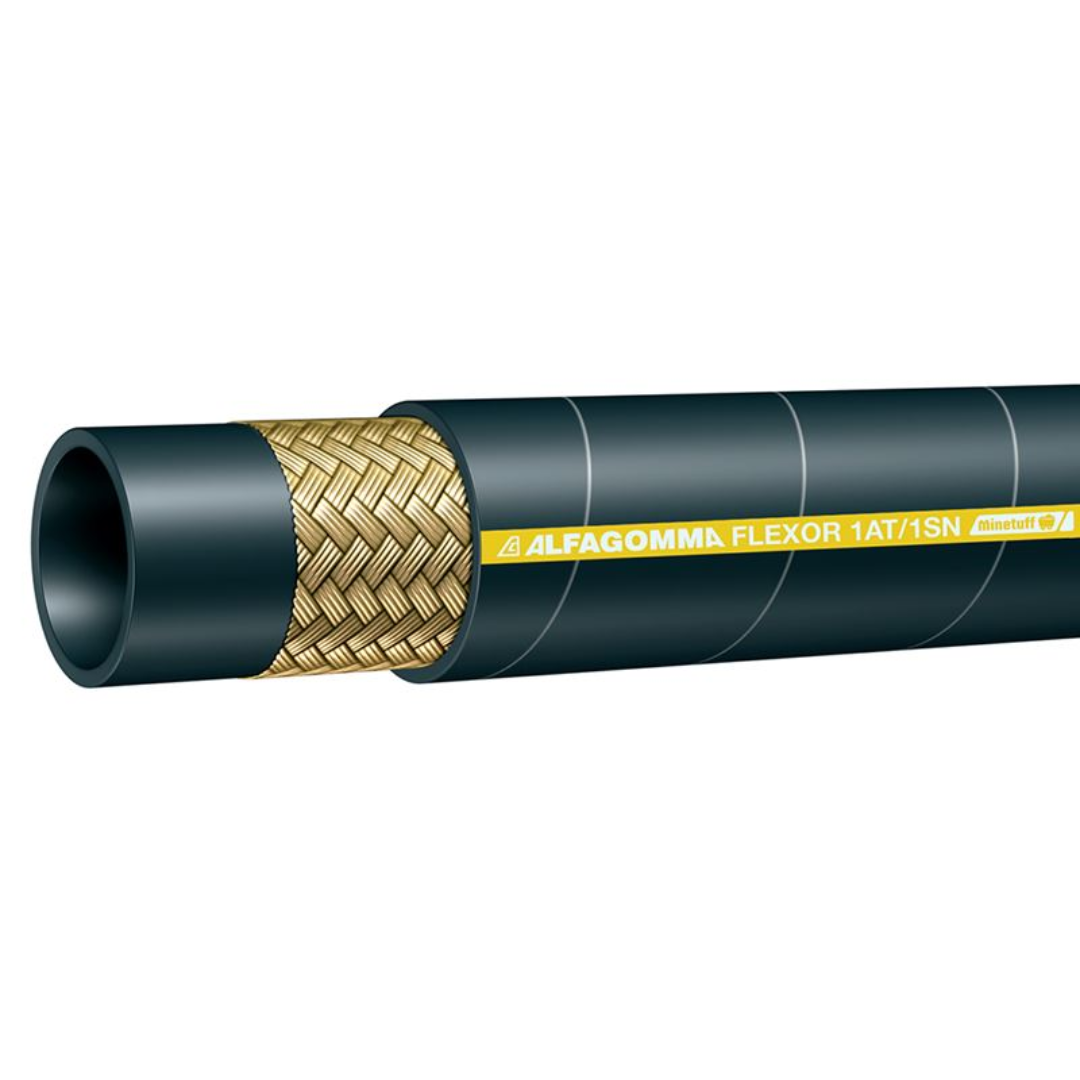

The Alfagomma TR1MT Series Single wire Braid Hose is designed for medium-pressure applications, specifically for hydraulic systems that use petroleum-based fluids, hot oils, greases, lubricants, crude oils, air, and water. This hose is built with a seamless synthetic rubber tube that is resistant to oil, high temperatures, and wear. Its high-tensile steel wire braid reinforcement ensures durability and strength under pressure. The cover is made of synthetic rubber that offers resistance to weather, oils, fuels, ozone, and abrasion. With a service temperature range from -40°F (-40°C) to +212°F (+100°C) in constant operation, this hose is suitable for applications in harsh environments. For air or gas applications above 250 psi (1.7 MPa), the cover should be pin-pricked to allow trapped air to escape and prevent pressure buildup, improving performance and longevity. This hose meets or exceeds ISO 1436-1, SAE 100 R1AT/R1S, and EN 853 1SN standards, with flame resistance approval from MSHA IC-152/16.
