Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Black Synthetic Rubber, Blue Cover, Hot Water-resistant |
| Pressure Rating | 5500 |
| Inside Diameter | 5/16 (-05) |
| Hose Outside Diameter | 0.57 |
| Burst Rating | 22000 |
| Bend Radius | 2.2 |
| Tube Material | Black synthetic rubber |
| Reinforcement Material | Two high tensile steel wire braids, separated by a layer of synthetic rubber |
| Cover Material | Black Synthetic rubber, weather, oil, fuel, ozone and excellent abrasion-resistance |
| Hose Type | FLEXOPAK 2 MINE TUFF |
| Series | TF2MT-FT |
| Country of Manufacture | Italy |
| Height | 0.57 |
| Length | 12 |
| Width | 0.57 |
| Weight | 0.22 |
Description

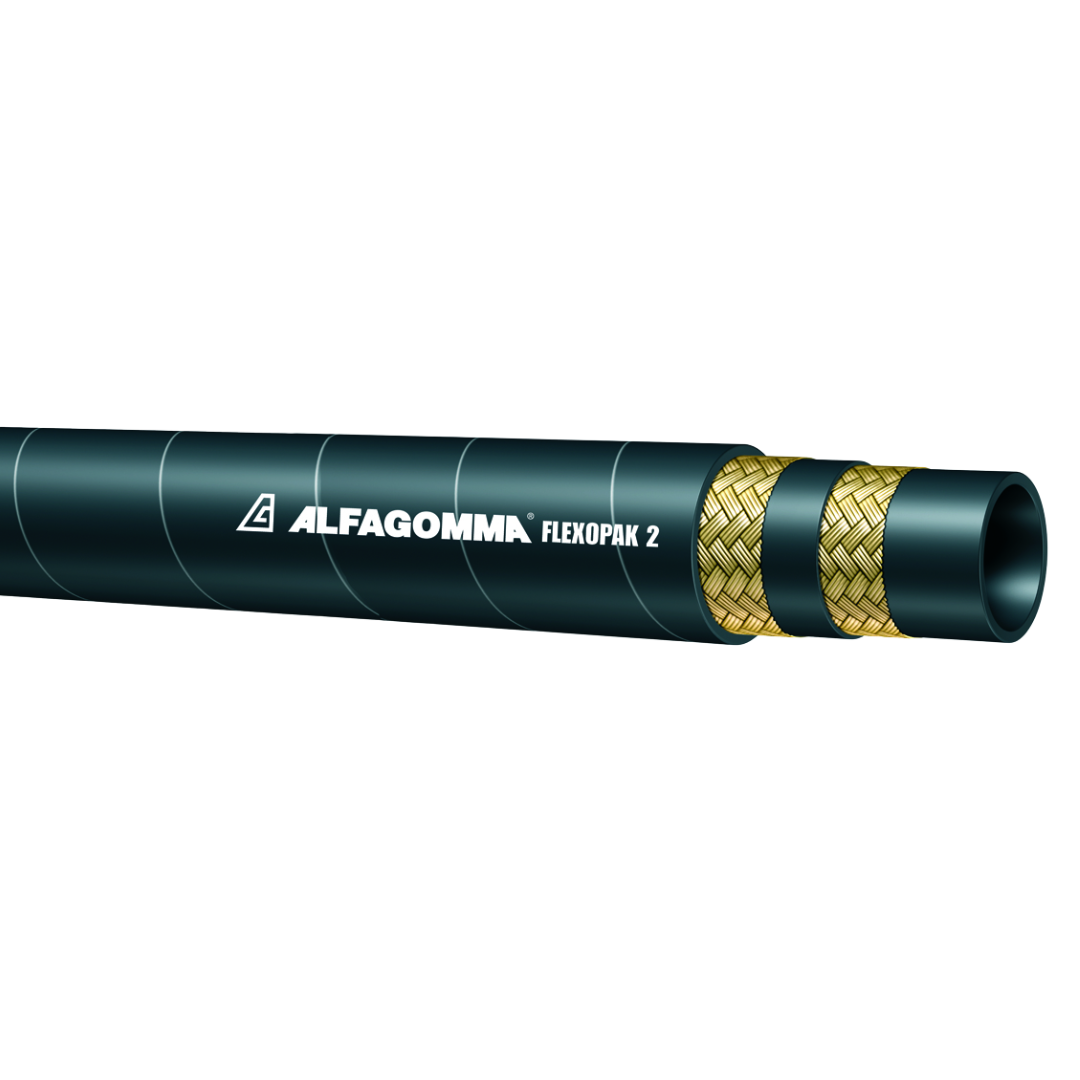

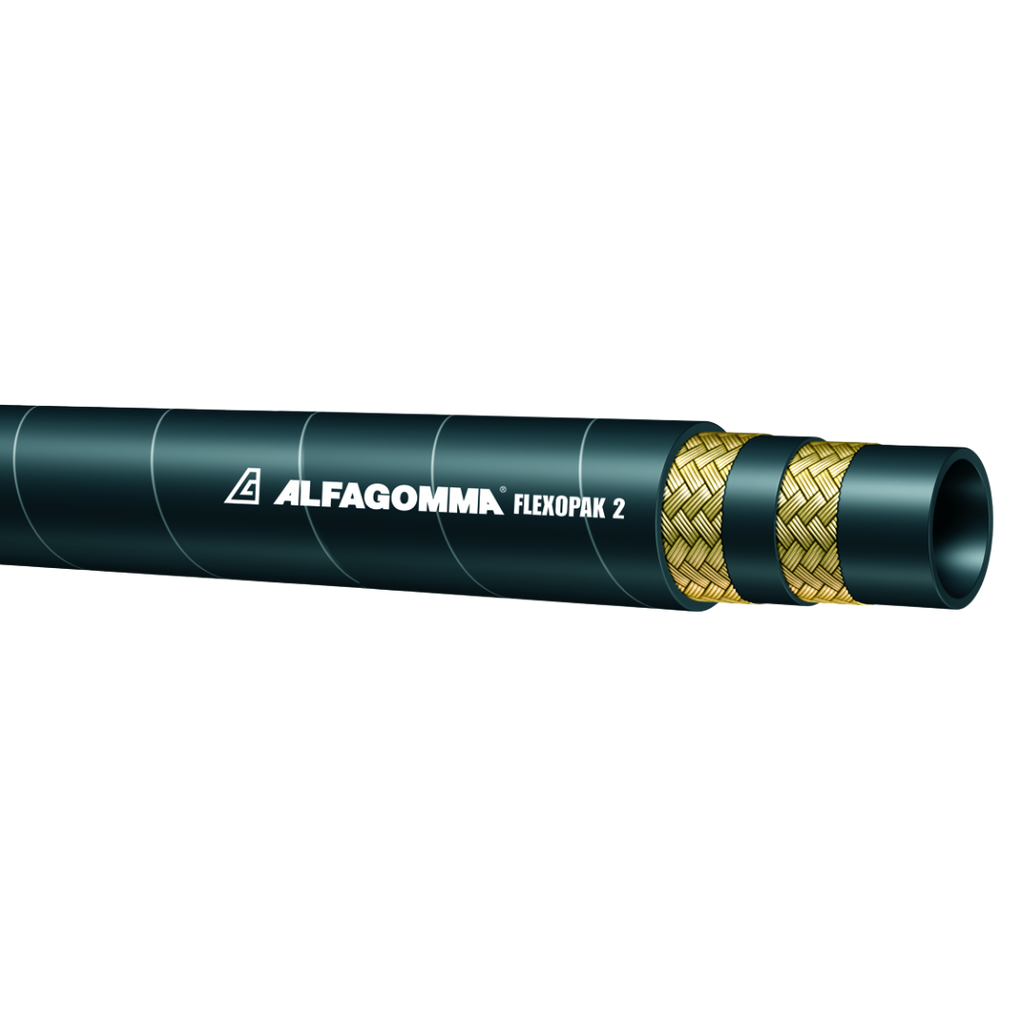

The Alfagomma TF2MT Series Double Compact Wire Hydraulic Hose is designed for high-pressure applications that require tight bends, offering excellent performance with petroleum-based hydraulic fluids, water/glycol, fire-resistant fluids, hot oil, grease, lubricants, and fuel oils. With two high-tensile steel wire braids reinforced by a synthetic rubber layer, this hose is highly durable and excels in impulse testing, exceeding 1,000,000 cycles when used with compatible ALFAGOMMA couplings. The hose features a synthetic rubber tube that is resistant to weather, oil, fuel, ozone, and abrasion, making it ideal for demanding environments. It operates within a temperature range of -40°F (-40°C) to +212°F (+100°C) for constant service, with a maximum operating temperature of +257°F (+125°C). For air or gas applications above 250 PSI, the cover should be pin-pricked to prevent damage. This hose meets or exceeds EN 857 2SC and SAE 100 R16 standards, providing superior flame resistance and reliability in various hydraulic and industrial applications. With excellent flexibility and longevity, the TF2MT hose is perfect for heavy-duty service, offering optimal performance and durability in high-pressure, demanding environments.
