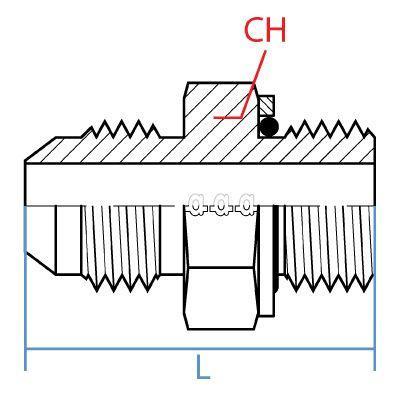

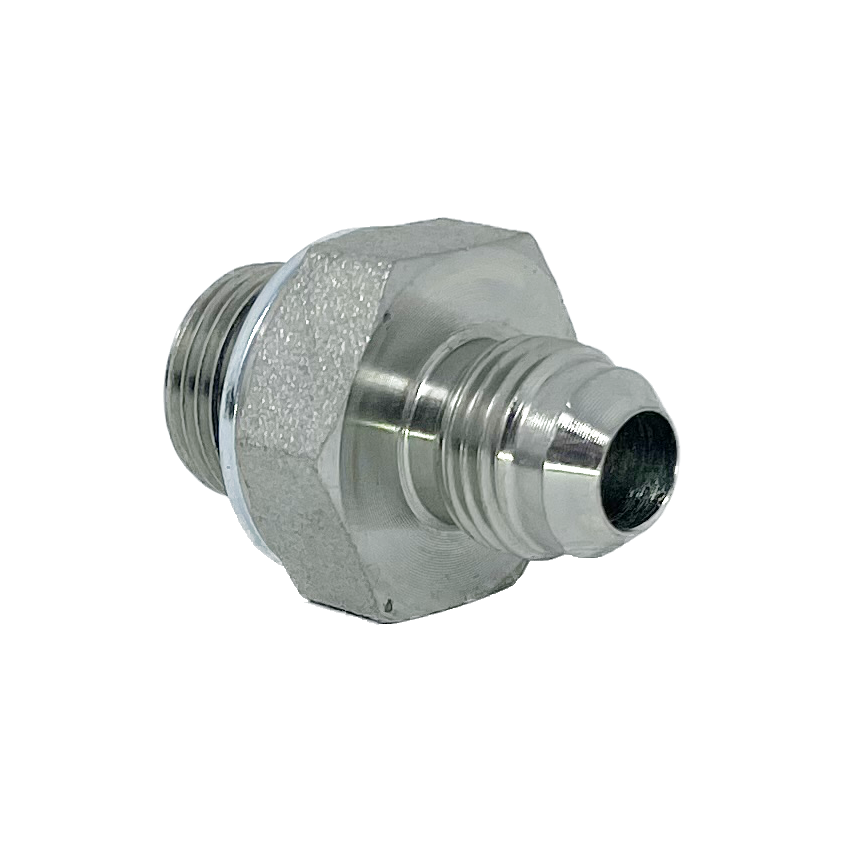

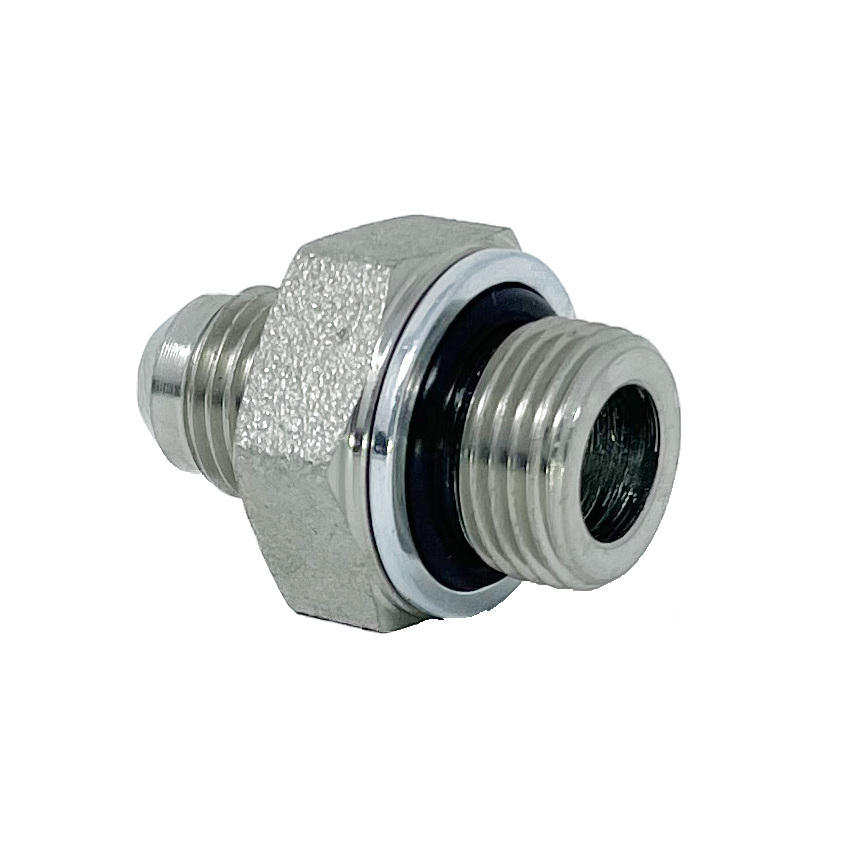

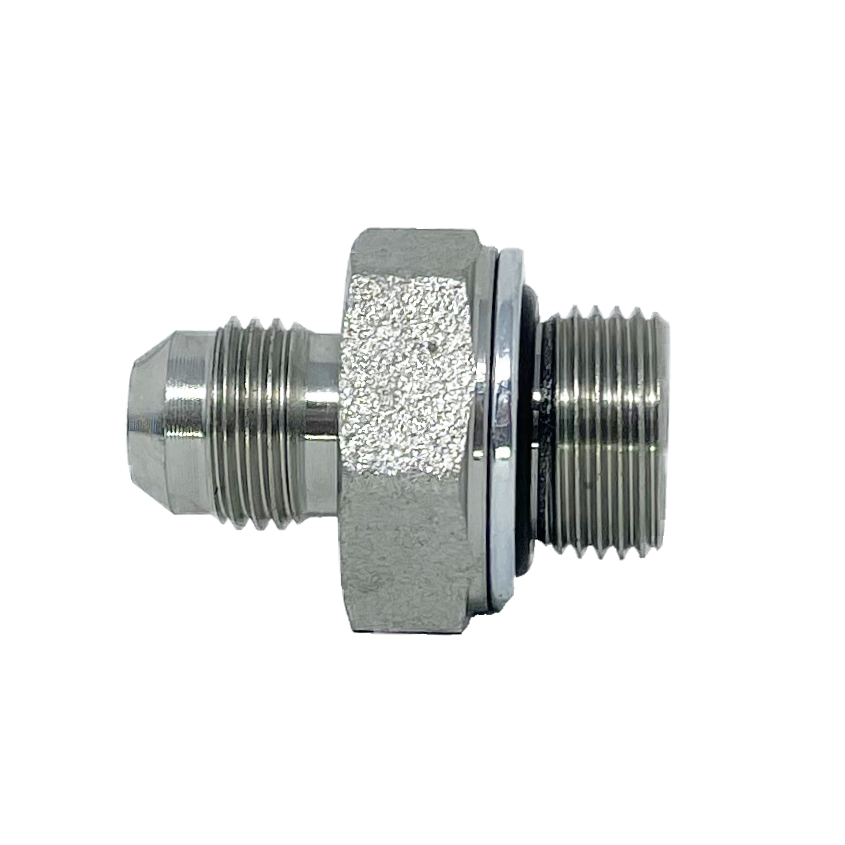

SS9002-08-12 : Adaptall Straight Stainless Steel Adapter, 3/4-16 (-08) Male JIC x 3/4-14 (-12) Male BSPP Port Only

Save $60.51
Adapt AllSKU: SS9002-08-12
3-5 Days

Price:
Sale price$91.99 Regular price$152.50

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Stainless Steel
Shape Straight
Country of Manufacture Canada
Length 45.6mm
Side 1 Gender MALE
Side 1 Size 3/4-16 (-08)
Side 1 Type JIC
Side 2 Gender Male
Side 2 Size 3/4-14 (-12)
Side 2 Type BSPP

Description

For Adaptall products, the thread types for each description are displayed hose/tube and/or male side first, then port and/or female side (please refer to the Conversion Adapter Identification Guide for details). If both sides of a fitting are the same (both hose/tube or both port) they are displayed alphabetically. For example, a BSPP x NPT nipple has two port threads; according to alphabetization, this description would read BSPP male x NPT male. Part descriptions are then arranged in alphabetical order, with males appearing before females. For example, a male BSPP is typically the first listed while a female SAE O-ring Boss is last. Thread types are displayed first to allow for quick searching along the margin (as opposed to thread gender first which is common).
