Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | Straight |
| Style | Inline, Standard Pressure |
| Pressure Rating | 5000 |
| Fitting Style | Bulkhead |
| Seal Material | Viton |
| Series | SS MJIC X MJIC BULKHEAD |
| Country of Manufacture | United States |
| Height | 1.1 |
| Length | 3.31 |
| Width | 1.1 |
| Side 1 Gender | Male |
| Side 1 Size | -06 |
| Side 1 Type | JIC |
| Side 2 Gender | Male |
| Side 2 Size | -06 |
| Side 2 Type | JIC |
Description

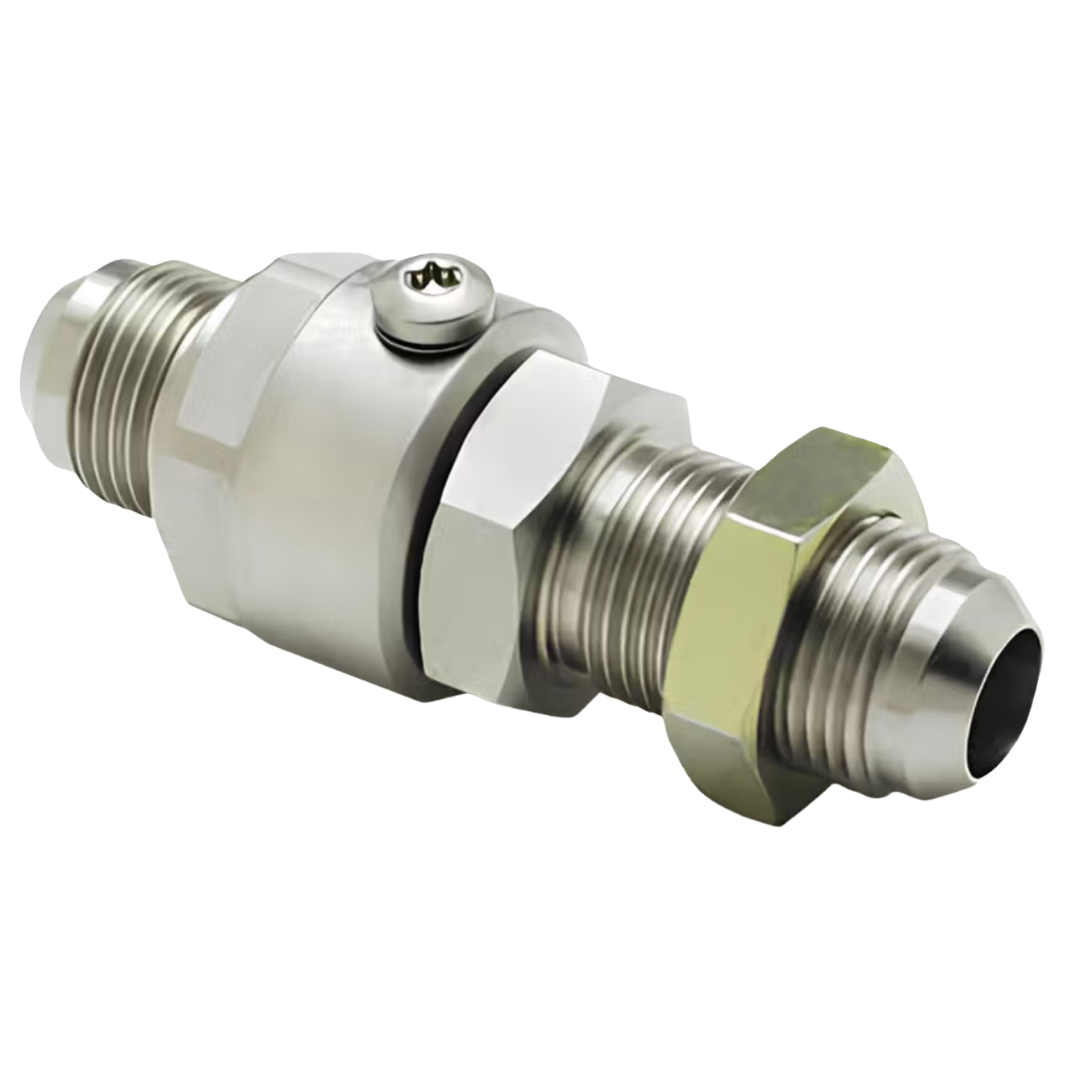

Super Swivels Male JIC Bulkhead (37-degree) x Male JIC (37-degree) inline hydraulic swivels provide a compact, straight-through rotating connection between two female JIC 37-degree flare hose ends or fittings. The extended bulkhead end allows the swivel to be secured through a panel, bracket, or machine frame for a stable installation. Their one-piece barrel-and-stem construction and integrated ball-bearing race minimize rotational friction while withstanding heavy side loads, helping reduce hose twisting, kinking, premature seal wear, leaks, system shock, and downtime. Unlike a standard hydraulic adapter—which creates a fixed connection between ports, sizes, or fitting styles—a live hydraulic swivel accommodates repeated hose movement during operation. Its direct-to-hose design can eliminate additional adapters, reducing connection points, installation space, and overall hydraulic system cost.
Male JIC Bulkhead x Male JIC inline swivels are available in multiple sizes with zinc or nickel plating, several seal options, and model-specific maximum working pressures from 4,000 to 5,000 PSIG. Always confirm the selected part number’s JIC size, bulkhead mounting requirements, pressure rating, seal material, fluid compatibility, and operating temperature. Do not exceed the rated pressure, and fully depressurize the system before installation or service. A flexible connector is required at one end; Super Swivels are not recommended for breathing air, oxygen, or steam service. The installer is responsible for determining California Proposition 65 compliance.
