Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | Straight |
| Style | Inline, Standard Pressure |
| Pressure Rating | 4000 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS MNPT X FNPT |
| Country of Manufacture | United States |
| Height | 2.357 |
| Length | 4.19 |
| Width | 2.357 |
| Side 1 Gender | Male |
| Side 1 Size | -20 |
| Side 1 Type | NPTF |
| Side 2 Gender | Female |
| Side 2 Size | -20 |
| Side 2 Type | NPTF |
Description

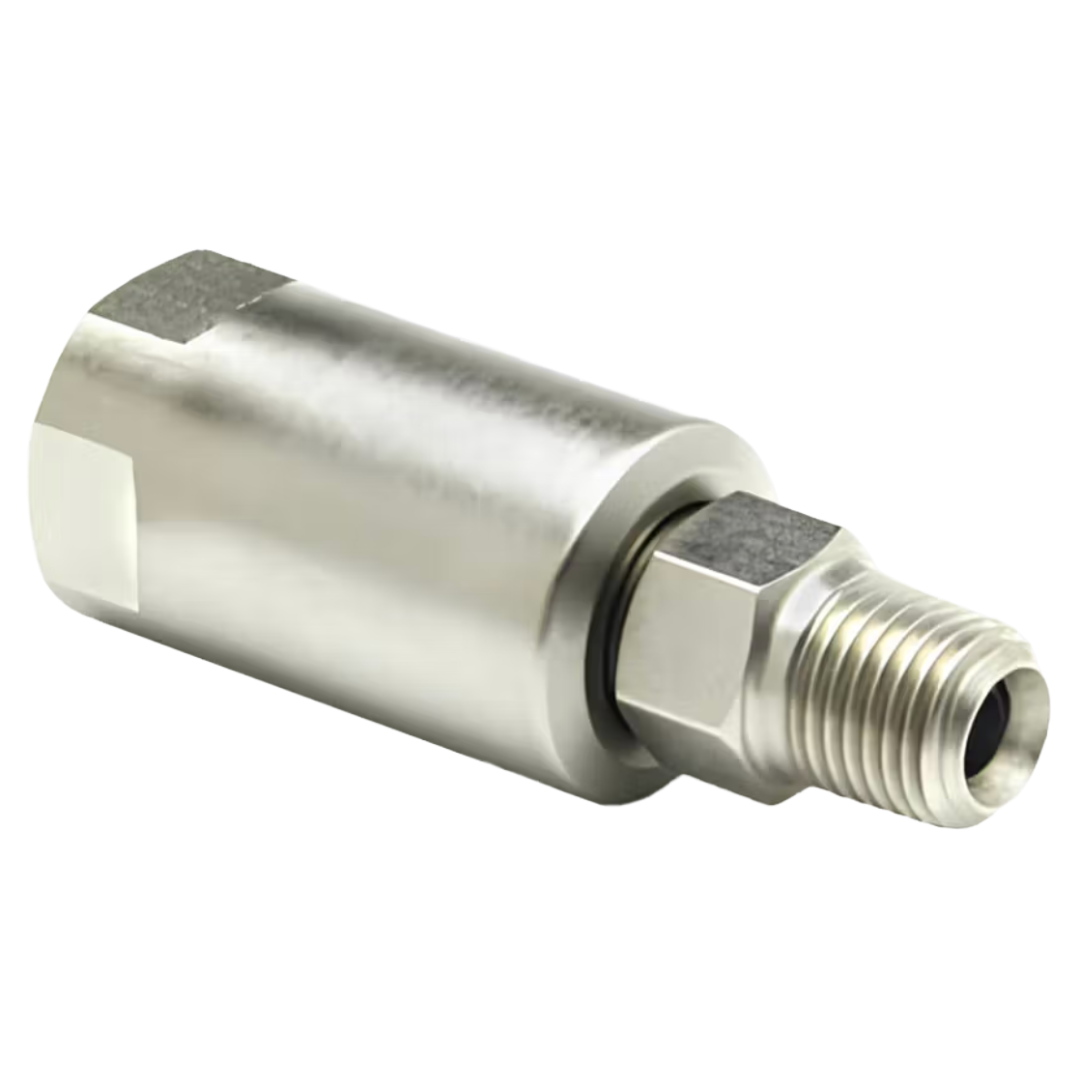

Super Swivels Male Pipe (NPTF) x Female Pipe (NPTF) inline hydraulic swivels provide a compact, straight-through rotating connection between compatible female and male NPTF hose ends, fittings, or pipe-threaded components. Their one-piece barrel-and-stem construction and integrated ball-bearing race minimize rotational friction while withstanding heavy side loads, helping reduce hose twisting, kinking, premature seal wear, leaks, system shock, and downtime. Unlike a standard hydraulic adapter—which creates a fixed connection between ports, sizes, or thread styles—a live hydraulic swivel accommodates repeated hose movement during operation. The male-to-female design can connect directly into an NPTF hose line without additional adapters, reducing connection points, installation space, and overall hydraulic system cost.
Male NPTF x Female NPTF inline swivels are available in sizes from 1/8" through 2", with zinc or nickel plating, several seal options, and model-specific maximum working pressures from 3,000 to 5,000 PSIG. Always confirm the selected part number’s NPTF size, pressure rating, seal material, fluid compatibility, and operating temperature. Do not exceed the rated pressure, and fully depressurize the system before installation or service. A flexible connector is required at one end; Super Swivels are not recommended for breathing air, oxygen, or steam service. The installer is responsible for determining California Proposition 65 compliance.
