Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | Straight |
| Style | Inline, Standard Pressure |
| Pressure Rating | 4000 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS MORB X MORFS |
| Country of Manufacture | United States |
| Height | 1.917 |
| Length | 3.734 |
| Width | 1.917 |
| Side 1 Gender | Male |
| Side 1 Size | -16 |
| Side 1 Type | ORB |
| Side 2 Gender | Male |
| Side 2 Size | -16 |
| Side 2 Type | ORFS |
Description

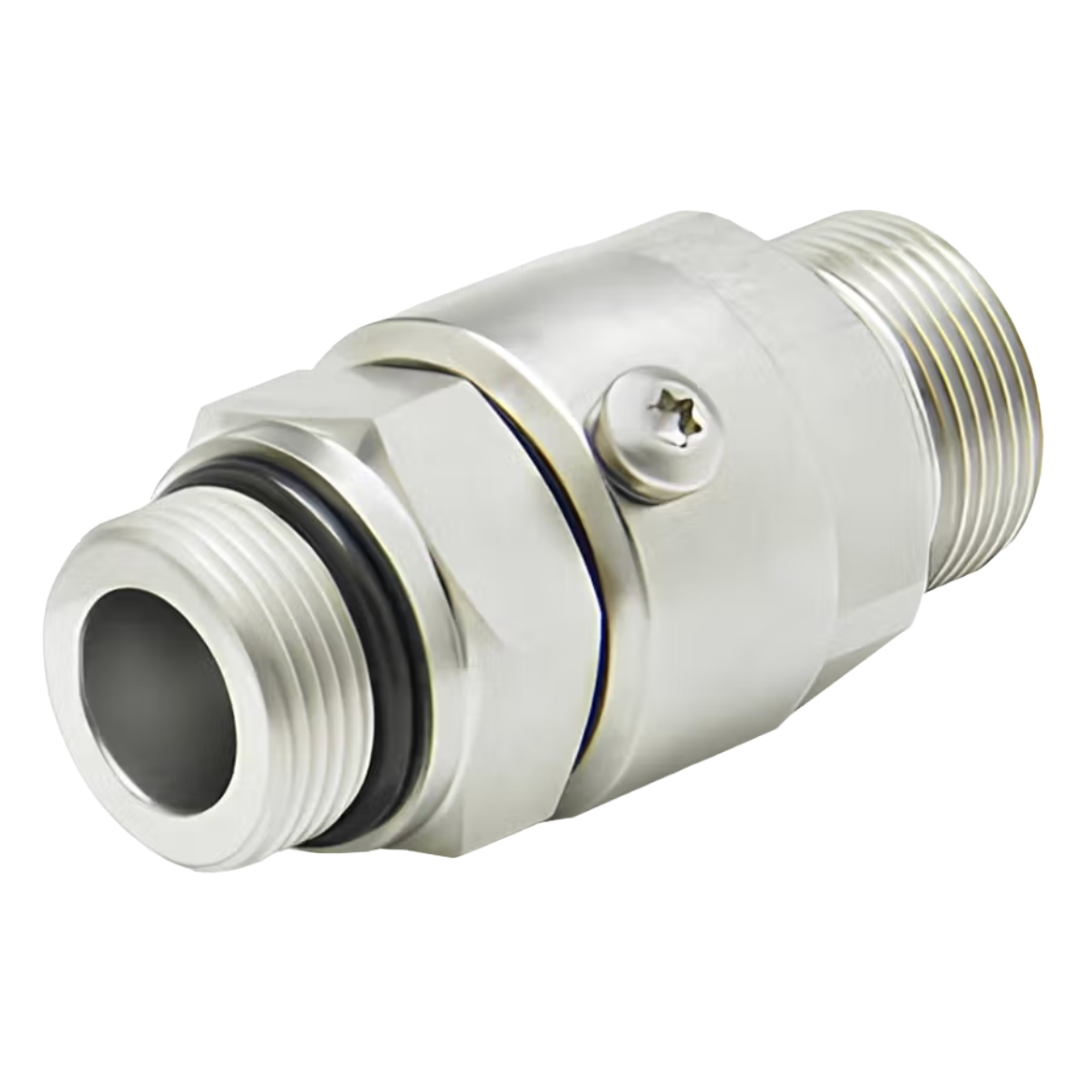

Super Swivels Male O-Ring Boss (ORB) x Male Face Seal (MFS/MORFS) inline hydraulic swivels provide a compact, straight-through rotating transition between an SAE O-ring boss port and a female O-ring face seal hose end or fitting. Their one-piece barrel-and-stem construction and integrated ball-bearing race minimize rotational friction while withstanding heavy side loads, helping reduce hose twisting, kinking, premature seal wear, leaks, system shock, and downtime. Unlike a standard hydraulic adapter—which creates a fixed transition between connection types—a live hydraulic swivel accommodates repeated hose movement during operation. By combining the ORB-to-face-seal transition and rotating joint in one component, this design can eliminate additional adapters, reducing connection points, installation space, and overall hydraulic system cost.
Male ORB x Male Face Seal inline swivels are available in multiple sizes with zinc or nickel plating, several seal options, and model-specific maximum working pressures from 4,000 to 5,000 PSIG. Always confirm the selected part number’s ORB and face-seal sizes, pressure rating, seal material, fluid compatibility, and operating temperature. Do not exceed the rated pressure, and fully depressurize the system before installation or service. A flexible connector is required at one end; Super Swivels are not recommended for breathing air, oxygen, or steam service. The installer is responsible for determining California Proposition 65 compliance.
