SS-G03-C5-R-D2-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 34.3GPM, 5075psi, All Ports Blocked Neutral, 24 VDC, Wiring Box with Lights

Save $85.01
NachiSKU: SS-G03-C5-R-D2-E22
4-6 Weeks

Price:
Sale price$319.99 Regular price$405.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Greenwood, Indiana
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 34.3
Pressure Rating 5075
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection Wiring Box with Lights
Spool Configuration All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 9.25
Length 2.76
Width 4.41
Weight 12.13

Description

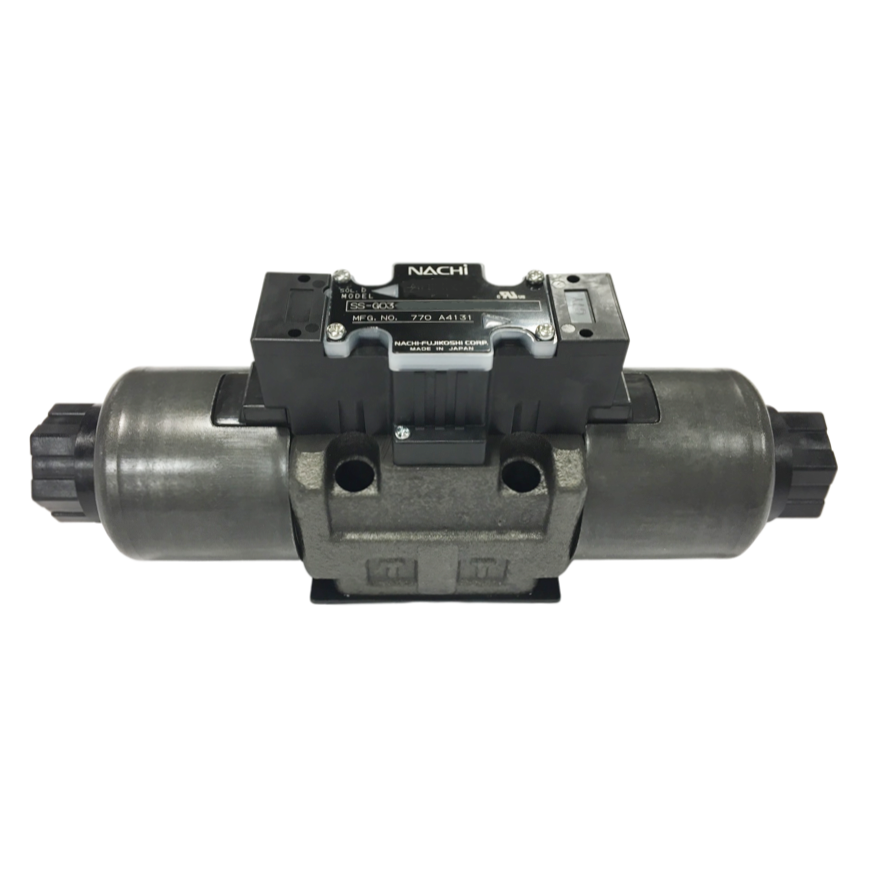

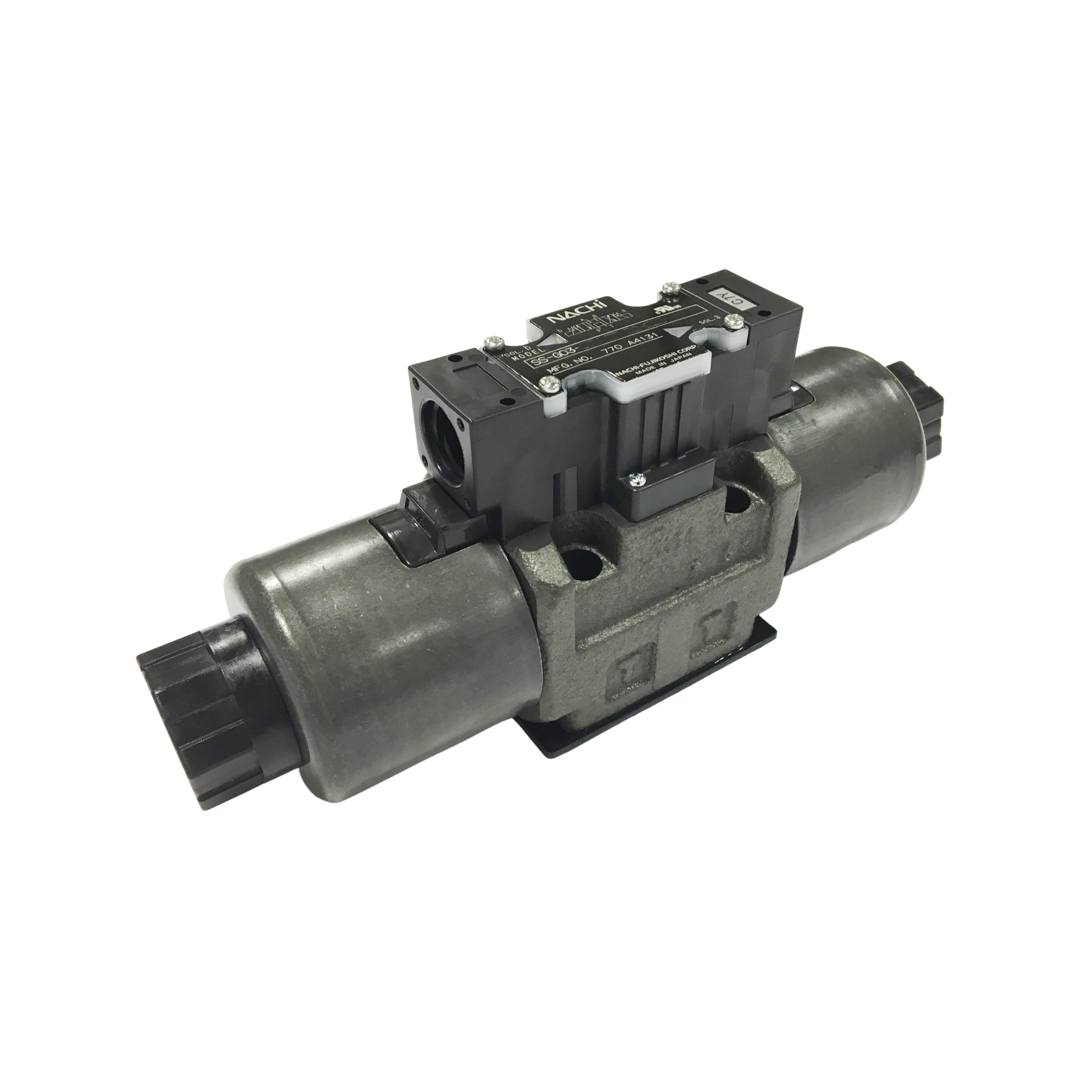

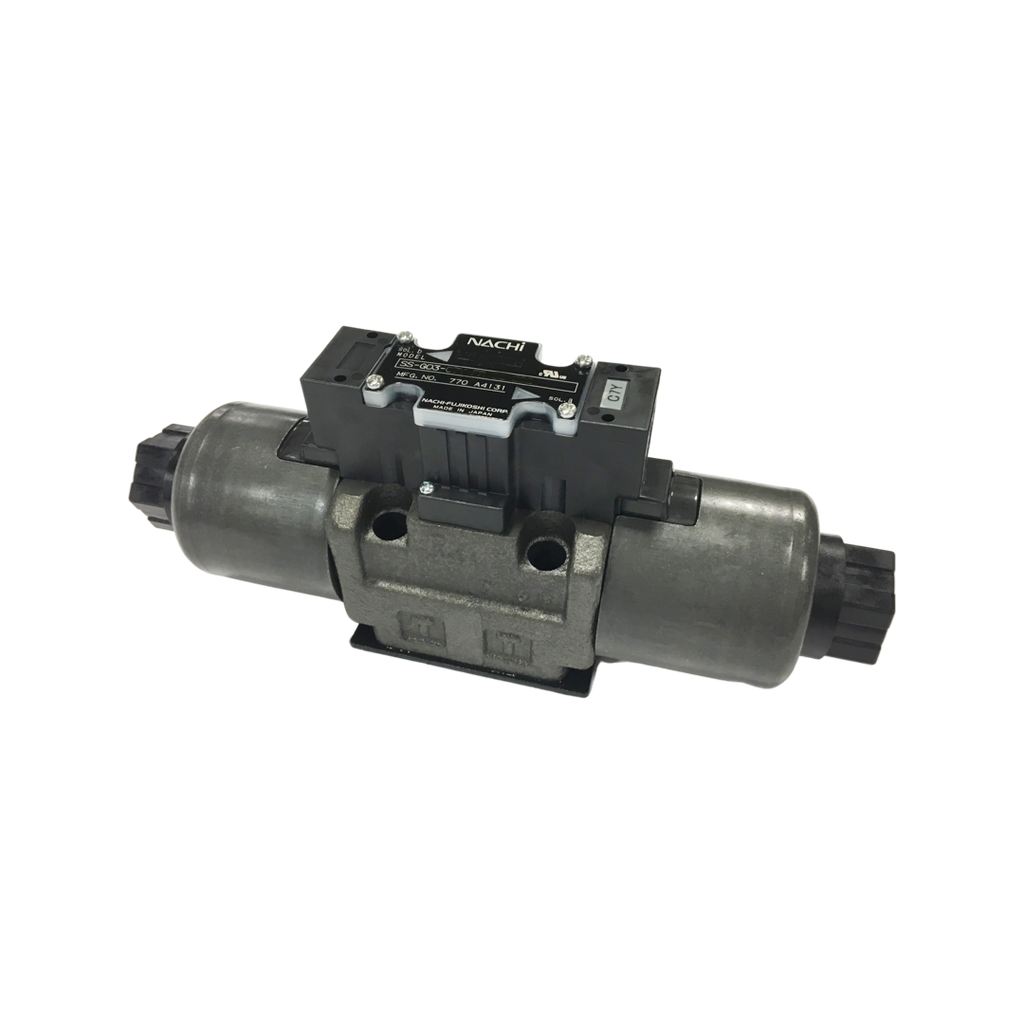

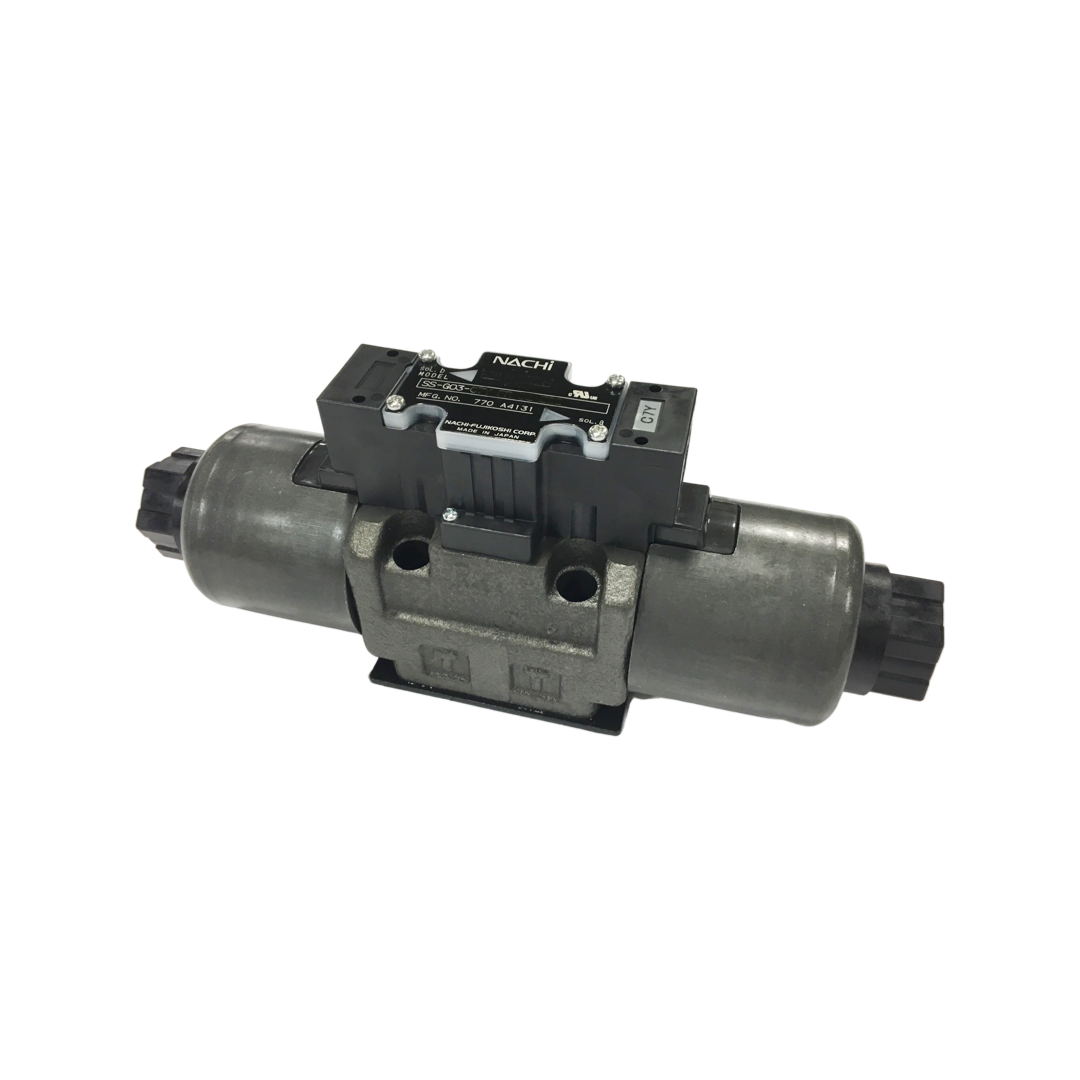

The Nachi SS is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
