Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 1-3 Days |
Factory Stock | 3 |
Factory Location | Greenwood, Indiana |
Valve Type | Subplate/Manifold Mounted Valve |
Valve Interface | D05 (NG10) |
Flow Rating | 34.3 |
Pressure Rating | 5075 |
Voltage | 115 VAC |
Actuation Type | Solenoid Operated |
Solenoid Electrical Connection | Wiring Box with Lights & Built-in Rectifier |
Spool Configuration | P, T, A, B Open in Neutral |
Positions | 3-Position |
Way | 4-Way |
Country of Manufacture | Japan |
Height | 9.25 |
Length | 2.76 |
Width | 4.41 |
Weight | 12.13 |
Description

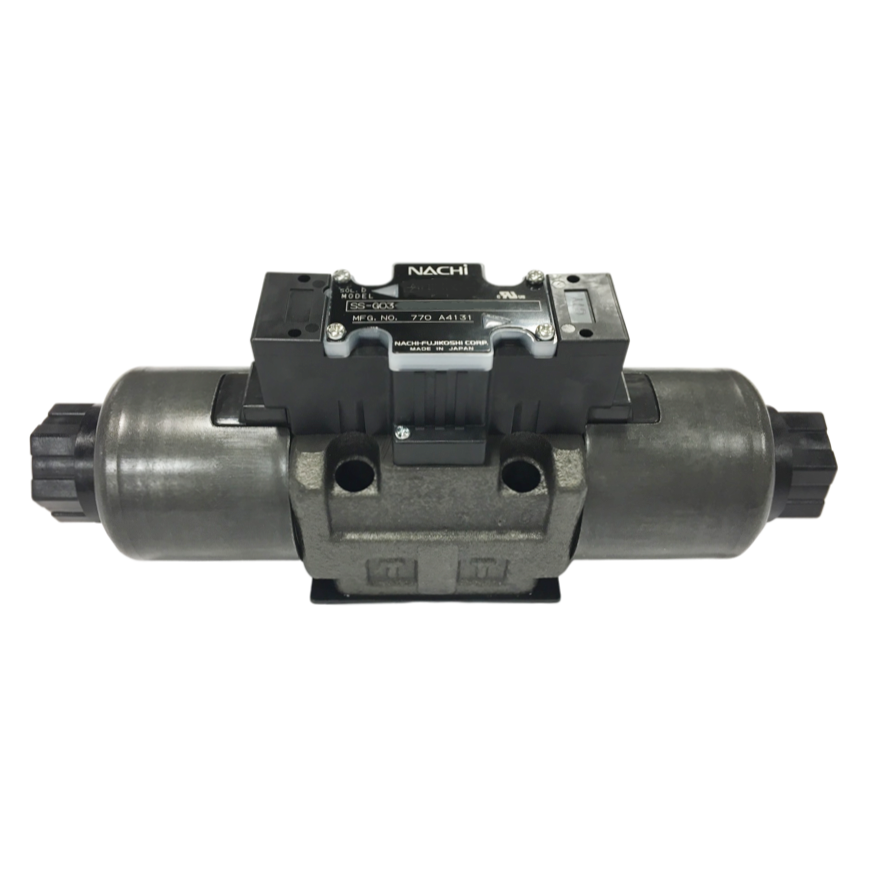

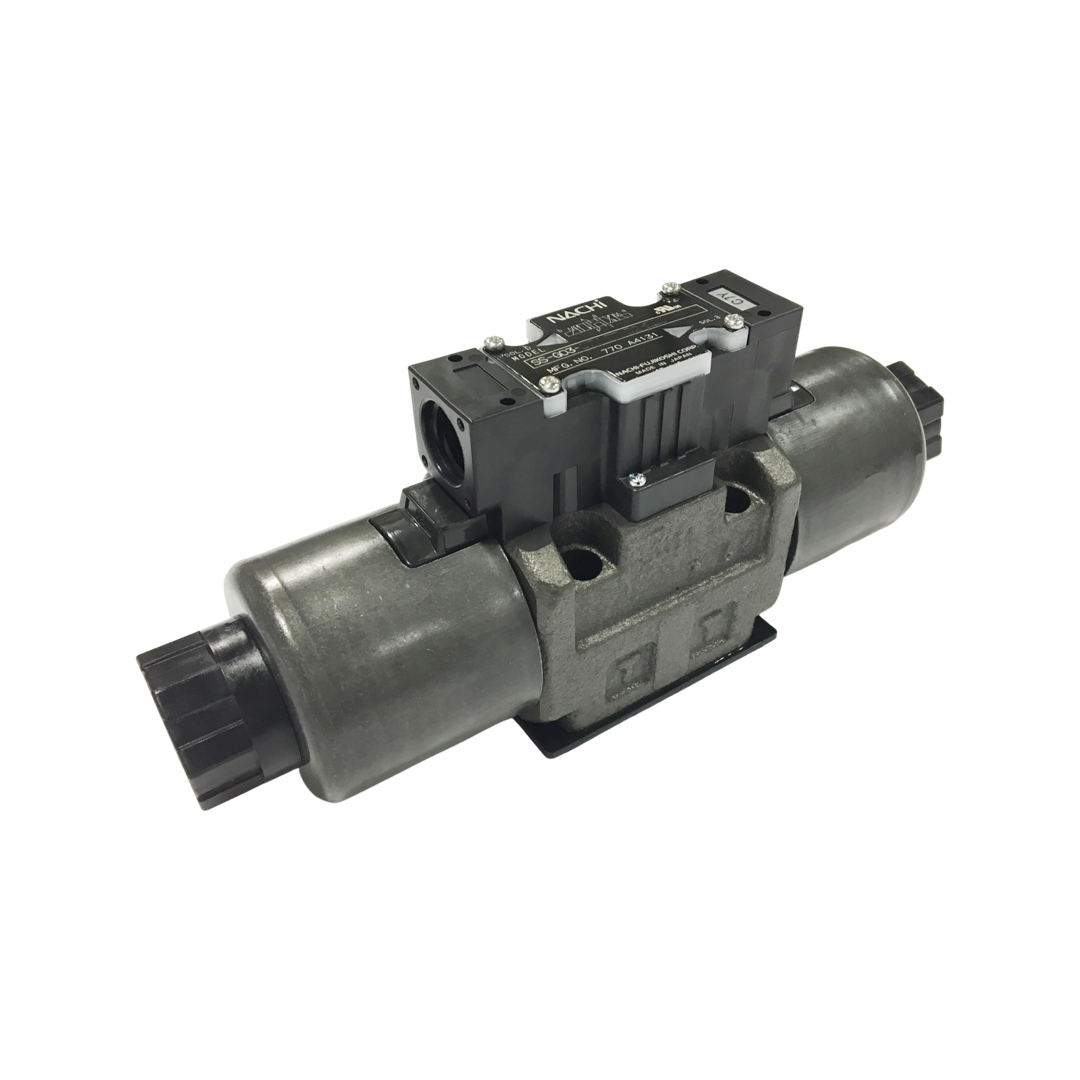

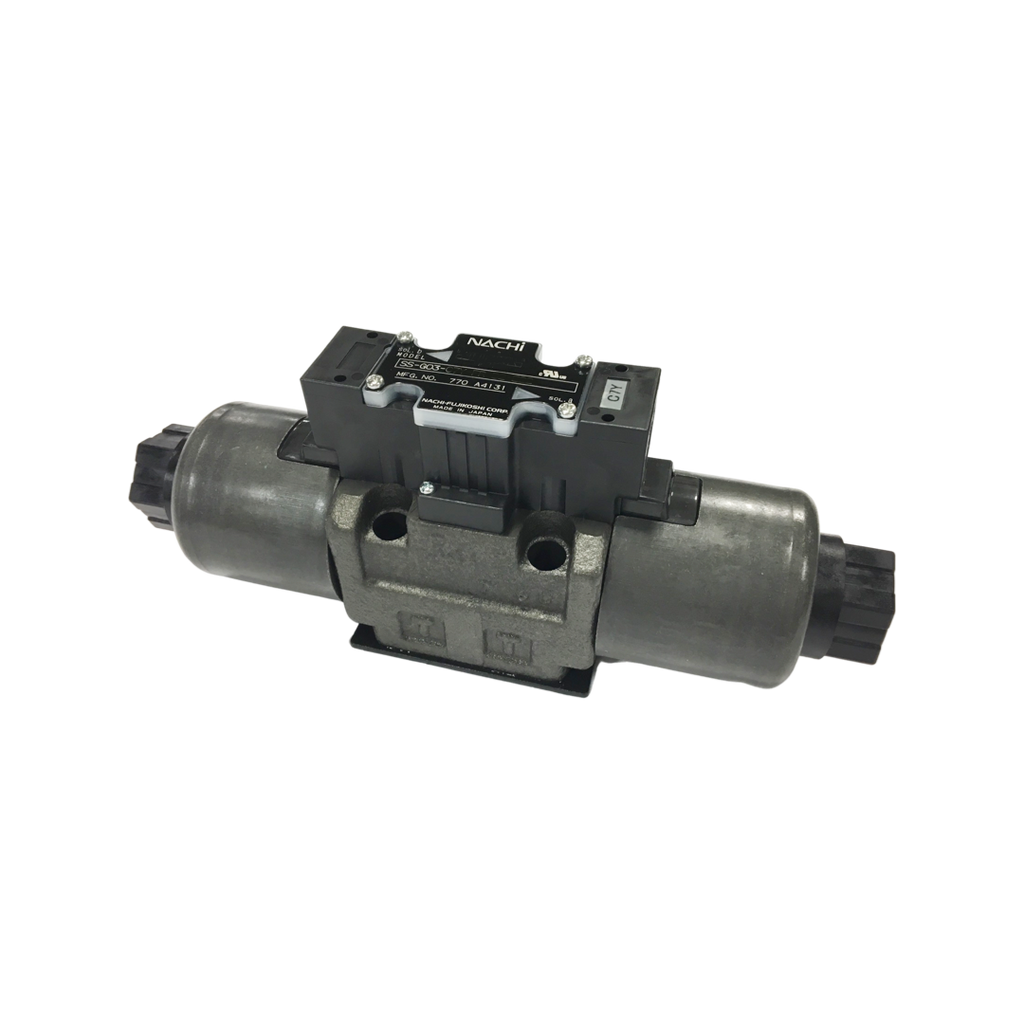

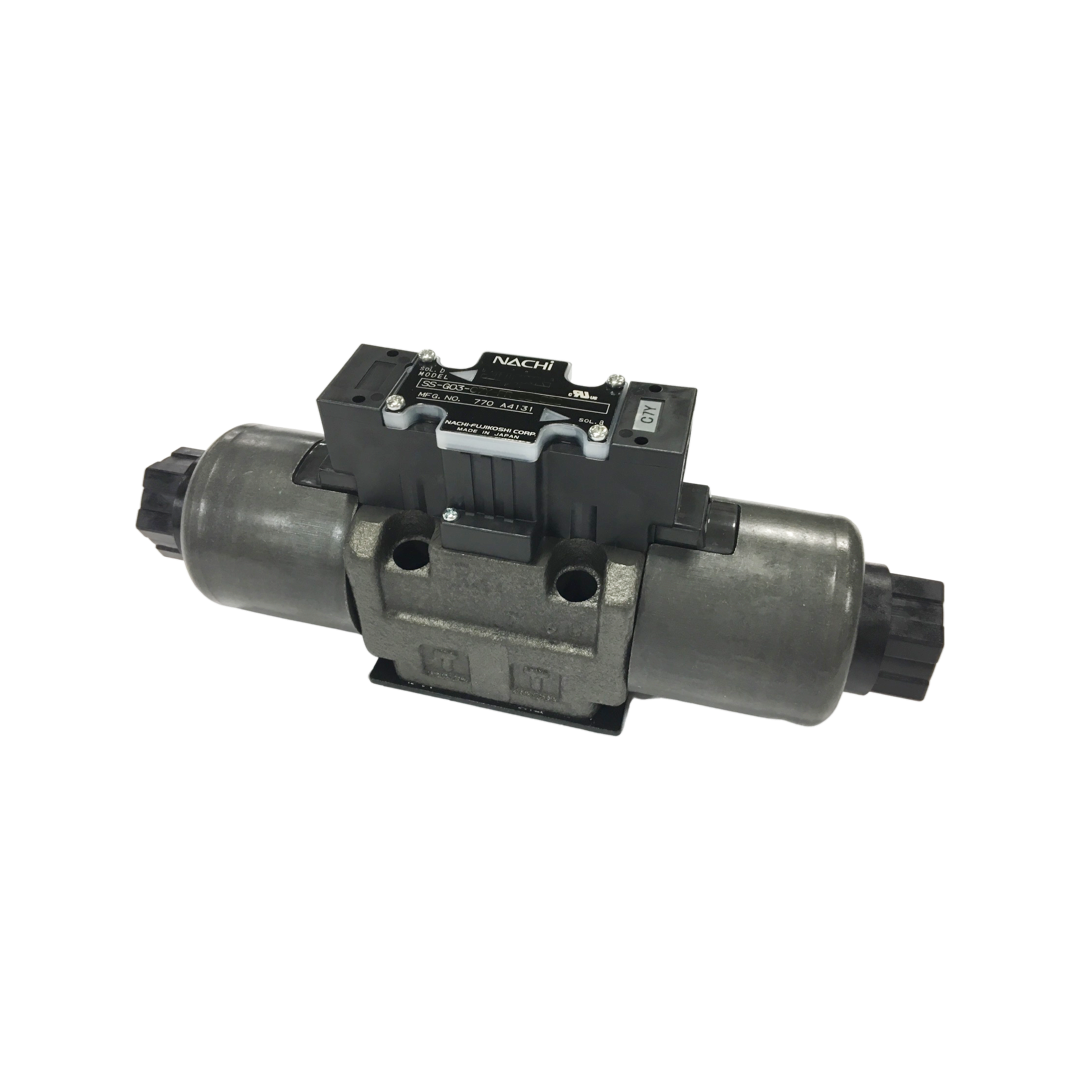

The Nachi SS is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
