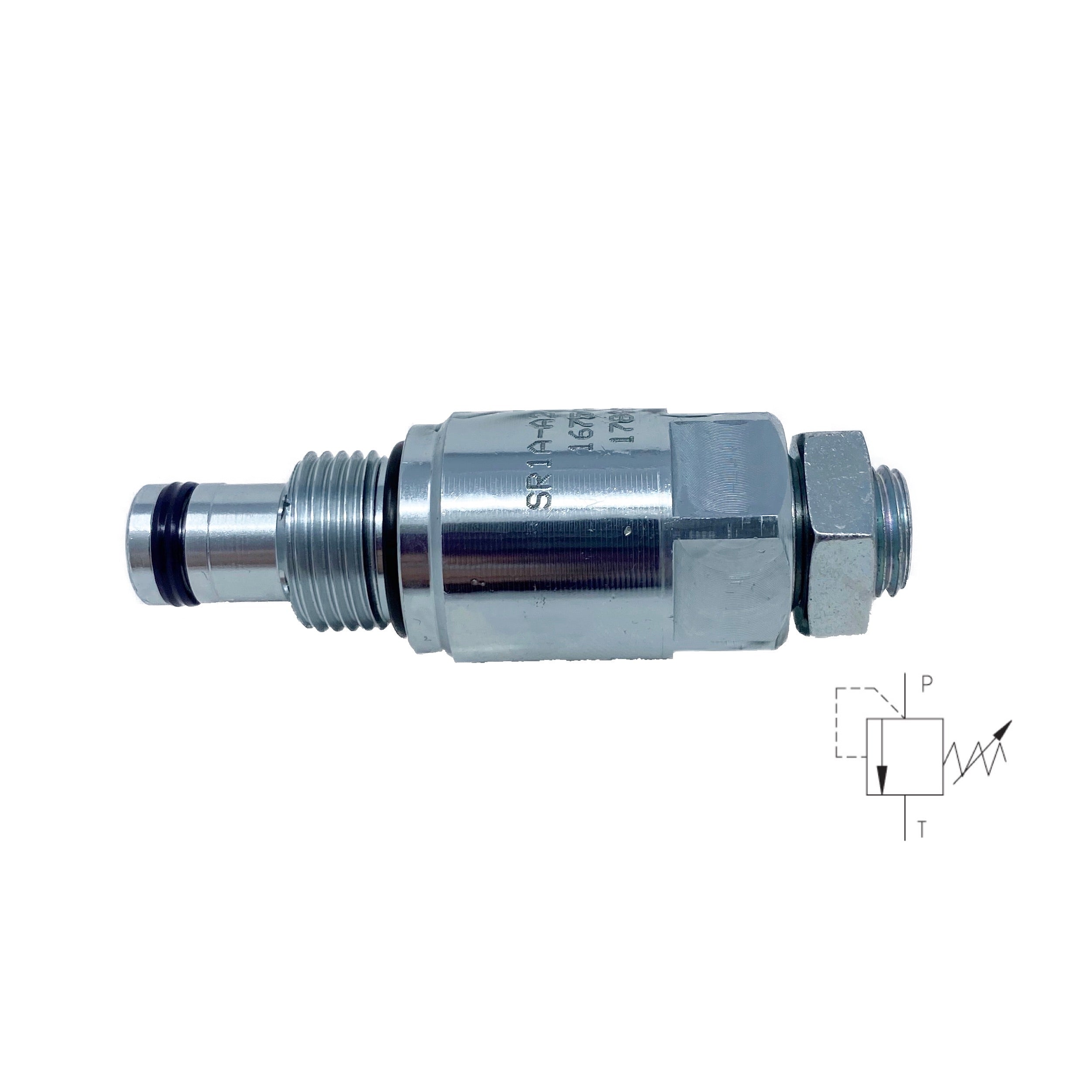

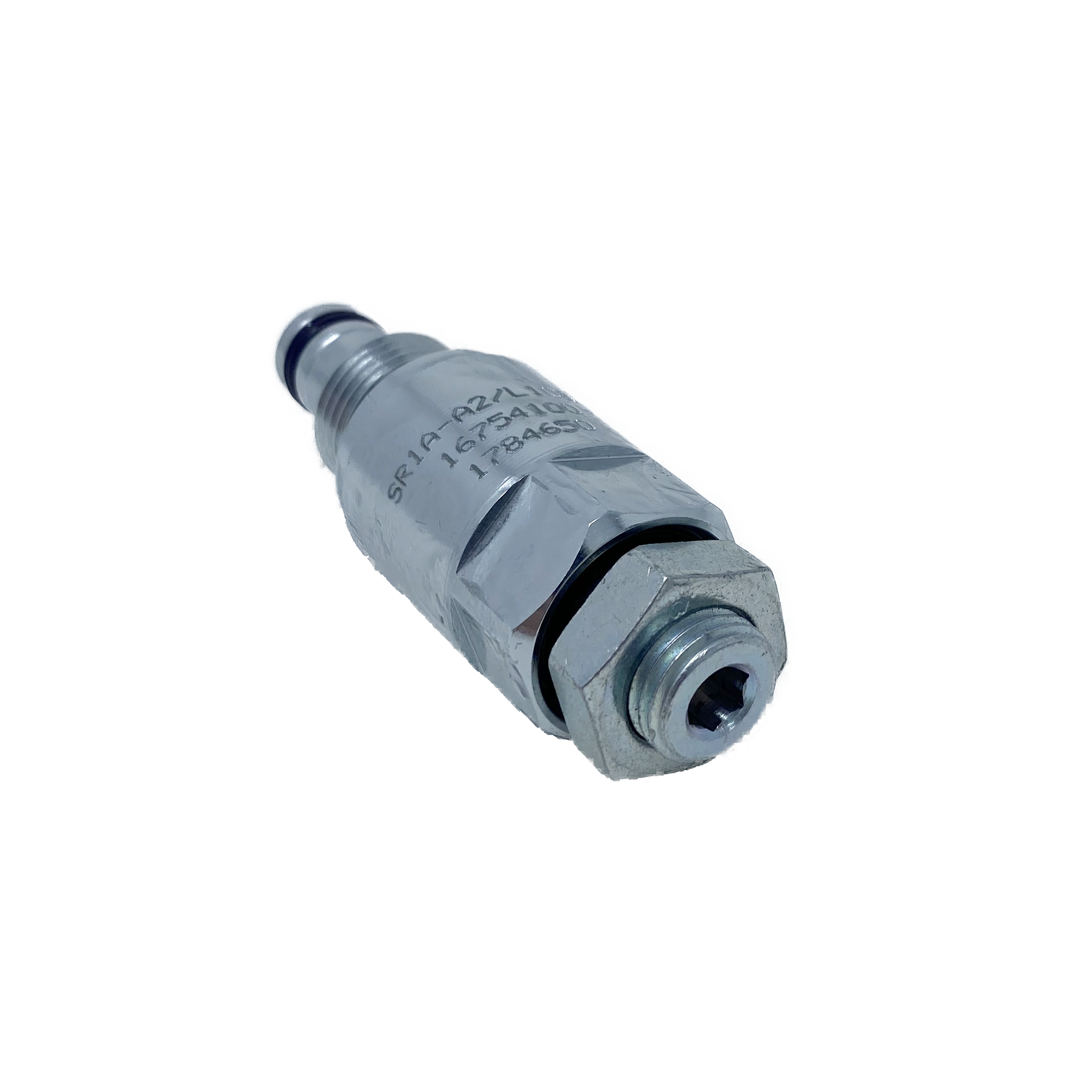

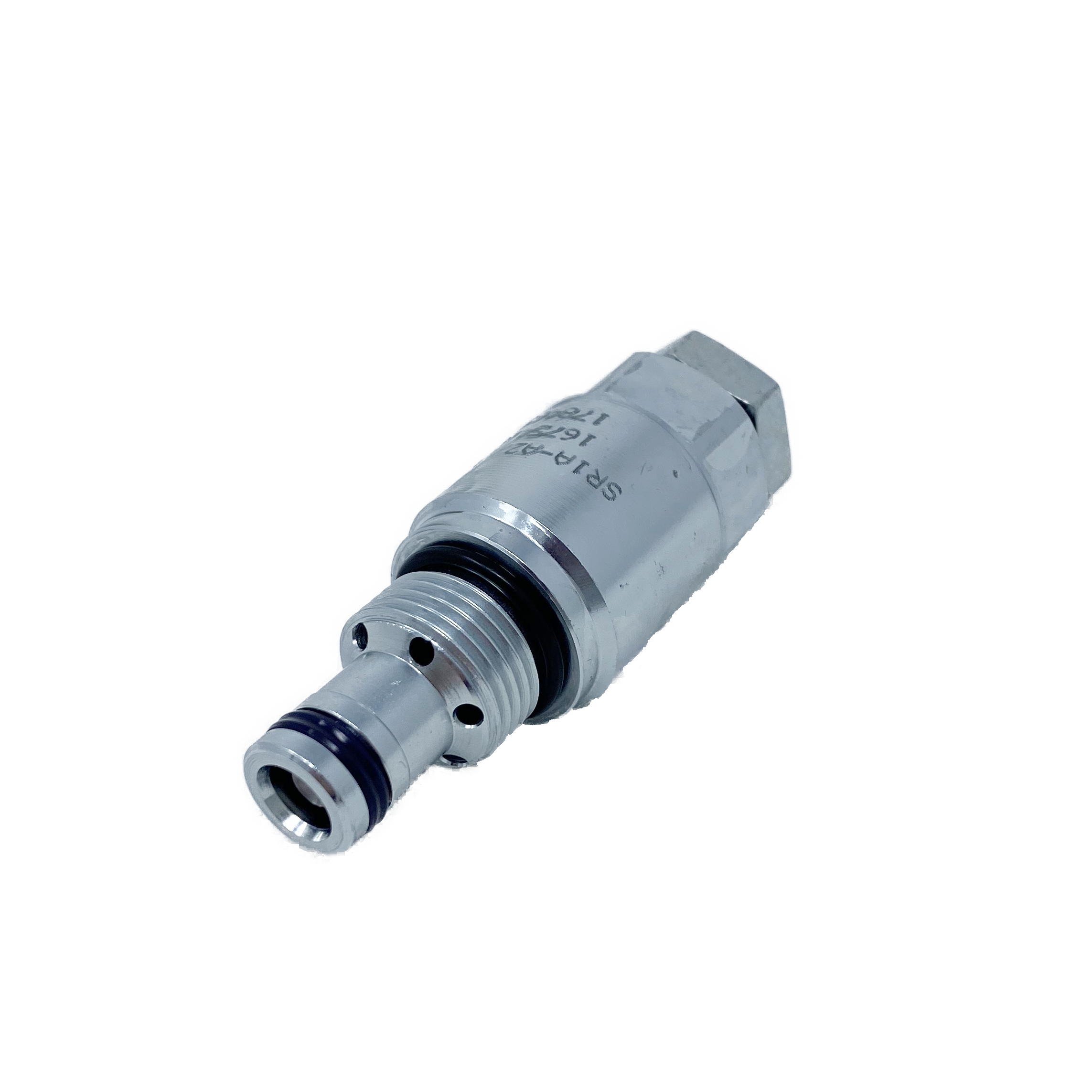

SR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 Cavity
SR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 Cavity
SR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 Cavity
Roll over image to zoom in Click on image to zoom
SR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 CavitySR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 CavitySR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 Cavity

SR1A-A2/L6S-A : Argo Relief, Poppet Type, Direct Acting, 8 GPM, 5100psi, Allen Key, Range to 914psi, C-8-2 Cavity

Argo-HytosSKU: 28568500
Same Day
14
0
03.12.G.101A
Price:
$48.50

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Operation Direct-Acting
Valve Type Cartridge
Adjustment Type Allen Key Screw
Flow Rating 7.9
Pressure Rating 5080
Pressure Range Up to 914 psi
Cartridge Cavity C-8-2
Height 1.04
Length 3.05
Width 1.04
Weight 0.5

Description

The Argo-Hytos SR1A-A2 cartridge is a poppet-type, direct-acting, relief valve intended for use as a pressure limiting device for common hydraulic circuit protection. The spring acts on the poppet and presses it onto the valve seat. If the hydraulic pressure is below the pre-set value, the valve opens and flow passes to the tank port until the system pressure falls below the spring pre-set value and the valve closes again.
