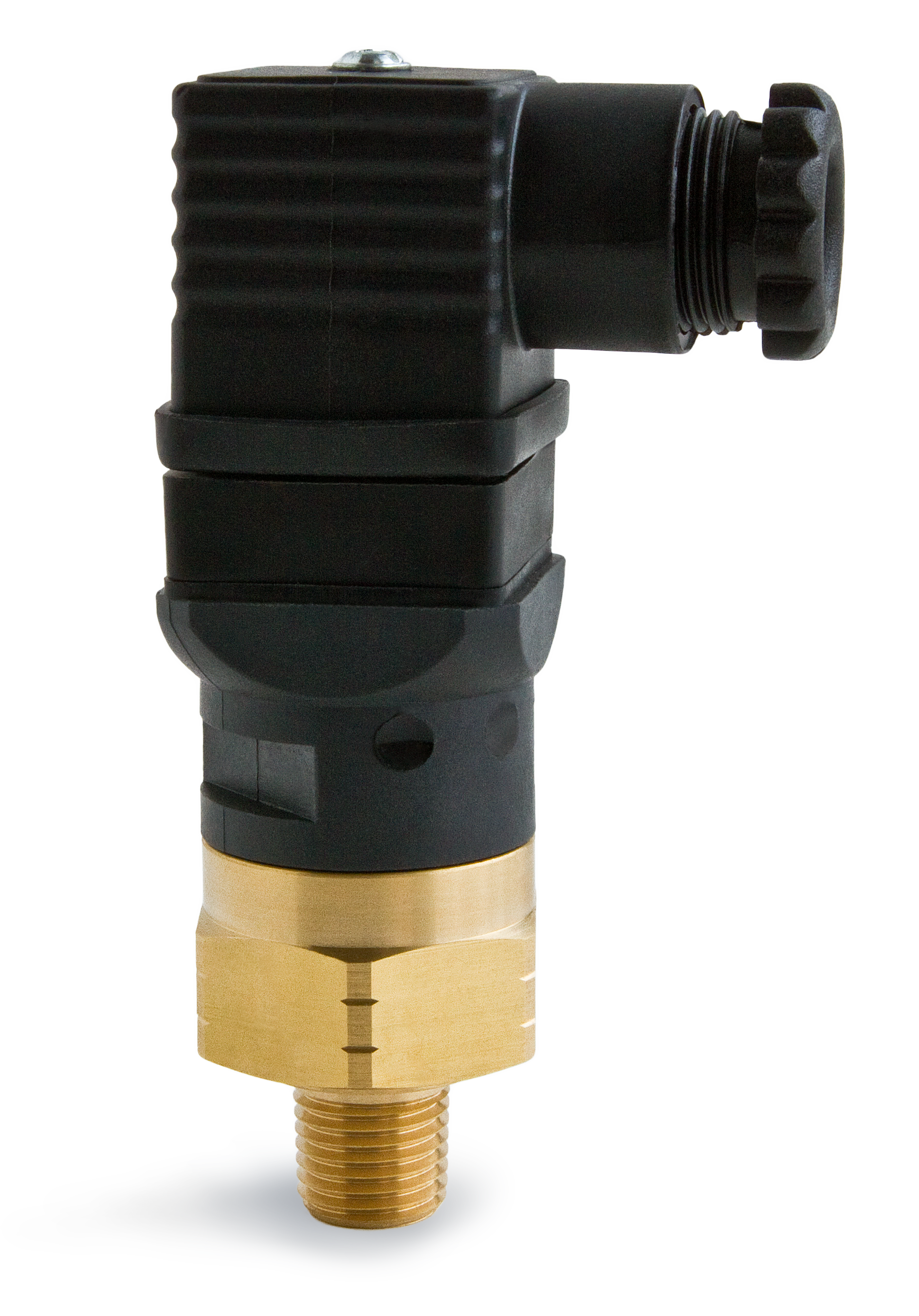

SPA-2-4M-C-HC : Anfield Low Pressure Switch, Field Adjustable, SPDT, 5-30psi, 0.25 (1/4") NPT Male, DIN 43650A
Roll over image to zoom in Click on image to zoom
SPA-2-4M-C-HC : Anfield Low Pressure Switch, Field Adjustable, SPDT, 5-30psi, 0.25 (1/4") NPT Male, DIN 43650A

SPA-2-4M-C-HC : Anfield Low Pressure Switch, Field Adjustable, SPDT, 5-30psi, 0.25 (1/4") NPT Male, DIN 43650A

Save $10.32
Anfield SensorsSKU: SPA-2-4M-C-HC
4-5 Weeks
Price:
$37.99 $48.31

Product Details

Data Sheet Click here to download
Usually Ships Within 4-5 Weeks
Factory Location Newnan, Georgia
Material Brass
Port Size 0.25 (1/4") NPT Male
Pressure Rating 350
Operating Temp Range -20°F to 180°F
Seal Material Nitrile
Pressure Range 5-30psi
Solenoid Electrical Connection DIN 43650A
Series SPA
Country of Manufacture Canada
Height 1.97
Length 3.27
Width 1.97
Weight 0.26

Description

The Series SPA (Field Adjustable) / SPF (Factory Preset) Low Pressure Snap Action Switch is a compact, cost-effective pressure switch designed for low-pressure hydraulic, pneumatic, and water applications. Featuring a high-quality snap-action micro switch, it is field adjustable with an Allen screw and offers optional IP67-rated flying lead options for increased protection in harsh environments. With a wide temperature range, durable materials including lead-free brass and stainless steel, and a mechanical life expectancy of 1 million cycles, this switch is ideal for applications such as pneumatic system control, low-pressure filter monitoring, car washes, and gate control. Its robust design ensures reliable performance and long-lasting service, with a repeatability of plus or minus 2% and a maximum overpressure rating of 350 PSI.
