Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | Same Day |
Factory Stock | 0 |
Factory Location | Bowling Green, Ohio |
Material | Carbon Steel, Zinc-coated (ZnCr-3), ISO 9227 (240 h) |
Adjustment Type | Allen key (hex. 5), no protective cap |
Flow Rating | 16 |
Pressure Rating | 5100 |
Pressure Range | Up to 250 bar (3630 PSI) |
Cartridge Cavity | C-10-3 |
Description

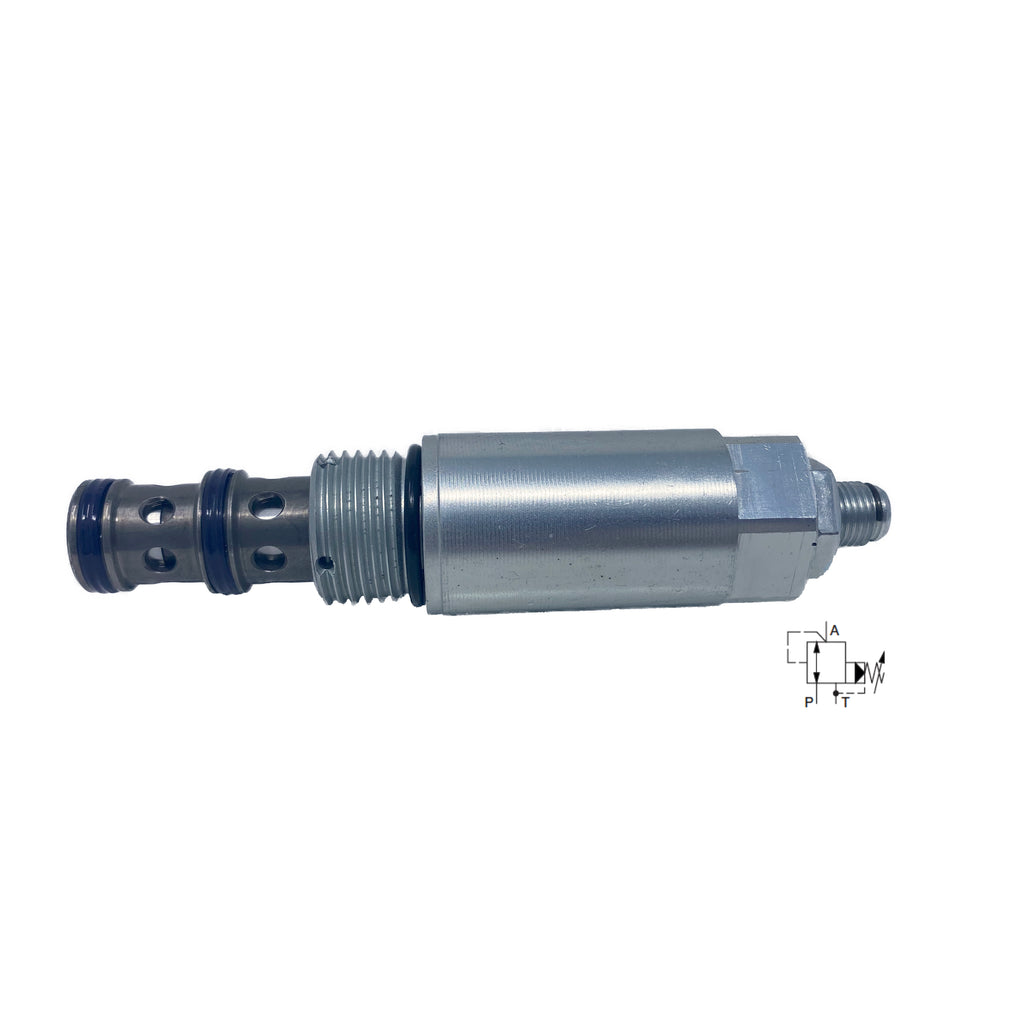

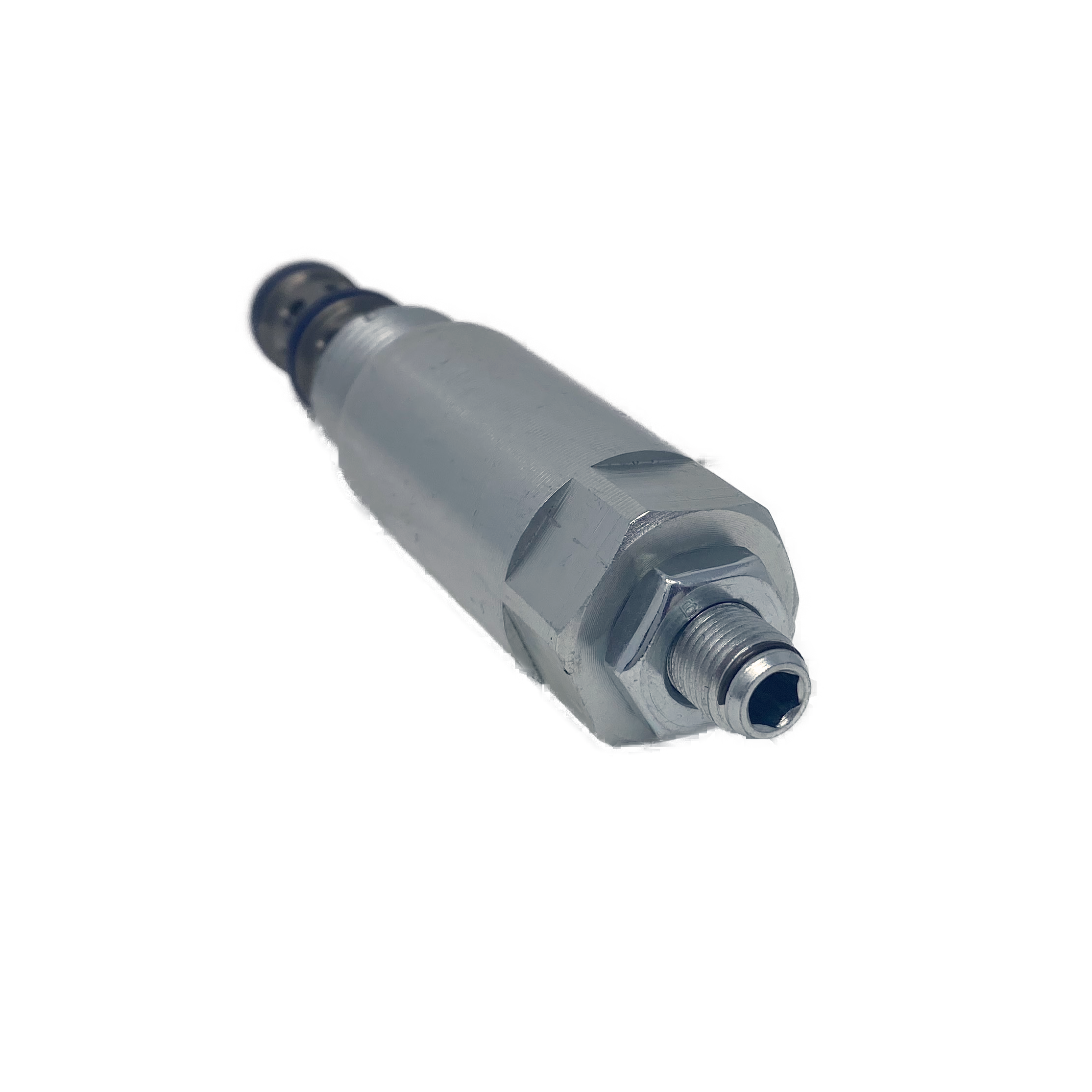

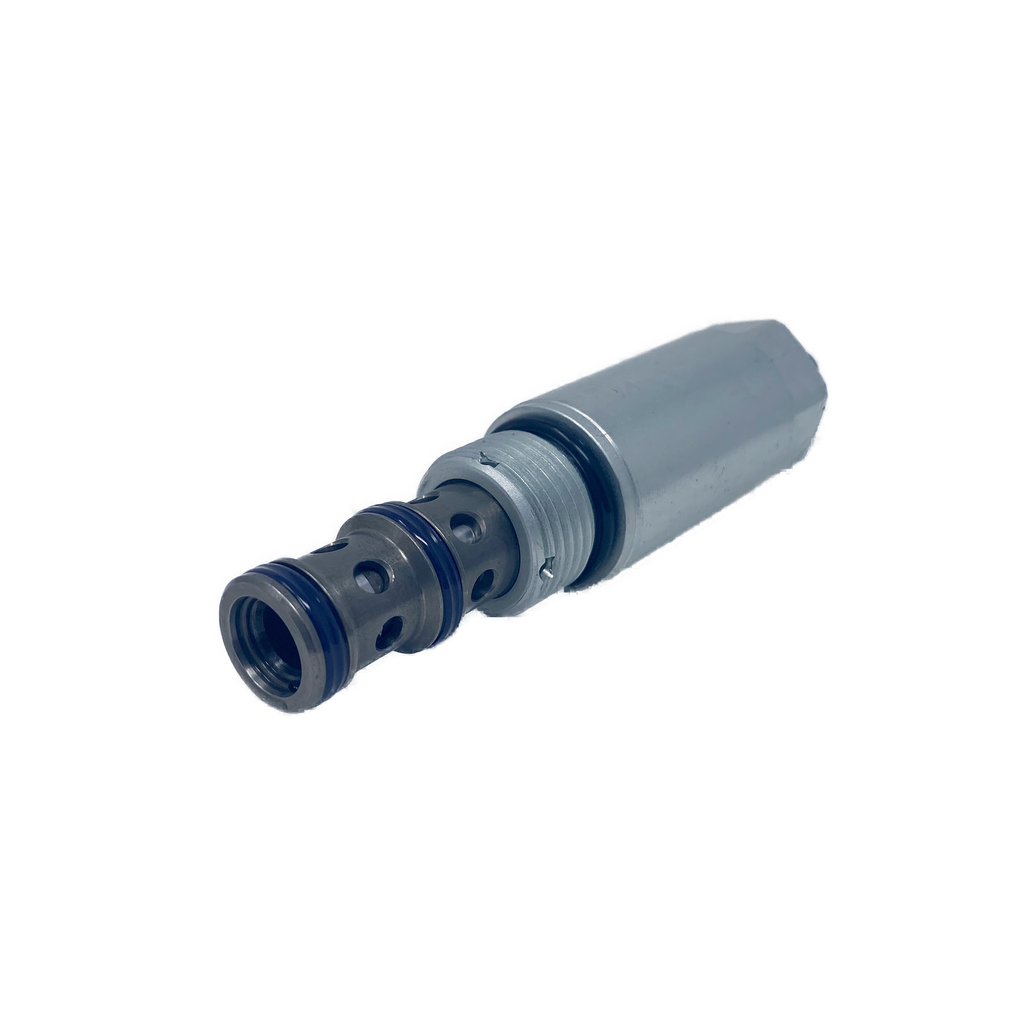

Argo-Hytos Pressure Reducing-Relieving Valve, Spool Type, Pilot Operated, 16 GPM, 6100psi rated, Up to 3630psi Adjustment Range, Allen Key Screw, The Argo Hytos SP4A-B3 pilot operated pressure reducing valve is designed to reduce the system pressure at the consumer port. Due to its 3 way design the valve provideds reverse relief protection of the secondary circuit to the tank port. The pressure can be set by an adjustment screw, by allen key or by hand screw.
