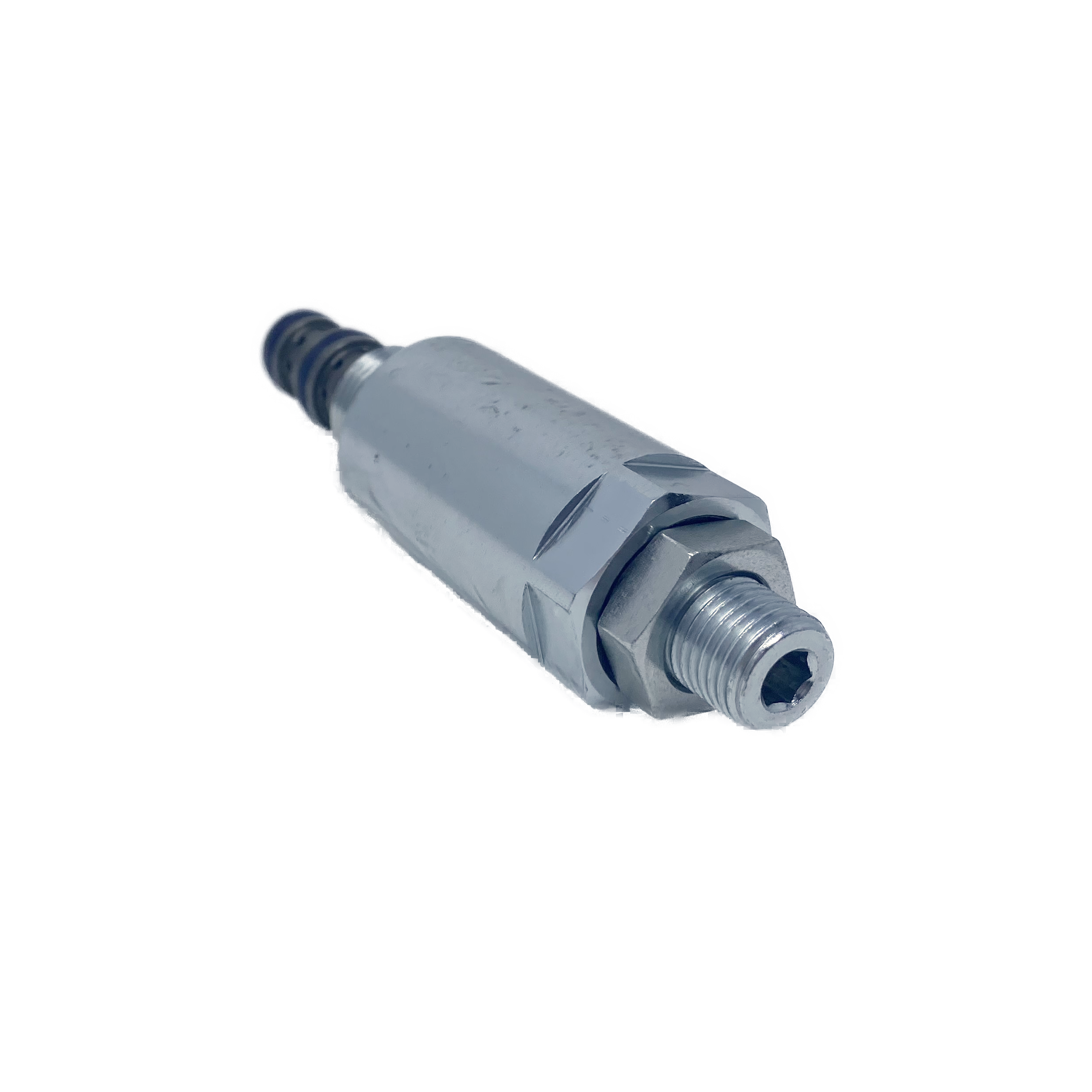

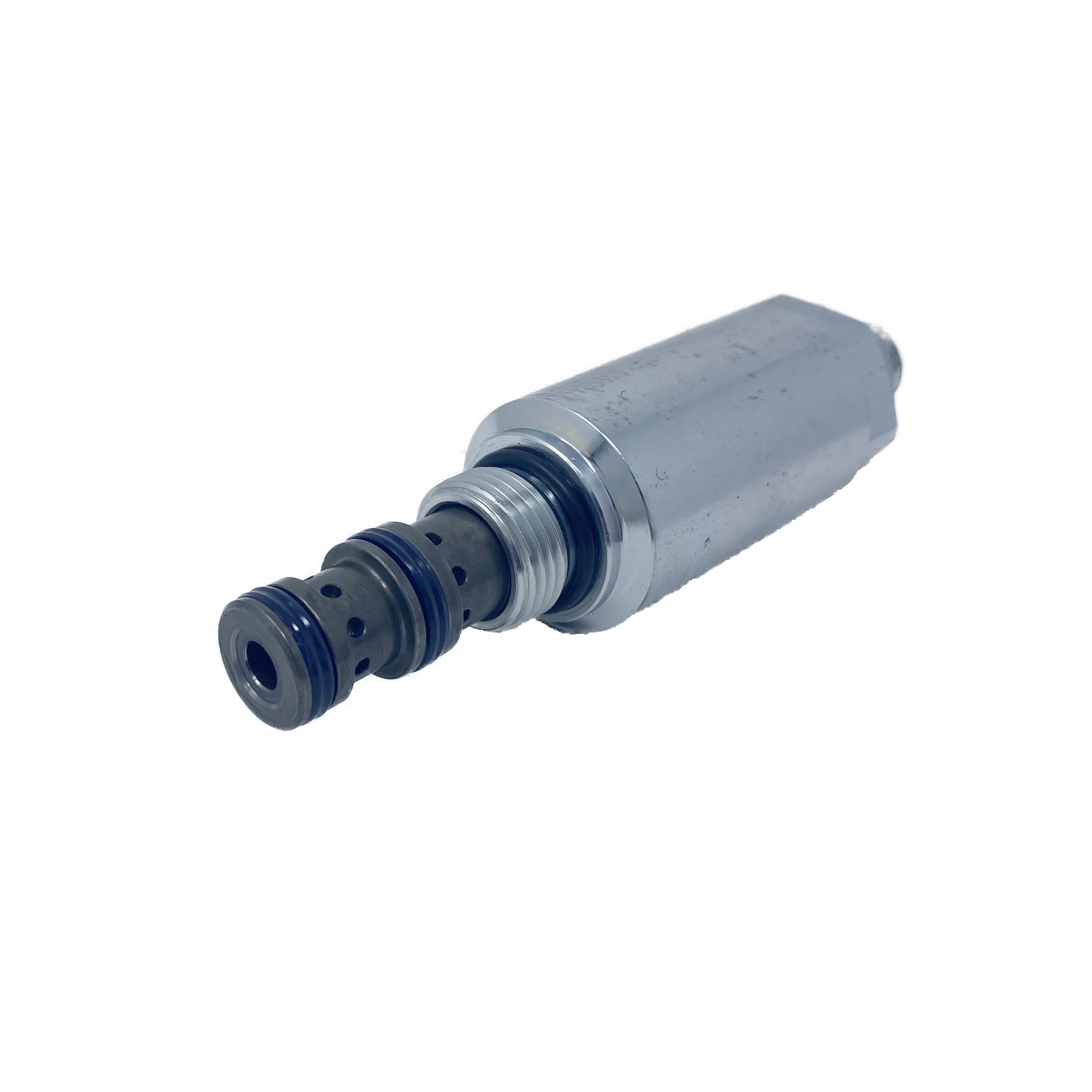

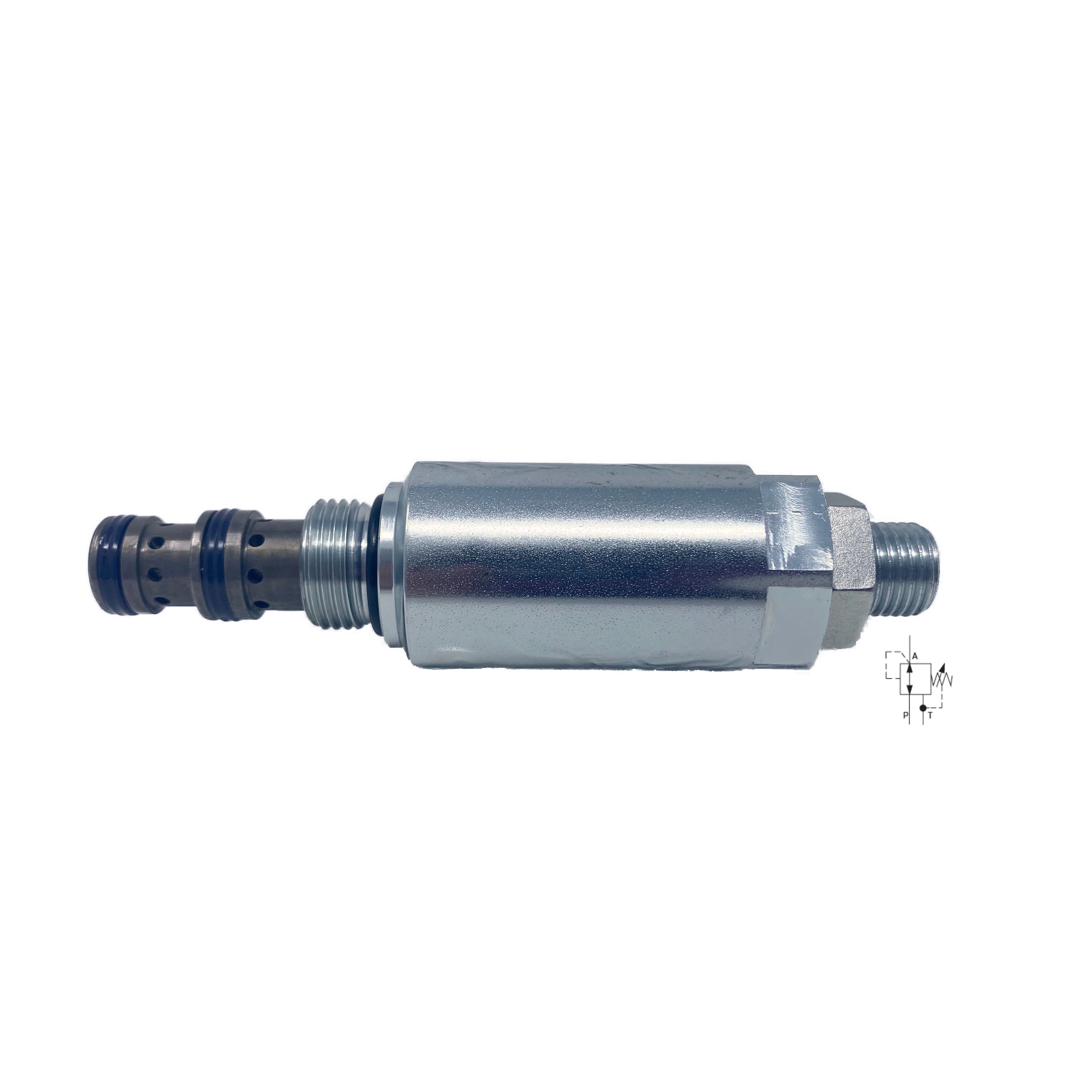

SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3
SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3
SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3
Roll over image to zoom in Click on image to zoom
SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3

SP2A-A3/L2S : Argo, Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustable, C-8-3

Argo-HytosSKU: 22565300
Same Day
1
4
03.12.J.101A
Price:
$66.98

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 4
Factory Location Bowling Green, Ohio
Material Carbon Steel, Zinc-coated (ZnCr-3), ISO 9227 (240 h)
Adjustment Type Allen key (hex. 6), without protective cap
Flow Rating 5
Pressure Rating 5100
Pressure Range 10 - 25 bar (150 - 360 PSI)
Cartridge Cavity C-8-3

Description

Argo-Hytos Pressure Reducing-Relieving Valve, Spool Type, Direct Acting, 5 GPM, 5100psi rated, 150-360psi Adjustment Range, Allen Key Screw, The Argo-Hytos SP2A-A3 cartridge is a direct-acting, pressure reducing-relieving valve. This valve provides an adjustable regulated pressure level below supply pressure. This direct-acting model is suitable for applications with lower flow rates and lower regulated pressures. In case of shock or surge pressures in the downstream line, this valve acts as a relief valve, directing excessive pressure and flow to tank.
