Spares and Related Parts
Total Price:
$371.63
$298.79
-
This product:

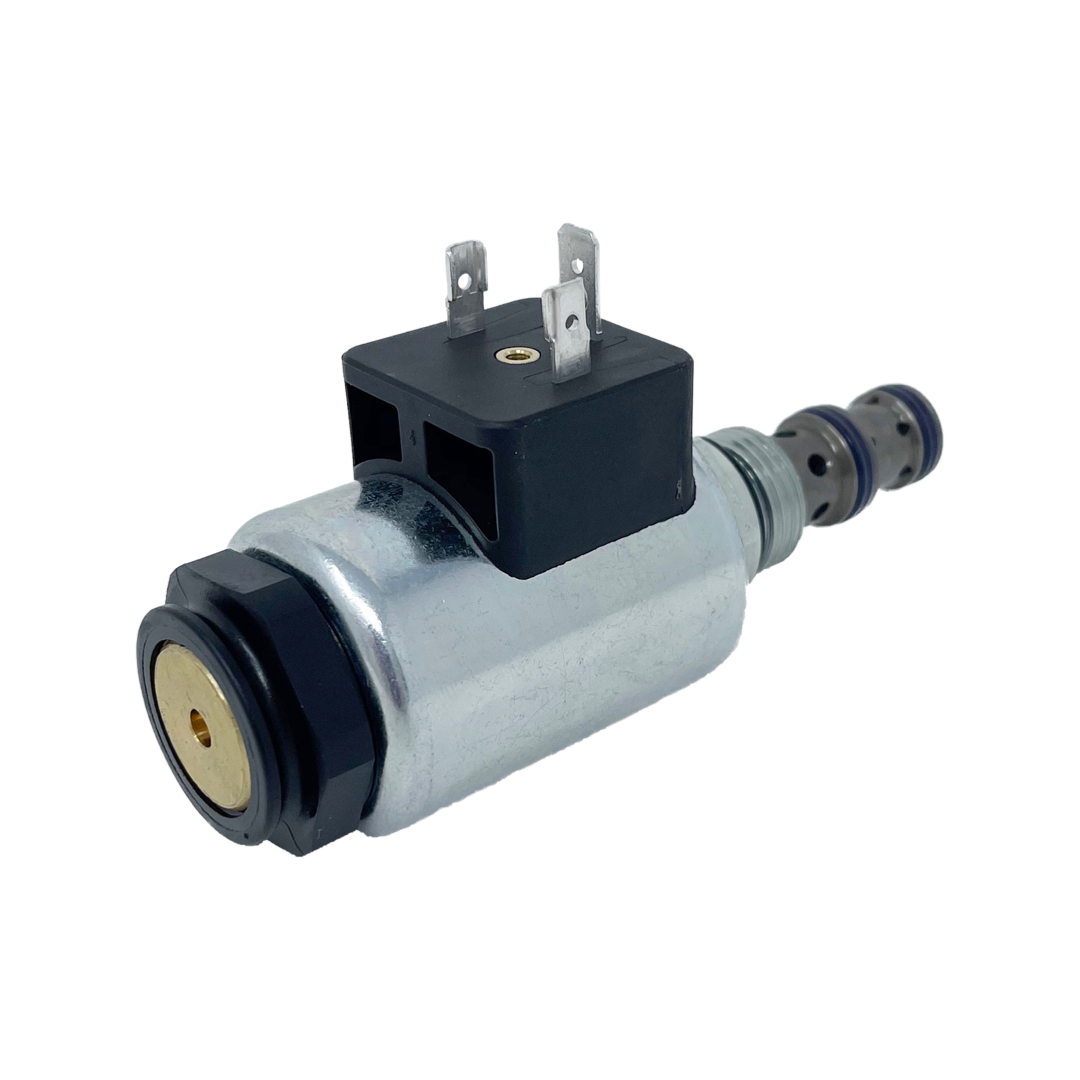

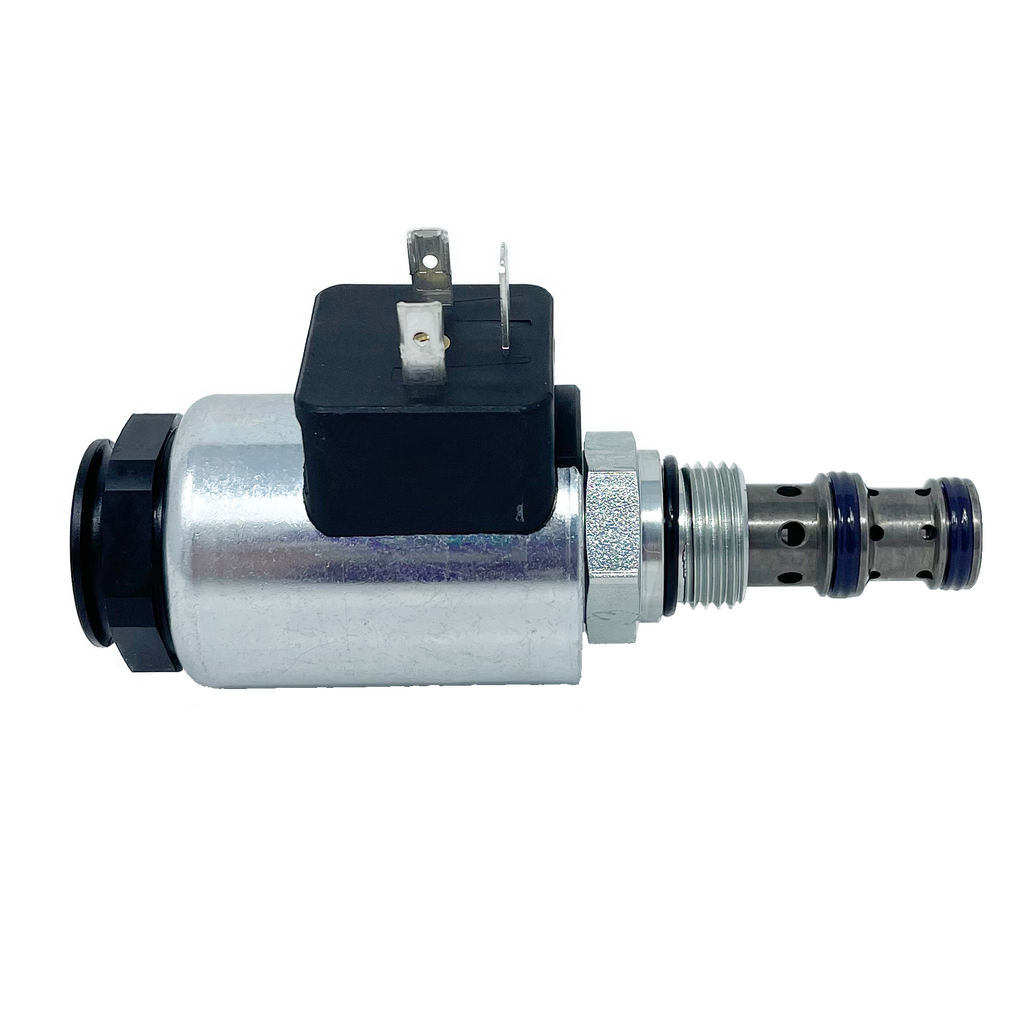

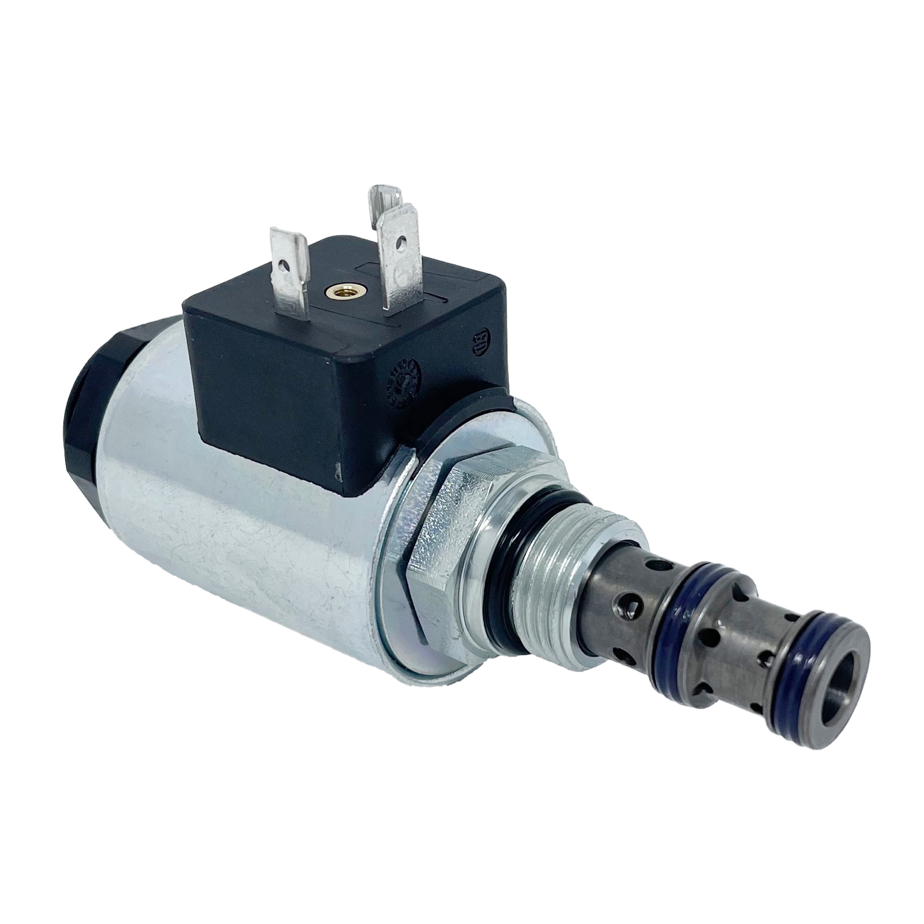

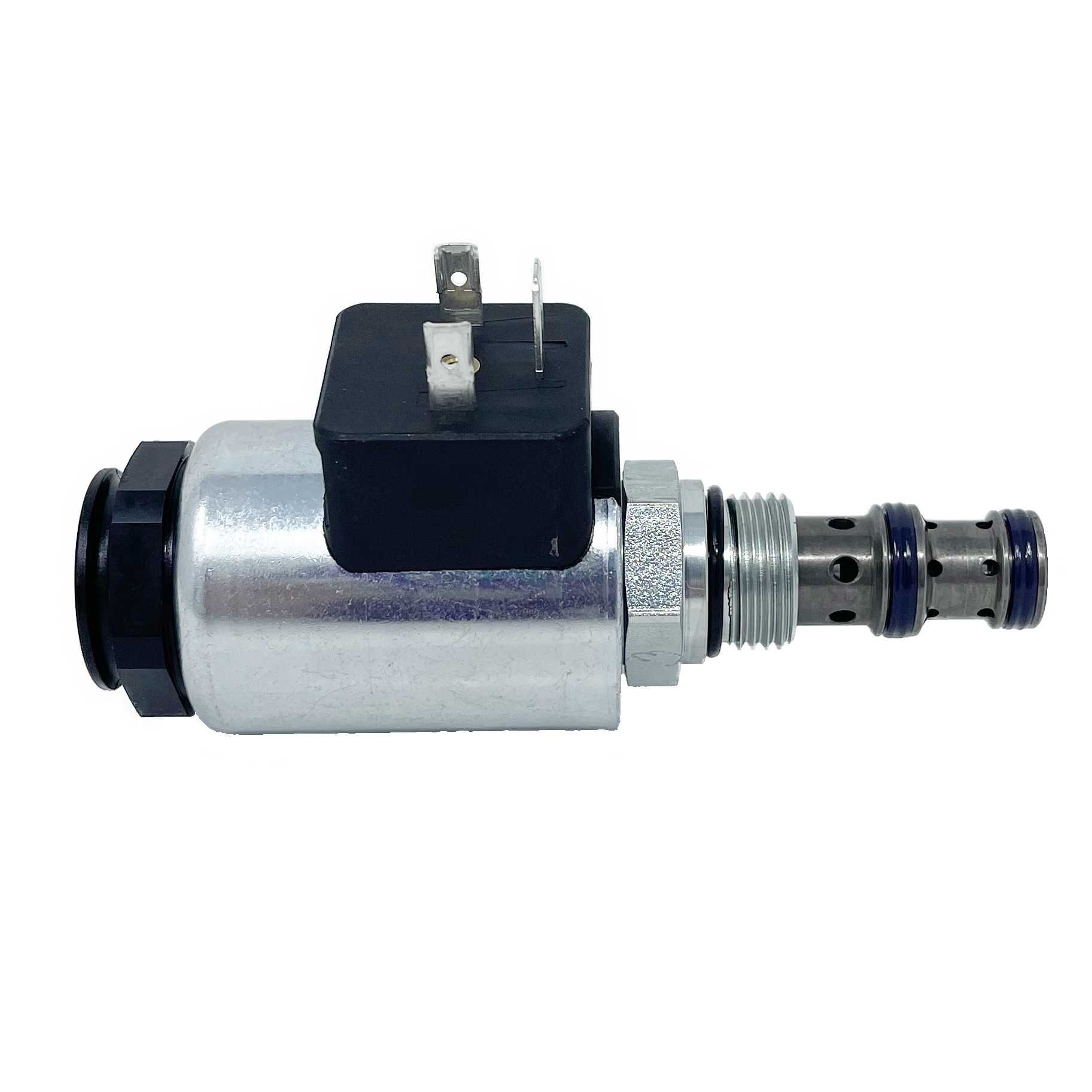

SD2E-A3/H2D26A-12DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC DIN, Port 1 Blocked, 3 to 2 Neutral
$145.84$72.99 - C19B-01200E1-4.9NA : Argo Valve Coil, 12VDC, DIN (EN 175301-803-A) Connector Type $28.86
- AC083CB6S : Daman Common Cavity Body, C-8-3 Cartridge Cavity, #6 SAE (3/8") Port Connections, 3000psi Rated, Aluminum, Without Gauge Port $48.99
- AC083CB8S : Daman Common Cavity Body, C-8-3 Cartridge Cavity, #8 SAE (1/2") Port Connections, 3000psi Rated, Aluminum, Without Gauge Port $48.95
- DC083CB8S : Daman Common Cavity Body, C-8-3 Cartridge Cavity, #8 SAE (1/2") Port Connections, 5000psi Rated, Ductile Iron, Without Gauge Port $98.99
Total Price:
$371.63
$298.79
Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bowling Green, Ohio |
| Solid Model | Click here to download |
| Valve Type | Cartridge |
| Flow Rating | 8 |
| Pressure Rating | 5100 |
| Actuation Type | Solenoid Operated |
| Spool Configuration | Port 1 Blocked, 3 to 2 in Neutral, 2D26 |
| Cartridge Cavity | C-8-3 |
| Positions | 2-Position |
| Way | 3-Way |
| Coil Selection | 12 VDC DIN Coil |
| Coil Model Code | C19B-01200E1-4.9NA |
| Country of Manufacture | Czech Republic |
| Height | 1 |
| Length | 4.31 |
| Width | 1 |
| Weight | 1 |
Description
The Argo-Hytos 3-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
