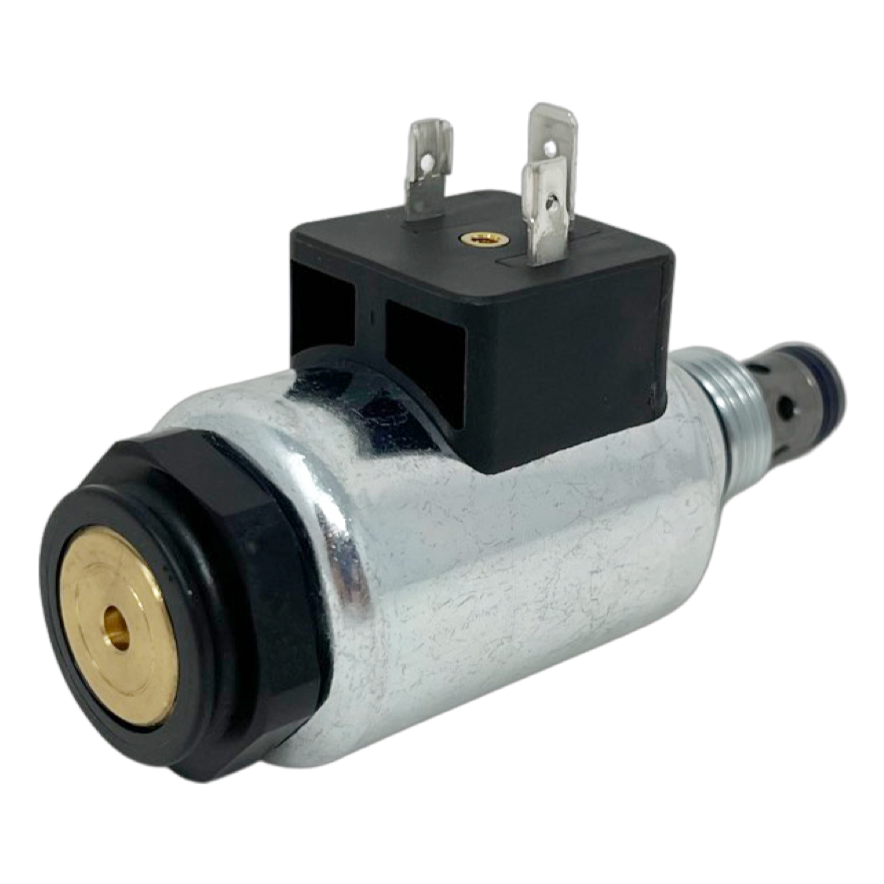

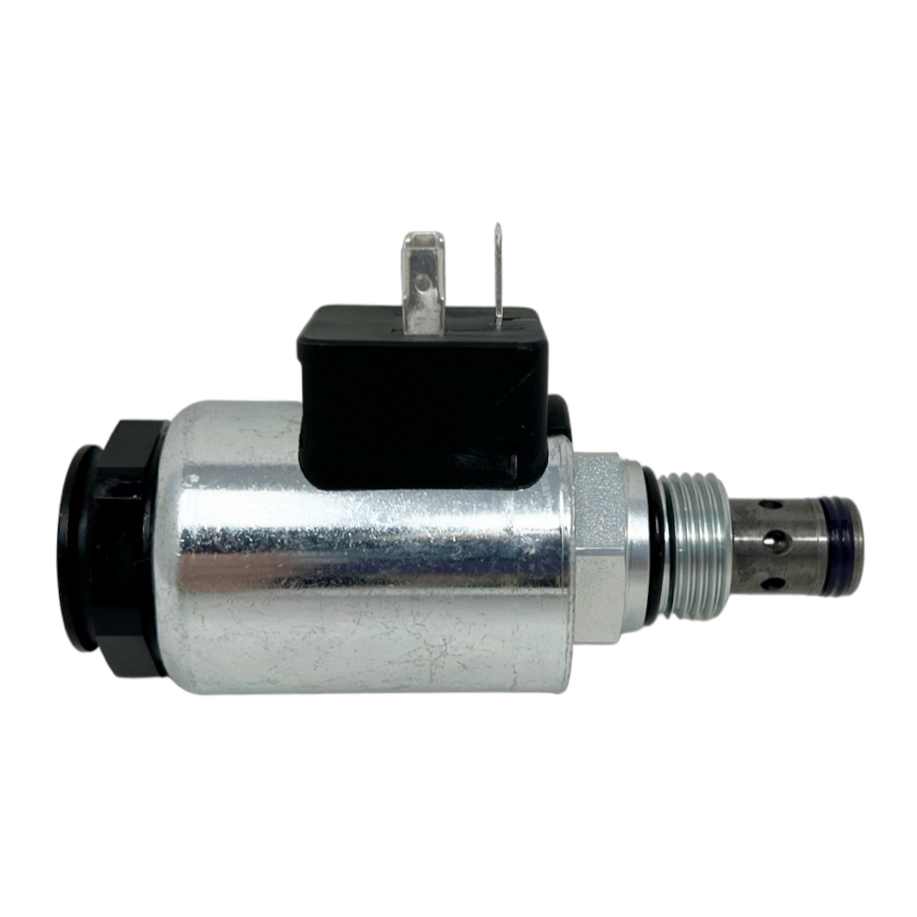

SD2E-A2/H2I12A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow Blocked 1 to 2

Save $110.93
Argo-HytosSKU: SD2E-A2/H2I12A-24DIN
Same Day
5

Price:
Sale price$47.80 Regular price$158.73

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Flow Blocked from 1 to 2, 2I12
Cartridge Cavity C-8-2
Positions 2-Position
Way 2-Way
Coil Selection 24 VDC DIN Coil
Coil Model Code C19B-02400E1-20.8NA
Country of Manufacture Czech Republic
Height 1
Length 3.84
Width 1
Weight 1

Description

The Argo-Hytos 2-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges. C-8-2 operating cavity.
