Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bowling Green, Ohio |
| Solid Model | Click here to download |
| Valve Type | Cartridge |
| Flow Rating | 8 |
| Pressure Rating | 5100 |
| Actuation Type | Solenoid Operated |
| Spool Configuration | Thru flow from 1 to 2, 2I11 |
| Cartridge Cavity | C-8-2 |
| Positions | 2-Position |
| Way | 2-Way |
| Coil Selection | 12 VDC DIN Coil |
| Coil Model Code | C19B-01200E1-4.9NA |
| Country of Manufacture | Czech Republic |
| Height | 1 |
| Length | 3.84 |
| Width | 1 |
| Weight | 1 |
Description

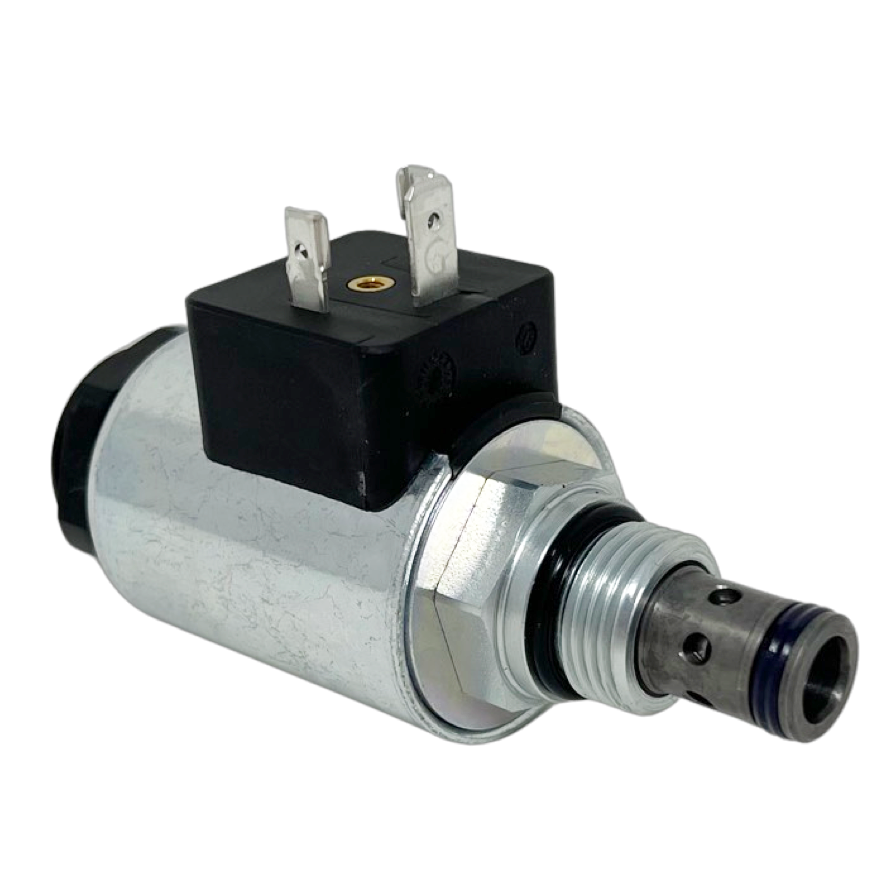

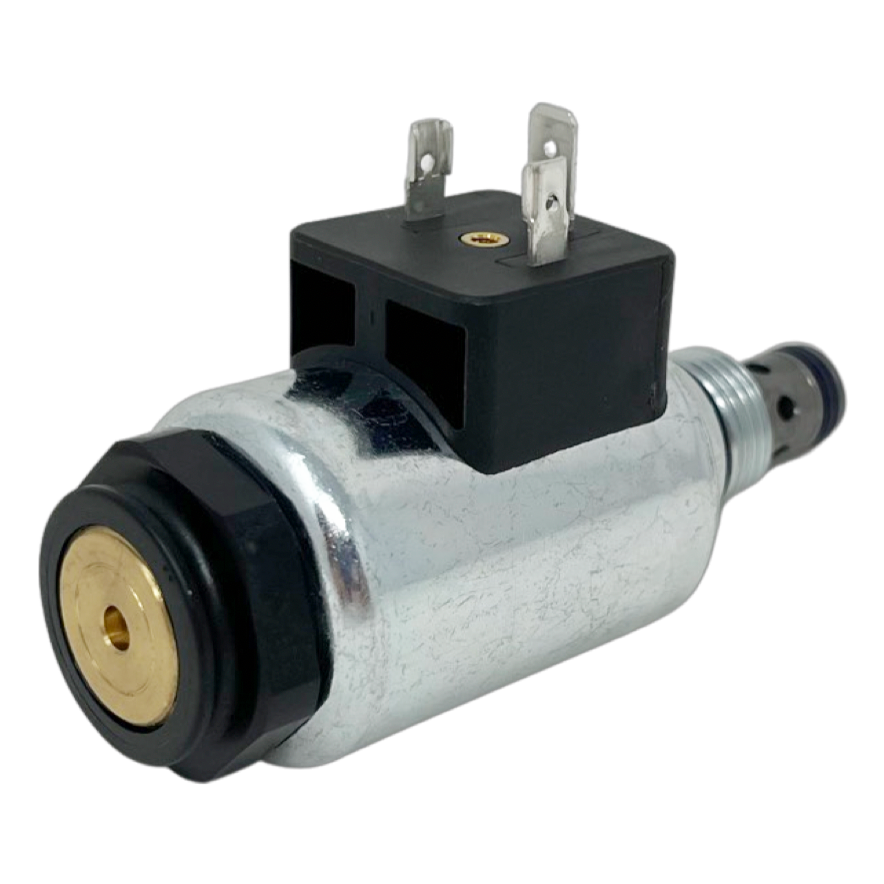

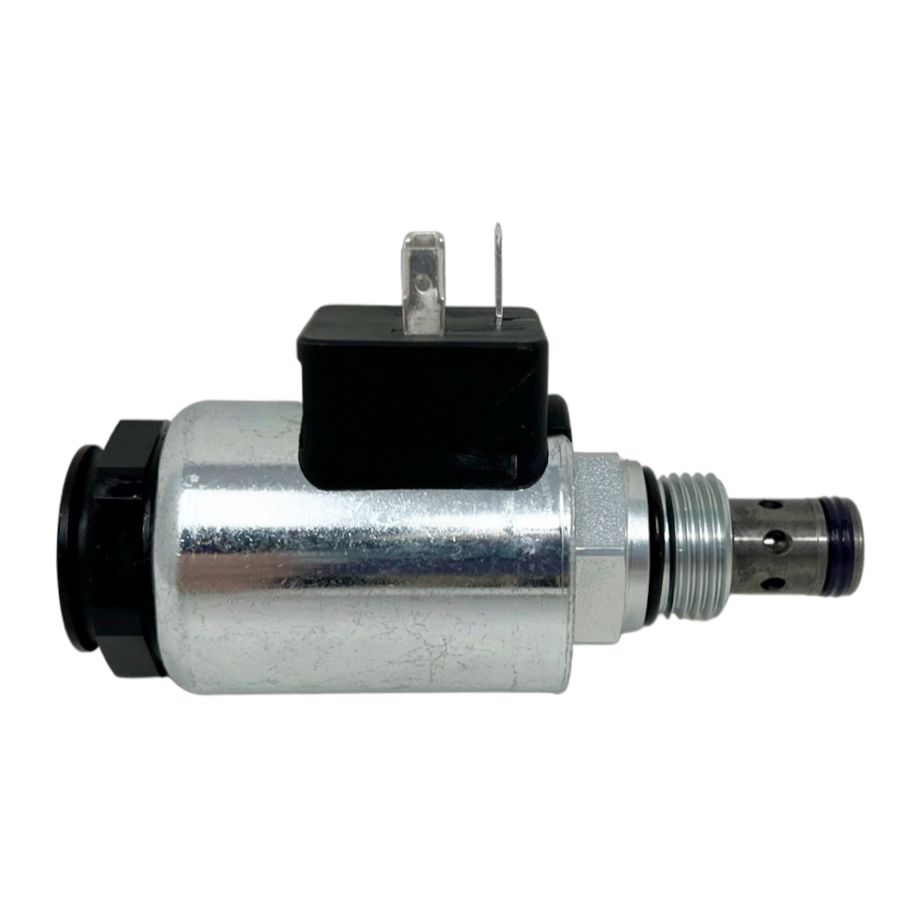

The Argo-Hytos 2-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges. C-8-2 operating cavity.
