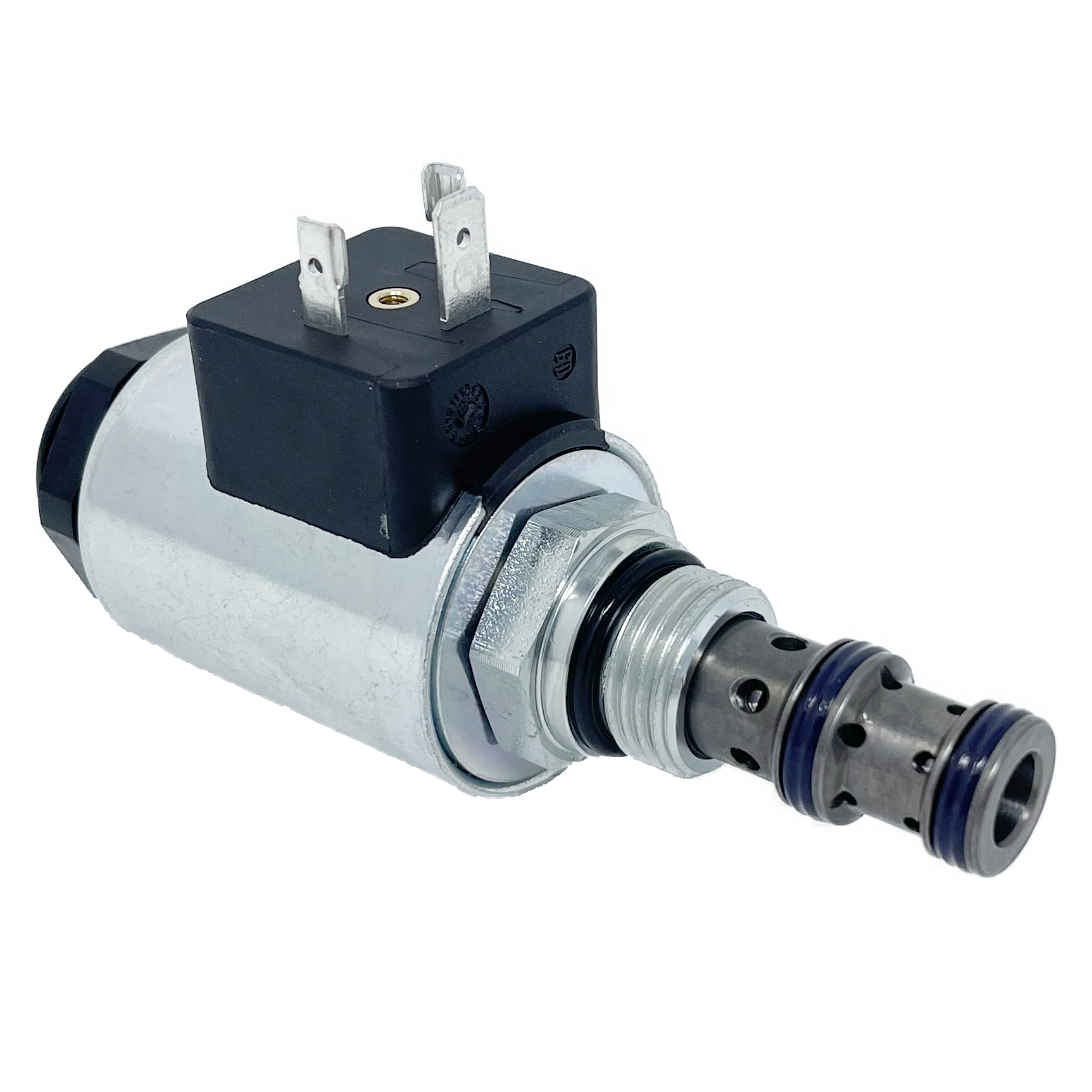

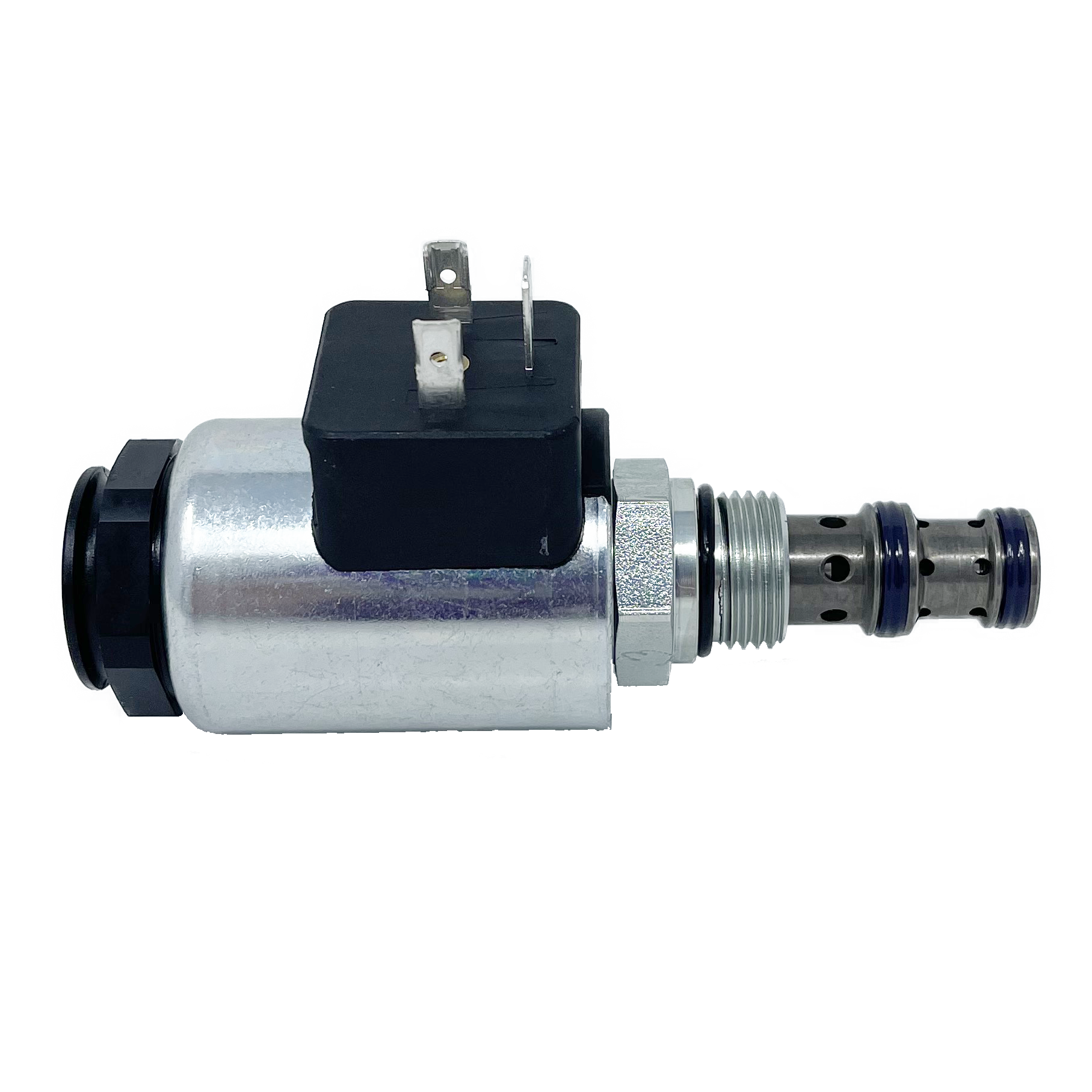

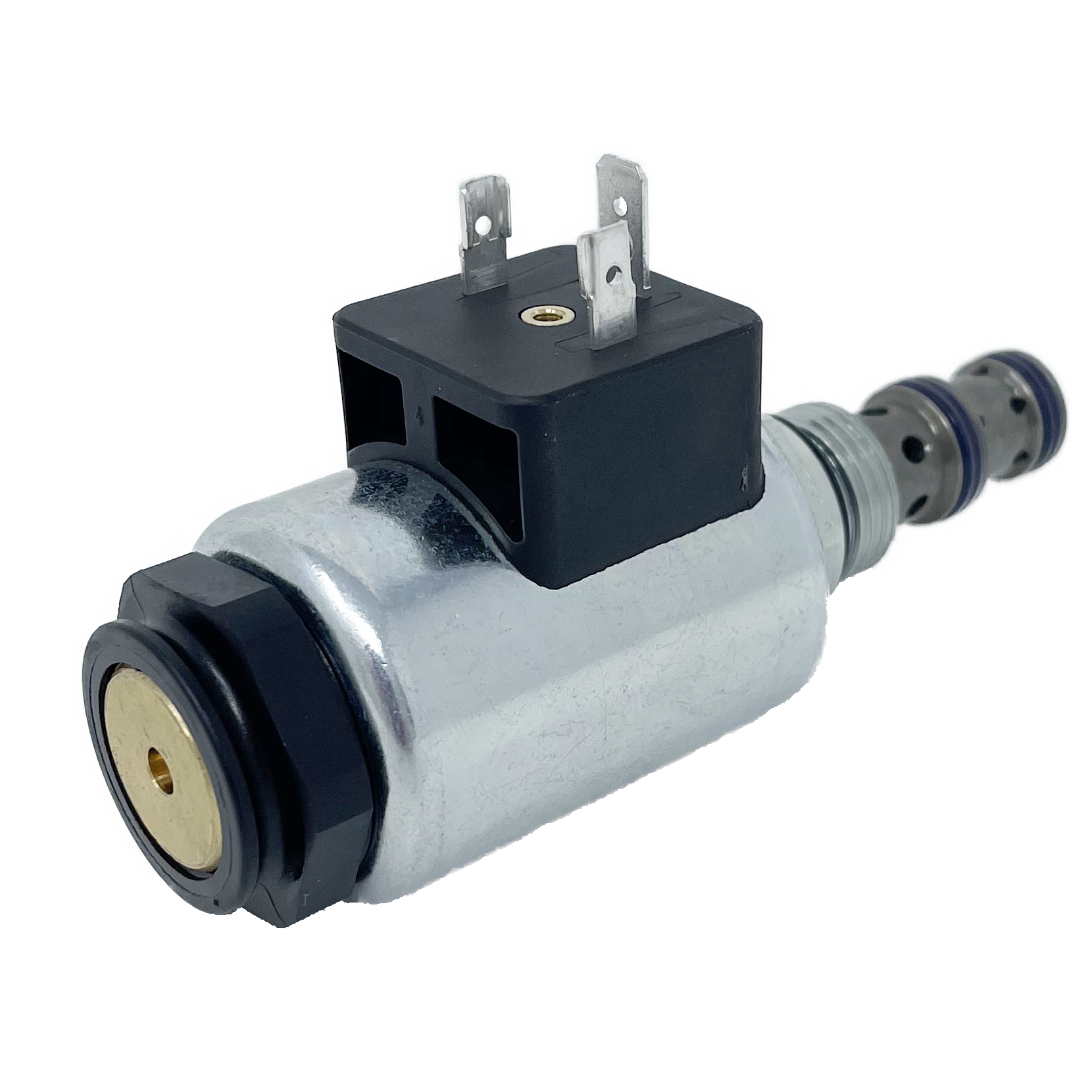

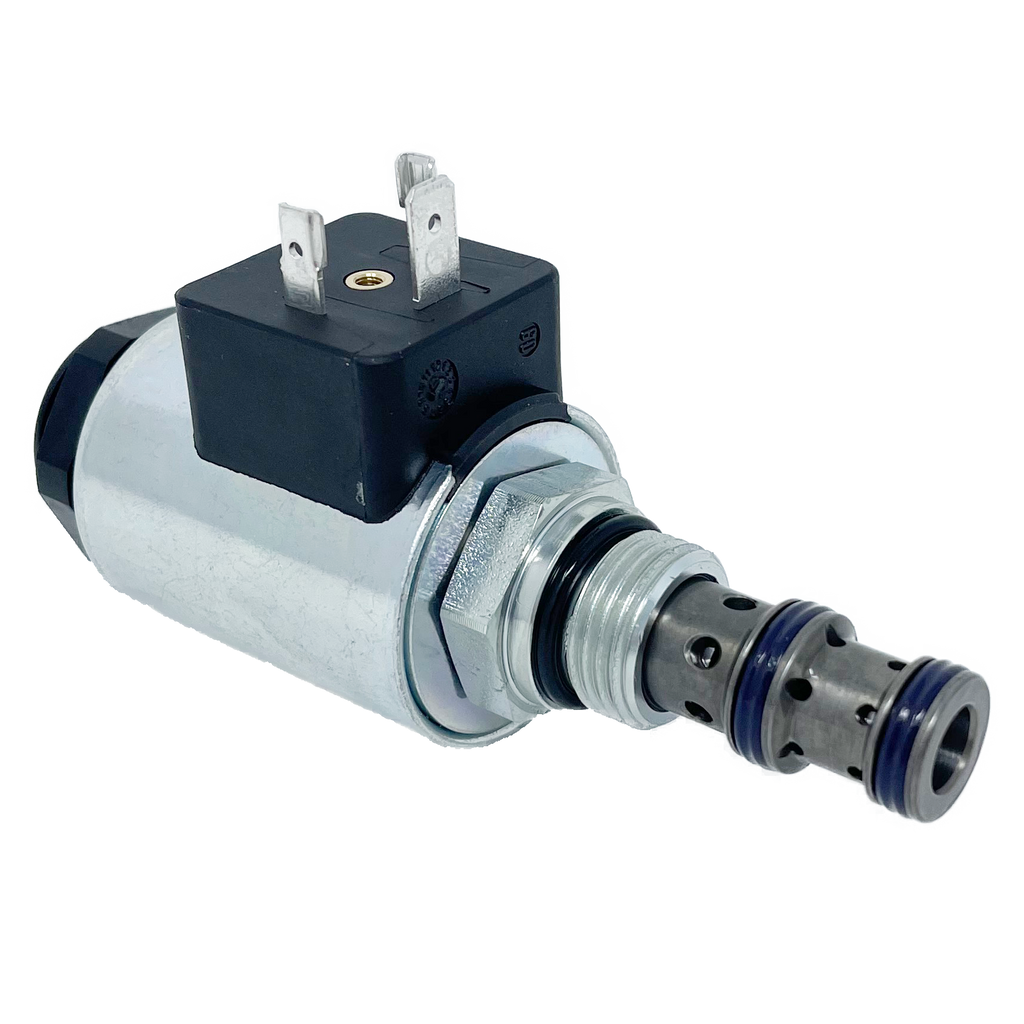

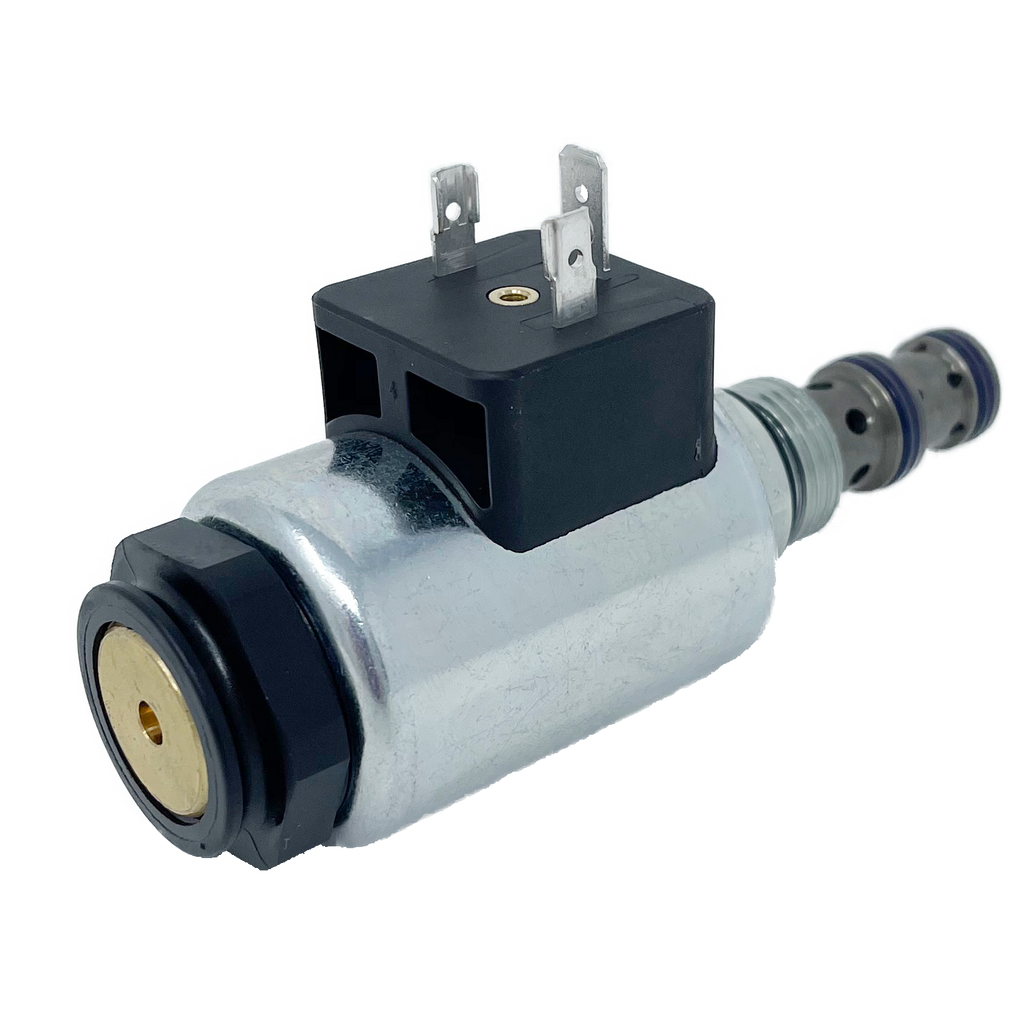

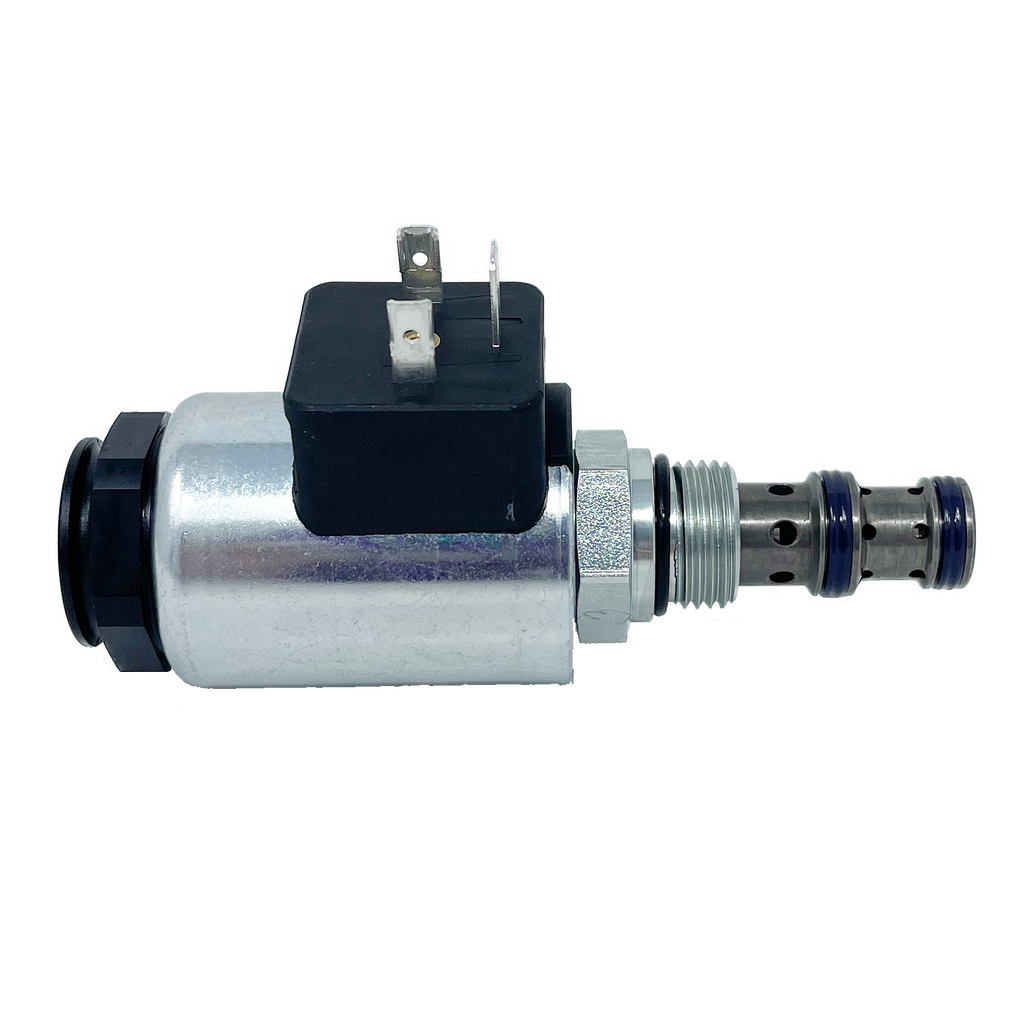

SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1
SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1
SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1
Roll over image to zoom in Click on image to zoom
SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1

SD1E-A3/H2S7A-24DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 24 VDC DIN, Port 3 Check, Free Flow 2 to 1

Save $122.22
Argo-HytosSKU: SD1E-A3/H2S7A-24DIN
Same Day
5
Price:
$121.99 $244.21

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Port 3 Checked, Free Flow from 2 to 1, 2S7
Cartridge Cavity C-8-3
Positions 2-Position
Way 3-Way
Coil Selection 24 VDC DIN Coil
Coil Model Code C19B-02400E1-20.8NA
Country of Manufacture Czech Republic
Height 1
Length 4.45
Width 1
Weight 1

Description

The Argo-Hytos 3-Way, 2-Position, high pressure, direct-acting cartridge valve is made with hardened precision parts, and is used for bidirectional flow to actuators with leak-free closing in both directions.
