Spares and Related Parts
Total Price:
$251.27
$139.85
-
This product:

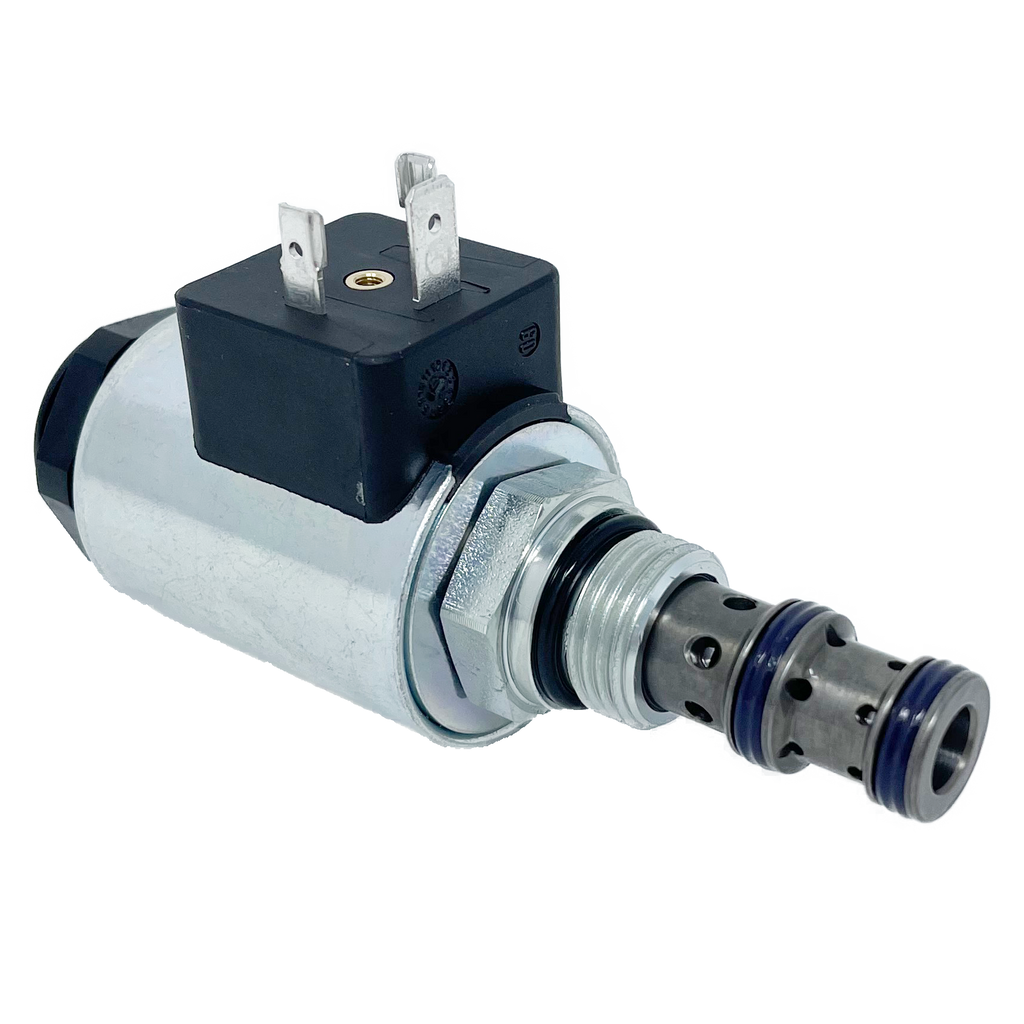

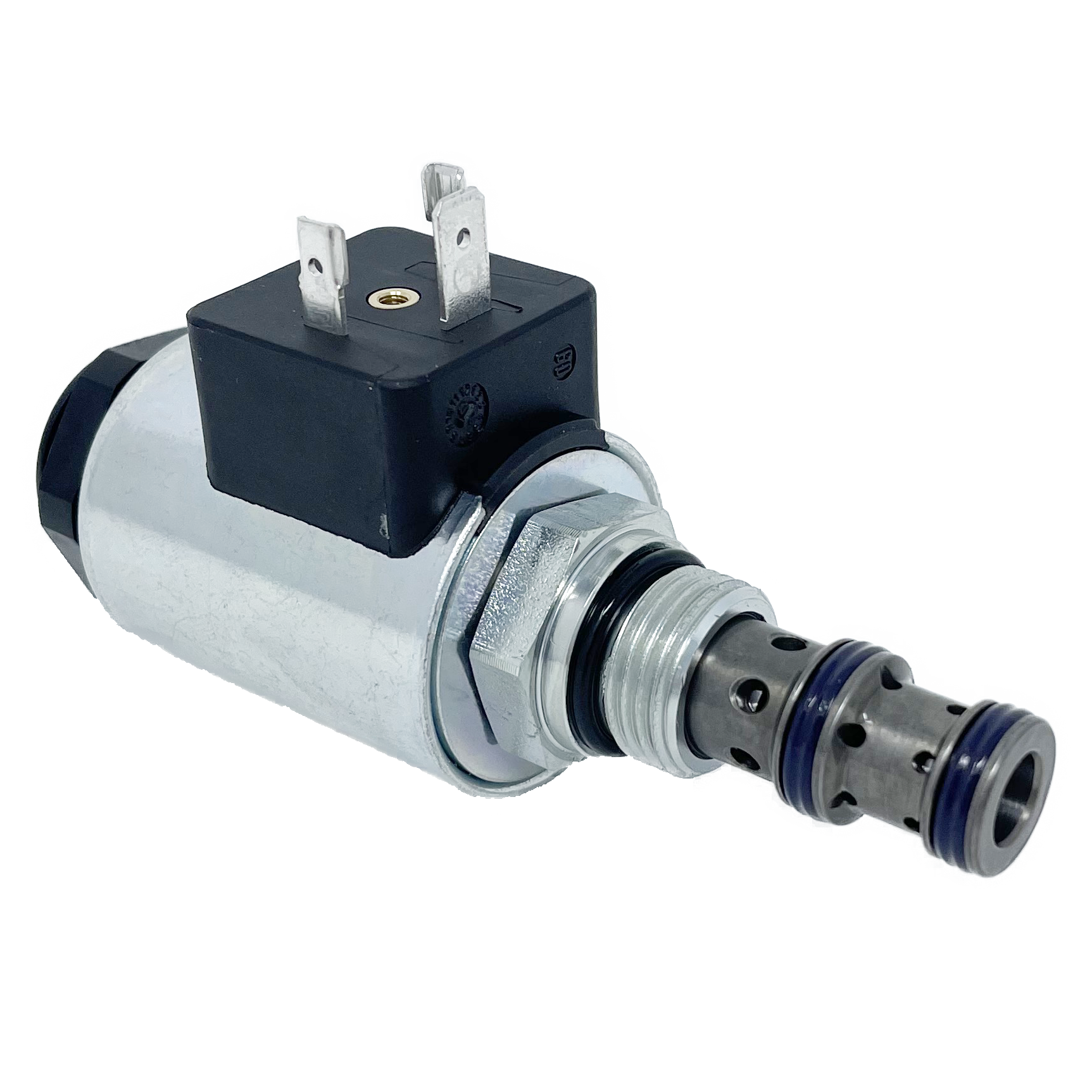

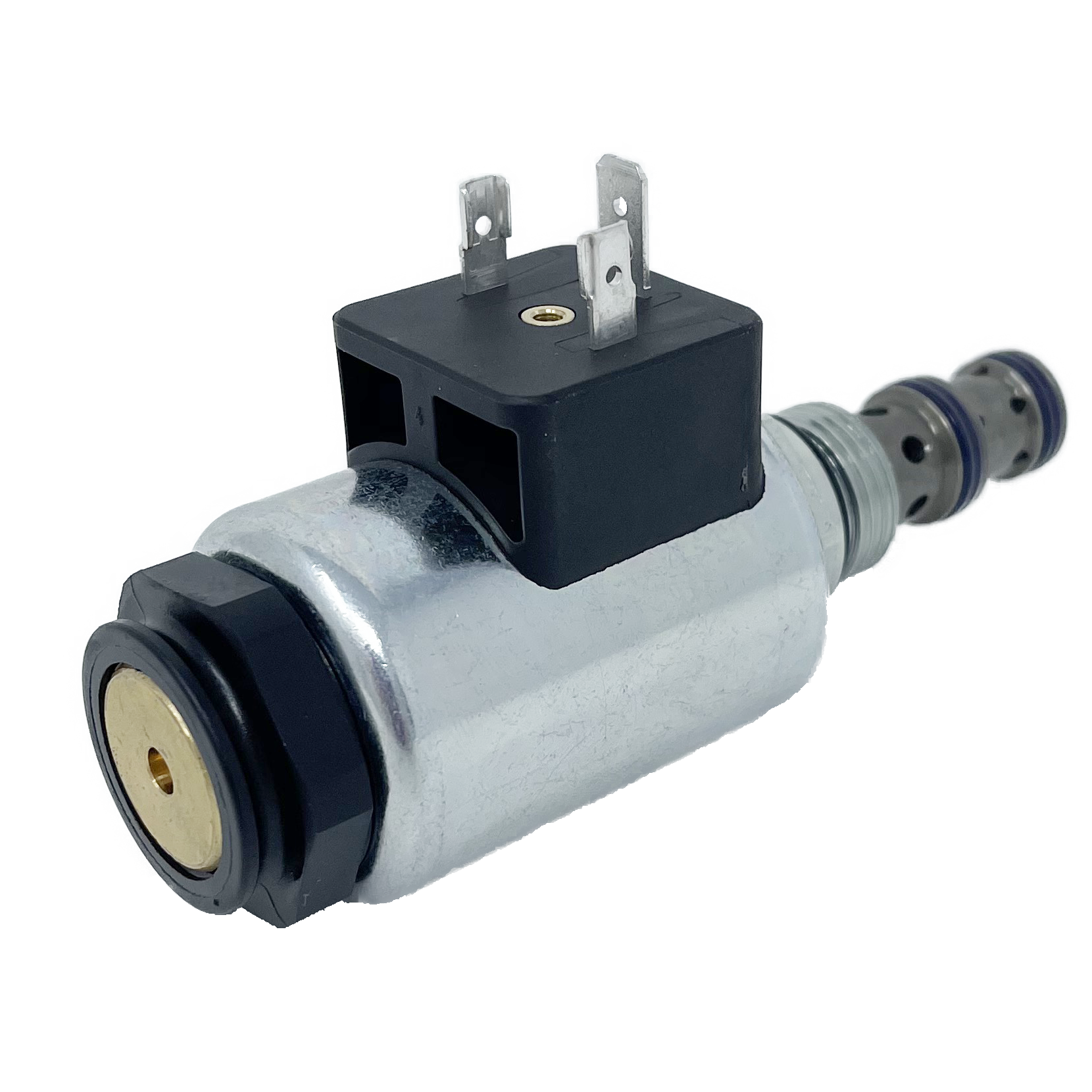

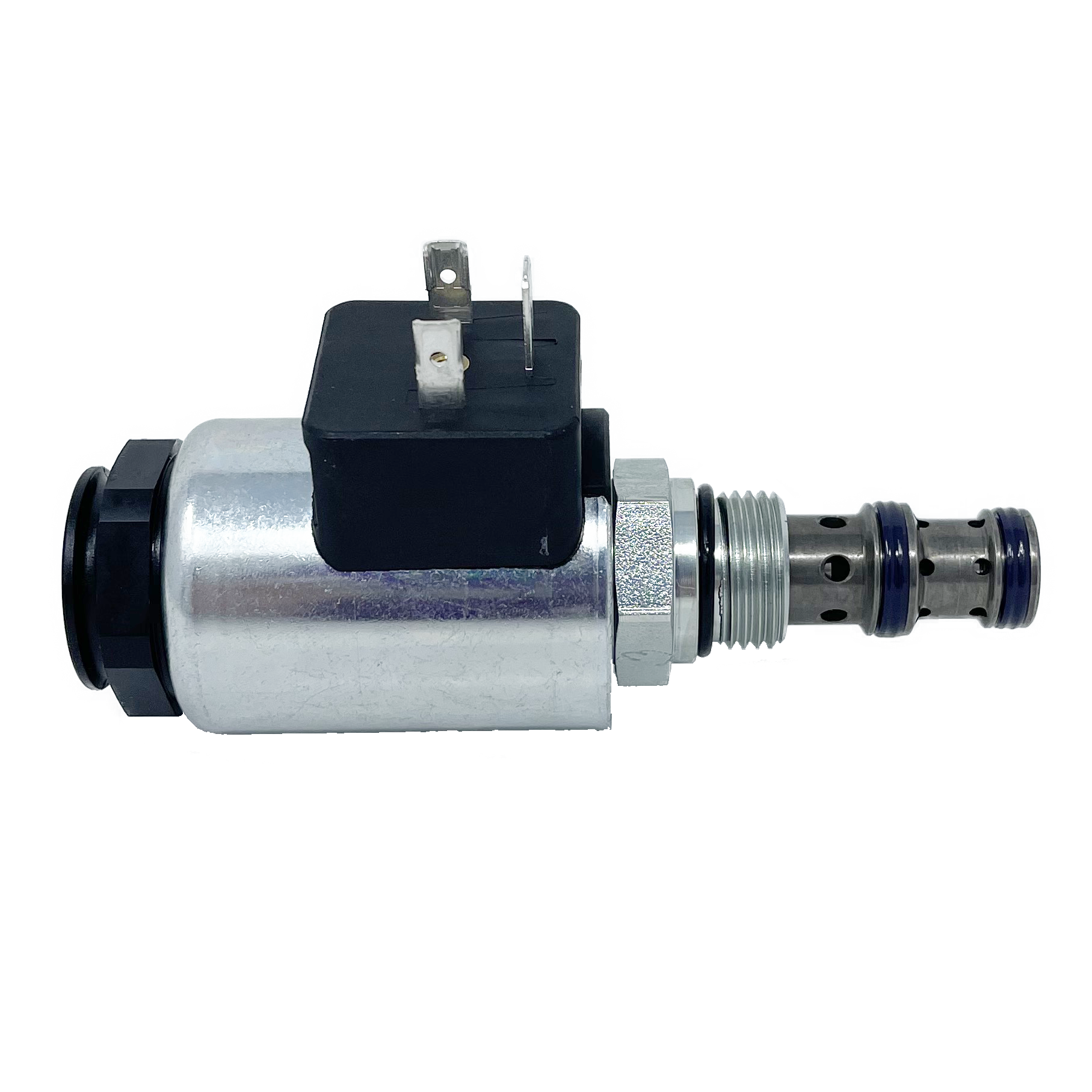

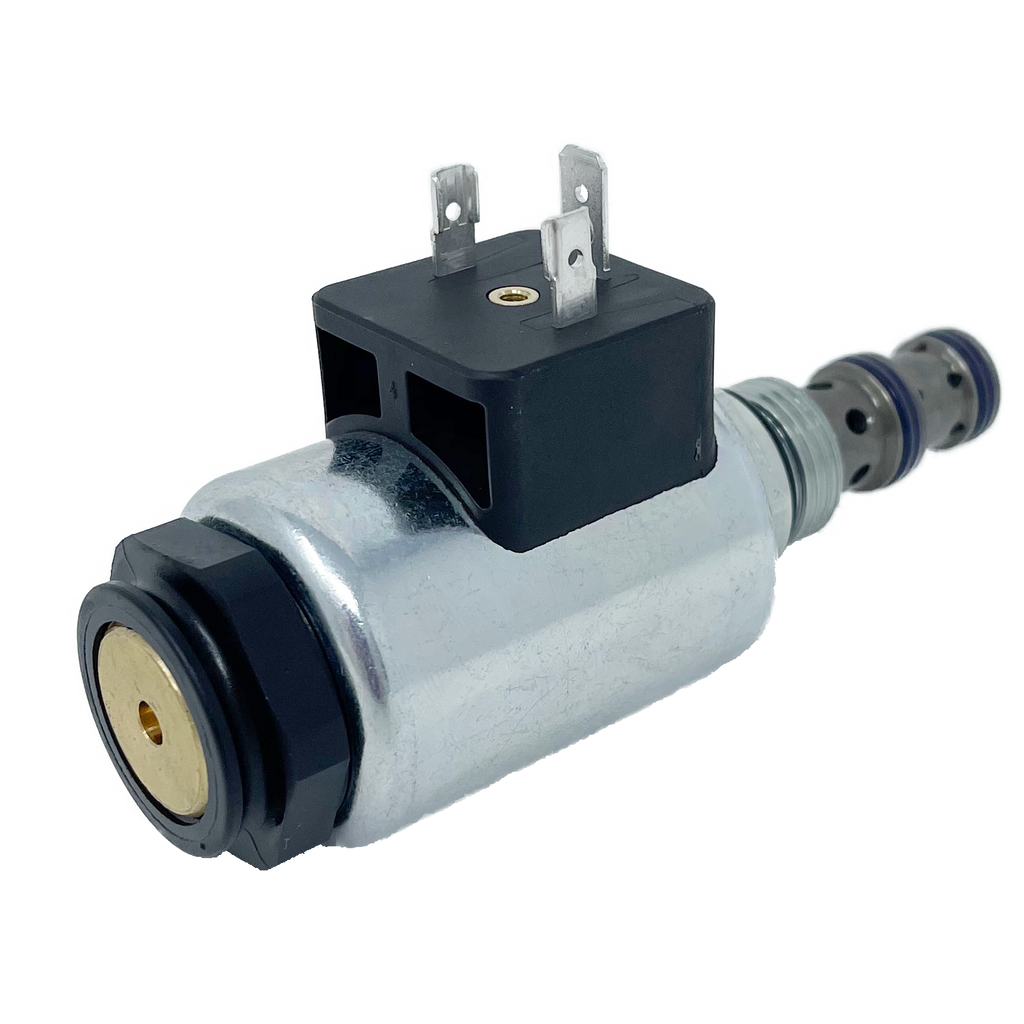

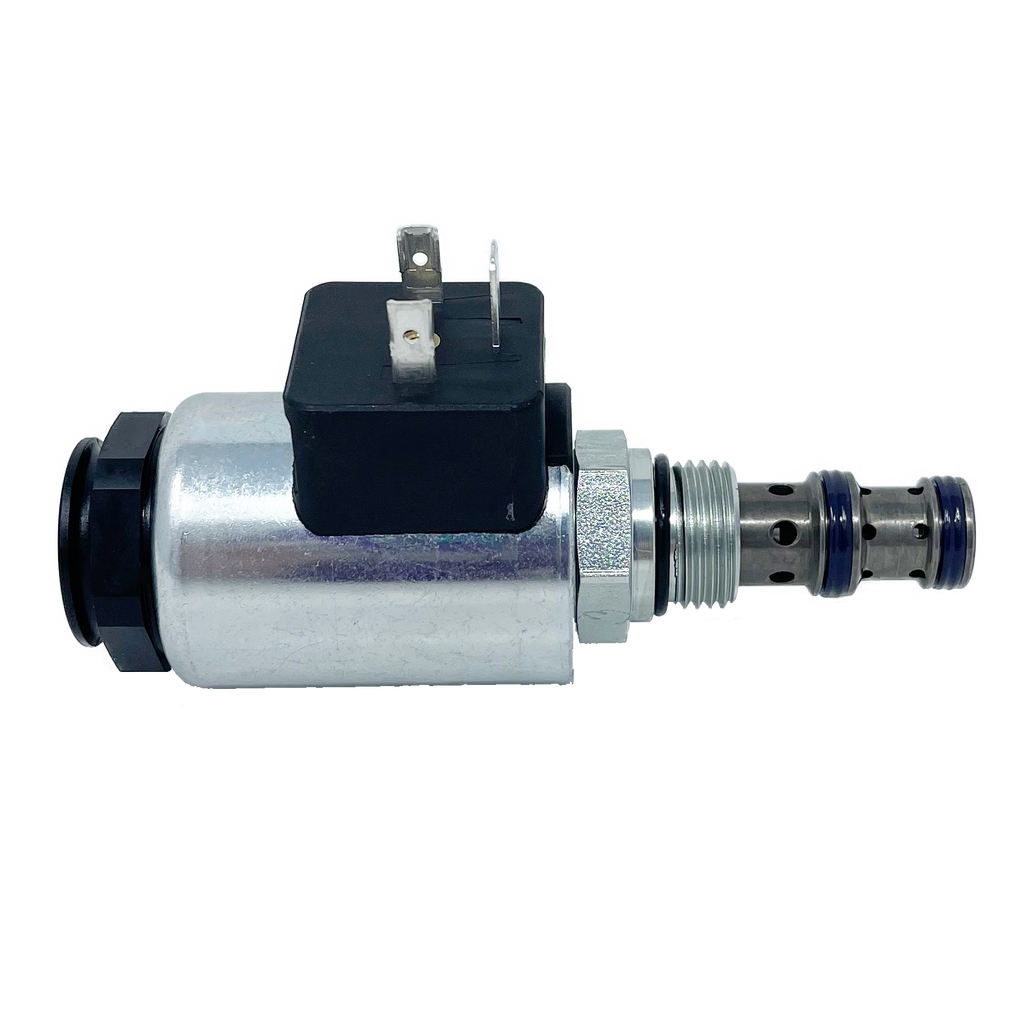

SD1E-A3/H2S7A-12DIN : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC DIN, Port 3 Check, Free Flow 2 to 1
$222.41$110.99 - C19B-01200E1-4.9NA : Argo Valve Coil, 12VDC, DIN (EN 175301-803-A) Connector Type $28.86
Total Price:
$251.27
$139.85
Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bowling Green, Ohio |
| Solid Model | Click here to download |
| Valve Type | Cartridge |
| Flow Rating | 8 |
| Pressure Rating | 5100 |
| Actuation Type | Solenoid Operated |
| Spool Configuration | Port 3 Checked, Free Flow from 2 to 1, 2S7 |
| Cartridge Cavity | C-8-3 |
| Positions | 2-Position |
| Way | 3-Way |
| Coil Selection | 12 VDC DIN Coil |
| Coil Model Code | C19B-01200E1-4.9NA |
| Country of Manufacture | Czech Republic |
| Height | 1 |
| Length | 4.45 |
| Width | 1 |
| Weight | 1 |
Description
The Argo-Hytos 3-Way, 2-Position, high pressure, direct-acting cartridge valve is made with hardened precision parts, and is used for bidirectional flow to actuators with leak-free closing in both directions.
