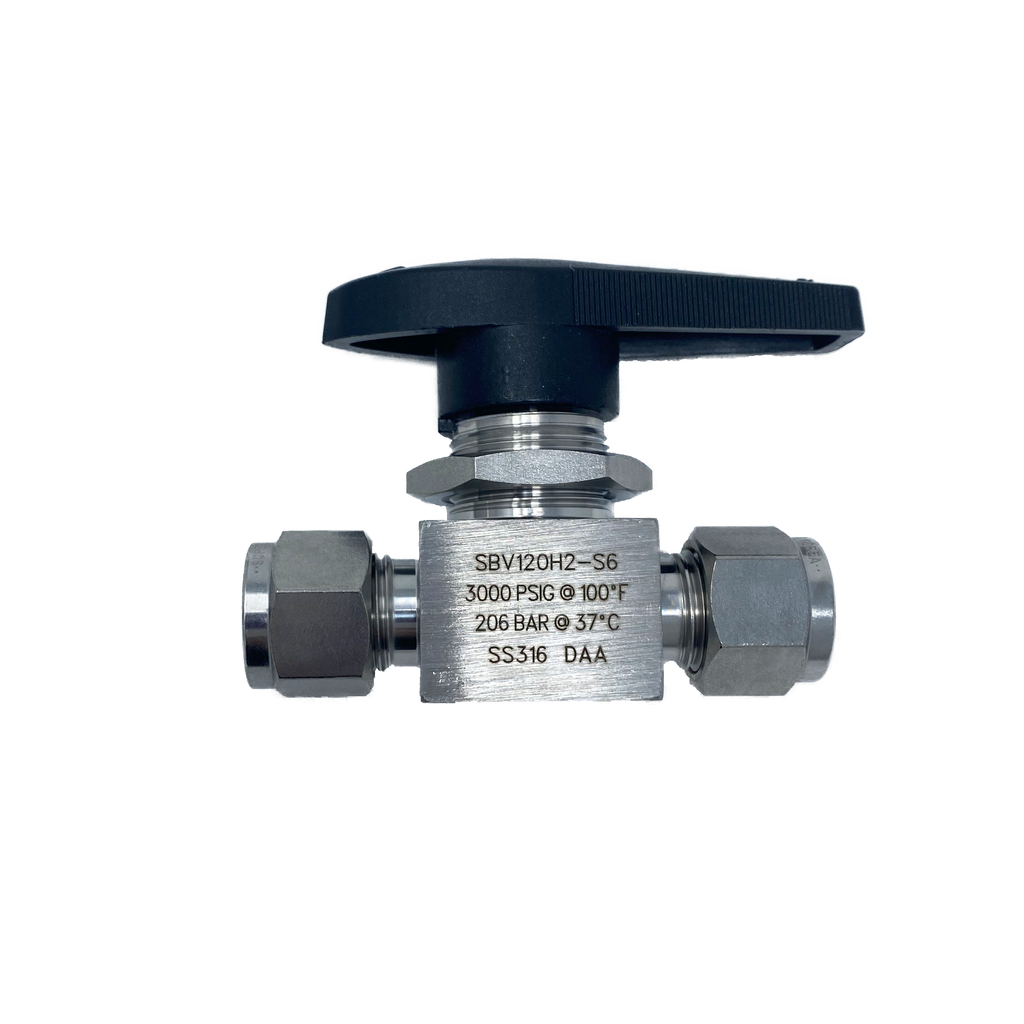

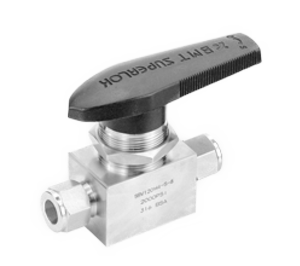

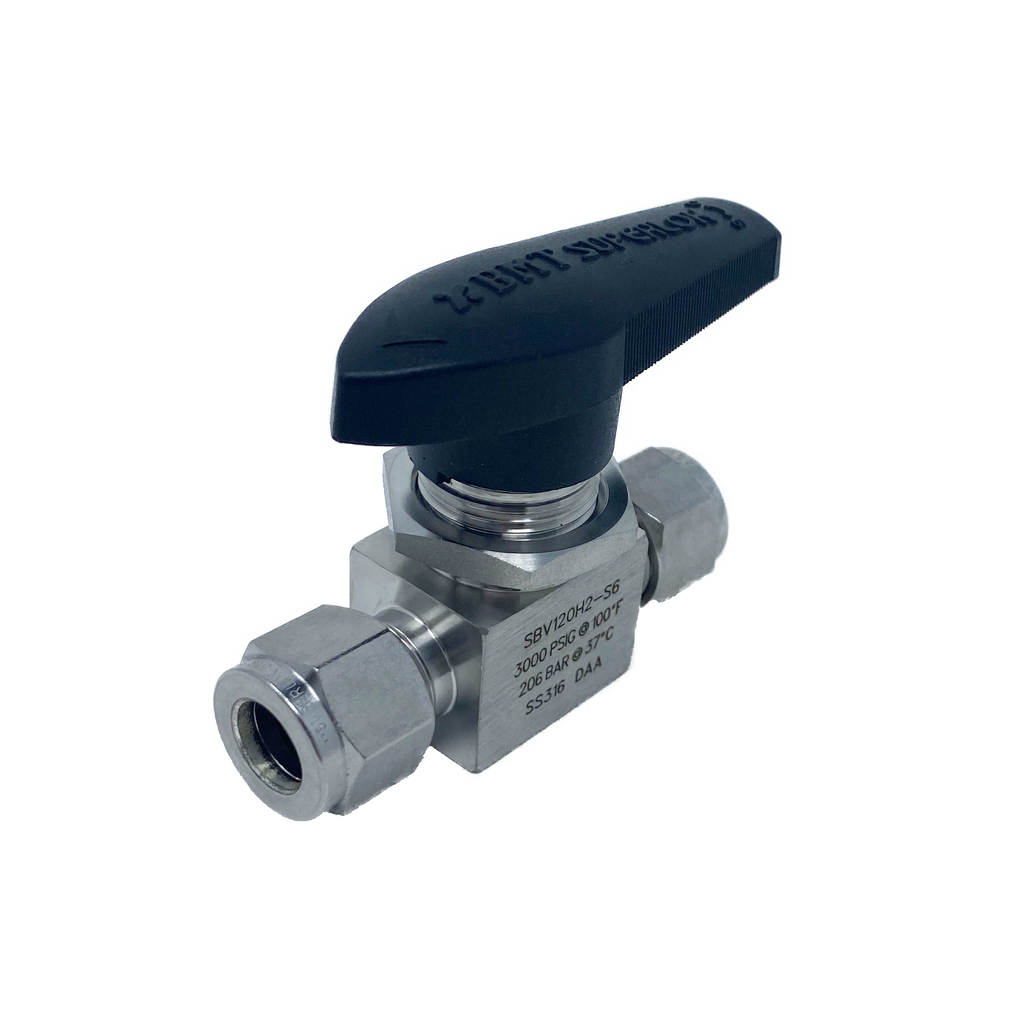

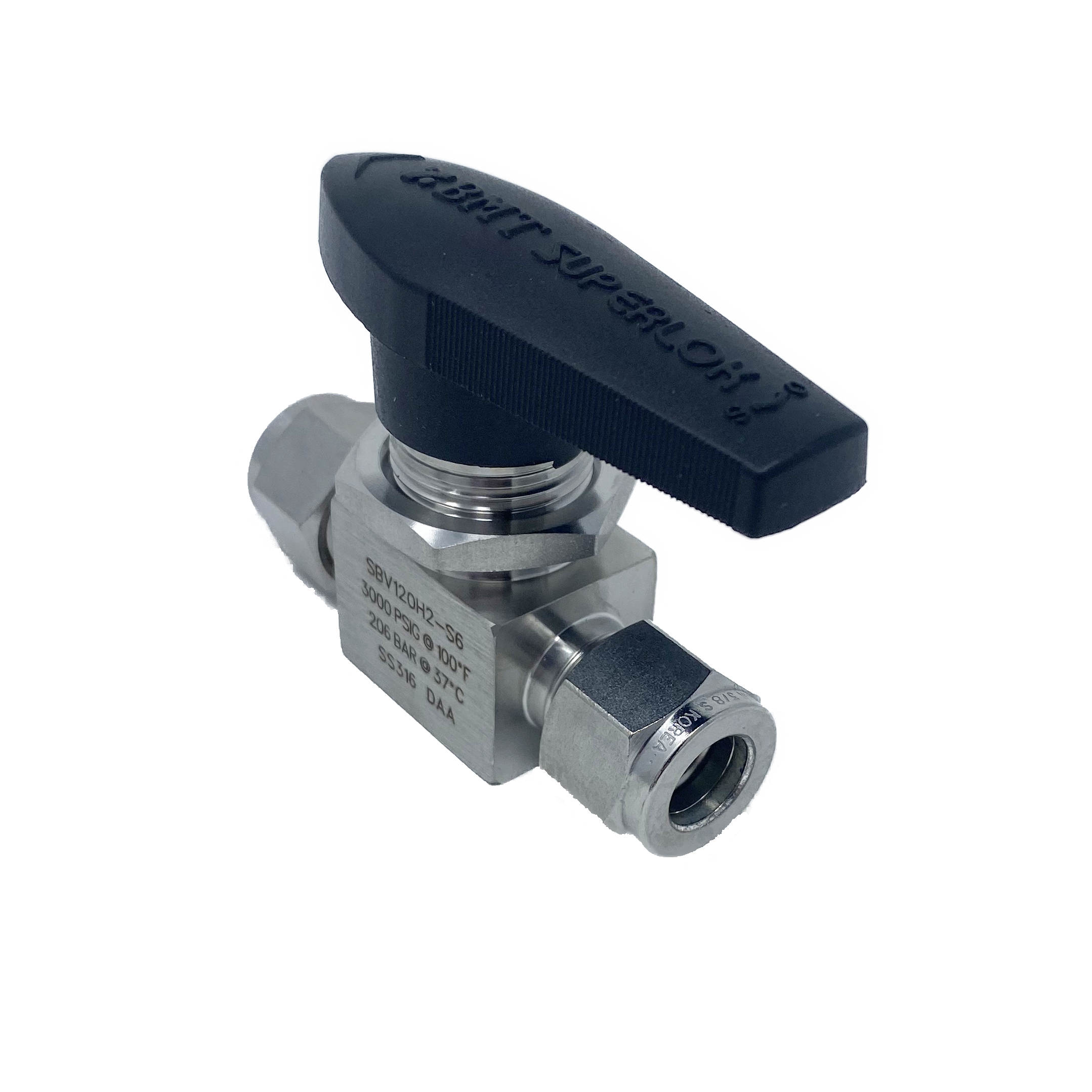

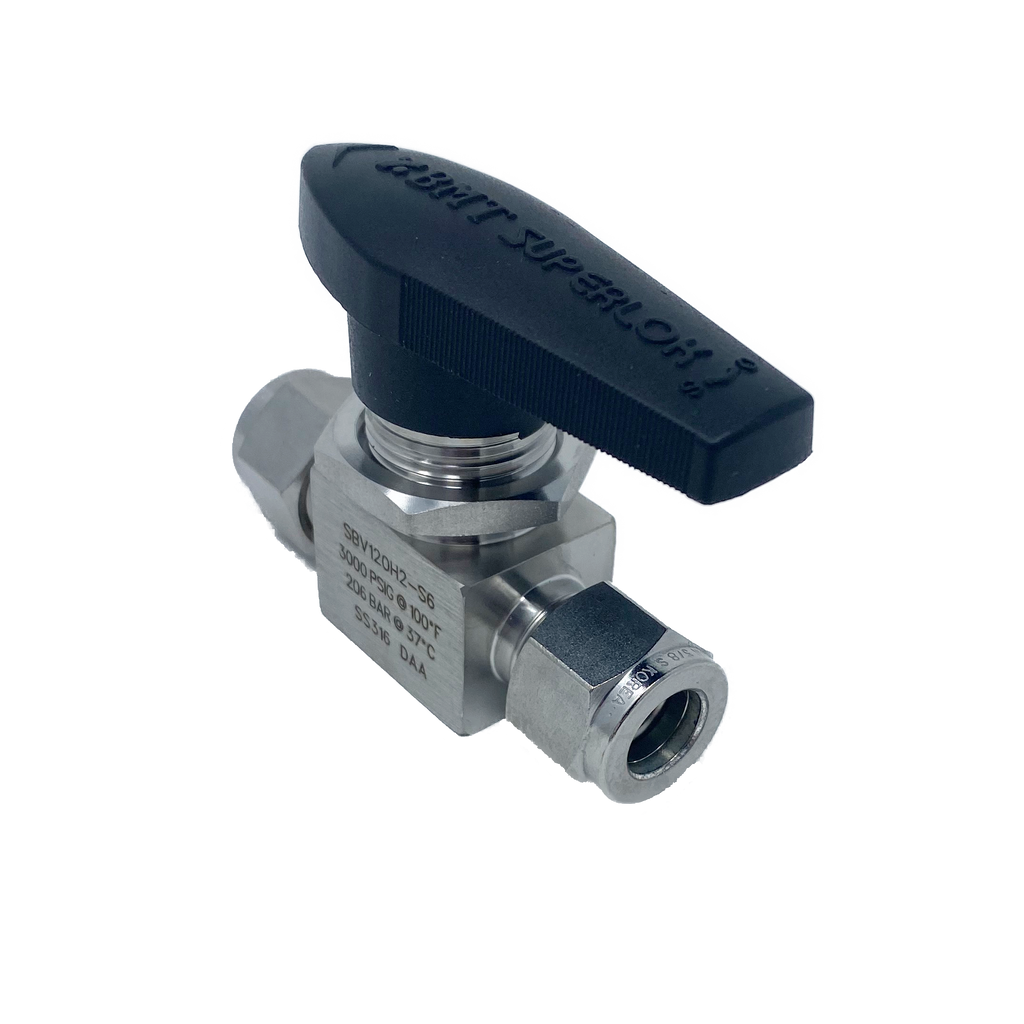

SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS
SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS
SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS
SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS
Roll over image to zoom in Click on image to zoom
SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SSSBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SSSBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SSSBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS

SBV120H43-S-8 : Superlok Ball Valve, One-Piece Type, 1/2" Tube O.D, 3-Way, 2000psi, 316SS

Save $59.26
SuperlokSKU: SBV120H43-S-8-S316
Same Day
2
03.18.D.110A
Price:
$197.99 $257.25

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Ventura, California
Port Size 1/2" Tube
Style One-Piece Type
Pressure Rating 2000
Operating Temp Range 50 to 150 F
Body Material 316 Stainless Steel
Series SBV120H
Ball Seal PTFE
Ball Pattern L-Bore Diverter
Flow Style Three-Way
Country of Manufacture South Korea
Ball Valve Type Standard

Description

The Superlok SBV120H Series One-Piece valves offer a simple design with a one-piece body, with tight and smooth low-torque operation. These valves have a one-piece ball stem, are panel mountable, and available in a variety of end connections as well as straight, angle, and 3-way flow patterns. Each valve is tested at the factory before it arrives at your door.
