Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Ventura, California |
| Port Size | 1/4" Tube |
| Style | One-Piece Type |
| Pressure Rating | 2500 |
| Operating Temp Range | 50 to 150 F |
| Body Material | 316 Stainless Steel |
| Series | SBV120H |
| Ball Seal | PTFE |
| Ball Pattern | L-Bore Diverter |
| Flow Style | Three-Way |
| Country of Manufacture | South Korea |
| Ball Valve Type | Standard |
Description

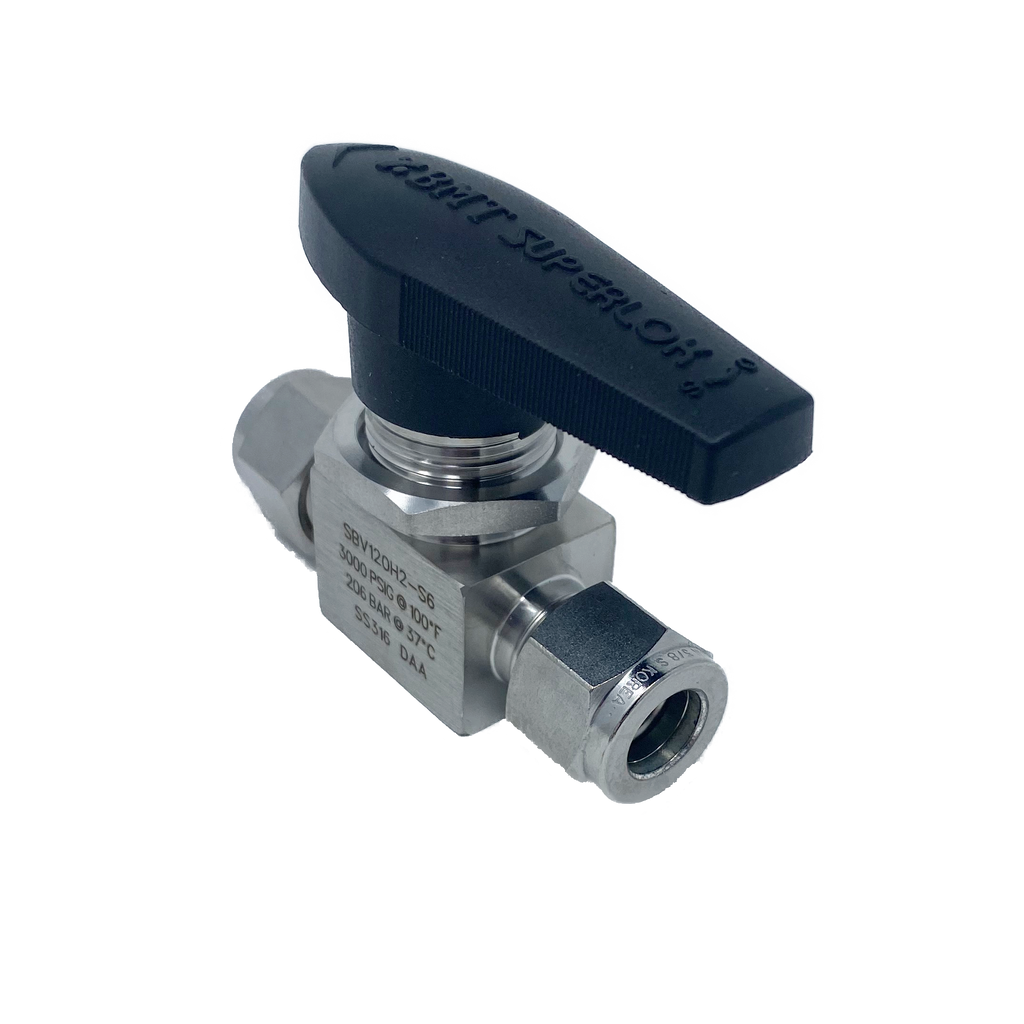

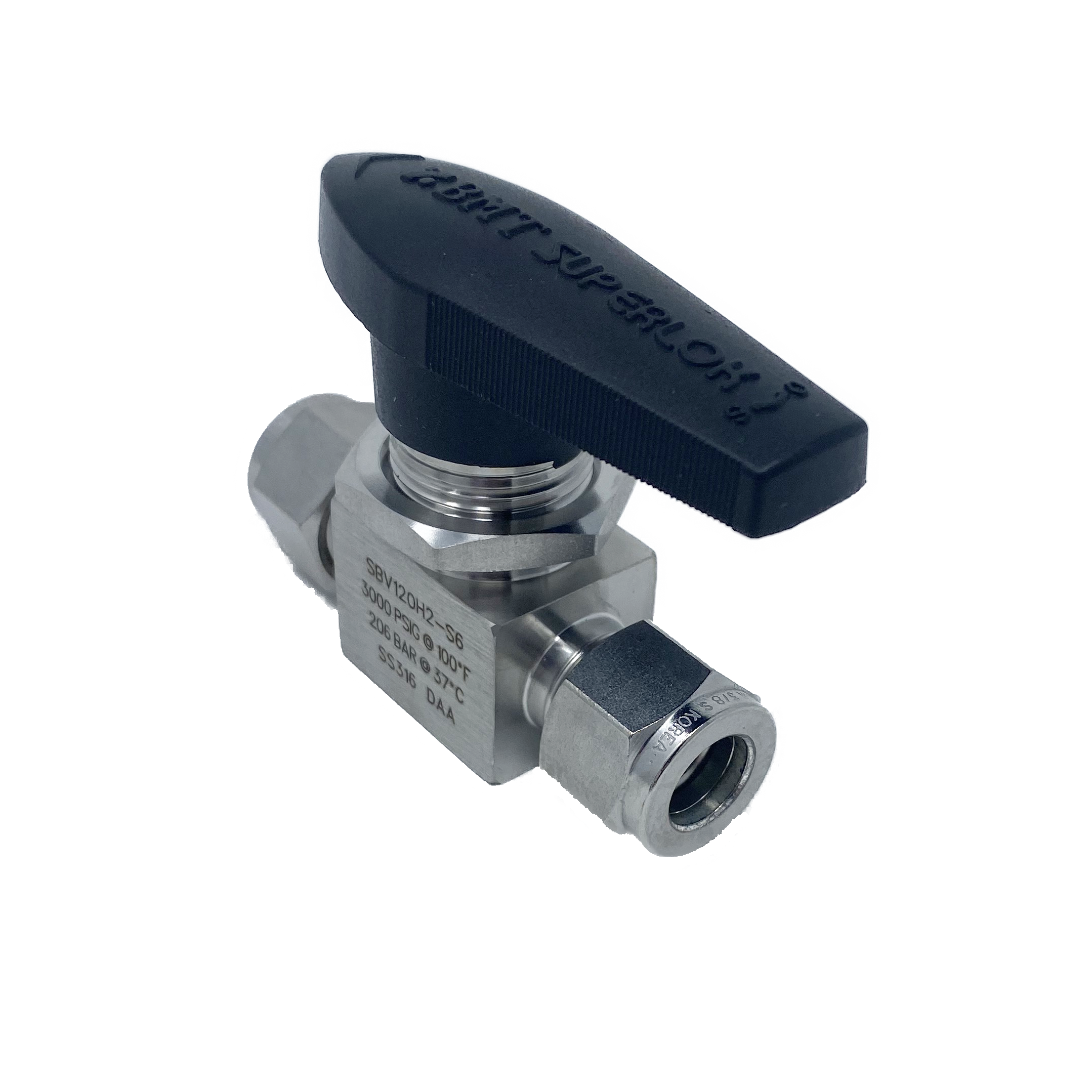

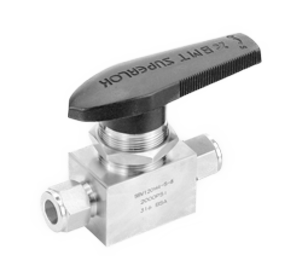

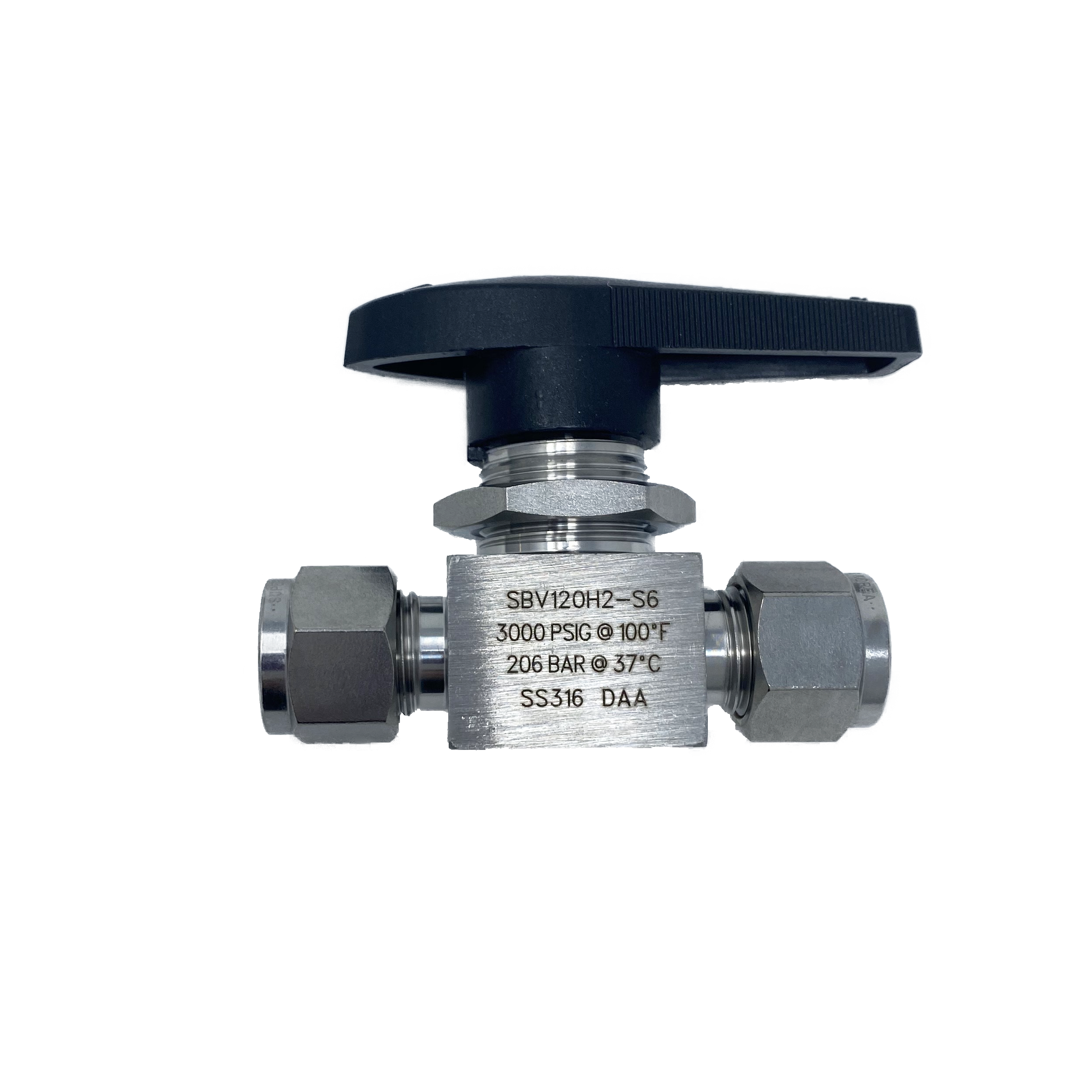

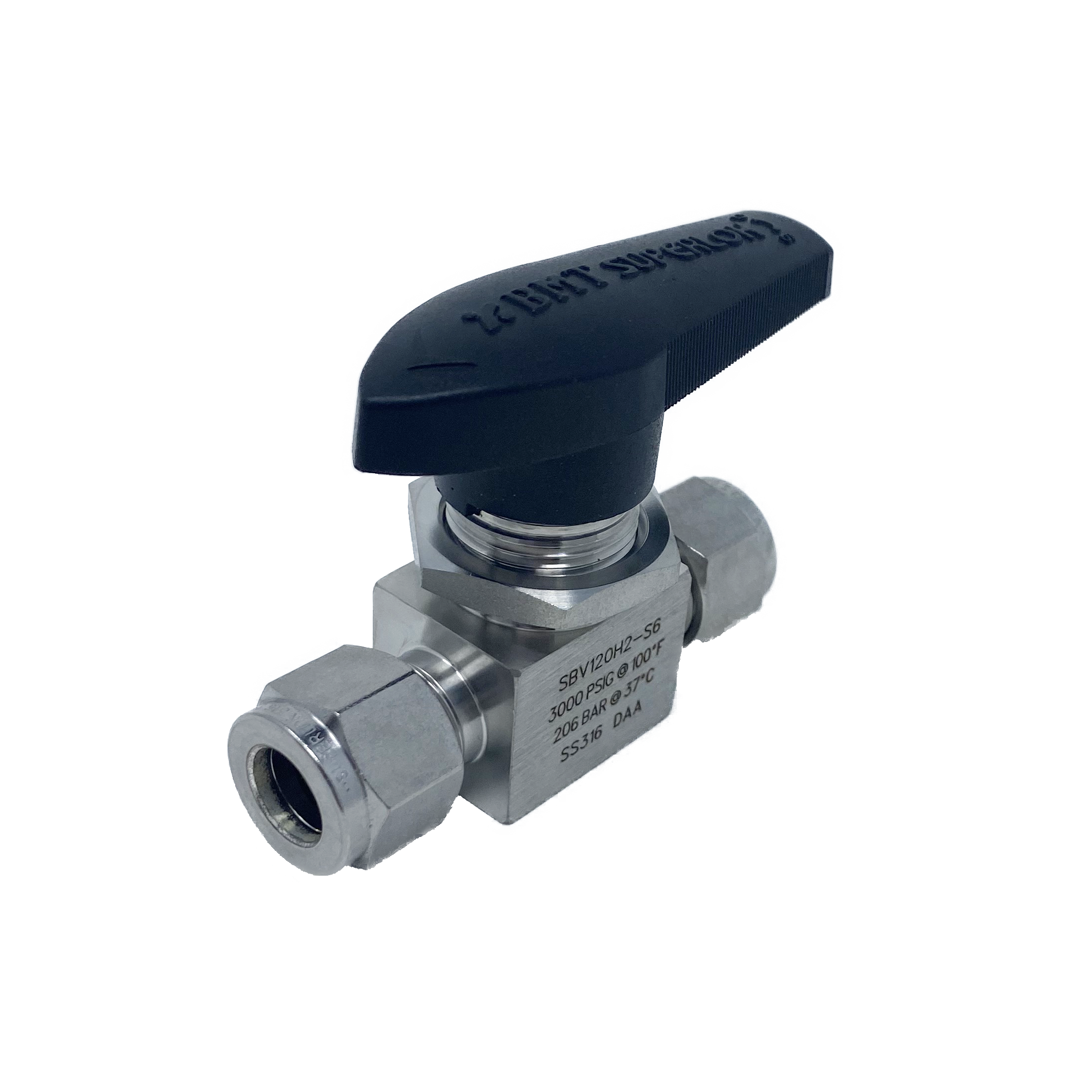

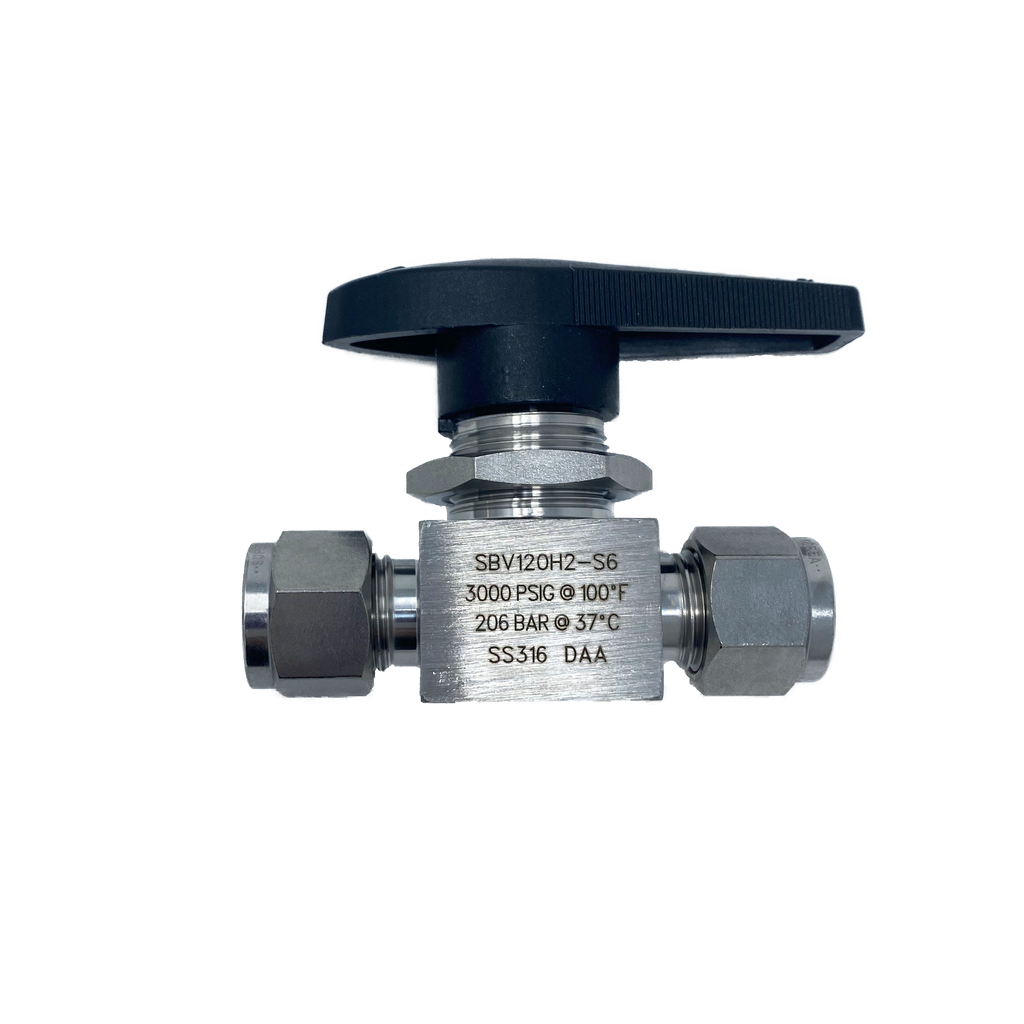

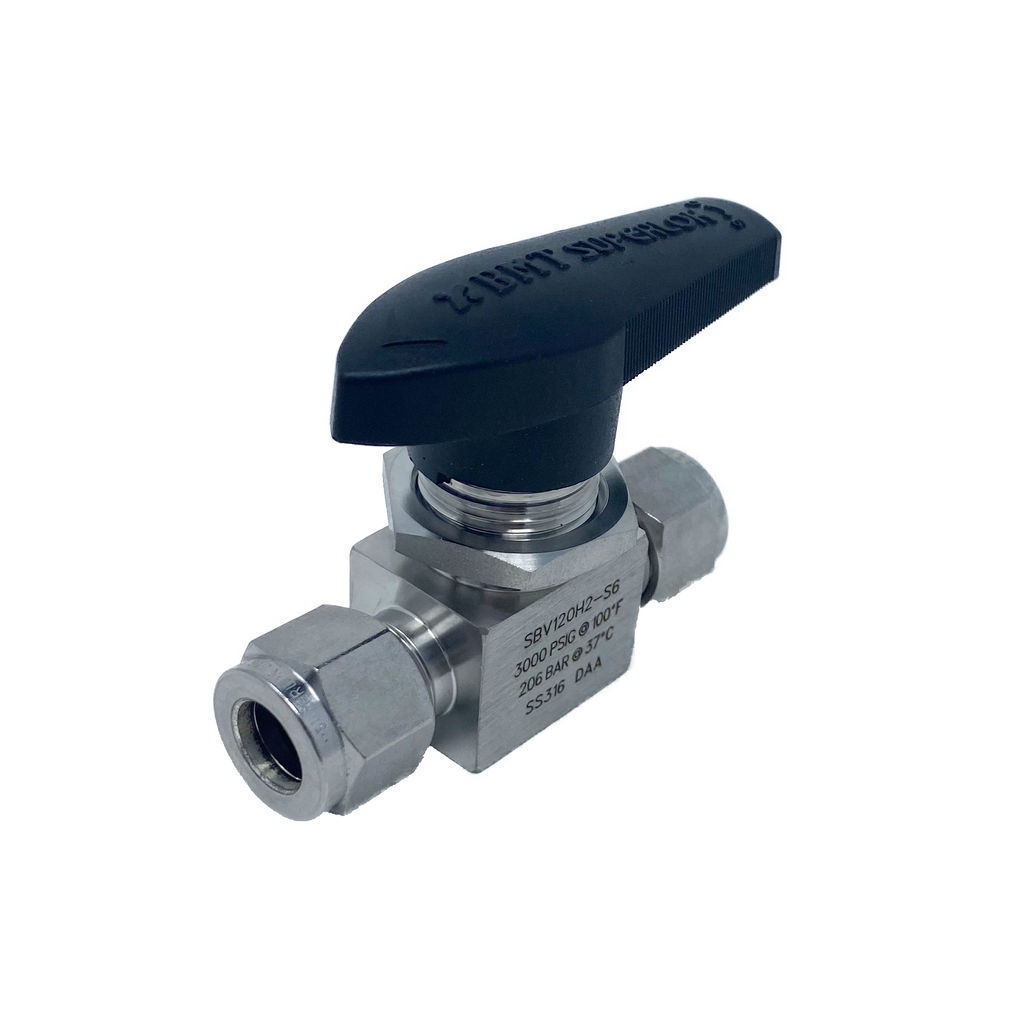

The Superlok SBV120H Series One-Piece valves offer a simple design with a one-piece body, with tight and smooth low-torque operation. These valves have a one-piece ball stem, are panel mountable, and available in a variety of end connections as well as straight, angle, and 3-way flow patterns. Each valve is tested at the factory before it arrives at your door.
