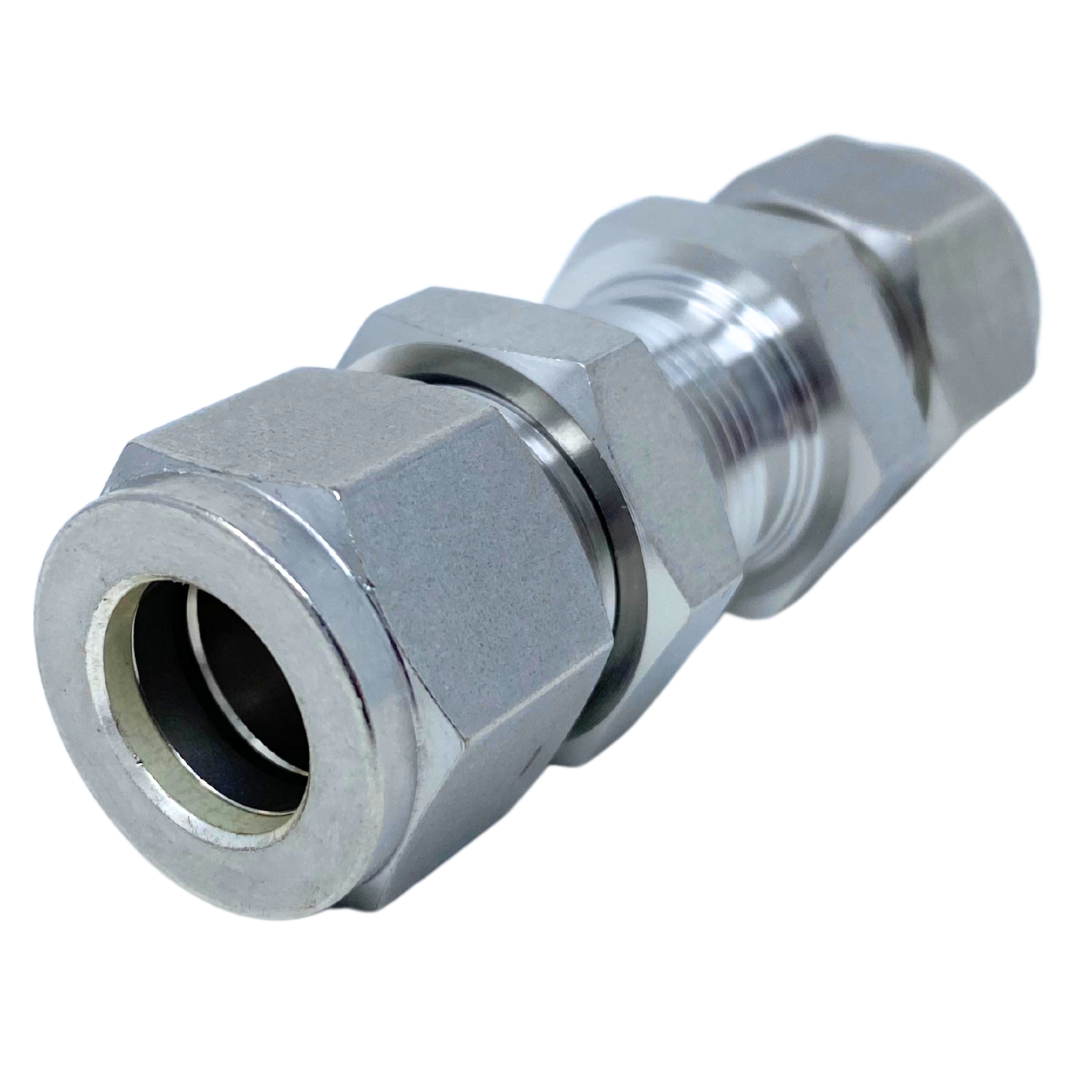

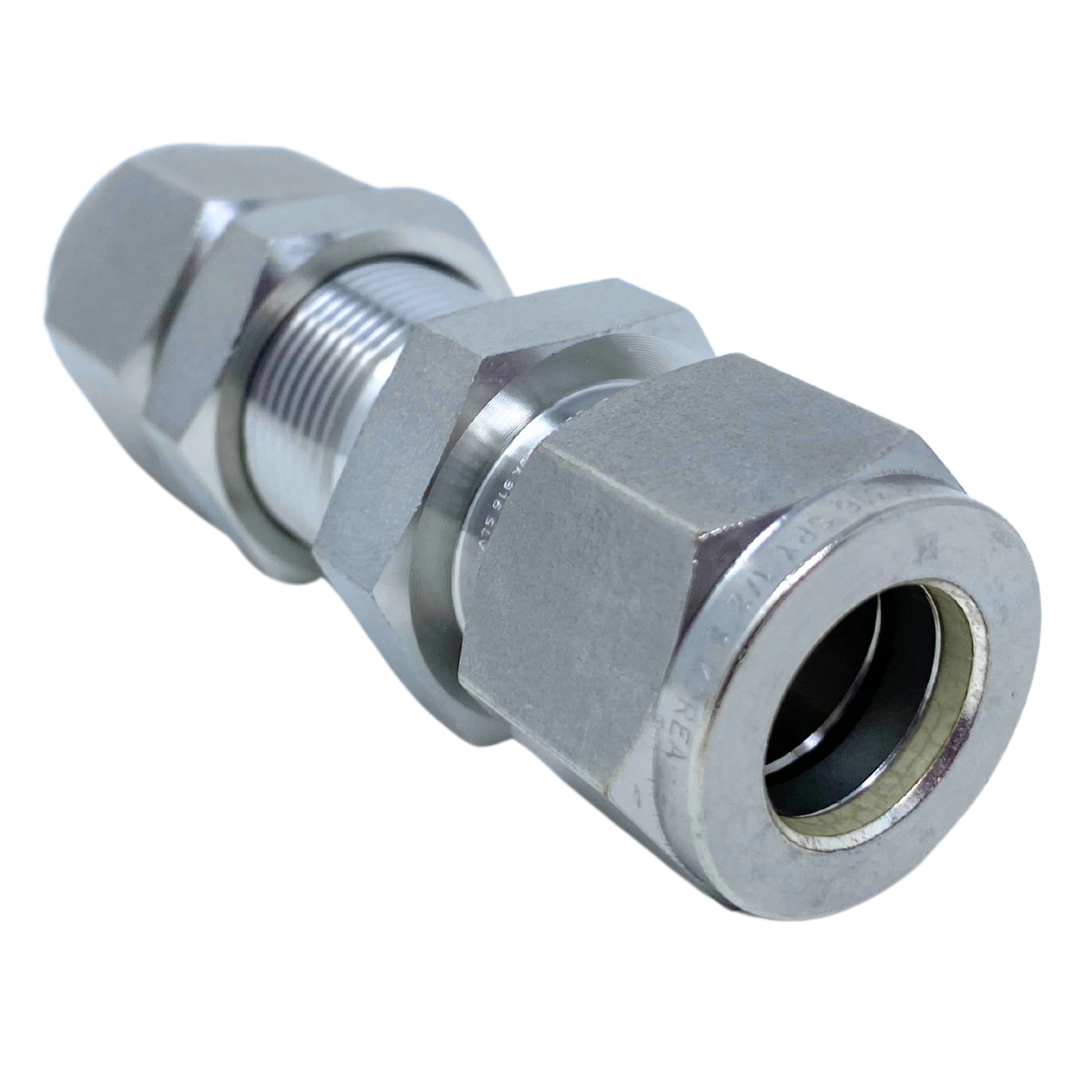

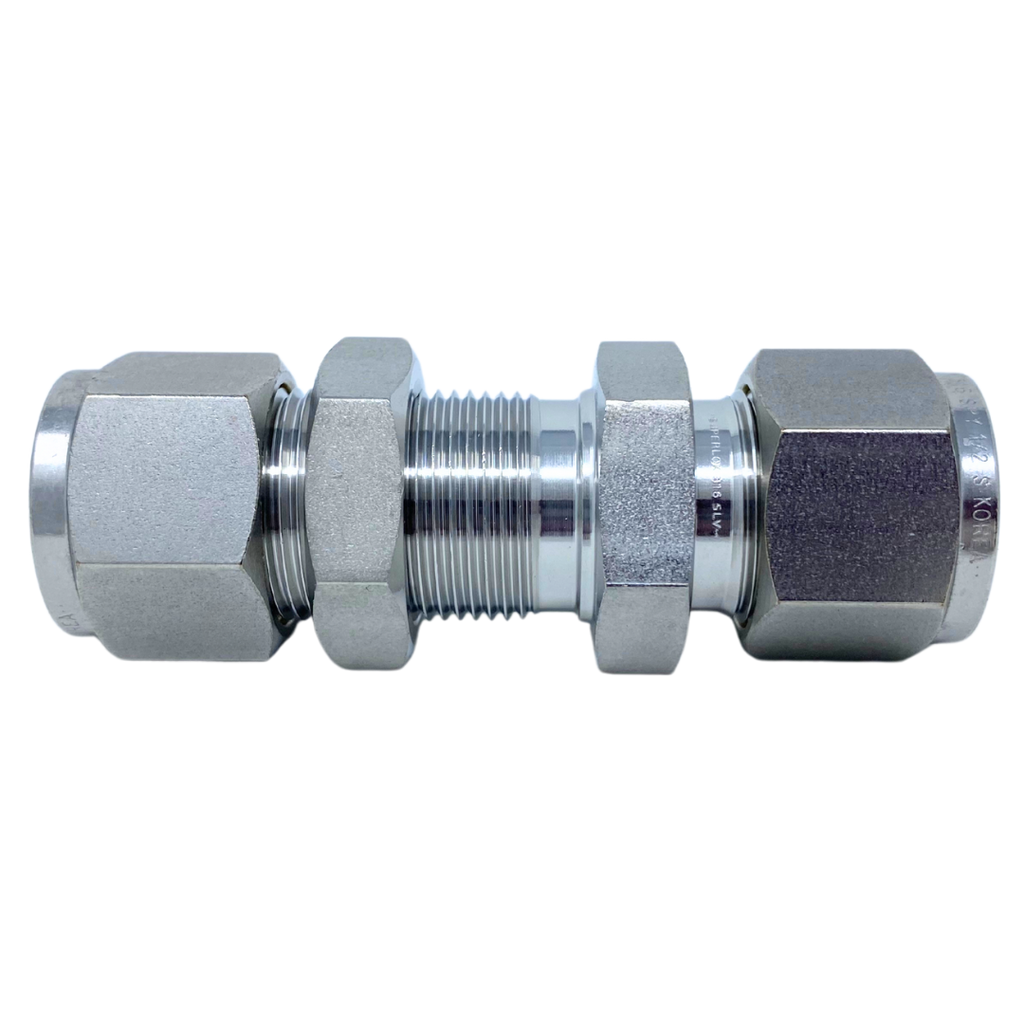

SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD
SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD
SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD
SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD
Roll over image to zoom in Click on image to zoom
SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube ODSBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube ODSBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube ODSBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD

SBHU-4 : Superlok Straight Stainless Fractional Tube Bulkhead Union, 1/4" (-4) Tube OD

SuperlokSKU: SBHU-4-S316
Same Day
8
03.18.H.110A
Price:
$15.69

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Ventura, California
Fitting Shape Straight
Material 316 Stainless Steel
Series SBHU
Country of Manufacture South Korea
Side 1 Gender Female
Side 1 Size 1/4" (-4)
Side 1 Type Tube
Side 2 Gender Female
Side 2 Size 1/4" (-4)
Side 2 Type Tube

Description

Our Superlok Series SBHU fractional tube unions, crafted from high-quality 316 stainless steel, are essential components for securing two tubing runs through panels or control boards in industries such as gas measurement and OEM manufacturing. These bulkhead unions are mounted using a hex nut, providing a secure connection to the panel. Proper installation occurs when the tubing is seated on the shoulder of the bulkhead union fitting. Once the nut is tightened 1 and ¼ turns from finger tight, the ferrules and nut create a strong, leak-proof seal. These unions are ideal for fluid systems that require secure, durable, and efficient connections in high-performance applications.
