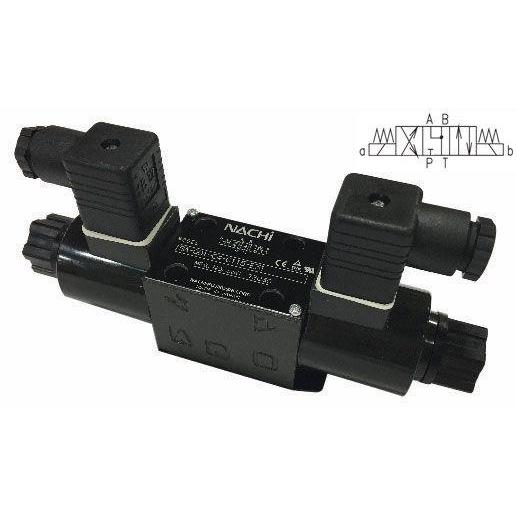

SA-G03-C6-F-E115-E21 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 34.3GPM, 5075psi, Motor Spool, 115 VAC, DIN with Built-in Rectifier
Roll over image to zoom in Click on image to zoom
SA-G03-C6-F-E115-E21 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 34.3GPM, 5075psi, Motor Spool, 115 VAC, DIN with Built-in Rectifier

SA-G03-C6-F-E115-E21 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 34.3GPM, 5075psi, Motor Spool, 115 VAC, DIN with Built-in Rectifier

Save $98.01
NachiSKU: SA-G03-C6-F-E115-E21
1-3 Days
15
Price:
$366.99 $465.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 15
Factory Location Greenwood, Indiana
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 34.3
Pressure Rating 5075
Voltage 115 VAC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A, with Built-In Rectifier
Spool Configuration Motor Spool
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 9.25
Length 2.76
Width 4.41
Weight 12.13

Description

The Nachi SA-G03 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
