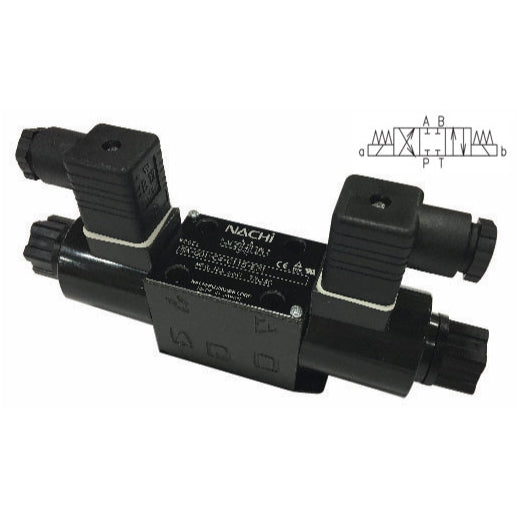

SA-G03-C5-E115-E21 : Nachi Solenoid Valve, 3P4W, D03 (NG6), D05 (NG10), 34.3GPM, 5075psi, All Ports Blocked Neutral, 120 VAC, DIN, Spring Centered

Save $85.01
NachiSKU: SA-G03-C5-E115-E21
4-6 Weeks
0

Price:
Sale price$319.99 Regular price$405.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Stock 0
Factory Location Greenwood, Indiana
Solid Model Click here to download
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 34.3
Pressure Rating 5075
Voltage 120 VAC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration Cylinder Spool, All Ports Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 9.25
Length 2.76
Width 4.41
Weight 12.13

Description

The Nachi SA-G03 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
