Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 4-6 Weeks |
Factory Location | Greenwood, Indiana |
Valve Type | Subplate/Manifold Mounted Valve |
Valve Interface | D03 (NG6) |
Flow Rating | 21.1 |
Pressure Rating | 5075 |
Voltage | 12 VDC |
Actuation Type | Solenoid Operated |
Solenoid Electrical Connection | DIN Connector EN 175301-803-A |
Spool Configuration | Motor Spool |
Positions | 3-Position |
Way | 4-Way |
Country of Manufacture | Japan |
Height | 8.03 |
Length | 1.81 |
Width | 3.64 |
Weight | 4.41 |
Description

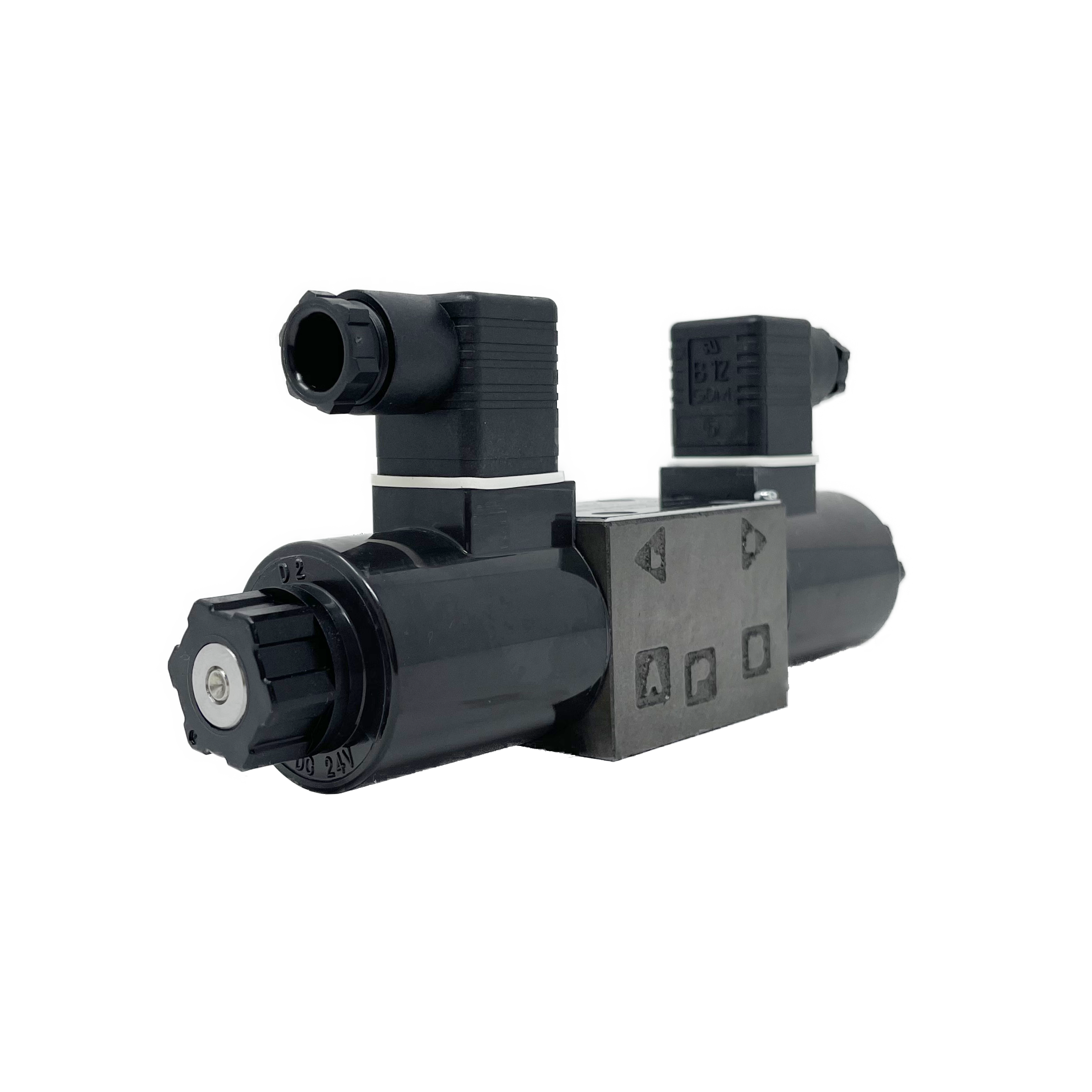

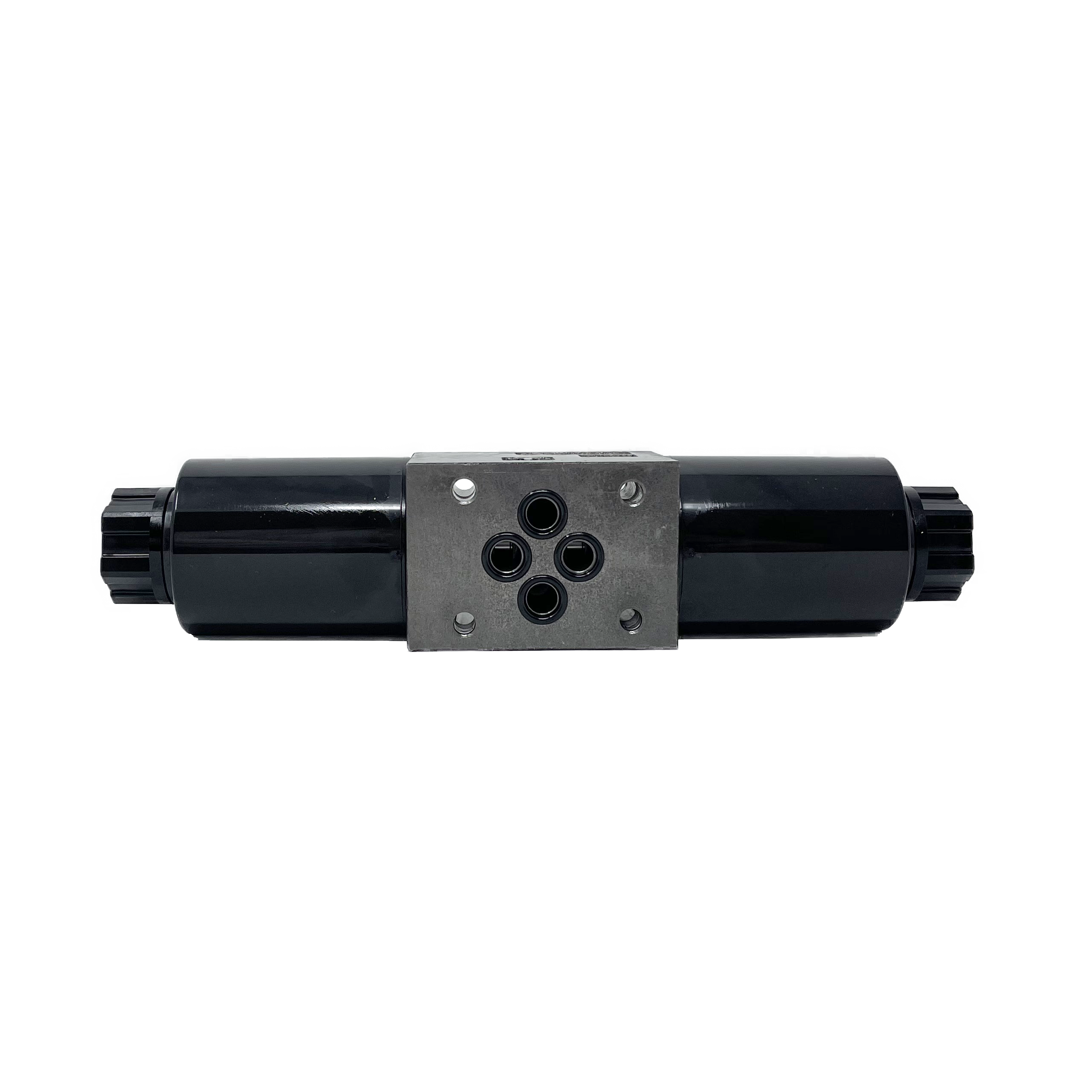

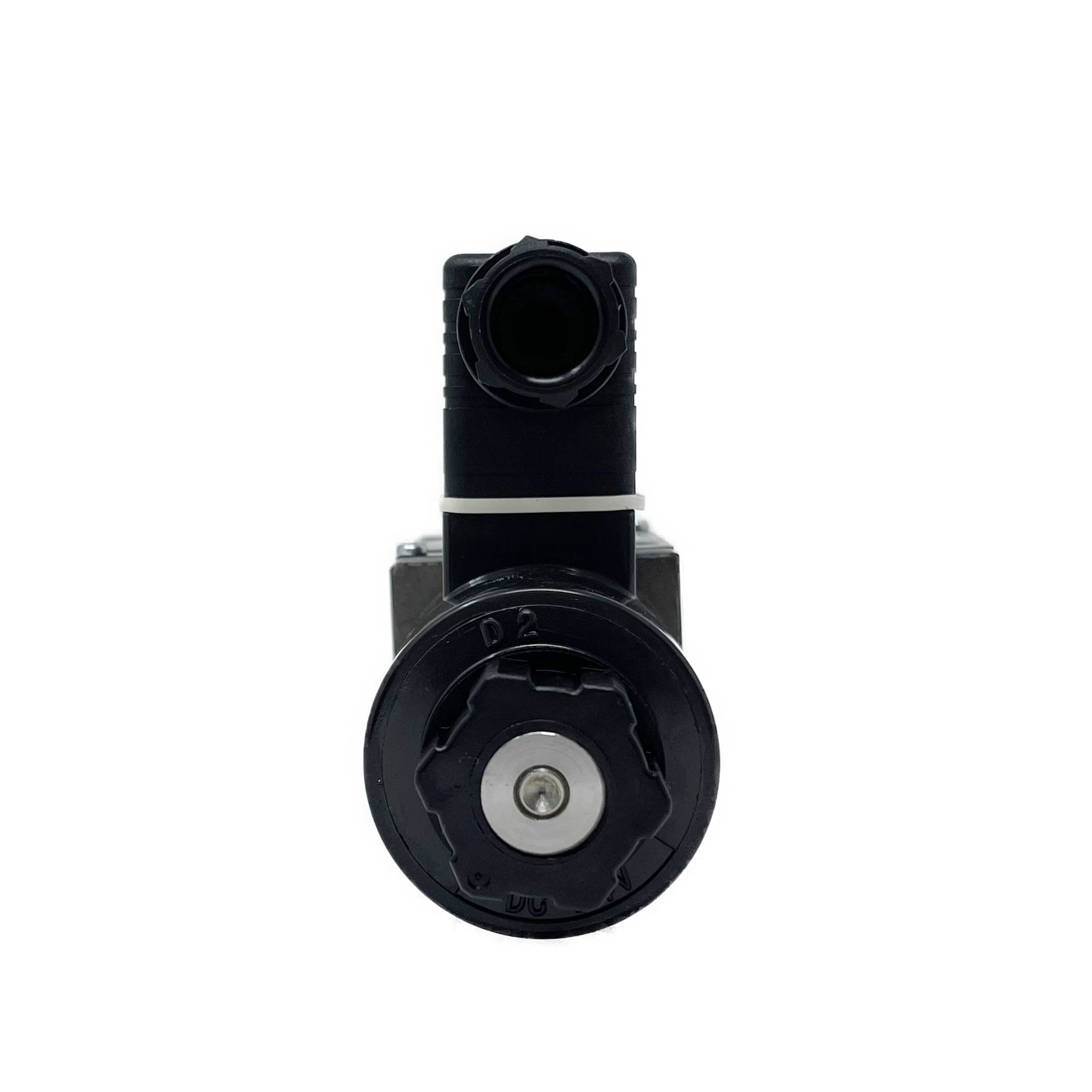

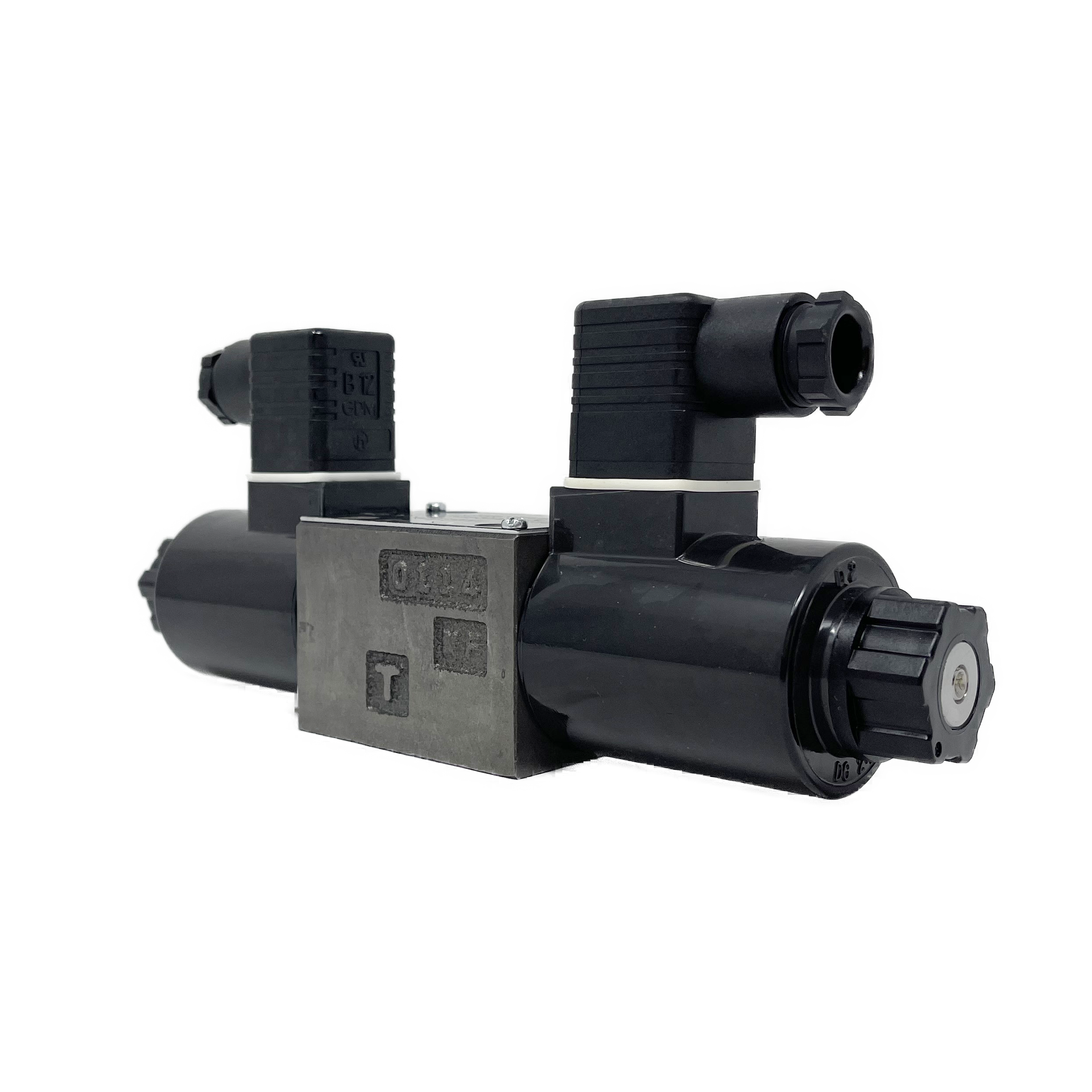

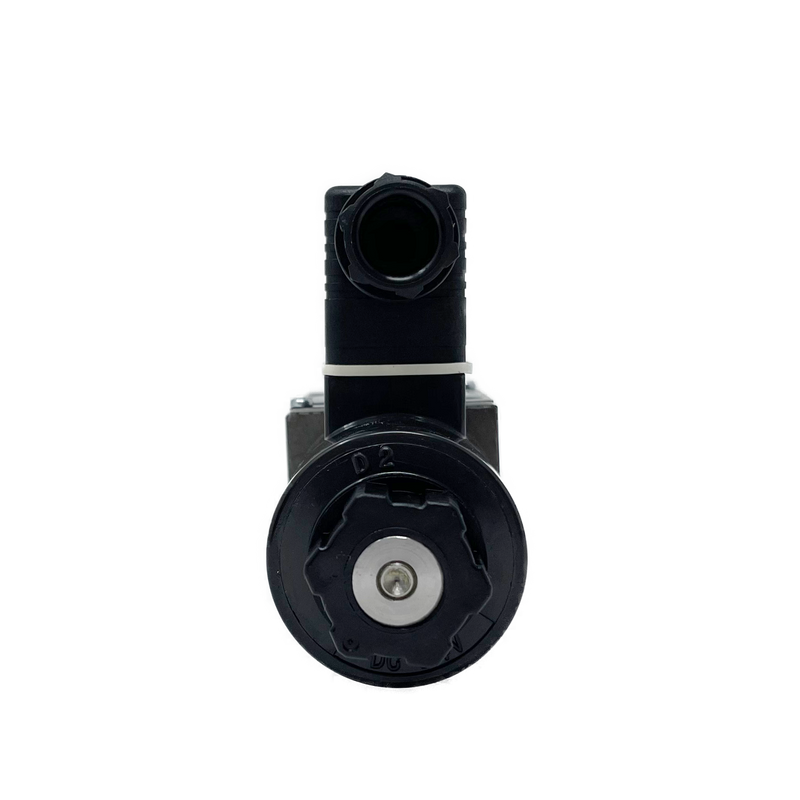

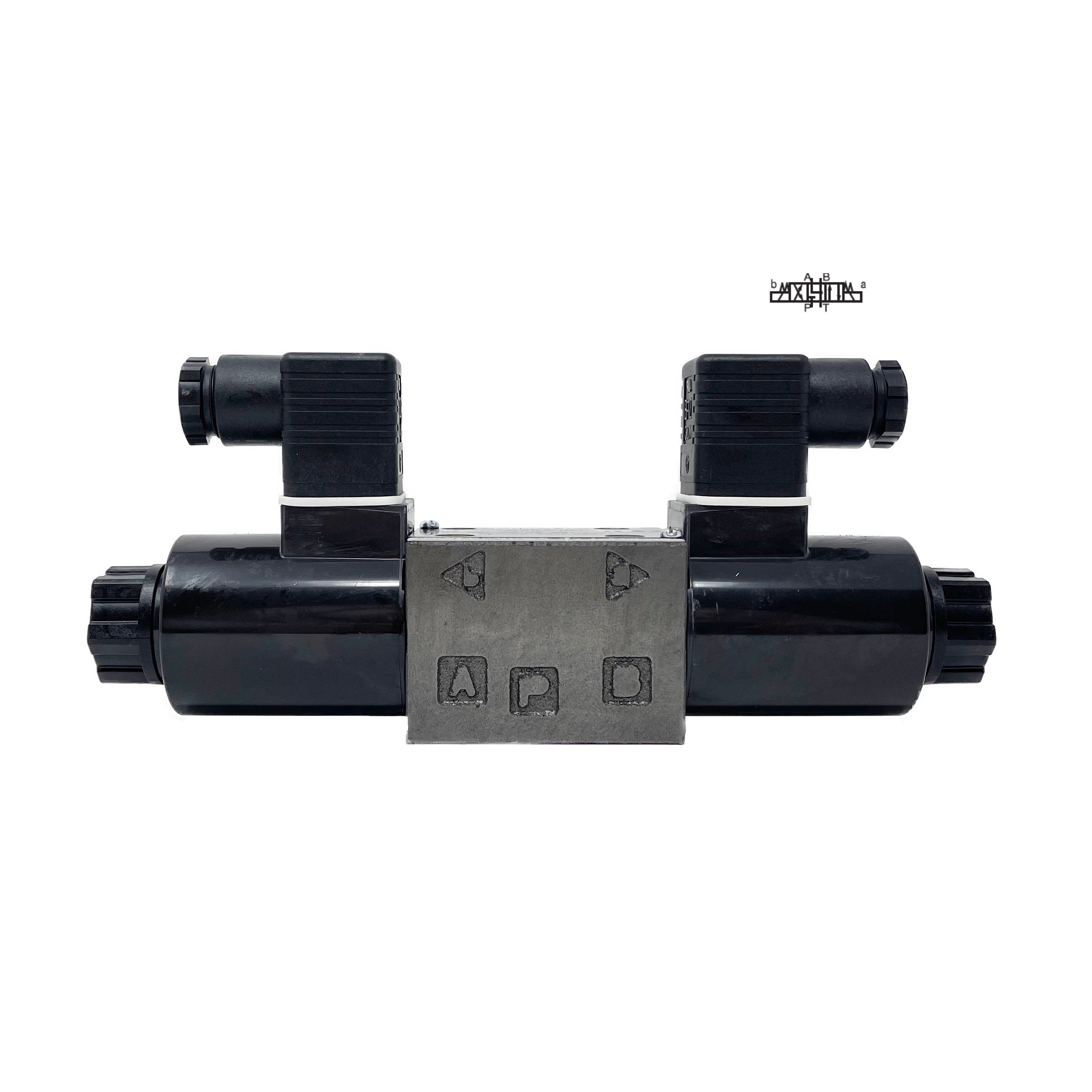

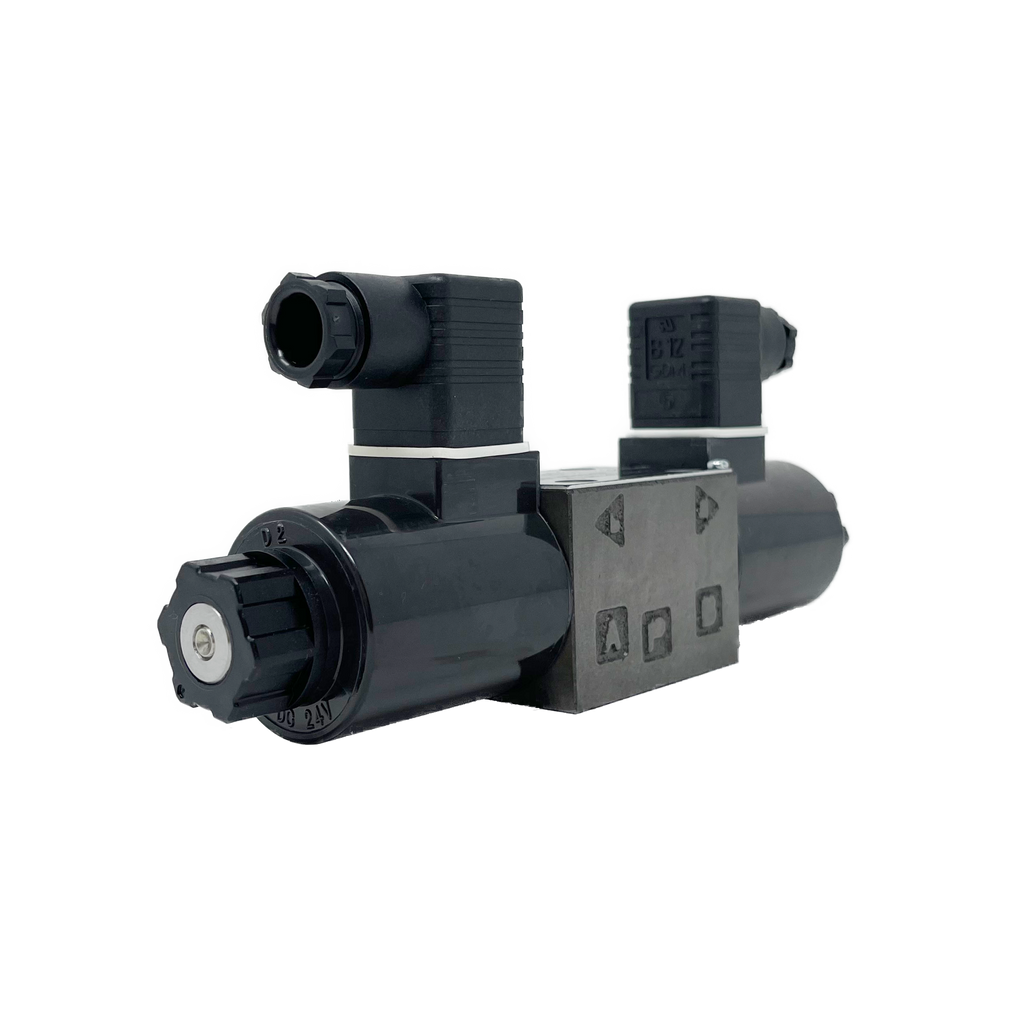

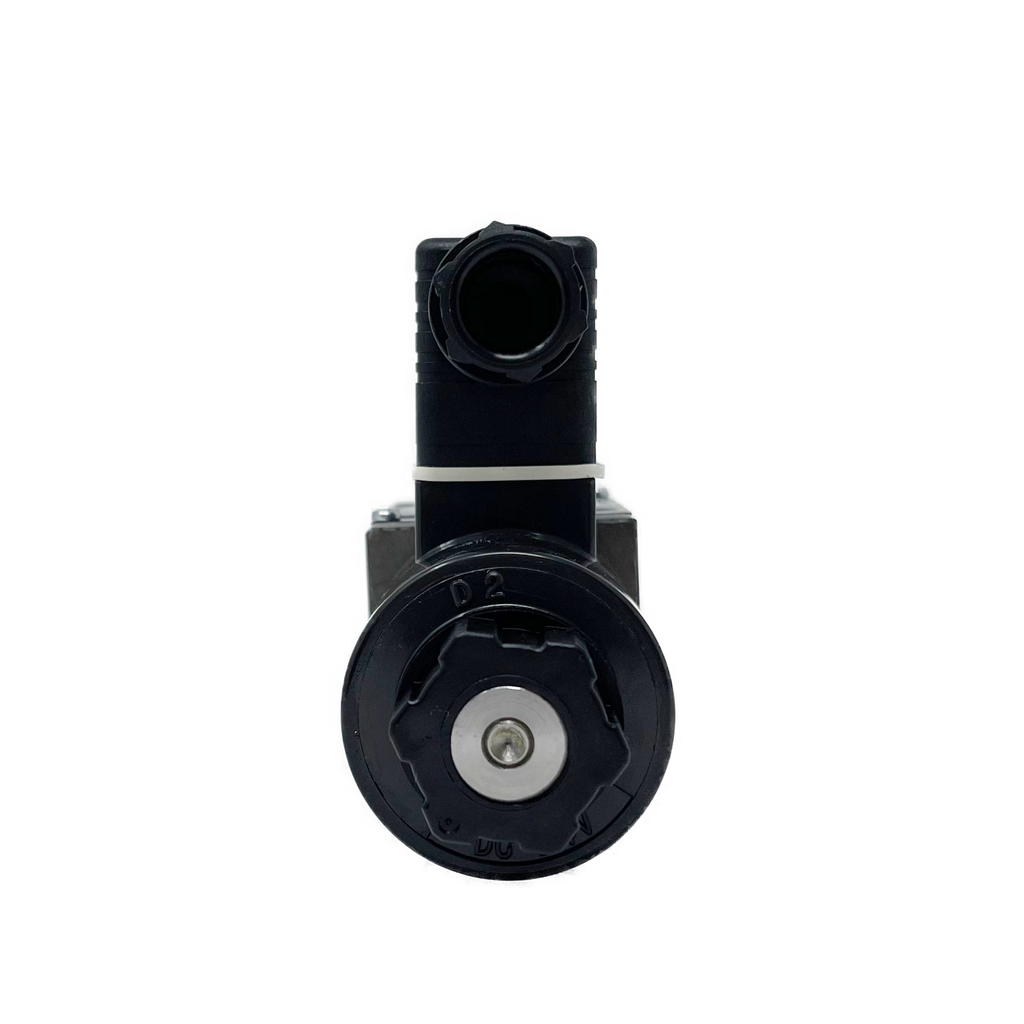

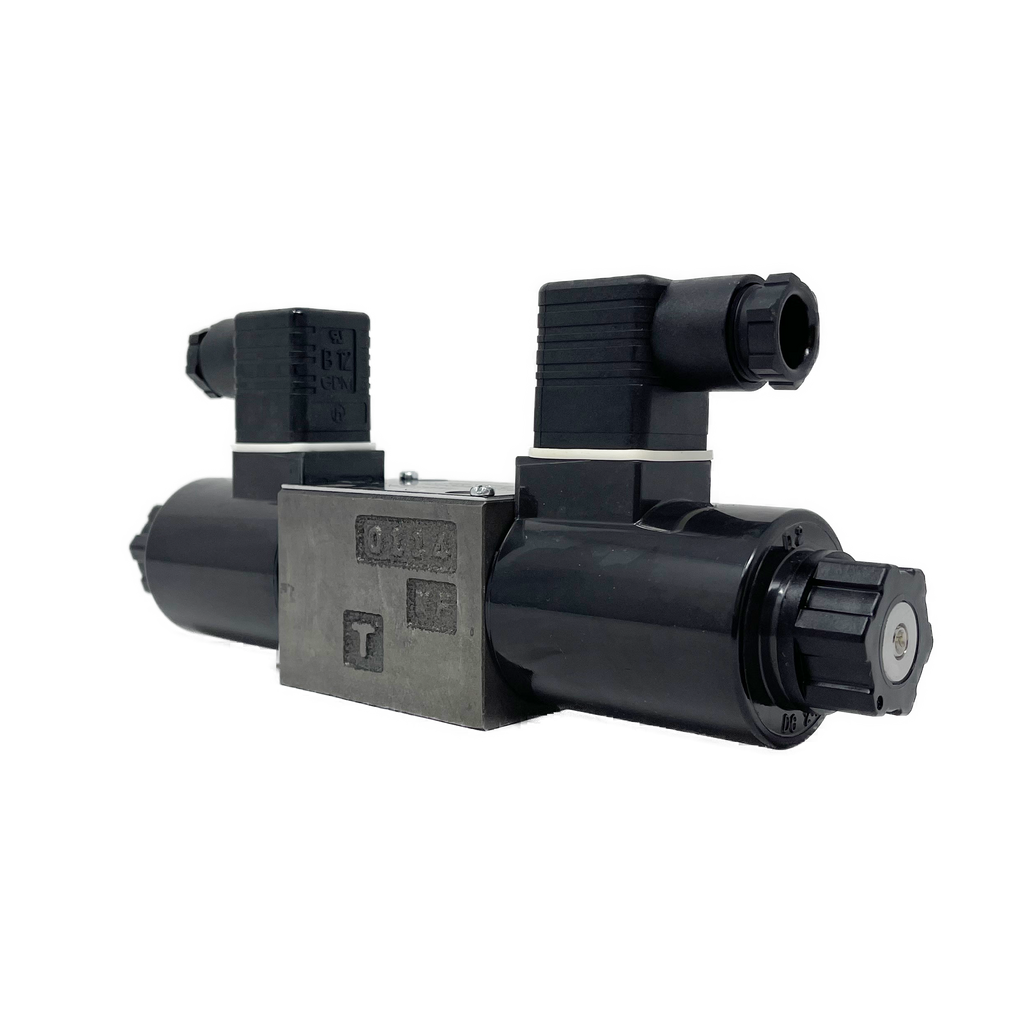

The Nachi SA-G01 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
