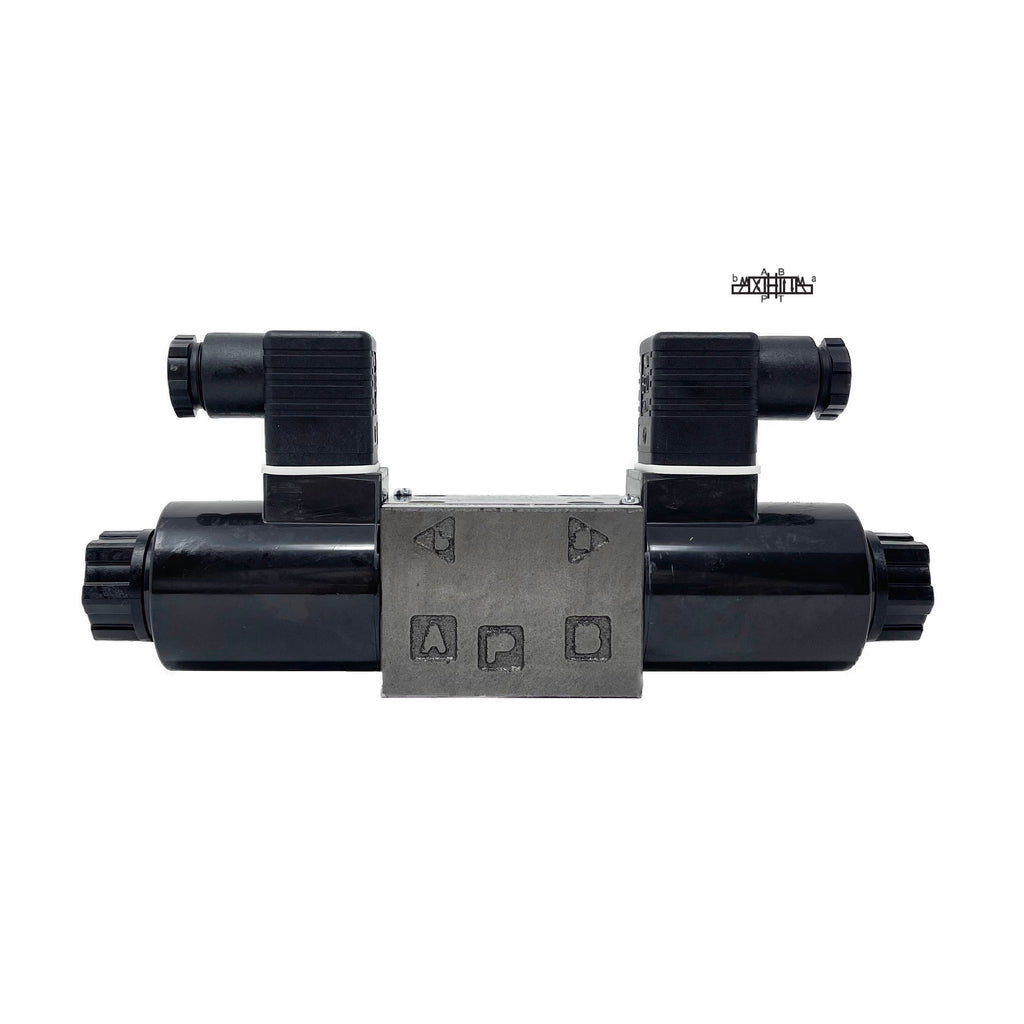

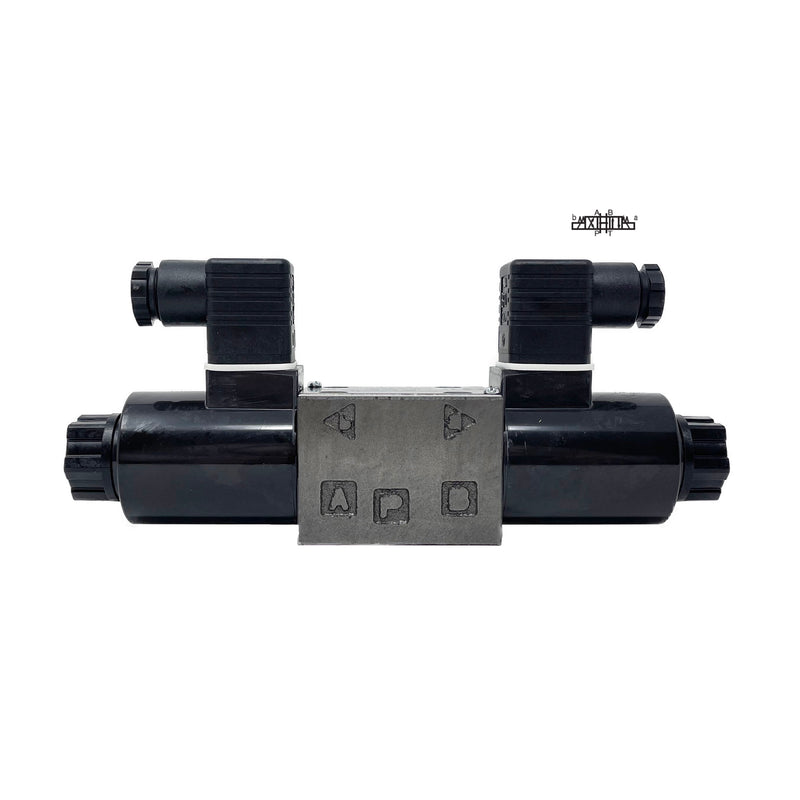

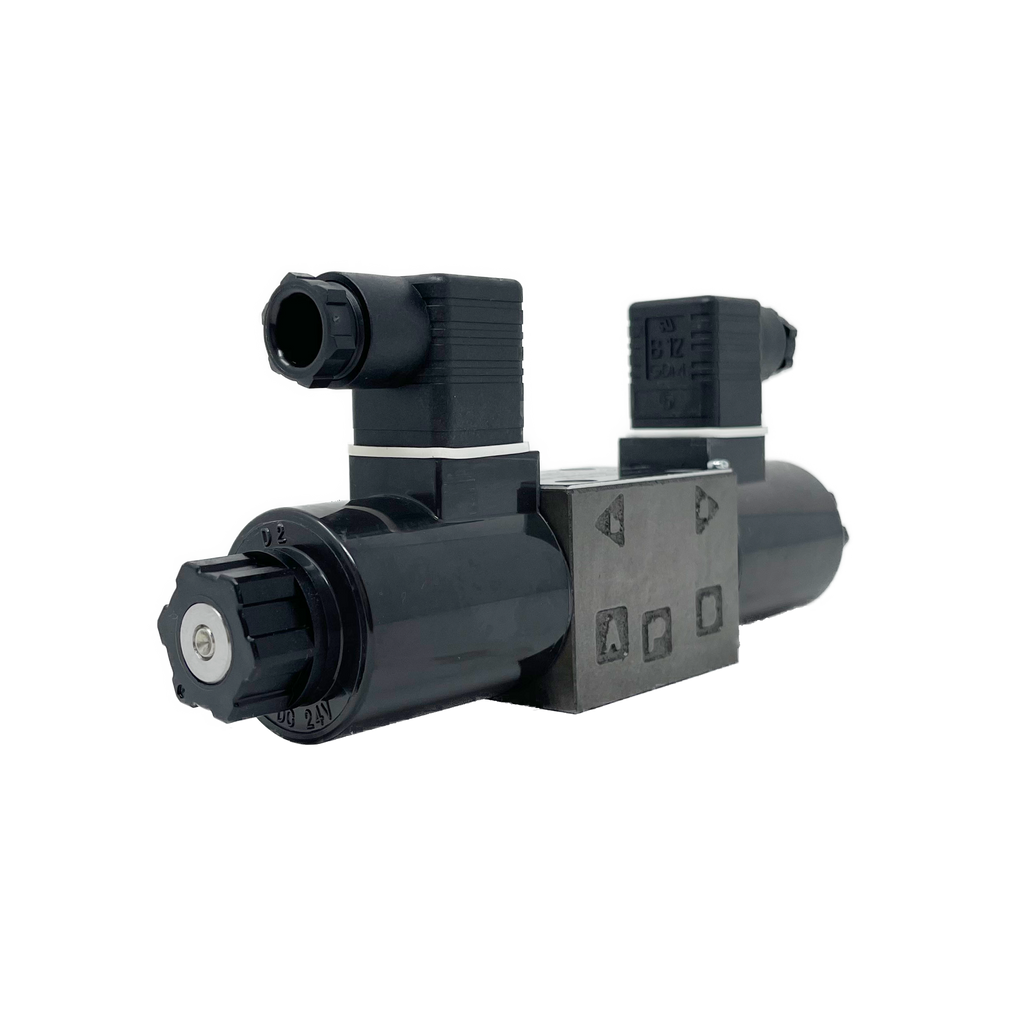

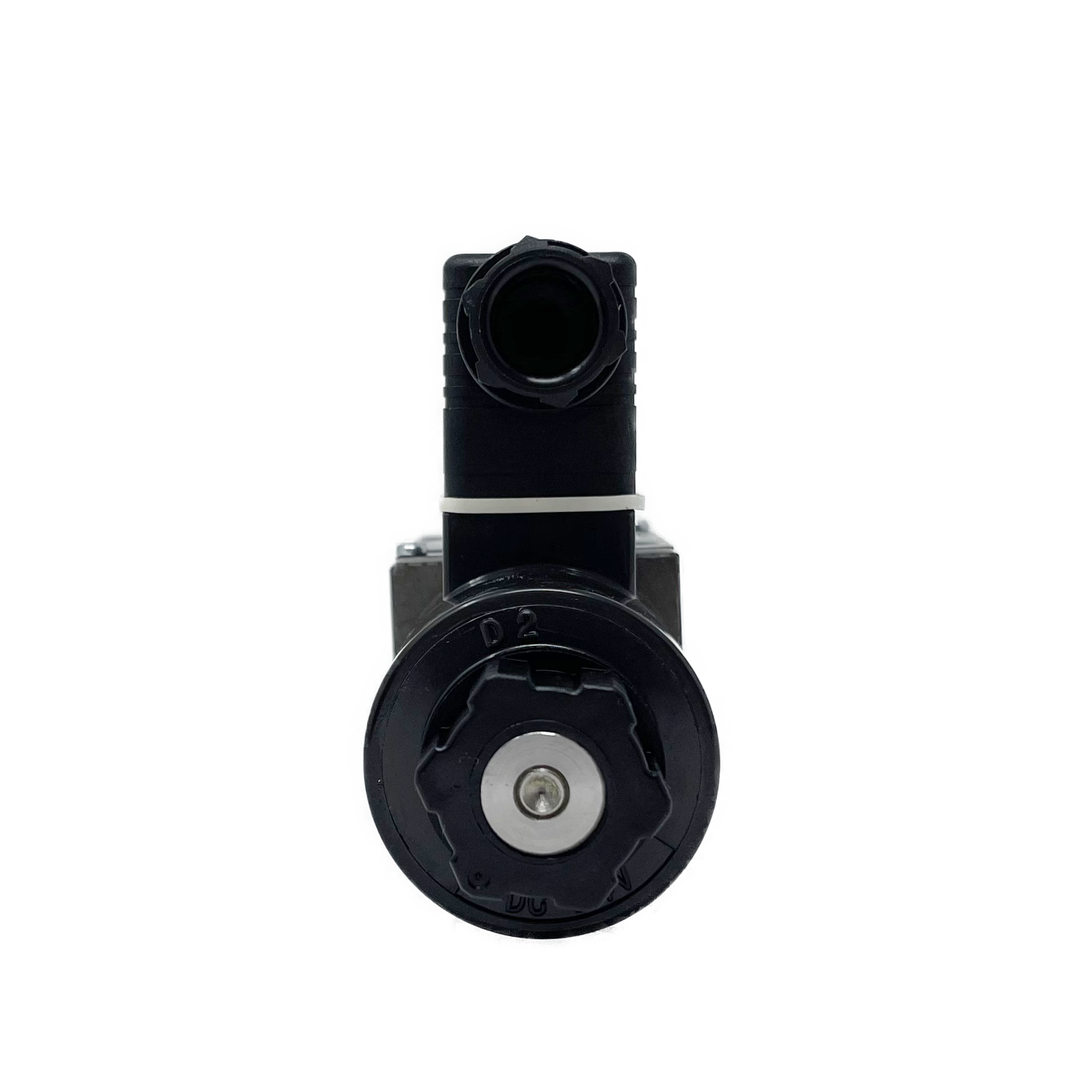

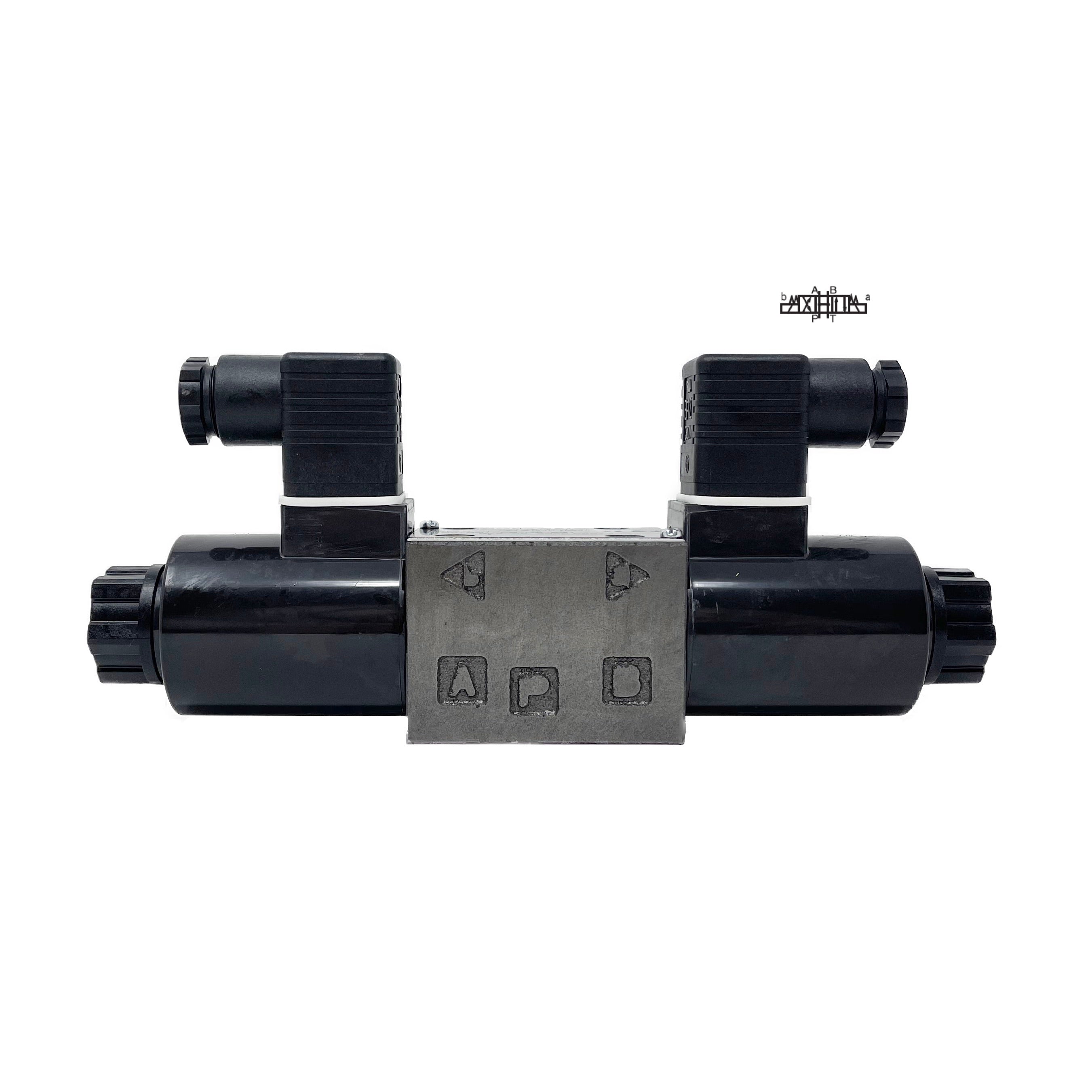

SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN
SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN
SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN
SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN
SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN
Roll over image to zoom in Click on image to zoom
SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DINSA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DINSA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DINSA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DINSA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN

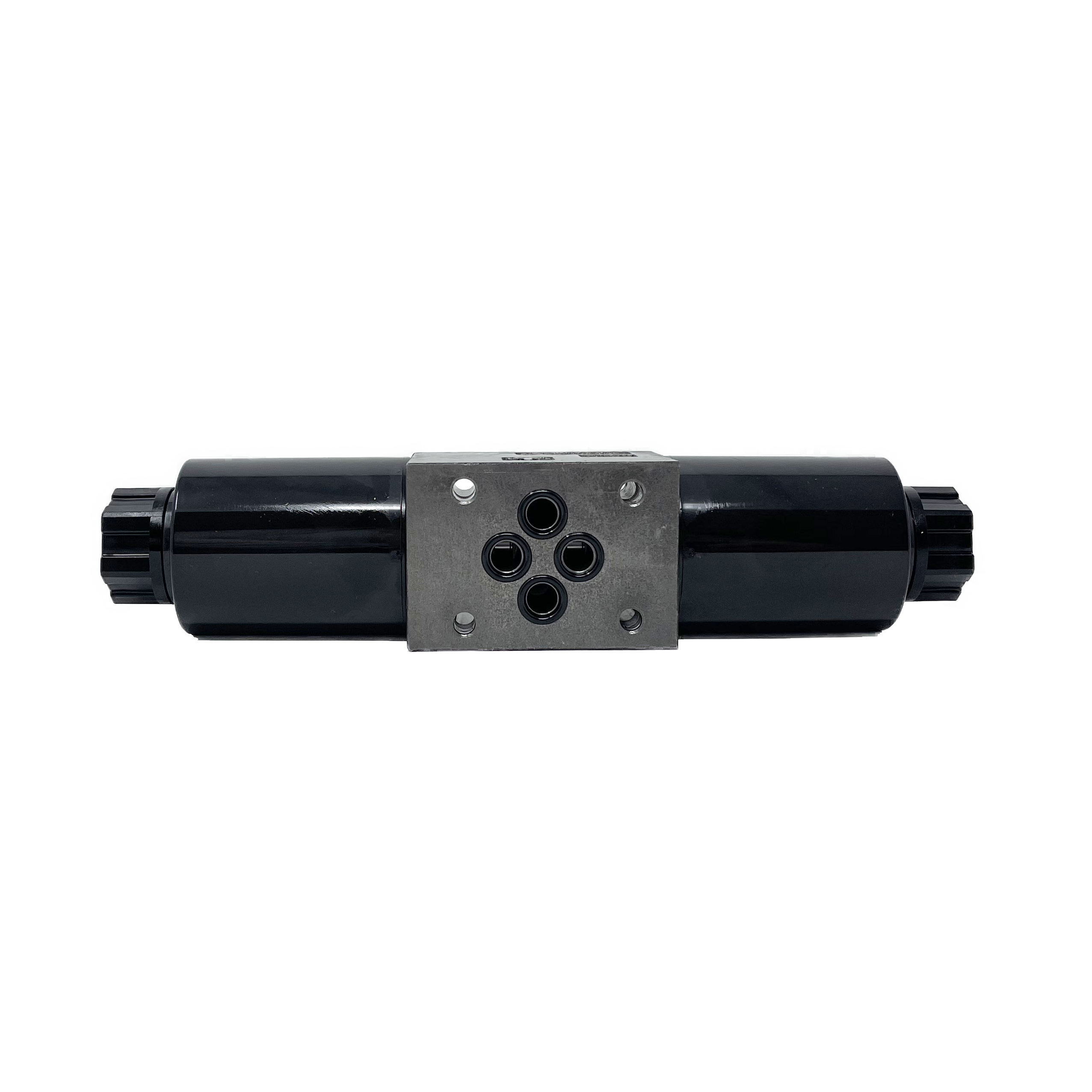

SA-G01-C4-D2-E31 : Nachi Solenoid Valve, 3P4W, D03 (NG6), 13.2GPM, 5075psi, All Ports Open Neutral, 24 VDC, DIN

Save $77.01
NachiSKU: SA-G01-C4-D2-E31
4-6 Weeks
Price:
$246.99 $324.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Greenwood, Indiana
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 13.2
Pressure Rating 5075
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration P, T, A, B Open in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 8.03
Length 1.81
Width 3.64
Weight 4.41

Description

The Nachi SA-G01 is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
