Deltrol Fluid ProductsSKU: 10011-88
1-3 Days
Price:
$66.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment
Flow Rating 40.0
Pressure Rating 5000
Operating Temp Range -30 to +250F
Seal Material NBR
Series S-210
Cartridge Cavity S410
Country of Manufacture United States/Vietnam
Height 2.5
Length 4.44
Width 2.5
Weight 2

Description

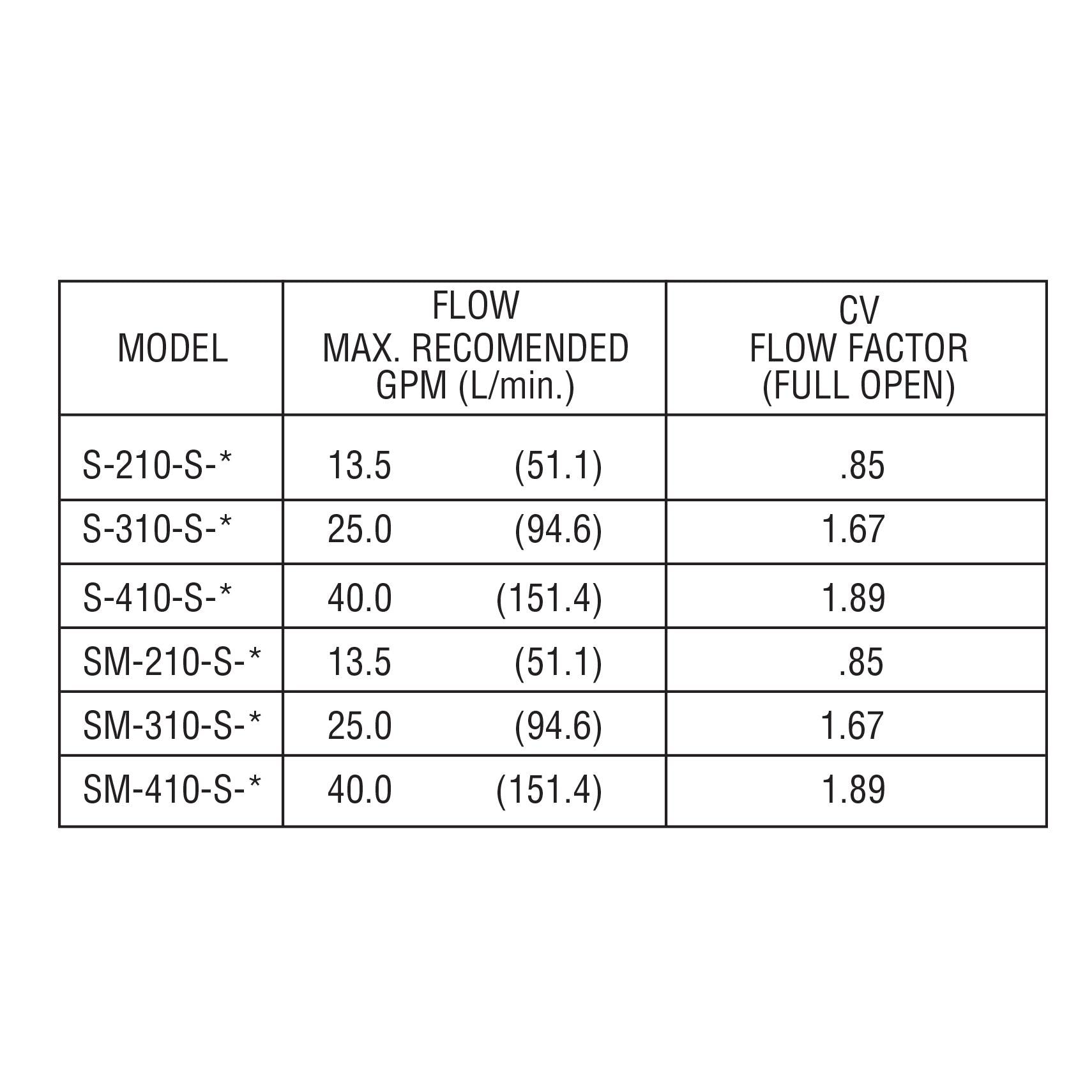

The Deltrol Fluid Products S-410 Adjustable Flow Control Needle Valve is a high-performance cartridge valve designed for shut-off applications with exceptional flow control. Capable of handling up to 5000 psi and flow rates of up to 40 gpm, it offers robust performance in demanding conditions. The valve features an optional SM needle for precise flow adjustment and positive shut-off in both directions. With a Cv flow factor of 1.89 and operating temperatures ranging from -30°F to +250°F, it is ideal for mineral-based fluids and high-pressure environments. This valve is also built for durability, requiring installation in a suitably strong body.
