Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Needle |
| Adjustment Type | Knob Adjustment |
| Flow Rating | 25.0 |
| Pressure Rating | 5000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | S-210 |
| Cartridge Cavity | S310 |
| Country of Manufacture | United States/Vietnam |
| Height | 2.5 |
| Length | 4.44 |
| Width | 2.5 |
| Weight | 2 |
Description

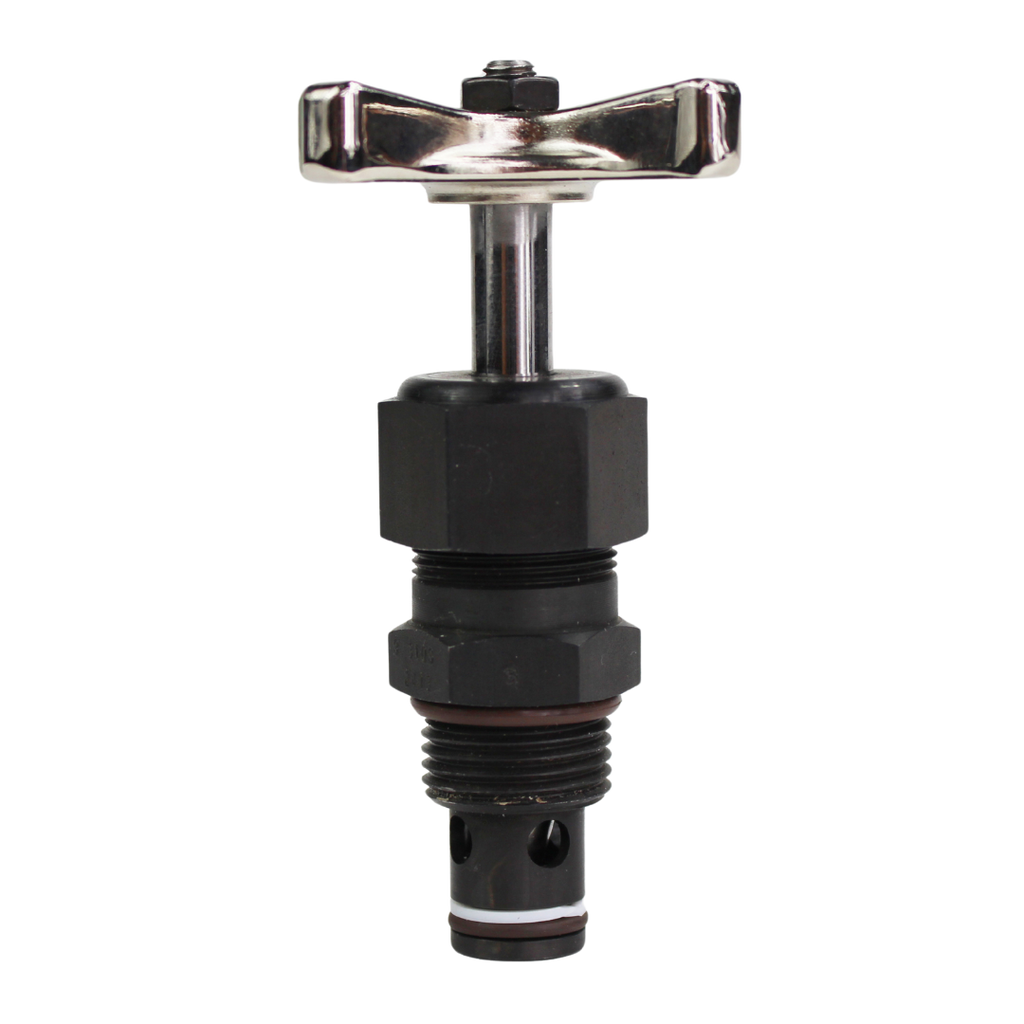

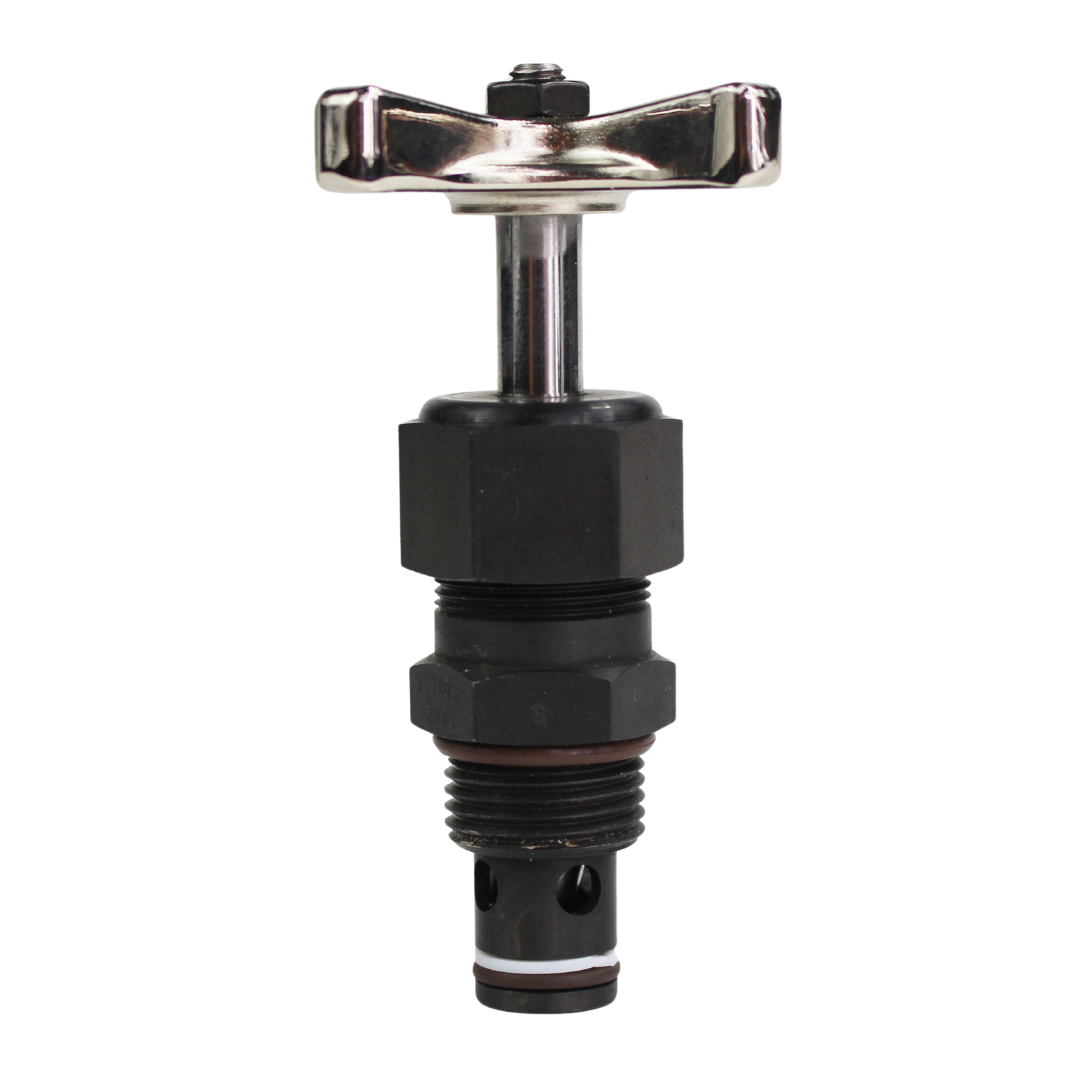

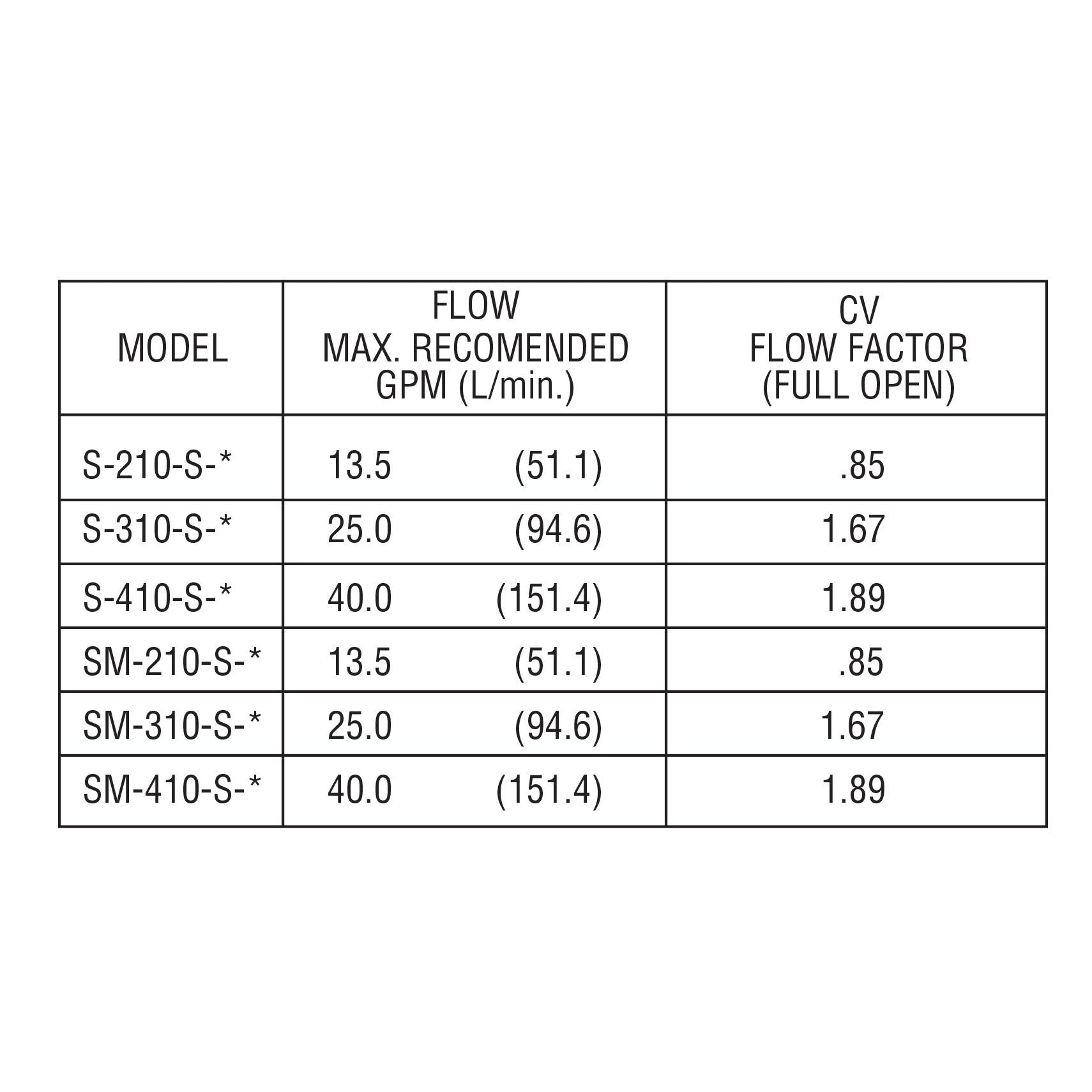

The Deltrol Fluid Products S-310 Adjustable Flow Control Needle Valve is a robust cartridge valve designed for high-pressure applications with a maximum rating of 5000 psi and a flow capacity of up to 25 gpm. It offers precise flow control and positive shut-off in either direction, with an optional SM needle for fine metering. Built to operate efficiently within temperatures from -30°F to +250°F, this valve is ideal for handling mineral-based fluids in demanding conditions. It features a Cv flow factor of 1.67 and is housed in a durable body to ensure reliable performance.
