Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Needle |
| Adjustment Type | Knob Adjustment |

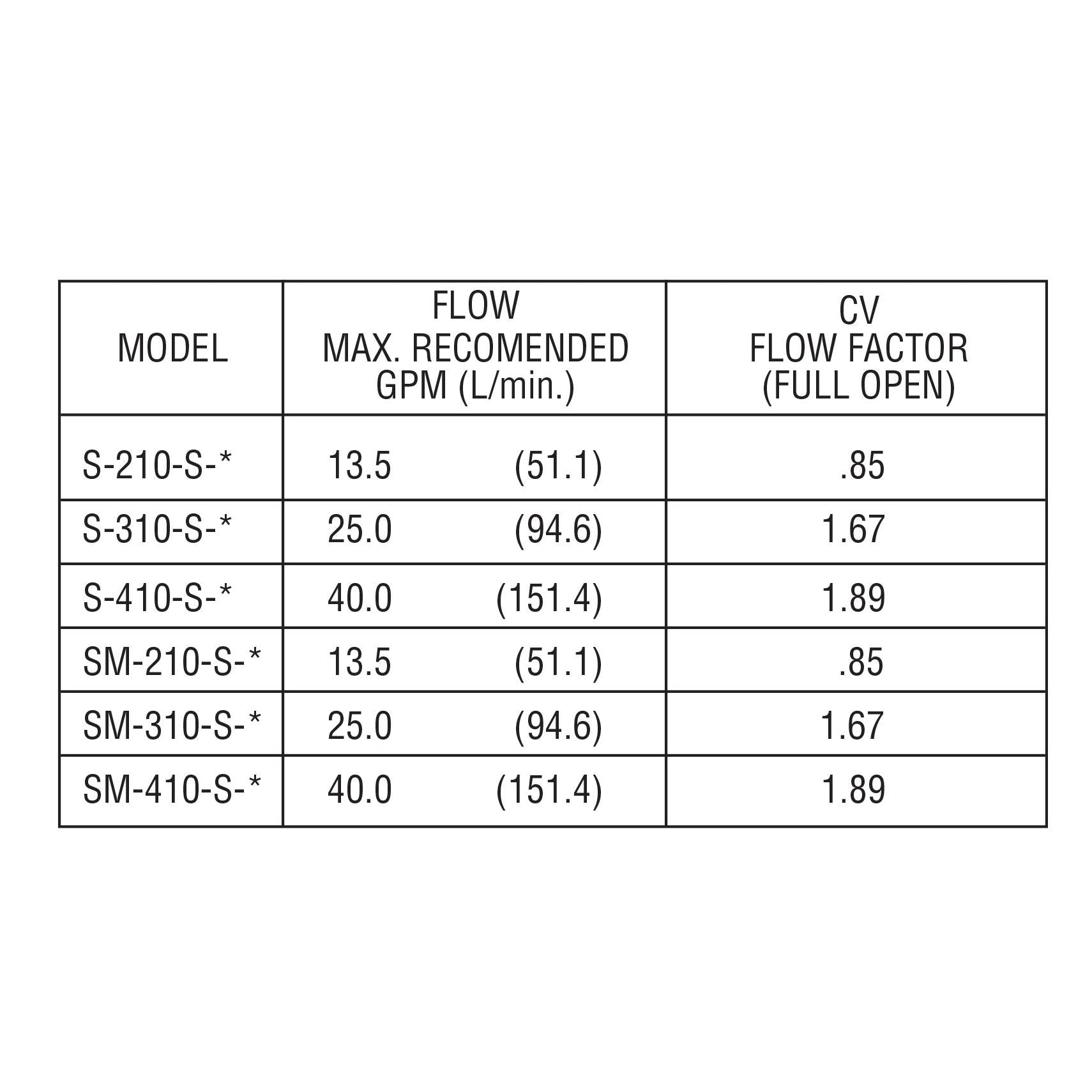

| Flow Rating | 13.5 |
| Pressure Rating | 5000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | S-210 |
| Cartridge Cavity | S210 |
| Country of Manufacture | United States/Vietnam |

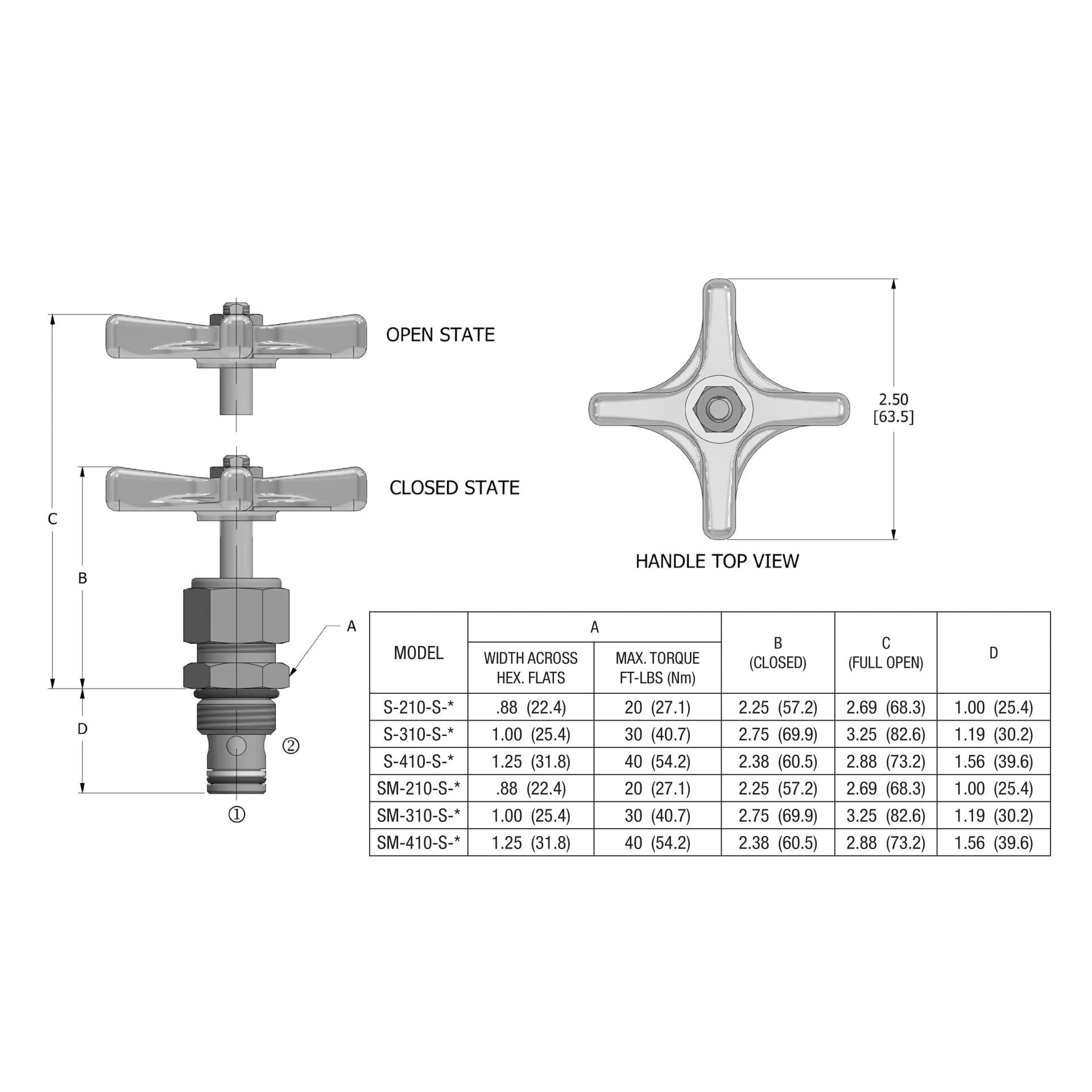

| Height | 2.5 |
| Length | 3.69 |
| Width | 2.5 |
| Weight | 2 |
Description

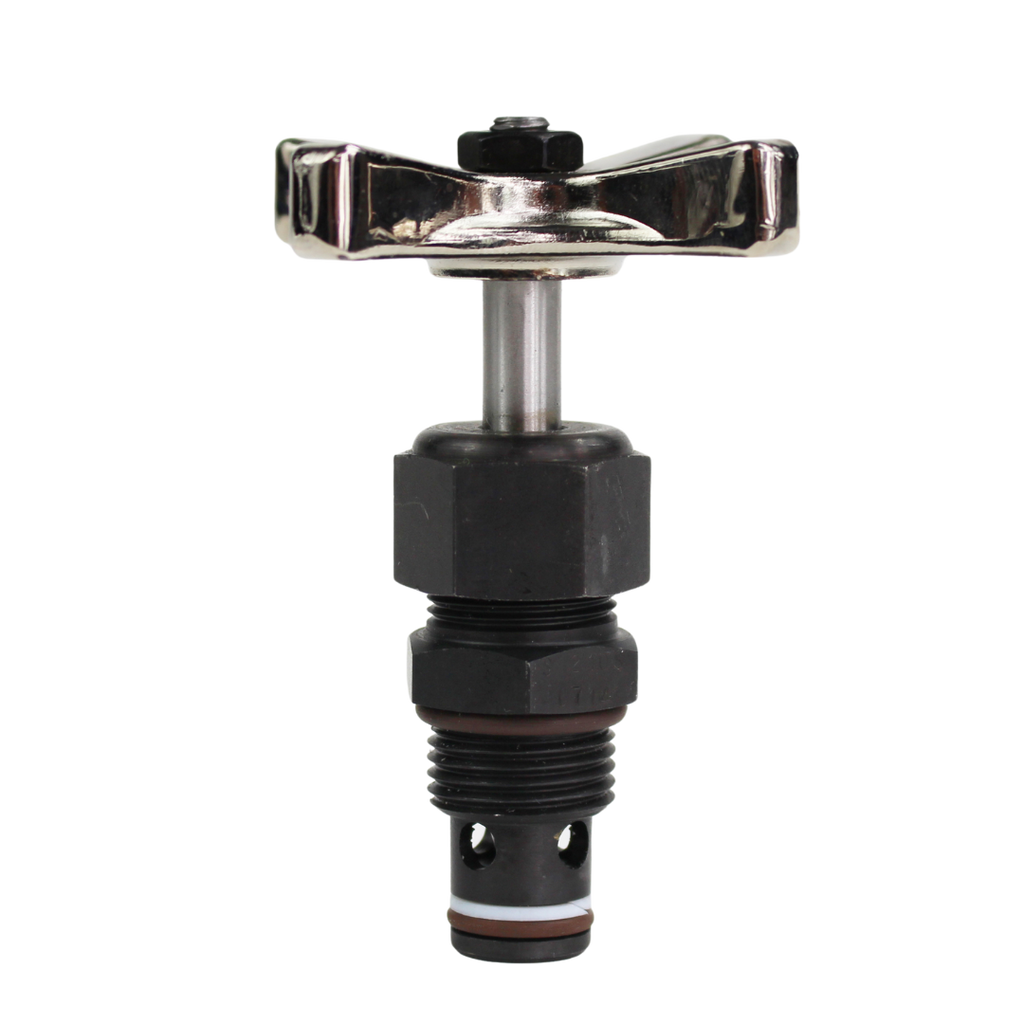

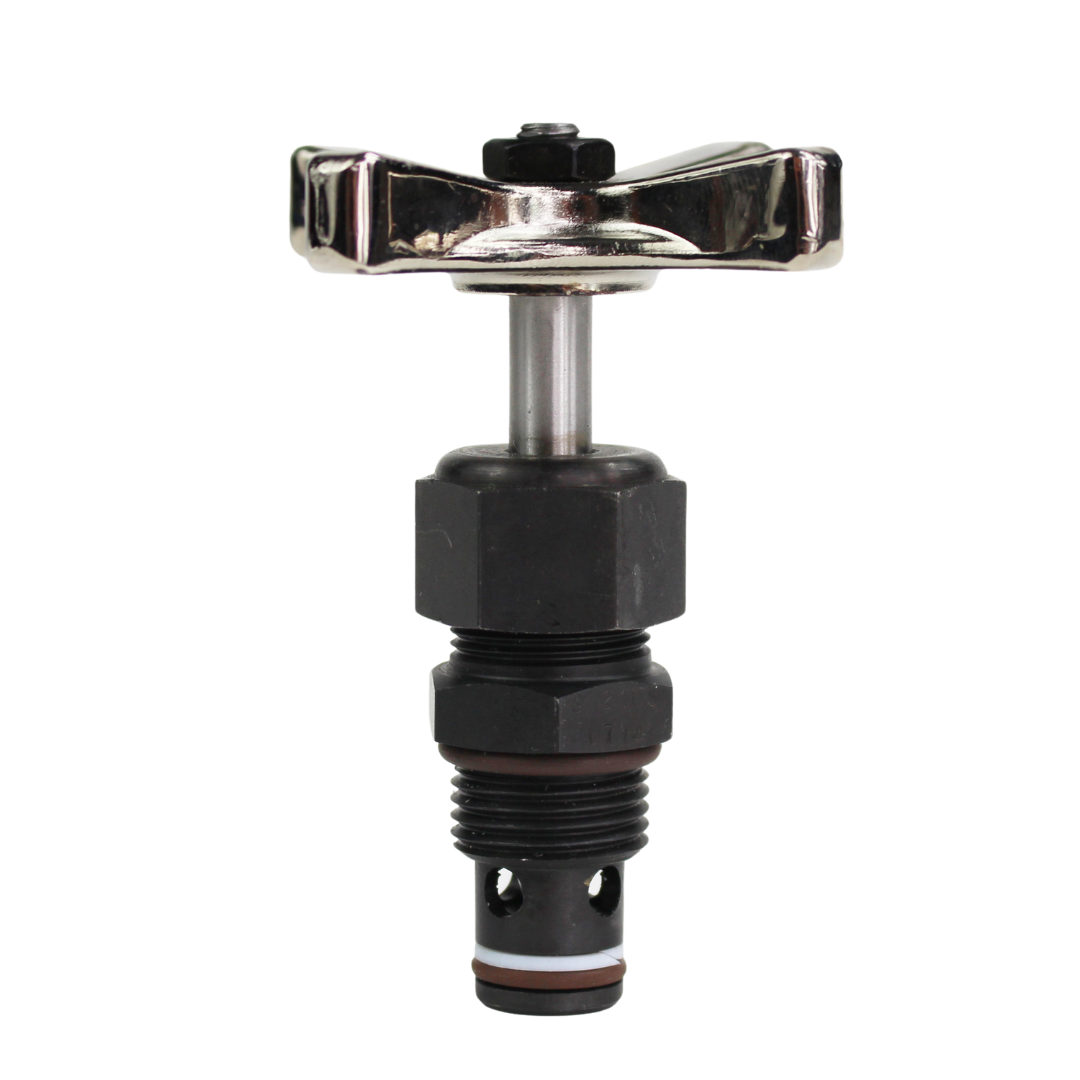

The Deltrol Fluid Products S-210 Adjustable Flow Control Needle Valve is a high-performance cartridge valve designed for precise flow regulation and reliable shut-off. With a maximum operating pressure of 5000 psi and a flow capacity of up to 13.5 gpm, it effectively manages high-pressure systems. The valve features an optional SM needle for fine flow adjustments and ensures positive shut-off in either direction. Built to handle temperatures from -30°F to +250°F, it is ideal for use with mineral-based fluids and is housed in a robust body to maintain performance under demanding conditions.
