Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 42 |
| Factory Location | Bowling Green, Ohio |
| Valve Type | Subplate/Manifold Mounted Valve |
| Valve Interface | D05 (NG10) |
| Flow Rating | 37 |
| Pressure Rating | 5100 |
| Actuation Type | Lever Operated |
| Spool Configuration | Cylinder Spool, All Ports Blocked in Neutral |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Czech Republic |
| Height | 5.51 |
| Length | 5.28 |
| Width | 1.77 |
| Weight | 7.00 |
Description

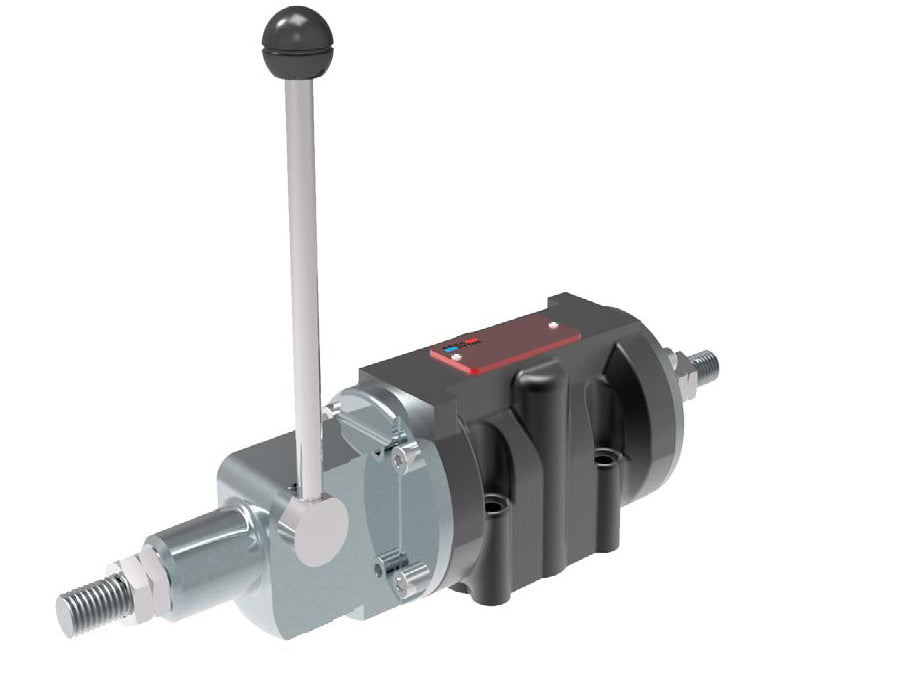

The Argo Hytos RPR1-103 directional valve is like a traffic controller for hydraulic systems, mounted on a manifold or subplate for easy integration. With its 3-position, 4-way design, it uses a cylinder spool to block all ports in the center position, creating a neutral state. When the manual lever is actuated, it directs hydraulic fluid to different ports, allowing precise control over machinery. Its spring return ensures it returns to the neutral position when not in use. This valve boasts a high flow capacity of up to 37 GPM (140LPM) and a maximum pressure rating of 5100psi (350 bar), making it suitable for a wide range of hydraulic applications. Additionally, its flexible installation options, interchangeable spools, and optional features like spool end position sensing and stroke limit enhance its versatility.
