Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5-7 Days |
| Factory Stock | 23 |
| Factory Location | Louisville, Kentucky |
| Service Manual | Click here to download |
| Port Size | 1/4" PTF |
| Pressure Rating | 250 |
| Operating Temp Range | -30 to 150 F |
| Body Material | Zinc |
| Seal Material | Nitrile rubber |
| Outlet Pressure Range | 5 to 125psi |
| Bonnet | N/A |
| Flow Scfm | 13 |
| Materials Of Construction | Zinc Body, Nylon Knob, TPV Valve, Acetal Valve Seat, Nitrile Elastomers |
| Service Parts | Not Repairable |
| Regulator Series | R46 |
| Regulator Type | General Purpose |
| Country of Manufacture | United Kingdom |
| Height | 1.65 |
| Length | 2.5 |
| Width | 1.65 |
| Weight | 0.2 |
Description

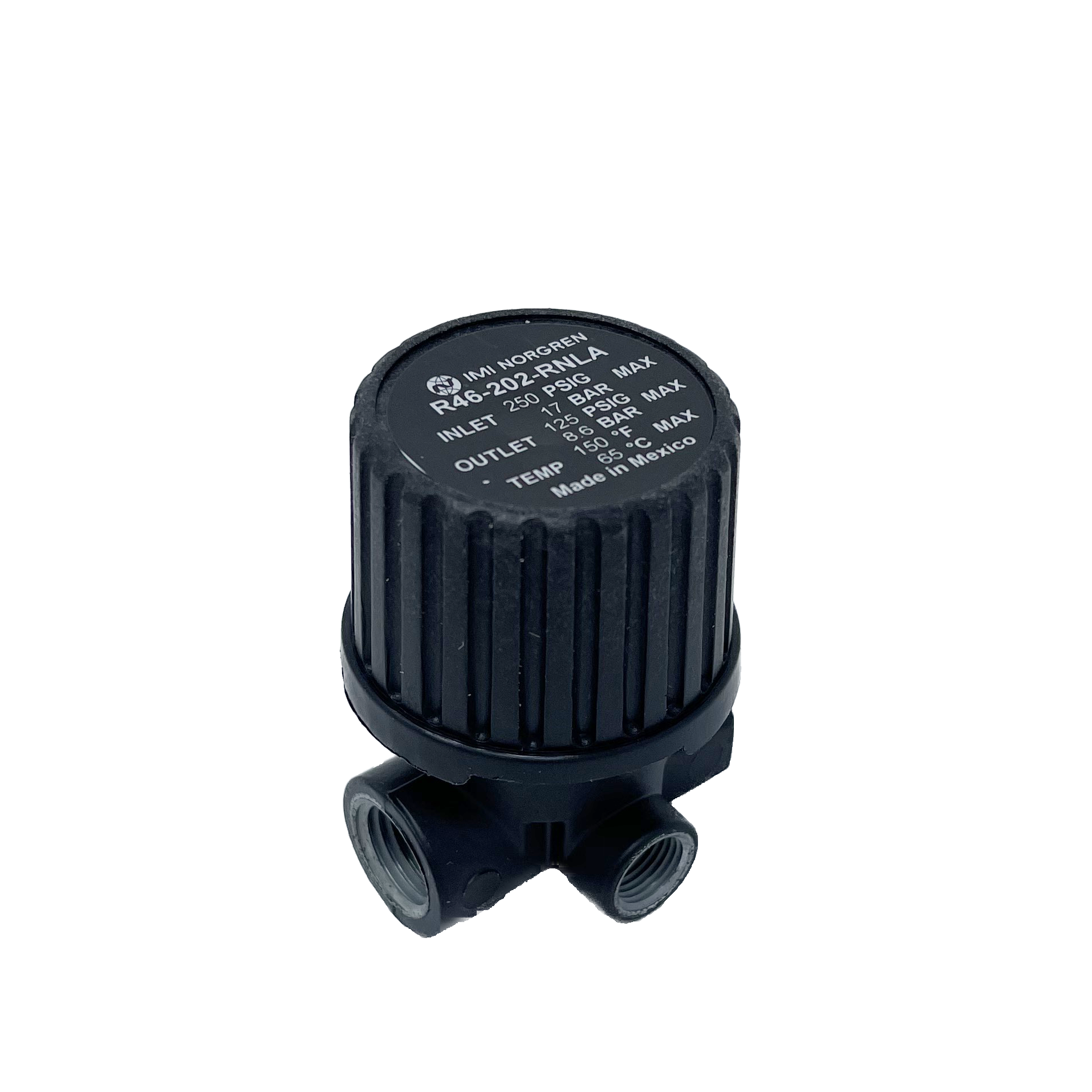

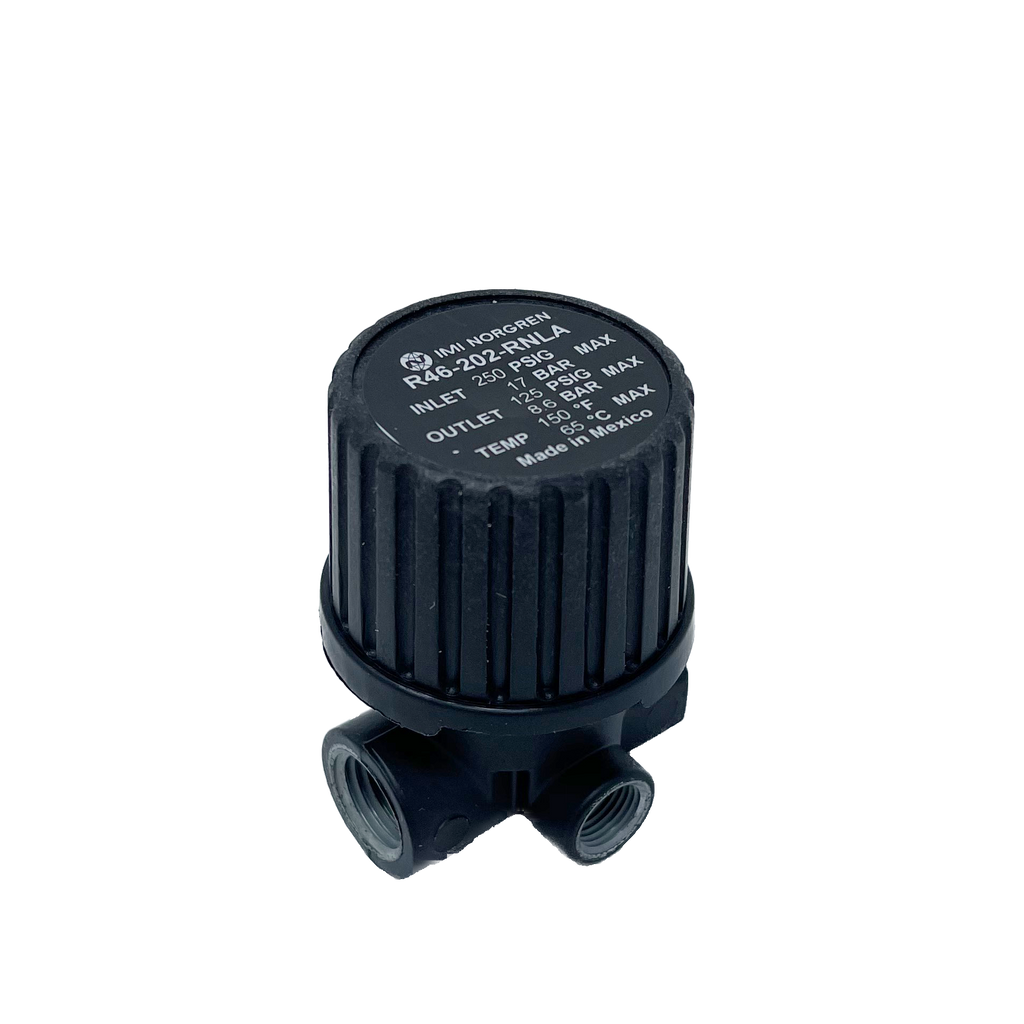

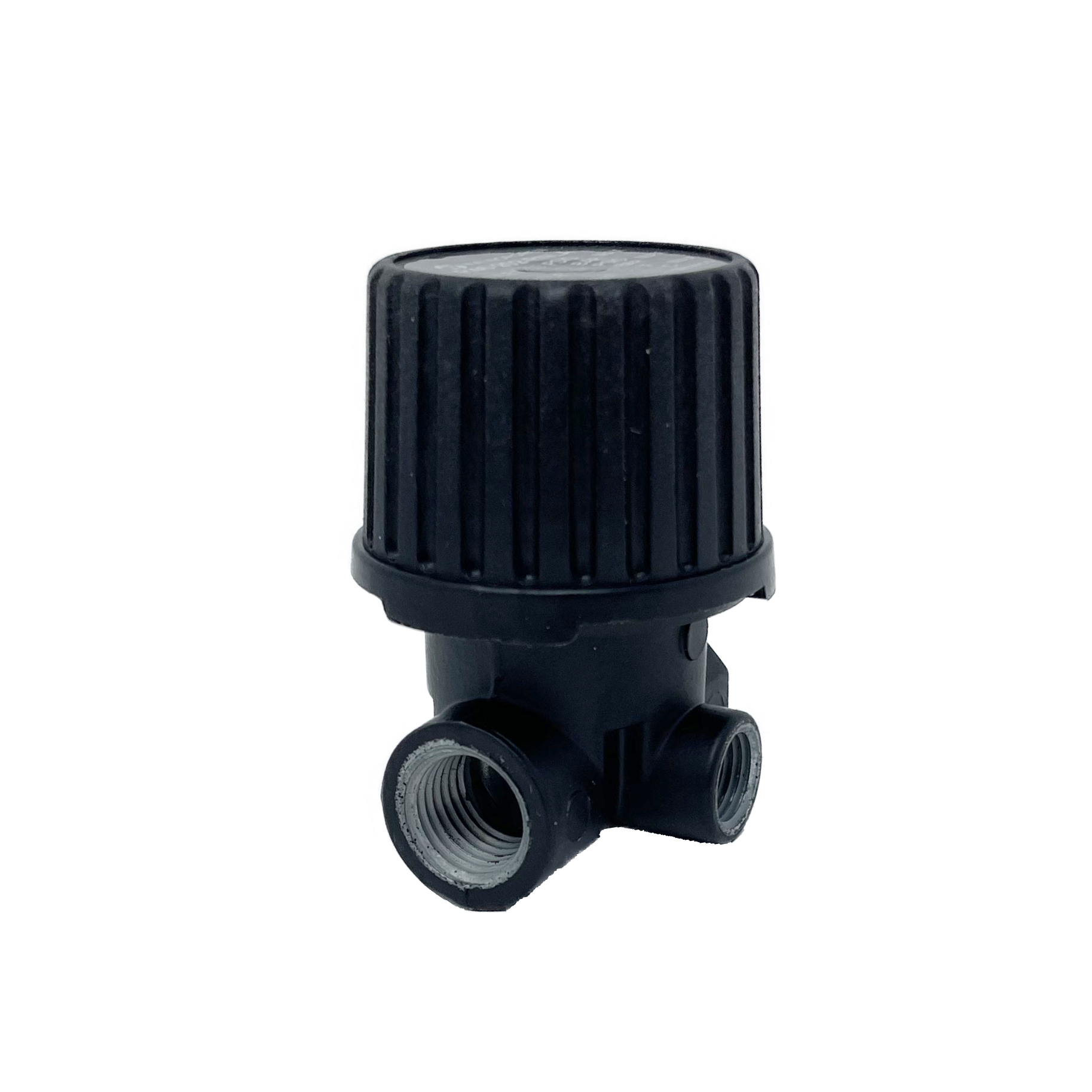

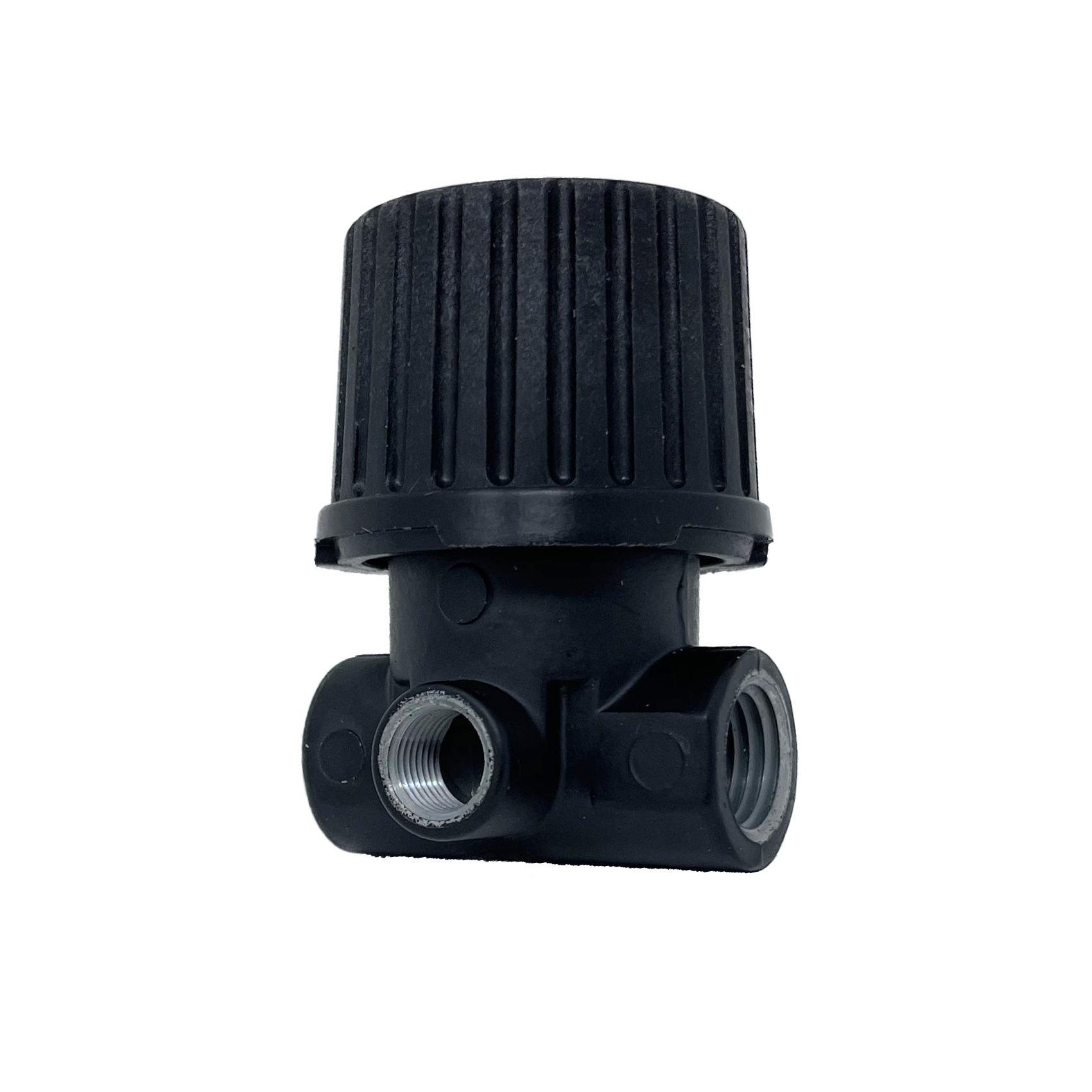

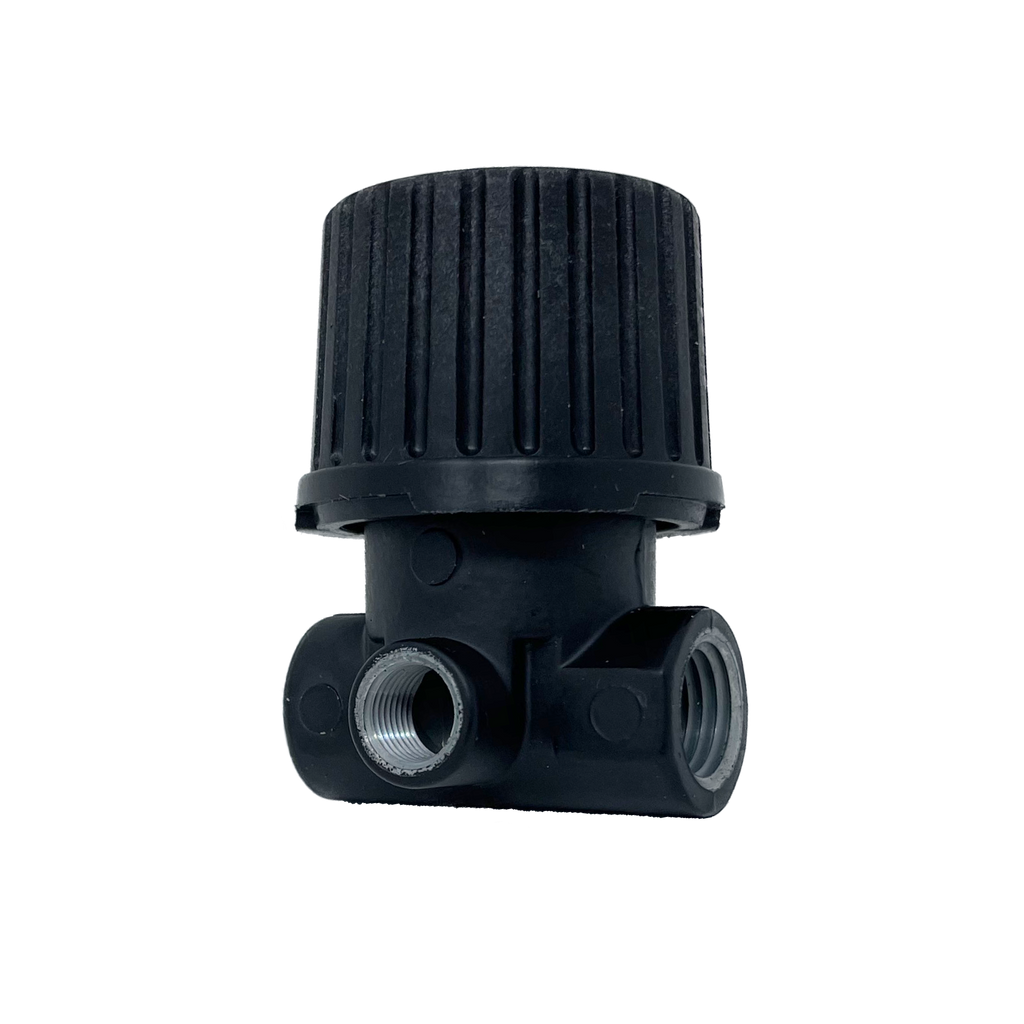

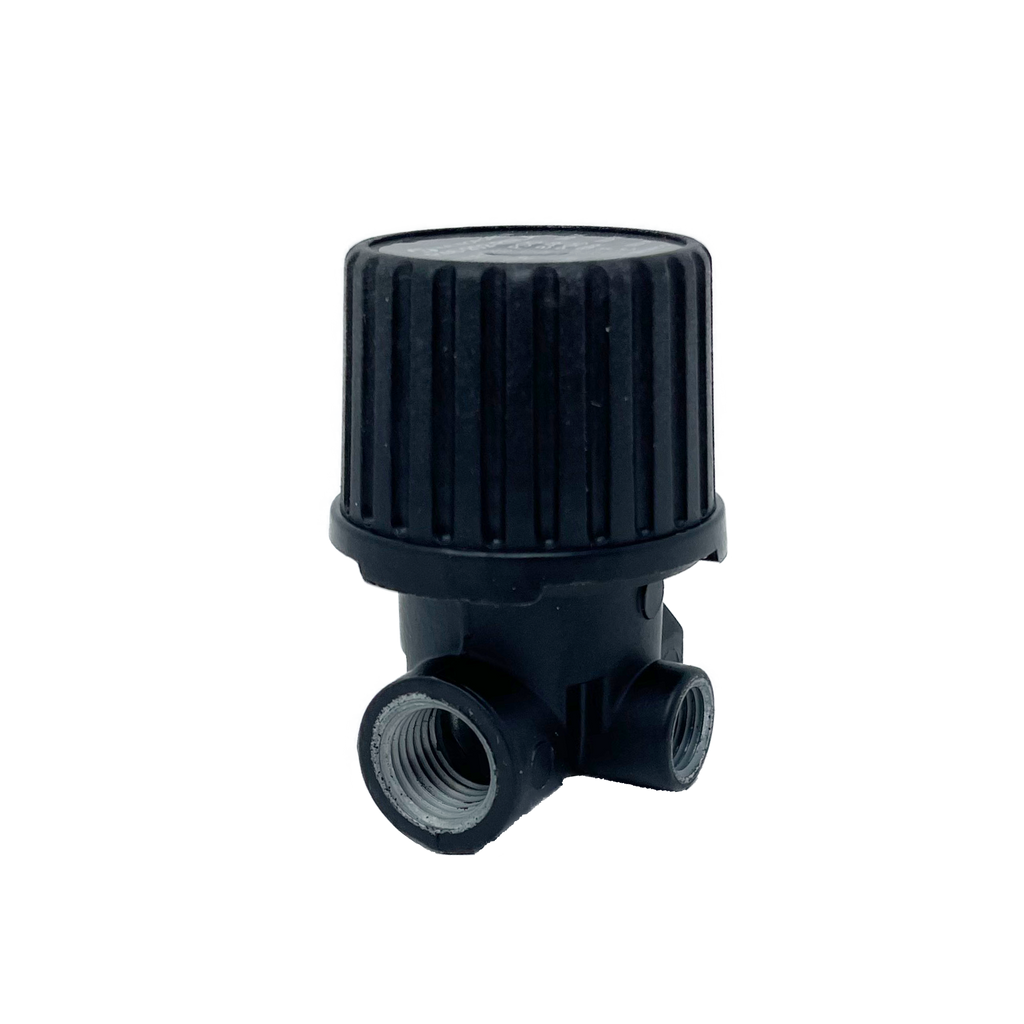

Norgren's R46 Miniature General Purpose Regulators are non-repairable regulators in a small compact design. Wrench flats for easy installation. Relieving piston design allows reduction of downstream pressure when the system is dead-ended. Choice of left to right or right to left flow.
