|Usually Ships Within||1-3 Days|
|Factory Location||Greenwood, Indiana|
|Data Sheet||Click here to download|
|Pump Shaft Size||7/8" Bore x 1/4" Key|
|Gpm At 1800 Rpm||16.6|
|Inlet Port||1.25" Code 61|
|Outlet Port||1" Code 61|
|Mount||SAE B 2-Bolt|
|Pump Control||Remote Pressure Comp Control|
|Drain Port||#8 SAE (1/2")|
|Port Orientation||Side Ported|
|Country of Manufacture||Japan|

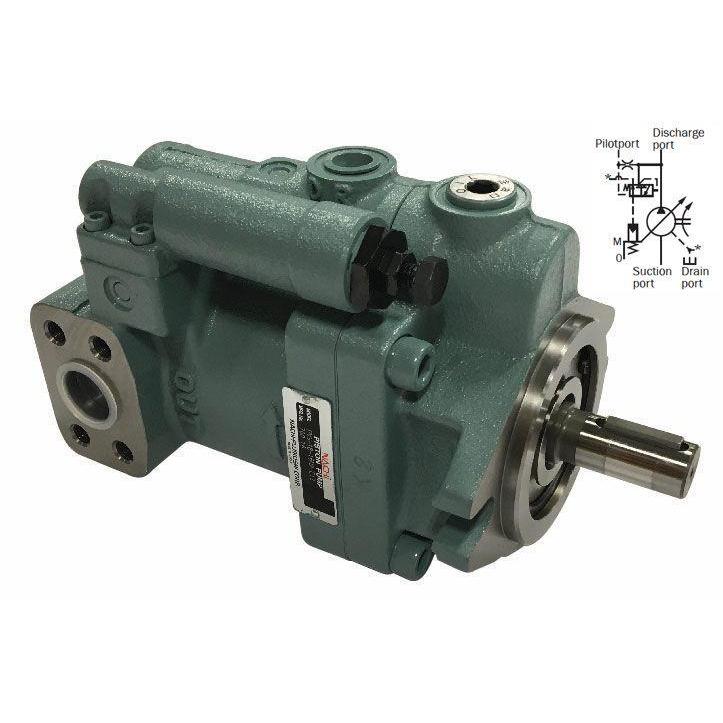

The Nachi-proprietary semi-circular barrel swash plate that receives pressure on its surface ensures a stable discharge volume at all times. This eliminates excess discharge volume, and enables the effective use of power corresponding to the load cycle. This "energy-saving type" conserves energy, reduces power loss, and helps to reduce hydraulic costs. Proprietary low-noise mechanisms are incorporated on the shoe, swash plate, valve plate, and other locations to ensure silent operation. In particular, a semi-circular barrel swash plate stabilizes operation characteristics to ensure silent operation.
