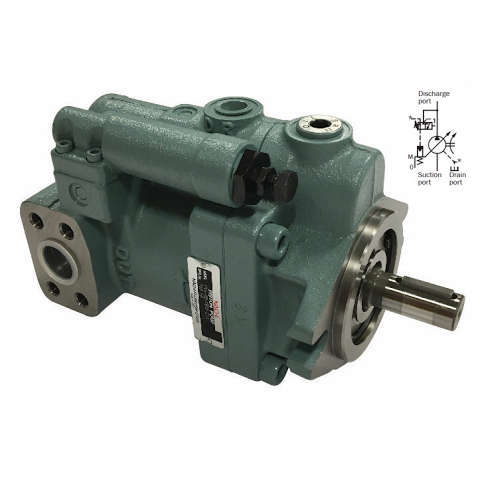

PVS-2B-35N1-U-12 : Nachi Variable Piston Pump, 35cc, 16.6GPM, 2000RPM, 3625psi, SAE B 2-Bolt, 7/8" Bore x 1/4" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported
Roll over image to zoom in Click on image to zoom
PVS-2B-35N1-U-12 : Nachi Variable Piston Pump, 35cc, 16.6GPM, 2000RPM, 3625psi, SAE B 2-Bolt, 7/8" Bore x 1/4" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported

PVS-2B-35N1-U-12 : Nachi Variable Piston Pump, 35cc, 16.6GPM, 2000RPM, 3625psi, SAE B 2-Bolt, 7/8" Bore x 1/4" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported

Save $892.01
NachiSKU: PVS-2B-35N1-U-12
1-3 Days
6
Price:
$2,645.99 $3,538.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 6
Factory Location Greenwood, Indiana
Shaft Size 7/8" Bore x 1/4" Key
Shaft Type Keyed
Pressure Rating 3625
Rotation Clockwise
Displacement 35
Gpm At 1800 Rpm 16.6
Max Speed 2000
Inlet Port 1.25" Code 61
Outlet Port 1" Code 61
Mount SAE B 2-Bolt
Pump Control Pressure Compensation Control
Pressure Range 286-1000psi
Drain Port #8 SAE (1/2")
Port Orientation Side Ported
Height 6.78
Length 8.76
Width 6.78
Weight 51

Description

The Nachi-proprietary semi-circular barrel swash plate that receives pressure on its surface ensures a stable discharge volume at all times. This eliminates excess discharge volume, and enables the effective use of power corresponding to the load cycle. This "energy-saving type" conserves energy, reduces power loss, and helps to reduce hydraulic costs. Proprietary low-noise mechanisms are incorporated on the shoe, swash plate, valve plate, and other locations to ensure silent operation. In particular, a semi-circular barrel swash plate stabilizes operation characteristics to ensure silent operation.
