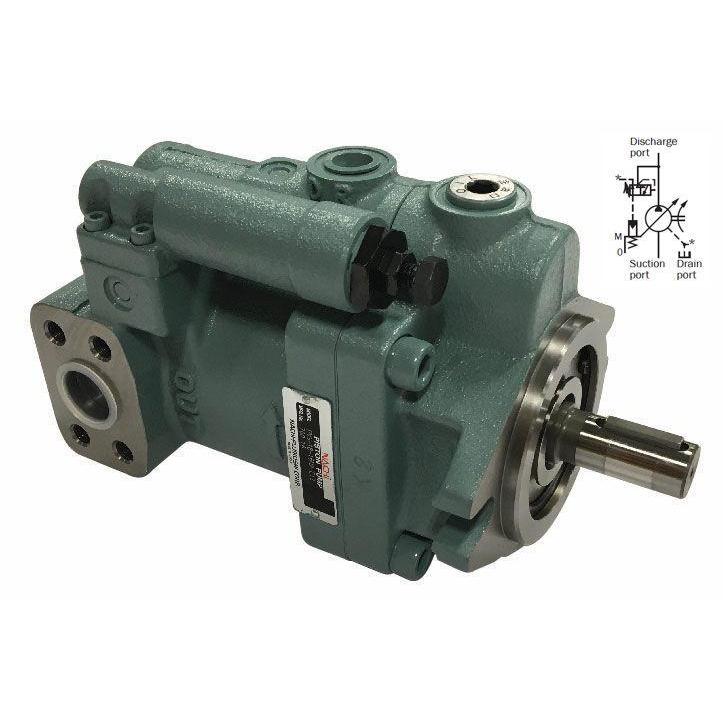

PVS-1B-22N1-E13 : Nachi PVS Variable Displacement Piston Pump, 22cc, 10.5GPM, 2000RPM, Pressure Comp, 290 to 1015psi Range

NachiSKU: PVS-1B-22N1-E13

Price:
$1,071
1-3 Days
34

Product Details

Usually Ships Within 1-3 Days
Factory Stock 34
Factory Location Greenwood, Indiana
Data Sheet Click here to download
Pump Shaft Size 3/4" Bore x 3/16" Key
Shaft Type Keyed
Pressure Rating 3625
Rotation Clockwise
Displacement 22
Gpm At 1800 Rpm 10.5
Max Speed 2000
Inlet Port 1" Code 61
Outlet Port 3/4" Code 61
Mount SAE A 2-Bolt
Pump Control Pressure Compensation Control
Pressure Range 286-1000psi
Drain Port #6 SAE (3/8")
Port Orientation Side Ported
Country of Manufacture Japan
Height 5.6
Length 7.15
Width 5.12
Weight 23

Description
