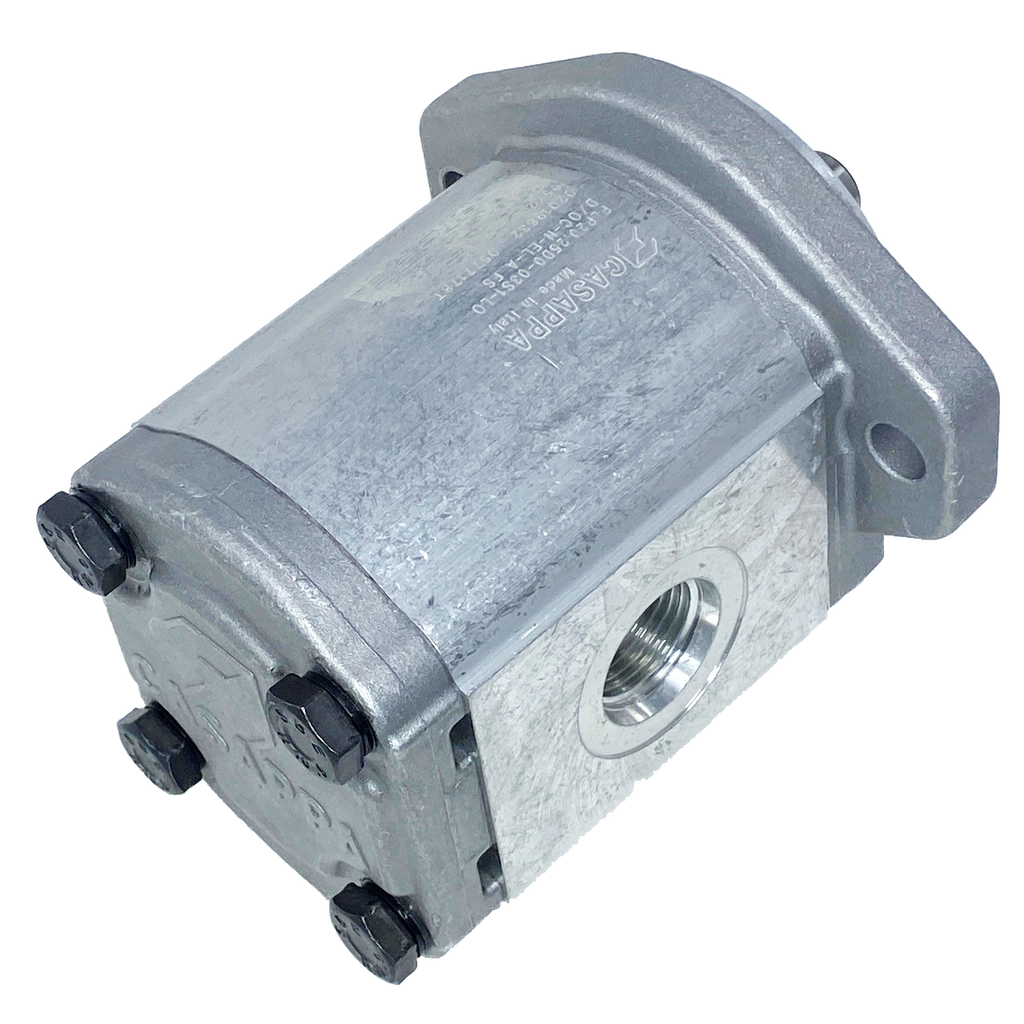

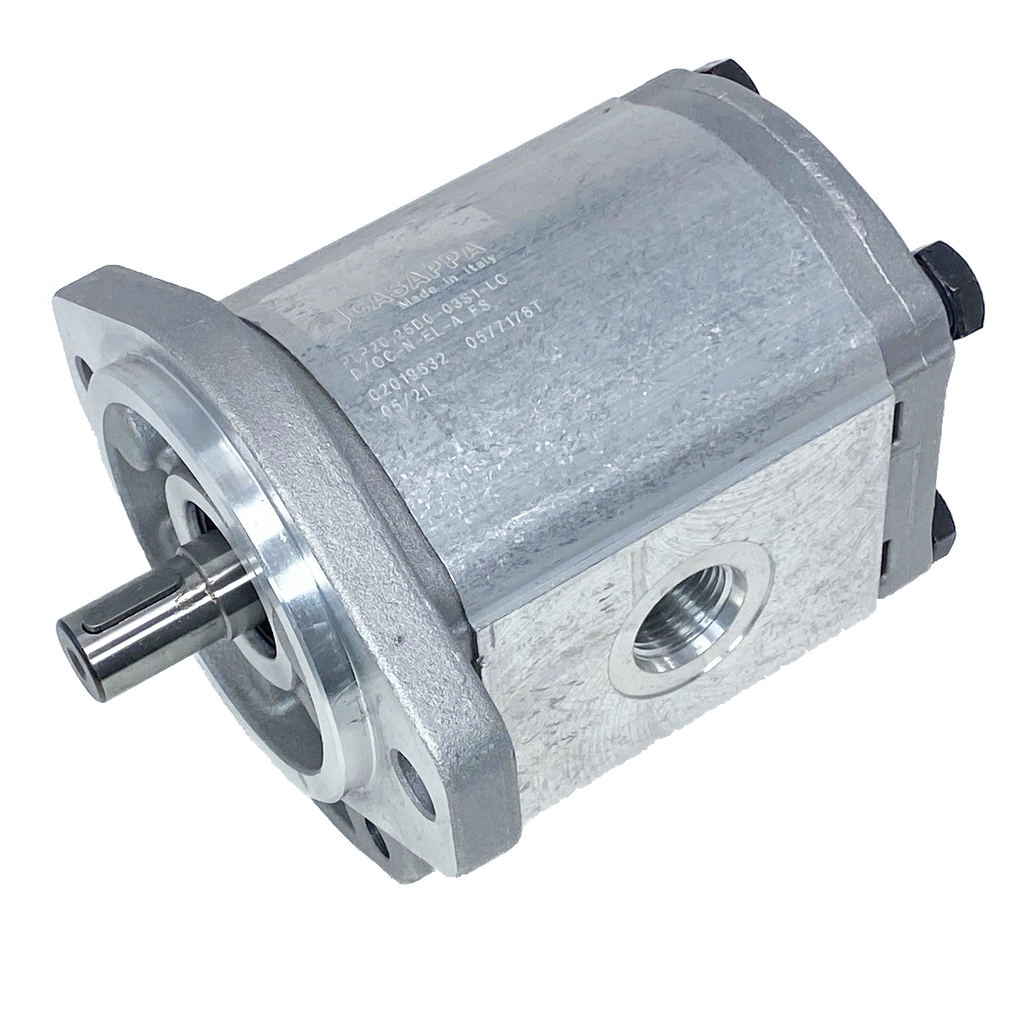

PLP20.25D0-31S1-LOD/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 2465psi Rated, 3045RPM, CW, 5/8" Bore x 5/32" Key Shaft, SAE A 2-Bolt Flange, 0.75 (3/4") #12 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & Flange
PLP20.25D0-31S1-LOD/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 2465psi Rated, 3045RPM, CW, 5/8" Bore x 5/32" Key Shaft, SAE A 2-Bolt Flange, 0.75 (3/4") #12 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & Flange
Roll over image to zoom in Click on image to zoom
PLP20.25D0-31S1-LOD/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 2465psi Rated, 3045RPM, CW, 5/8" Bore x 5/32" Key Shaft, SAE A 2-Bolt Flange, 0.75 (3/4") #12 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & FlangePLP20.25D0-31S1-LOD/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 2465psi Rated, 3045RPM, CW, 5/8" Bore x 5/32" Key Shaft, SAE A 2-Bolt Flange, 0.75 (3/4") #12 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & Flange

PLP20.25D0-31S1-LOD/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 2465psi Rated, 3045RPM, CW, 5/8" Bore x 5/32" Key Shaft, SAE A 2-Bolt Flange, 0.75 (3/4") #12 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & Flange

Save $22.53
CasappaSKU: PLP20.25D0-31S1-LOD/OC-N-EL
Same Day
1
Price:
$427.99 $450.52

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Batavia, IL
Material Aluminum Body Aluminum Flange And Cover
Shaft Size 5/8" Bore x 5/32" Key
Shaft Type Keyed
Pressure Rating 2465
Rotation Clockwise
Displacement 26.42
Gpm At 1800 Rpm 12.56
Max Speed 3045
Inlet Port 0.75 (3/4") #12 SAE
Outlet Port 0.625 (5/8") #10 SAE
Clamp Group Size Group 2 Pump
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 4.51
Length 6.26
Width 5.12
Weight 7.040000000000002

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
