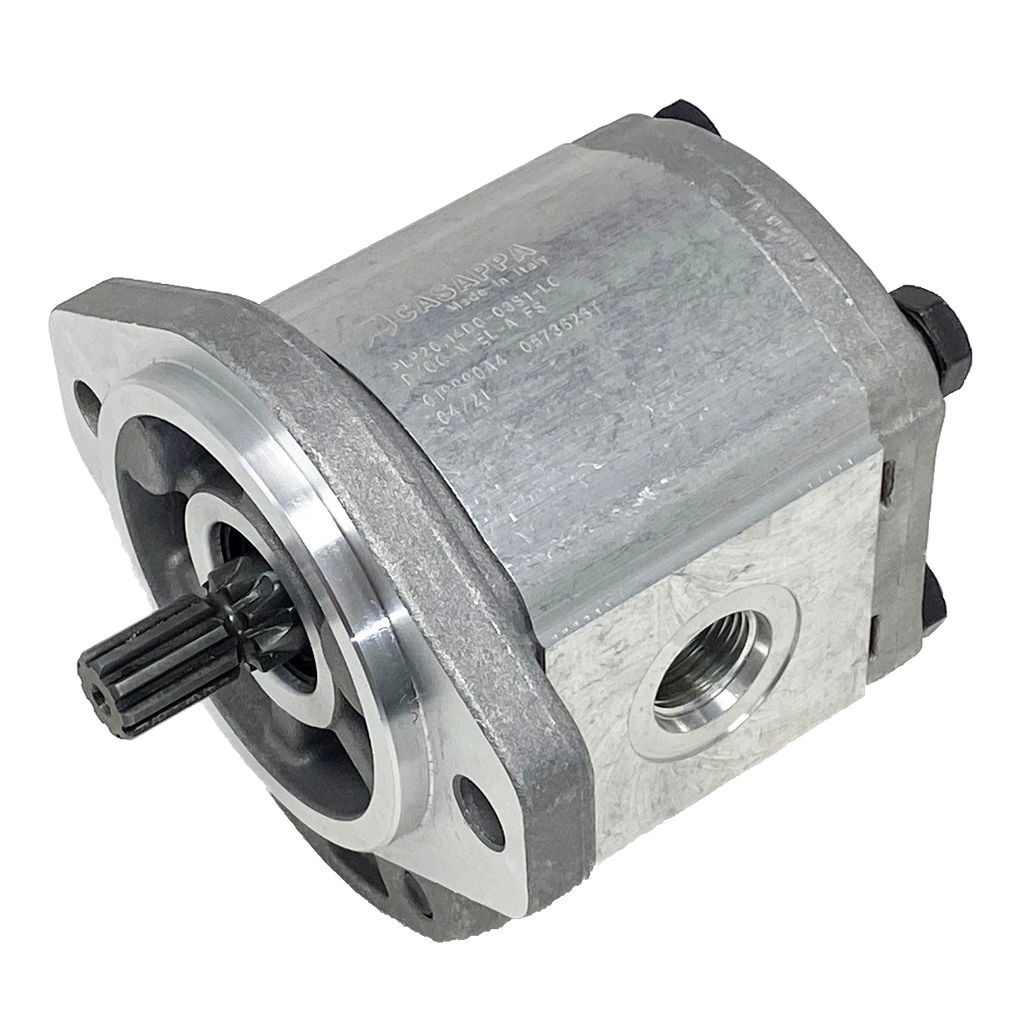

PLP20.16D0-49S1-LOF/OC-S7-N-EL-FS : Casappa Polaris Gear Pump, 16.85cc, 3625psi Rated, 3000RPM, CW, 5/8" Keyed Shaft, SAE A 2-Bolt Flange, 1" #16 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body & Flange

Save $52.01
CasappaSKU: CRP04971-5/8
Same Day

Sale price$518.99 Regular price$571.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Batavia, IL
Material Aluminum Body Aluminum Flange And Cover
Shaft Size 9T 16/32dp
Shaft Type Splined
Pressure Rating 3625
Rotation Clockwise
Displacement 16.85
Gpm At 1800 Rpm 8.01
Max Speed 3000
Inlet Port 0.75 (3/4") #12 SAE
Outlet Port 0.625 (5/8") #10 SAE
Clamp Group Size Group 2 Pump
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 4.51
Length 5.69
Width 5.12
Weight 6.1400000000000015


The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
