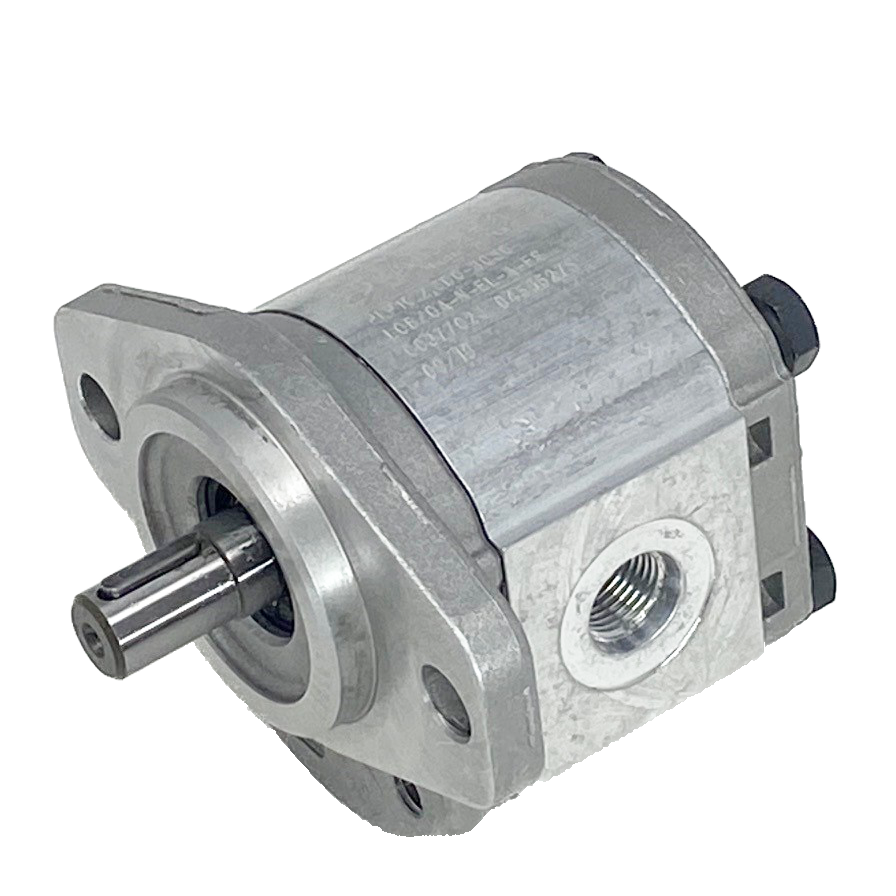

PLP10.3,15D0-30S0-LOB/OA-N-EL : Casappa Polaris Gear Pump, 3.34cc, 3770psi Rated, 4000RPM, CW, 1/2" Bore x 1/8" Key Shaft, SAE AA 2-Bolt Flange, 0.5 (1/2") #8 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & Flange

Save $14.58
CasappaSKU: PLP10.3,15D0-30S0-LOB/OA-N-EL
20 Weeks

Sale price$276.99 Regular price$291.57

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Aluminum Body Aluminum Flange And Cover
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Pressure Rating 3770
Rotation Clockwise
Displacement 3.34
Gpm At 1800 Rpm 1.59
Max Speed 4000
Inlet Port 0.5 (1/2") #8 SAE
Outlet Port 0.375 (3/8") #12 SAE
Clamp Group Size Group 1 Pump
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 3.16
Length 4.05
Width 4
Weight 2.3


The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
