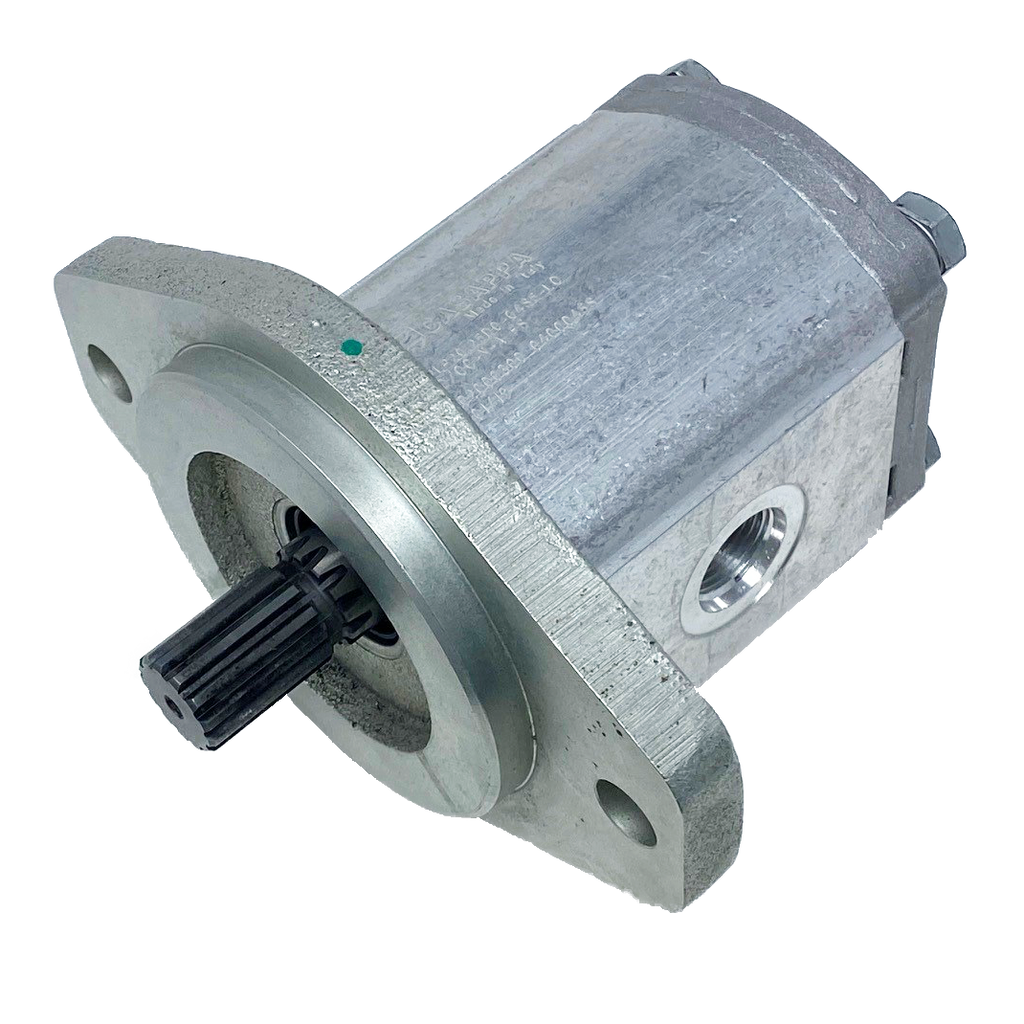

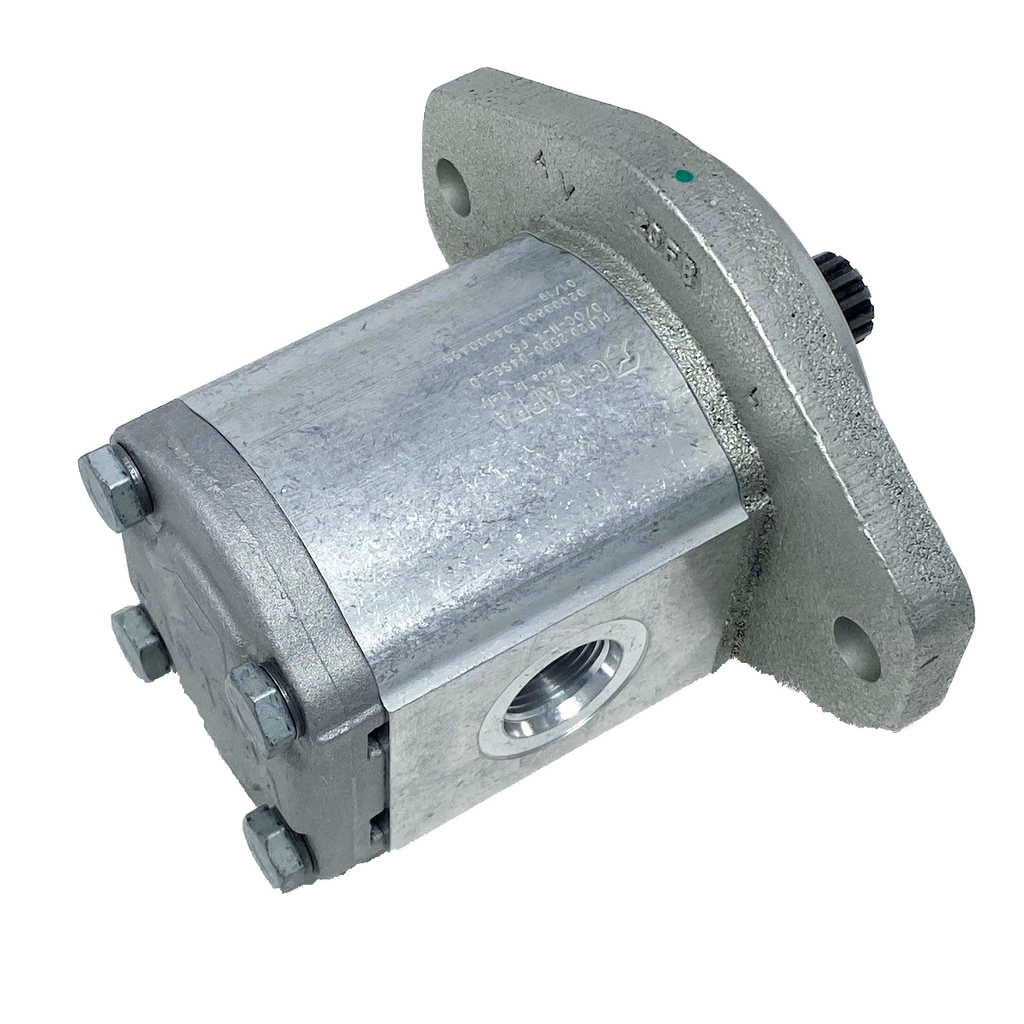

PHM20.31,5B0-04S5-LOC/OG-N-L : Casappa Polaris Gear Motor, 33.03cc, 2900psi Rated, 2500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body Cast Iron Flange And Cover
PHM20.31,5B0-04S5-LOC/OG-N-L : Casappa Polaris Gear Motor, 33.03cc, 2900psi Rated, 2500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body Cast Iron Flange And Cover
Roll over image to zoom in Click on image to zoom
PHM20.31,5B0-04S5-LOC/OG-N-L : Casappa Polaris Gear Motor, 33.03cc, 2900psi Rated, 2500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body Cast Iron Flange And CoverPHM20.31,5B0-04S5-LOC/OG-N-L : Casappa Polaris Gear Motor, 33.03cc, 2900psi Rated, 2500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body Cast Iron Flange And Cover

PHM20.31,5B0-04S5-LOC/OG-N-L : Casappa Polaris Gear Motor, 33.03cc, 2900psi Rated, 2500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 1.25" #20 SAE Outlet, Cast Iron Body Cast Iron Flange And Cover

Save $38.74
CasappaSKU: PHM20.31,5B0-04S5-LOC/OG-N-L
20 Weeks
Price:
$735.99 $774.73

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Cast Iron Body Cast Iron Flange And Cover
Shaft Size 13T 16/32dp
Shaft Type Splined
Pressure Rating 2900
Rotation Reversible Internal Drain
Displacement 33.03
Gpm At 1800 Rpm 15.71
Max Speed 2500
Inlet Port 0.625 (5/8") #10 SAE
Outlet Port 1.25" #20 SAE
Clamp Group Size Group 2 Motor
Port Orientation Side
Motor Pressure Rating 2900
Country of Manufacture Country of Manufacture: Italy
Height 5
Length 6.7299999999999995
Width 3.25
Weight 18.788

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
