Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | P-FPMS |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.05 |
| Width | 0.7 |
| Weight | 0.31 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPSM |
Description

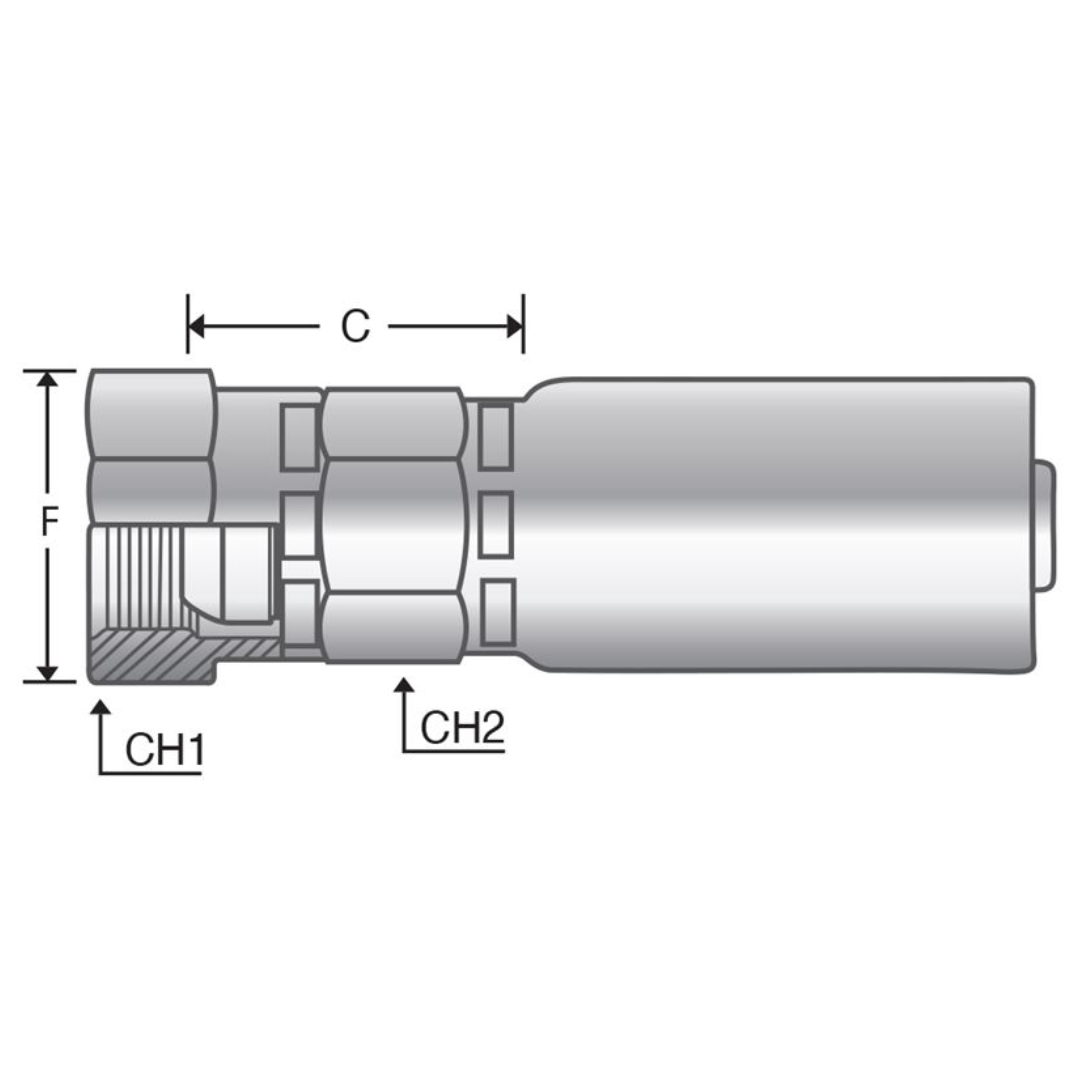

The Alfagomma One-Piece AlfaCrimp P-FPMS Fitting is a straight, carbon steel fitting designed to connect Piranhaflex PF321TC hoses to an NPSM (National Pipe Straight Mechanical) female swivel connection with a 60° seat. This fitting uses a non-skive crimp design, which means there's no need to remove or prep any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. The female swivel design allows for flexibility in positioning, making it ideal for fluid power systems where a reliable, durable, and leak-resistant connection is needed, especially in high-pressure applications. This fitting is specifically designed for use with Piranhaflex PF321TC hose, ensuring a secure, long-lasting connection.
