Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | P-FJDH |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.34 |
| Width | 0.7 |
| Weight | 0.32 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | JIC |
Description

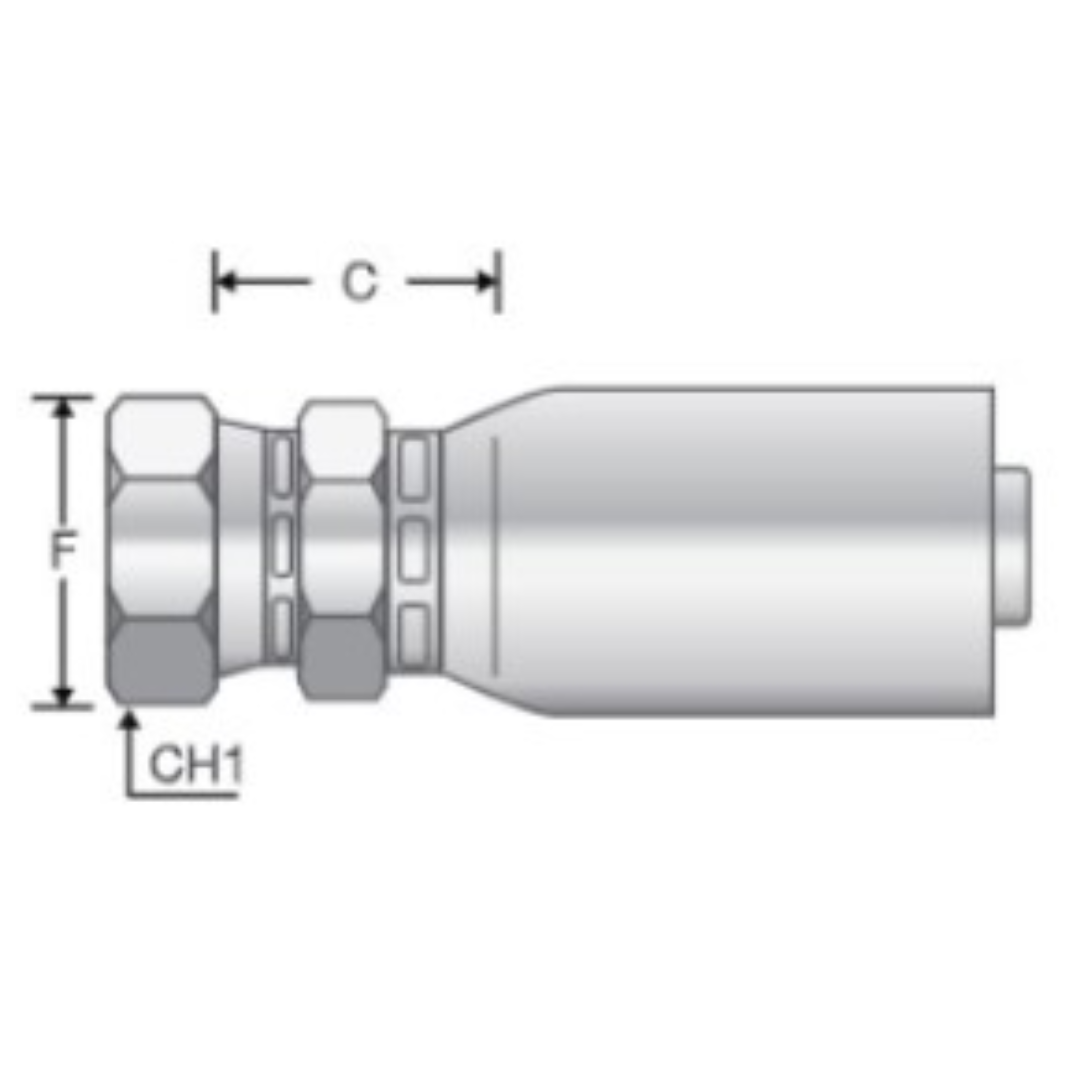

The Alfagomma One-Piece AlfaCrimp P-FJDH Fitting is a straight, carbon steel fitting designed to connect Piranhaflex PF321TC hoses to a JIC (Joint Industrial Council) female connection with a 37° seat. This fitting uses a non-skive crimp design, meaning there's no need to remove or prep any part of the hose before installation, making the process more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. The 37° female seat creates a secure and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require durable, leak-resistant connections. This fitting is specifically designed for use with Piranhaflex PF321TC hose, ensuring a long-lasting, secure connection in demanding environments.
