Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | P-MNPT |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 3.8299999999999996 |
| Width | 0.5 |
| Weight | 0.23 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPTF |
Description

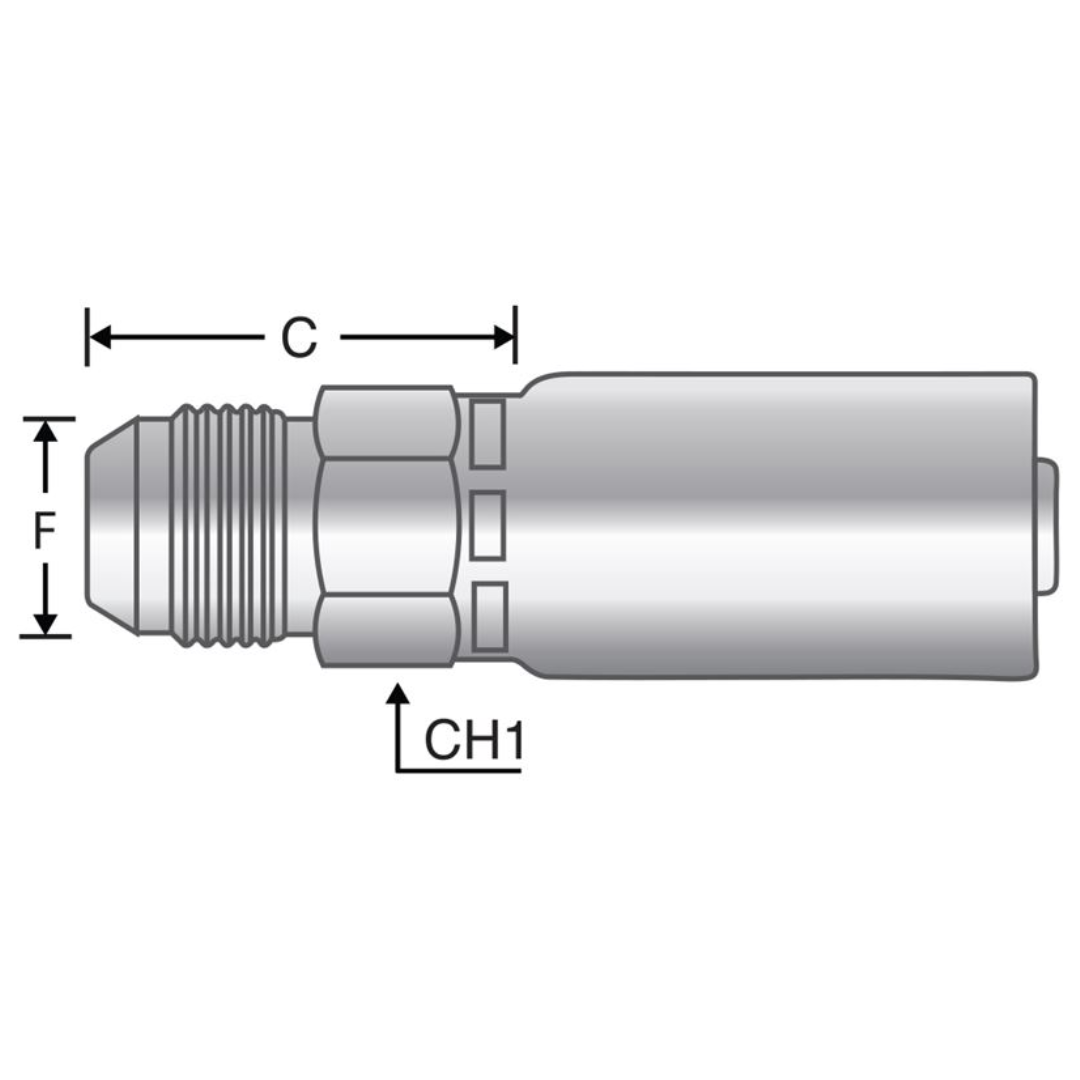

The Alfagomma One-Piece AlfaCrimp P-MNPT Fitting is a straight, carbon steel fitting designed to connect hoses to an NPTF (National Pipe Tapered Fuel) solid male connection with a 60° seat. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process more efficient and hassle-free. The fitting is specifically designed for use with Piranhaflex PF321TC hose, ensuring a strong, leak-proof connection. A crimp fitting works by tightly compressing the hose onto the fitting, providing a reliable and durable seal. This fitting is ideal for fluid power systems requiring secure, high-pressure connections, especially in demanding applications like industrial and hydraulic systems.
